DC-DC преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Количество выходов | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Тип крепления | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TEP 100-2411WIR-CMDC/DC CONVERTER 5V 100W |
0 |
|
Технический лист |
TEP 100WIRCM (100W) | Box | Active | Enclosed | 9V | 36V | 1 | 5V | - | - | - | 20A | 100W | 2.25 kV | ITE (Commercial), Railway | 93% | -40°C ~ 75°C (With Derating) | Chassis Mount | 3.35" L x 2.40" W x 1.33" H (85.1mm x 61.0mm x 33.8mm) | CB, CE, cURus | - |
|
TEP 100-2411WIR-CMFDC/DC CONVERTER 5V 100W |
0 |
|
Технический лист |
TEP 100WIRCMF (100W) | Box | Active | Enclosed | 9V | 36V | 1 | 5V | - | - | - | 20A | 100W | 2.25 kV | ITE (Commercial), Railway | 93% | -40°C ~ 75°C (With Derating) | Chassis Mount | 3.35" L x 2.40" W x 1.33" H (85.1mm x 61.0mm x 33.8mm) | CB, CE, cURus | - |
|
|
TEP 100-2412WIR-CMDC/DC CONVERTER 12V 101W |
0 |
|
Технический лист |
TEP 100WIRCM (100W) | Box | Active | Enclosed | 9V | 36V | 1 | 12V | - | - | - | 8.4A | 101W | 2.25 kV | ITE (Commercial), Railway | 90% | -40°C ~ 75°C (With Derating) | Chassis Mount | 3.35" L x 2.40" W x 1.33" H (85.1mm x 61.0mm x 33.8mm) | CB, CE, cURus | - |
|
|
TEP 100-2412WIR-CMFDC/DC CONVERTER 12V 101W |
0 |
|
Технический лист |
TEP 100WIRCMF (100W) | Box | Active | Enclosed | 9V | 36V | 1 | 12V | - | - | - | 8.4A | 101W | 2.25 kV | ITE (Commercial), Railway | 90% | -40°C ~ 75°C (With Derating) | Chassis Mount | 3.35" L x 2.40" W x 1.33" H (85.1mm x 61.0mm x 33.8mm) | CB, CE, cURus | - |
|
|
TEP 100-2413WIR-CMDC/DC CONVERTER 15V 101W |
0 |
|
Технический лист |
TEP 100WIRCM (100W) | Box | Active | Enclosed | 9V | 36V | 1 | 15V | - | - | - | 6.7A | 101W | 2.25 kV | ITE (Commercial), Railway | - | -40°C ~ 75°C (With Derating) | Chassis Mount | 3.35" L x 2.40" W x 1.33" H (85.1mm x 61.0mm x 33.8mm) | CB, CE, cURus | - |
|
|
TEP 100-2415WIR-CMDC/DC CONVERTER 24V 101W |
0 |
|
Технический лист |
TEP 100WIRCM (100W) | Box | Active | Enclosed | 9V | 36V | 1 | 24V | - | - | - | 4.2A | 101W | 2.25 kV | ITE (Commercial), Railway | 90% | -40°C ~ 75°C (With Derating) | Chassis Mount | 3.35" L x 2.40" W x 1.33" H (85.1mm x 61.0mm x 33.8mm) | CB, CE, cURus | - |
|
|
TEP 100-2418WIR-CMFDC/DC CONVERTER 48V 101W |
0 |
|
Технический лист |
TEP 100WIRCMF (100W) | Box | Active | Enclosed | 9V | 36V | 1 | 48V | - | - | - | 2.1A | 101W | 2.25 kV | ITE (Commercial), Railway | 90% | -40°C ~ 75°C (With Derating) | Chassis Mount | 3.35" L x 2.40" W x 1.33" H (85.1mm x 61.0mm x 33.8mm) | CB, CE, cURus | - |
|
|
TEP 100-4810WIR-CMDC/DC CONVERTER 3.3V 83W |
0 |
|
Технический лист |
TEP 100WIRCM (100W) | Box | Active | Enclosed | 18V | 75V | 1 | 3.3V | - | - | - | 25A | 83W | 2.25 kV | ITE (Commercial), Railway | - | -40°C ~ 75°C (With Derating) | Chassis Mount | 3.35" L x 2.40" W x 1.33" H (85.1mm x 61.0mm x 33.8mm) | CB, CE, cURus | - |
|
|
TEP 100-4812WIR-CMDC/DC CONVERTER 12V 101W |
0 |
|
Технический лист |
TEP 100WIRCM (100W) | Box | Active | Enclosed | 18V | 75V | 1 | 12V | - | - | - | 8.4A | 101W | 2.25 kV | ITE (Commercial), Railway | 90% | -40°C ~ 75°C (With Derating) | Chassis Mount | 3.35" L x 2.40" W x 1.33" H (85.1mm x 61.0mm x 33.8mm) | CB, CE, cURus | - |
|
|
TEP 100-4812WIR-CMFDC/DC CONVERTER 12V 101W |
0 |
|
Технический лист |
TEP 100WIRCMF (100W) | Box | Active | Enclosed | 18V | 75V | 1 | 12V | - | - | - | 8.4A | 101W | 2.25 kV | ITE (Commercial), Railway | 90% | -40°C ~ 75°C (With Derating) | Chassis Mount | 3.35" L x 2.40" W x 1.33" H (85.1mm x 61.0mm x 33.8mm) | CB, CE, cURus | - |
|
|
TEP 100-4813WIR-CMFDC/DC CONVERTER 15V 101W |
0 |
|
Технический лист |
TEP 100WIRCMF (100W) | Box | Active | Enclosed | 18V | 75V | 1 | 15V | - | - | - | 6.7A | 101W | 2.25 kV | ITE (Commercial), Railway | - | -40°C ~ 75°C (With Derating) | Chassis Mount | 3.35" L x 2.40" W x 1.33" H (85.1mm x 61.0mm x 33.8mm) | CB, CE, cURus | - |
|
|
TEP 100-4818WIR-CMFDC/DC CONVERTER 48V 101W |
0 |
|
Технический лист |
TEP 100WIRCMF (100W) | Box | Active | Enclosed | 18V | 75V | 1 | 48V | - | - | - | 2.1A | 101W | 2.25 kV | ITE (Commercial), Railway | 91% | -40°C ~ 75°C (With Derating) | Chassis Mount | 3.35" L x 2.40" W x 1.33" H (85.1mm x 61.0mm x 33.8mm) | CB, CE, cURus | - |
|
|
TEP 100-7212WIR-CMDC/DC CONVERTER 12V 101W |
0 |
|
Технический лист |
TEP 100WIRCM (100W) | Box | Active | Enclosed | 43V | 160V | 1 | 12V | - | - | - | 8.4A | 101W | 3 kV | ITE (Commercial), Railway | 90% | -40°C ~ 75°C (With Derating) | Chassis Mount | 3.35" L x 2.40" W x 1.33" H (85.1mm x 61.0mm x 33.8mm) | CB, CE, cURus | - |
|
|
TEP 100-7213WIR-CMFDC/DC CONVERTER 15V 101W |
0 |
|
Технический лист |
TEP 100WIRCMF (100W) | Box | Active | Enclosed | 43V | 160V | 1 | 15V | - | - | - | 6.7A | 101W | 3 kV | ITE (Commercial), Railway | - | -40°C ~ 75°C (With Derating) | Chassis Mount | 3.35" L x 2.40" W x 1.33" H (85.1mm x 61.0mm x 33.8mm) | CB, CE, cURus | - |
|

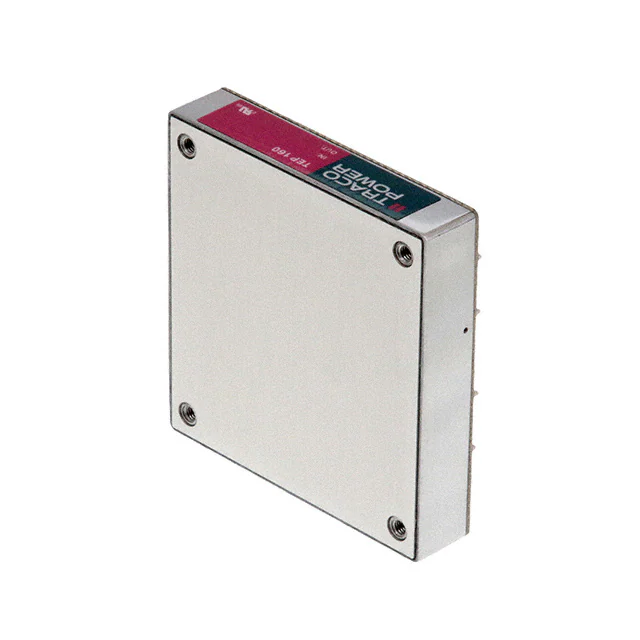

TEP 160-2410WIRCMDC/DC CONVERTER 3.3V 132W |
0 |
|
Технический лист |
TEP 160WIRCM (160W) | Box | Active | Enclosed | 9V | 36V | 1 | 3.3V | - | - | - | 40A | 132W | 2.25 kV | ITE (Commercial), Railway | 88% | -40°C ~ 75°C (With Derating) | Chassis Mount | 3.35" L x 2.40" W x 1.33" H (85.1mm x 61.0mm x 33.8mm) | CB, CE, cURus | - |
|
|
TEP 160-2411WIRCMDC/DC CONVERTER 5V 140W |
0 |
|
Технический лист |
TEP 160WIRCM (160W) | Box | Active | Enclosed | 9V | 36V | 1 | 5V | - | - | - | 28A | 140W | 2.25 kV | ITE (Commercial), Railway | 90% | -40°C ~ 75°C (With Derating) | Chassis Mount | 3.35" L x 2.40" W x 1.33" H (85.1mm x 61.0mm x 33.8mm) | CB, CE, cURus | - |
|
|
TEP 160-2411WIRCMFDC/DC CONVERTER 5V 140W |
0 |
|
Технический лист |
TEP 160WIRCMF (160W) | Box | Active | Enclosed | 9V | 36V | 1 | 5V | - | - | - | 28A | 140W | 2.25 kV | ITE (Commercial), Railway | 90% | -40°C ~ 75°C (With Derating) | Chassis Mount | 3.35" L x 2.40" W x 1.33" H (85.1mm x 61.0mm x 33.8mm) | CB, CE, cURus | - |
|
|
TEP 160-2412WIRCMFDC/DC CONVERTER 12V 144W |
0 |
|
Технический лист |
TEP 160WIRCMF (160W) | Box | Active | Enclosed | 9V | 36V | 1 | 12V | - | - | - | 12A | 144W | 2.25 kV | ITE (Commercial), Railway | 90% | -40°C ~ 75°C (With Derating) | Chassis Mount | 3.35" L x 2.40" W x 1.33" H (85.1mm x 61.0mm x 33.8mm) | CB, CE, cURus | - |
|
|
TEP 160-2415WIRCMDC/DC CONVERTER 24V 144W |
0 |
|
Технический лист |
TEP 160WIRCM (160W) | Box | Active | Enclosed | 9V | 36V | 1 | 24V | - | - | - | 6A | 144W | 2.25 kV | ITE (Commercial), Railway | 90% | -40°C ~ 75°C (With Derating) | Chassis Mount | 3.35" L x 2.40" W x 1.33" H (85.1mm x 61.0mm x 33.8mm) | CB, CE, cURus | - |
|
|
TEP 160-2415WIRCMFDC/DC CONVERTER 24V 144W |
0 |
|
Технический лист |
TEP 160WIRCMF (160W) | Box | Active | Enclosed | 9V | 36V | 1 | 24V | - | - | - | 6A | 144W | 2.25 kV | ITE (Commercial), Railway | 90% | -40°C ~ 75°C (With Derating) | Chassis Mount | 3.35" L x 2.40" W x 1.33" H (85.1mm x 61.0mm x 33.8mm) | CB, CE, cURus | - |
