DC-DC преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Количество выходов | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Тип крепления | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1010678CHCODC2-150-4003CHCO |
50 |
|
Технический лист |
DC2-150 (150W) | Box | Active | Enclosed | 18V | 36V | 4 | 5V | 3.3V | 15V | -15V | 15A, 8A, 2A, 2A | 150W | - | ITE (Commercial), Medical | 82% | 0°C ~ 70°C (With Derating) | Chassis Mount | 6.25" L x 3.96" W x 1.48" H (156.8mm x 100.5mm x 37.6mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
|
1010676CHCODC2-150-4001CHCO |
50 |
|
Технический лист |
DC2-150 (150W) | Box | Active | Enclosed | 18V | 36V | 4 | 3.3V | 5V | 12V | -12V | 15A, 8A, 2A, 2A | 137W | - | ITE (Commercial), Medical | 82% | 0°C ~ 70°C (With Derating) | Chassis Mount | 6.25" L x 3.96" W x 1.48" H (156.8mm x 100.5mm x 37.6mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
|
1010677CHCODC2-150-4002CHCO |
50 |
|
Технический лист |
DC2-150 (150W) | Box | Active | Enclosed | 18V | 36V | 4 | 5V | 3.3V | 12V | -12V | 15A, 8A, 2A, 2A | 150W | - | ITE (Commercial), Medical | 82% | 0°C ~ 70°C (With Derating) | Chassis Mount | 6.25" L x 3.96" W x 1.48" H (156.8mm x 100.5mm x 37.6mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
1010757DC2-185-2003 |
50 |
|
Технический лист |
DC2-185 (185W) | Box | Active | Open Frame | 18V | 36V | 2 | 5V | 24V | - | - | 20A, 4A | 185W | - | ITE (Commercial), Medical | 84% | 0°C ~ 70°C (With Derating) | Chassis Mount | 7.00" L x 4.25" W x 1.31" H (177.8mm x 107.9mm x 33.3mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
|
1010729DC4-185-2001 |
50 |
|
Технический лист |
DC4-185 (185W) | Box | Active | Open Frame | 36V | 72V | 2 | 3.3V | 5V | - | - | 20A, 10A | 116W | - | ITE (Commercial), Medical | 84% | 0°C ~ 70°C (With Derating) | Chassis Mount | 7.00" L x 4.25" W x 1.31" H (177.8mm x 107.9mm x 33.3mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
|
1010733DC4-185-2005 |
50 |
|
Технический лист |
DC4-185 (185W) | Box | Active | Open Frame | 36V | 72V | 2 | 15V | -15V | - | - | 8A, 5A | 185W | - | ITE (Commercial), Medical | 84% | 0°C ~ 70°C (With Derating) | Chassis Mount | 7.00" L x 4.25" W x 1.31" H (177.8mm x 107.9mm x 33.3mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
|
1010731DC4-185-2003 |
50 |
|
Технический лист |
DC4-185 (185W) | Box | Active | Open Frame | 36V | 72V | 2 | 5V | 24V | - | - | 20A, 4A | 185W | - | ITE (Commercial), Medical | 84% | 0°C ~ 70°C (With Derating) | Chassis Mount | 7.00" L x 4.25" W x 1.31" H (177.8mm x 107.9mm x 33.3mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
|
1010759DC2-185-2005 |
36 |
|
Технический лист |
DC2-185 (185W) | Box | Active | Open Frame | 18V | 36V | 2 | 15V | -15V | - | - | 8A, 5A | 185W | - | ITE (Commercial), Medical | 84% | 0°C ~ 70°C (With Derating) | Chassis Mount | 7.00" L x 4.25" W x 1.31" H (177.8mm x 107.9mm x 33.3mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|

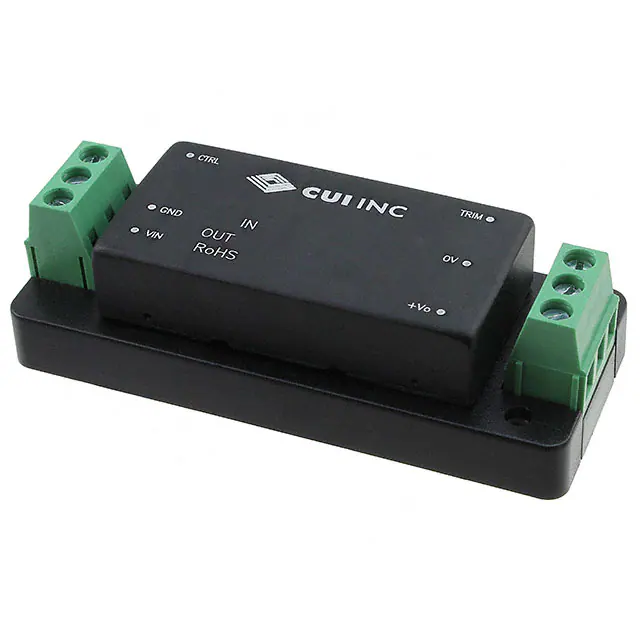

PQA50-D48-S3-TDC/DC CONVERTER 3.3V 50W |
0 |
|
Технический лист |
PQA50-T (50W) | Bulk | Obsolete | Enclosed | 36V | 75V | 1 | 3.3V | - | - | - | 10A | 50W | 1.5 kV | - | 89% | -40°C ~ 85°C | Chassis Mount | 2.99" L x 1.24" W x 0.84" H (76.0mm x 31.5mm x 21.2mm) | - | - |
|
1010731CHDC4-185-2003CH |
50 |
|
Технический лист |
DC4-185 (185W) | Box | Active | Chassis | 36V | 72V | 2 | 5V | 24V | - | - | 20A, 4A | 185W | - | ITE (Commercial), Medical | 84% | 0°C ~ 70°C (With Derating) | Chassis Mount | 7.23" L x 4.36" W x 1.74" H (183.6mm x 110.7mm x 44.2mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
|
1010758CHDC2-185-2004CH |
50 |
|
Технический лист |
DC2-185 (185W) | Box | Active | Chassis | 18V | 36V | 2 | 12V | -12V | - | - | 10A, 6A | 185W | - | ITE (Commercial), Medical | 84% | 0°C ~ 70°C (With Derating) | Chassis Mount | 7.23" L x 4.36" W x 1.74" H (183.6mm x 110.7mm x 44.2mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
|
1010730CHDC4-185-2002CH |
50 |
|
Технический лист |
DC4-185 (185W) | Box | Active | Chassis | 36V | 72V | 2 | 5V | 12V | - | - | 20A, 8A | 185W | - | ITE (Commercial), Medical | 84% | 0°C ~ 70°C (With Derating) | Chassis Mount | 7.23" L x 4.36" W x 1.74" H (183.6mm x 110.7mm x 44.2mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
|
1010759CHDC2-185-2005CH |
50 |
|
Технический лист |
DC2-185 (185W) | Box | Active | Chassis | 18V | 36V | 2 | 15V | -15V | - | - | 8A, 5A | 185W | - | ITE (Commercial), Medical | 84% | 0°C ~ 70°C (With Derating) | Chassis Mount | 7.23" L x 4.36" W x 1.74" H (183.6mm x 110.7mm x 44.2mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
|
1010732CHDC4-185-2004CH |
50 |
|
Технический лист |
DC4-185 (185W) | Box | Active | Chassis | 36V | 72V | 2 | 12V | -12V | - | - | 10A, 6A | 185W | - | ITE (Commercial), Medical | 84% | 0°C ~ 70°C (With Derating) | Chassis Mount | 7.23" L x 4.36" W x 1.74" H (183.6mm x 110.7mm x 44.2mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
|
1010733CHDC4-185-2005CH |
50 |
|
Технический лист |
DC4-185 (185W) | Box | Active | Chassis | 36V | 72V | 2 | 15V | -15V | - | - | 8A, 5A | 185W | - | ITE (Commercial), Medical | 84% | 0°C ~ 70°C (With Derating) | Chassis Mount | 7.23" L x 4.36" W x 1.74" H (183.6mm x 110.7mm x 44.2mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
|
1010756CHDC2-185-2002CH |
50 |
|
Технический лист |
DC2-185 (185W) | Box | Active | Chassis | 18V | 36V | 2 | 5V | 12V | - | - | 20A, 8A | 185W | - | ITE (Commercial), Medical | 84% | 0°C ~ 70°C (With Derating) | Chassis Mount | 7.23" L x 4.36" W x 1.74" H (183.6mm x 110.7mm x 44.2mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
|
1010729CHDC4-185-2001CH |
50 |
|
Технический лист |
DC4-185 (185W) | Box | Active | Chassis | 36V | 72V | 2 | 3.3V | 5V | - | - | 20A, 10A | 116W | - | ITE (Commercial), Medical | 84% | 0°C ~ 70°C (With Derating) | Chassis Mount | 7.23" L x 4.36" W x 1.74" H (183.6mm x 110.7mm x 44.2mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
|
1010757CHDC2-185-2003CH |
50 |
|
Технический лист |
DC2-185 (185W) | Box | Active | Chassis | 18V | 36V | 2 | 5V | 24V | - | - | 20A, 4A | 185W | - | ITE (Commercial), Medical | 84% | 0°C ~ 70°C (With Derating) | Chassis Mount | 7.23" L x 4.36" W x 1.74" H (183.6mm x 110.7mm x 44.2mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
|
1010755CHDC2-185-2001CH |
50 |
|
Технический лист |
DC2-185 (185W) | Box | Active | Chassis | 18V | 36V | 2 | 3.3V | 5V | - | - | 20A, 10A | 116W | - | ITE (Commercial), Medical | 84% | 0°C ~ 70°C (With Derating) | Chassis Mount | 7.23" L x 4.36" W x 1.74" H (183.6mm x 110.7mm x 44.2mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
1010732CHCODC4-185-2004CHCO |
50 |
|
Технический лист |
DC4-185 (185W) | Box | Active | Enclosed | 36V | 72V | 2 | 12V | -12V | - | - | 10A, 6A | 185W | - | ITE (Commercial), Medical | 84% | 0°C ~ 70°C (With Derating) | Chassis Mount | 7.23" L x 4.36" W x 1.74" H (183.6mm x 110.7mm x 44.2mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
