DC-DC преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Количество выходов | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Тип крепления | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TEQ 100-7218WIRDC/DC CONVERTER 48V 101W |
0 |
|
Технический лист |
TEQ 100WIR (100W) | Box | Active | Enclosed | 43V | 160V | 1 | 48V | - | - | - | 2.1A | 101W | 2.25 kV | Industrial, ITE (Commercial), Railway | 90% | -40°C ~ 105°C | Chassis Mount | 4.06" L x 3.50" W x 3.45" H (103.1mm x 88.9mm x 87.6mm) | CB, cULus, cURus | - |
|
DX120RSINGLE O/P DC-HV DC WIRES 1.5W, |
0 |
|
Технический лист |
DX (1.5W) | Tube | Active | Enclosed | 11.4V | 13.2V | 1 | 1800 ~ 12000V | - | - | - | 100µA | 1.5W | - | ITE (Commercial) | - | -10°C ~ 50°C | Chassis Mount | 3.75" L x 1.50" W x 1.00" H (95.3mm x 38.1mm x 25.4mm) | - | - |
|
|
24RCM300-2424DMQFKDC-DC,16.8-45V INPUT, +/-24V/6.2 |
0 |
|
- |
RCM300 (300W) | Box | Active | Enclosed, Conformal Coated | 16.8V | 45V | 2 | 24V | -24V | - | - | 6.25A, 6.25A | 300W | 2.86 kV | ITE (Commercial) | 91% | -40°C ~ 70°C | Chassis Mount | 4.57" L x 4.43" W x 1.50" H (116.1mm x 112.5mm x 38.1mm) | cCSAus, CE | 62368-1 |
|
|
110RCM300-2424DMQFKDC-DC,50.4-137.5V INPUT, +/-24V/ |
0 |
|
- |
RCM300 (300W) | Box | Active | Enclosed, Conformal Coated | 50.4V | 137.5V | 2 | 24V | -24V | - | - | 6.25A, 6.25A | 300W | 2.86 kV | ITE (Commercial) | 93.5% | -40°C ~ 70°C | Chassis Mount | 4.57" L x 4.43" W x 1.50" H (116.1mm x 112.5mm x 38.1mm) | cCSAus, CE | 62368-1 |
|
|
VI-911998BDC/DC CONVERTER 6.5V 33A |
0 |
|
- |
- | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

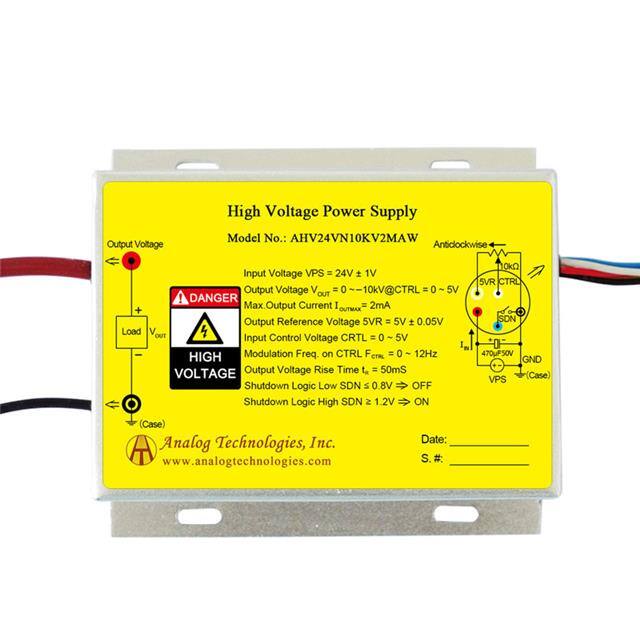

AHV24VN10KV2MAWHigh Voltage - Non-Isolated |
1 |
|
Технический лист |
- | Tape & Box (TB) | Active | Enclosed | 23V | 25V | 1 | 0 ~ 10000V | - | - | - | 2mA | - | - | ITE (Commercial) | 70% | -20°C ~ 55°C | Chassis Mount | 3.94" L x 2.76" W x 1.18" H (100.0mm x 70.0mm x 30.0mm) | - | - |
|
|
PSC246-9IRGDC/DC CONVERTER 24V 144W |
0 |
|
Технический лист |
Melcher PSC | Bulk | Active | Enclosed, Conformal Coated | 31V | 144V | 1 | 24V | - | - | - | 6A | 144W | - | ITE (Commercial), Railway | 94% | -40°C ~ 71°C | Chassis Mount | 5.94" L x 1.27" W x 3.46" H (151.0mm x 32.2mm x 88.0mm) | cCSAus, CE | - |
|
|
PSC248-9IRGDC/DC CONVERTER 24V 192W |
0 |
|
Технический лист |
Melcher PSC | Bulk | Active | Enclosed, Conformal Coated | 29V | 80V | 1 | 24V | - | - | - | 8A | 192W | - | ITE (Commercial), Railway | 95% | -40°C ~ 71°C | Chassis Mount | 5.94" L x 1.27" W x 3.46" H (151.0mm x 32.2mm x 88.0mm) | cCSAus, CE | - |
|
|
PSC368-9IRGDC/DC CONVERTER 36V 288W |
0 |
|
Технический лист |
Melcher PSC | Bulk | Active | Enclosed, Conformal Coated | 42V | 80V | 1 | 36V | - | - | - | 8A | 288W | - | ITE (Commercial), Railway | 96.5% | -40°C ~ 71°C | Chassis Mount | 5.94" L x 1.27" W x 3.46" H (151.0mm x 32.2mm x 88.0mm) | cCSAus, CE | - |
|
|
PSC486-9IRGDC/DC CONVERTER 48V 288W |
0 |
|
Технический лист |
Melcher PSC | Bulk | Active | Enclosed, Conformal Coated | 58V | 144V | 1 | 48V | - | - | - | 6A | 288W | - | ITE (Commercial), Railway | 97% | -40°C ~ 71°C | Chassis Mount | 5.94" L x 1.27" W x 3.46" H (151.0mm x 32.2mm x 88.0mm) | cCSAus, CE | - |
|
|
PSB5A6-7IRDC/DC CONVERTER 5.1V 31W |
0 |
|
Технический лист |
Melcher PSB | Bulk | Active | Enclosed, Conformal Coated | 8V | 80V | 1 | 5.1V | - | - | - | 6A | 31W | - | ITE (Commercial), Railway | 82.5% | -25°C ~ 71°C | Chassis Mount | 4.17" L x 2.72" W x 1.27" H (106.0mm x 69.0mm x 32.2mm) | CE, CSA, EN, IEC, UL | - |
|
|
PSC5A12-9GDC/DC CONVERTER 5.1V 77W |
0 |
|
Технический лист |
Melcher PSC | Bulk | Active | Enclosed, Conformal Coated | 7V | 40V | 1 | 5.1V | - | - | - | 15A | 77W | - | ITE (Commercial), Railway | 85.5% | -40°C ~ 71°C | Chassis Mount | 5.94" L x 1.27" W x 3.46" H (151.0mm x 32.2mm x 88.0mm) | cCSAus, CE | - |
|
|
TEP 200-4813WIRCMFDC/DC CONVERTER 15V 210W |
0 |
|
Технический лист |
TEP 200WIRCMF (200W) | Box | Active | Open Frame | 18V | 75V | 1 | 15V | - | - | - | 14A | 210W | 3 kV | ITE (Commercial), Railway | 91% | -40°C ~ 75°C | Chassis Mount | 3.35" L x 2.40" W x 1.53" H (85.1mm x 61.0mm x 38.9mm) | CB, CE, cURus | - |
|
TEQ 160-4812WIRDC/DC CONVERTER 12V 156W |
0 |
|
Технический лист |
TEQ 160WIR (160W) | Box | Active | Enclosed | 19V | 75V | 1 | 12V | - | - | - | 13A | 156W | 2.25 kV | Industrial, ITE (Commercial), Railway | 90% | -40°C ~ 105°C | Chassis Mount | 4.06" L x 3.50" W x 3.45" H (103.1mm x 88.9mm x 87.6mm) | CB, cULus, cURus | - |
|
|
TEQ 160-4816WIRDC/DC CONVERTER 28V 154W |
0 |
|
Технический лист |
TEQ 160WIR (160W) | Box | Active | Enclosed | 19V | 75V | 1 | 28V | - | - | - | 5.5A | 154W | 2.25 kV | Industrial, ITE (Commercial), Railway | 90% | -40°C ~ 105°C | Chassis Mount | 4.06" L x 3.50" W x 3.45" H (103.1mm x 88.9mm x 87.6mm) | CB, cULus, cURus | - |
|
TEQ 160-4818WIRDC/DC CONVERTER 48V 154W |
0 |
|
Технический лист |
TEQ 160WIR (160W) | Box | Active | Enclosed | 19V | 75V | 1 | 48V | - | - | - | 3.2A | 154W | 2.25 kV | Industrial, ITE (Commercial), Railway | 90% | -40°C ~ 105°C | Chassis Mount | 4.06" L x 3.50" W x 3.45" H (103.1mm x 88.9mm x 87.6mm) | CB, cULus, cURus | - |
|
|
110RCM200-1515DMFDC-DC,50.4-137.5V INPUT, +/-15V/ |
0 |
|
Технический лист |
RCM200 (200W) | Box | Active | Enclosed | 50.4V | 137.5V | 2 | 15V | -15V | - | - | 6.7A, 6.7A | 200W | 4.2 kV | ITE (Commercial), Railway | 92% | -40°C ~ 85°C | Chassis Mount | 4.57" L x 4.43" W x 1.50" H (116.1mm x 112.5mm x 38.1mm) | cCSAus, CE, UKCA | 50155; 62368-1 |
|
|
110RCM200-1515DMQDC-DC,50.4-137.5V INPUT, +/-15V/ |
0 |
|
Технический лист |
RCM200 (200W) | Box | Active | Enclosed | 50.4V | 137.5V | 2 | 15V | -15V | - | - | 6.7A, 6.7A | 200W | 4.2 kV | ITE (Commercial), Railway | 92% | -40°C ~ 85°C | Chassis Mount | 4.57" L x 4.43" W x 1.50" H (116.1mm x 112.5mm x 38.1mm) | cCSAus, CE, UKCA | 50155; 62368-1 |
|
|
110RCM200-1515DMKDC-DC,50.4-137.5V INPUT, +/-15V/ |
0 |
|
Технический лист |
RCM200 (200W) | Box | Active | Enclosed | 50.4V | 137.5V | 2 | 15V | -15V | - | - | 6.7A, 6.7A | 200W | 4.2 kV | ITE (Commercial), Railway | 92% | -40°C ~ 85°C | Chassis Mount | 4.57" L x 4.43" W x 1.50" H (116.1mm x 112.5mm x 38.1mm) | cCSAus, CE, UKCA | 50155; 62368-1 |
|
|
110RCM200-1515DMQFDC-DC,50.4-137.5V INPUT, +/-15V/ |
0 |
|
Технический лист |
RCM200 (200W) | Box | Active | Enclosed | 50.4V | 137.5V | 2 | 15V | -15V | - | - | 6.7A, 6.7A | 200W | 4.2 kV | ITE (Commercial), Railway | 92% | -40°C ~ 85°C | Chassis Mount | 4.57" L x 4.43" W x 1.50" H (116.1mm x 112.5mm x 38.1mm) | cCSAus, CE, UKCA | 50155; 62368-1 |
