DC-DC преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Количество выходов | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Тип крепления | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CQB150W-110S48-CMFCDC/DC CONVERTER 48V 153W |
0 |
|
Технический лист |
CQB150W-110S (150W) | Box | Active | Open Frame | 43V | 160V | 1 | 48V | - | - | - | 3.2A | 153W | 3 kV | ITE (Commercial), Railway | 89.5% | -40°C ~ 105°C (With Derating) | Chassis Mount | 4.60" L x 2.40" W x 1.26" H (116.8mm x 61.0mm x 32.0mm) | CE | - |
|
CQB150W-110S15-CMFCRAILWAY BRICK DC-DC CQB150W-110S |
0 |
|
- |
CQB150W-110S-CMFC (150W) | Box | Active | Open Frame | 43V | 160V | 1 | 15V | - | - | - | 10A | 150W | 3 kV | ITE (Commercial) | 91% | -40°C ~ 100°C (With Derating) | Chassis Mount | 4.60" L x 2.40" W x 1.26" H (116.8mm x 61.0mm x 32.0mm) | CE, UKCA | 60950-1 |
|
|
CQB150W-110S12N-CMFCRAILWAY BRICK DC-DC I/P:43-160VD |
0 |
|
- |
CQB150W-110S-CMFC (150W) | Box | Active | Open Frame | 43V | 160V | 1 | 12V | - | - | - | 12.5A | 150W | 3 kV | ITE (Commercial) | 91% | -40°C ~ 100°C (With Derating) | Chassis Mount | 4.60" L x 2.40" W x 1.26" H (116.8mm x 61.0mm x 32.0mm) | CE, UKCA | 60950-1 |
|
WAF150-48S28WDC/DC CONVERTER 48V 151W |
0 |
|
Технический лист |
WAF150W (150W) | Active | Enclosed | 18V | 75V | 1 | 28V | - | - | - | 5.4A | 151W | 2.25 kV | ITE (Commercial), Railway | 89% | -40°C ~ 100°C (With Derating) | Chassis Mount | 3.86" L x 2.56" W x 0.67" H (98.0mm x 65.0mm x 17.0mm) | CB, CE, cURus | 50155; 60950-1 | |
|
|
WAF150-24S24WDC/DC CONVERTER 24V 151W |
0 |
|
Технический лист |
WAF150W (150W) | Active | Enclosed | 9V | 36V | 1 | 24V | - | - | - | 6.3A | 151W | 2.25 kV | ITE (Commercial), Railway | 87% | -40°C ~ 100°C (With Derating) | Chassis Mount | 3.86" L x 2.56" W x 0.67" H (98.0mm x 65.0mm x 17.0mm) | CB, CE, cURus | 50155; 60950-1 | |
|
|
ECB40W18-72S12-ECRTP+FBL 127ISOLATED DC/DC CONVERTERS 40W 8. |
0 |
|
- |
ECB40W18 (40W) | Bulk | Active | Enclosed, Conformal Coated | 10V | 160V | 1 | 12V | - | - | - | 3.333A | 40W | 4.2 kV | ITE (Commercial), Railway | 89% | -40°C ~ 95°C (With Derating) | Chassis Mount | - | CE, UKCA | 50155; 62368-1 |
|
|
ECB40W18-72S05-ECRTP+FBL 127ISOLATED DC/DC CONVERTERS 40W 10 |
0 |
|
- |
ECB40W18 (40W) | Bulk | Active | Enclosed, Conformal Coated | 10V | 160V | 1 | 5V | - | - | - | 8A | 40W | 4.2 kV | ITE (Commercial), Railway | 87% | -40°C ~ 95°C (With Derating) | Chassis Mount | - | CE, UKCA | 50155; 62368-1 |
|
|
CQB150W-110S15N-CMFCRAILWAY BRICK DC-DC CQB150W-110S |
0 |
|
- |
CQB150W-110S-CMFC (150W) | Box | Active | Open Frame | 43V | 160V | 1 | 15V | - | - | - | 10A | 150W | 3 kV | ITE (Commercial) | 91% | -40°C ~ 100°C (With Derating) | Chassis Mount | 4.60" L x 2.40" W x 1.26" H (116.8mm x 61.0mm x 32.0mm) | CE, UKCA | 60950-1 |
|
|
CQB150W-110S3V3-CMFDRAILWAY BRICK DC-DC CQB150W-110S |
0 |
|
- |
CQB150W-110S-CMFD (150W) | Box | Active | Enclosed | 43V | 160V | 1 | 3.3V | - | - | - | 30A | 99W | 3 kV | ITE (Commercial) | 87.5% | -40°C ~ 100°C (With Derating) | Chassis Mount | 4.60" L x 2.49" W x 1.35" H (116.8mm x 63.4mm x 34.2mm) | CE, UKCA | 60950-1 |
|
|
CQB150W-110S3V3N-CMFDRAILWAY BRICK DC-DC CQB150W-110S |
0 |
|
- |
CQB150W-110S-CMFD (150W) | Box | Active | Enclosed | 43V | 160V | 1 | 3.3V | - | - | - | 30A | 99W | 3 kV | ITE (Commercial) | 87.5% | -40°C ~ 100°C (With Derating) | Chassis Mount | 4.60" L x 2.49" W x 1.35" H (116.8mm x 63.4mm x 34.2mm) | CE, UKCA | 60950-1 |
|
|
CQB150W-110S48N-CMFDRAILWAY BRICK DC-DC CQB150W-110S |
0 |
|
- |
CQB150W-110S-CMFD (150W) | Box | Active | Enclosed | 43V | 160V | 1 | 48V | - | - | - | 3.2A | 154W | 3 kV | ITE (Commercial) | 89.5% | -40°C ~ 100°C (With Derating) | Chassis Mount | 4.60" L x 2.49" W x 1.35" H (116.8mm x 63.4mm x 34.2mm) | CE, UKCA | 60950-1 |
|
|
CHB200W-110S24-CMFCRAILWAY BRICK DC-DC CHB200W-110S |
0 |
|
- |
CHB200W-110S (200W) | Box | Active | Open Frame | 43V | 160V | 1 | 24V | - | - | - | 8.3A | 199W | 3 kV | ITE (Commercial) | 89% | -40°C ~ 100°C (With Derating) | Chassis Mount | 6.50" L x 3.00" W x 1.52" H (165.0mm x 76.2mm x 38.5mm) | CE, UKCA | 60950-1; 62368-1 |
|
|
CHB200W-110S28-CMFCRAILWAY BRICK DC-DC CHB200W-110S |
0 |
|
- |
CHB200W-110S (200W) | Box | Active | Open Frame | 43V | 160V | 1 | 28V | - | - | - | 7.14A | 200W | 3 kV | ITE (Commercial) | 89% | -40°C ~ 100°C (With Derating) | Chassis Mount | 6.50" L x 3.00" W x 1.52" H (165.0mm x 76.2mm x 38.5mm) | CE, UKCA | 60950-1; 62368-1 |
|
|
CHB200W-110S48-CMFCRAILWAY BRICK DC-DC CHB200W-110S |
0 |
|
- |
CHB200W-110S (200W) | Box | Active | Open Frame | 43V | 160V | 1 | 48V | - | - | - | 4.2A | 202W | 3 kV | ITE (Commercial) | 90.5% | -40°C ~ 100°C (With Derating) | Chassis Mount | 6.50" L x 3.00" W x 1.52" H (165.0mm x 76.2mm x 38.5mm) | CE, UKCA | 60950-1; 62368-1 |
|
VHK50W-Q48-S3R3DC/DC CONVERTER 3.3V 50W |
0 |
|
Технический лист |
VHK50W (50W) | Box | Active | Enclosed | 18V | 75V | 1 | 3.3V | - | - | - | 10A | 50W | - | - | 76% | -40°C ~ 85°C | Chassis Mount | 4.23" L x 4.01" W x 1.50" H (107.5mm x 101.8mm x 38.0mm) | - | - |
|
|
VHK50W-Q48-S15DC/DC CONVERTER 15V 50W |
0 |
|
Технический лист |
VHK50W (50W) | Box | Active | Enclosed | 18V | 75V | 1 | 15V | - | - | - | 3.33A | 50W | - | - | 83% | -40°C ~ 85°C | Chassis Mount | 4.23" L x 4.01" W x 1.50" H (107.5mm x 101.8mm x 38.0mm) | - | - |
|

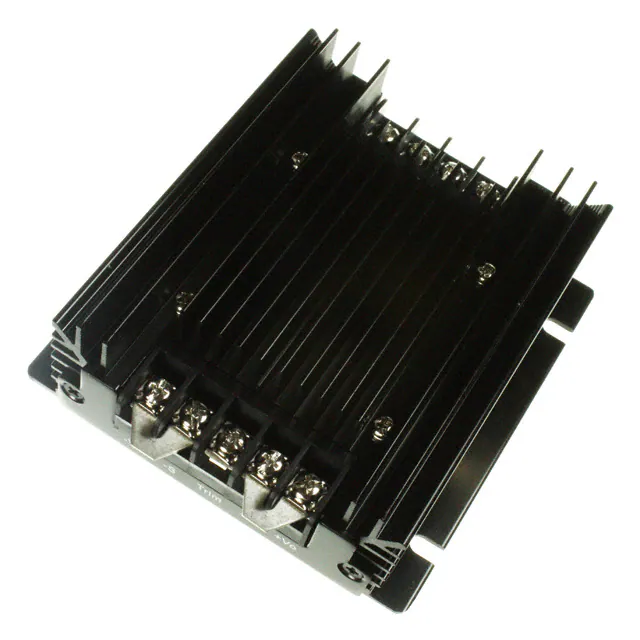

VHK50W-Q24-S28DC/DC CONVERTER 28V 50W |
0 |
|
Технический лист |
VHK50W (50W) | Box | Active | Enclosed | 9V | 36V | 1 | 28V | - | - | - | 1.78A | 50W | - | - | 82% | -40°C ~ 85°C | Chassis Mount | 4.23" L x 4.01" W x 1.50" H (107.4mm x 101.9mm x 38.1mm) | - | - |
|

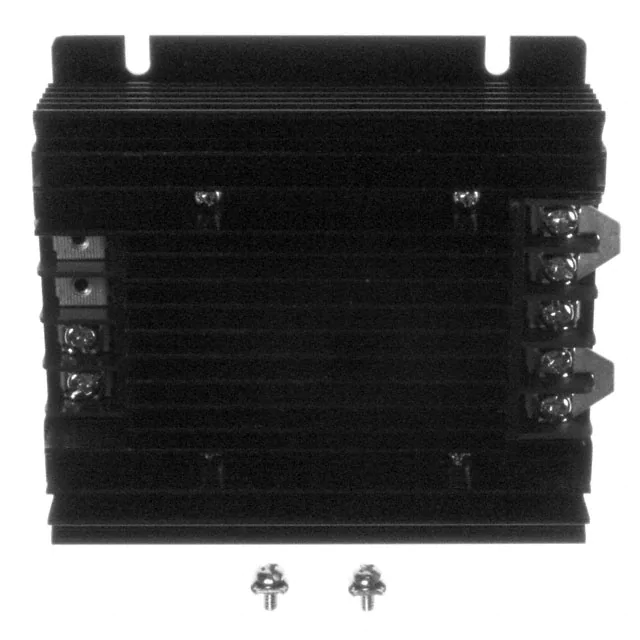

VHK50W-Q48-S28DC/DC CONVERTER 28V 50W |
0 |
|
Технический лист |
VHK50W (50W) | Box | Active | Enclosed | 18V | 75V | 1 | 28V | - | - | - | 1.78A | 50W | - | - | 83% | -40°C ~ 85°C | Chassis Mount | 4.23" L x 4.01" W x 1.50" H (107.4mm x 101.9mm x 38.1mm) | - | - |
|
CQB150W-110S28-CMFDDC/DC CONVERTER 28V 151W |
0 |
|
Технический лист |
CQB150W-110S (150W) | Box | Active | Enclosed | 43V | 160V | 1 | 28V | - | - | - | 5.4A | 151W | 3 kV | ITE (Commercial), Railway | 88% | -40°C ~ 105°C (With Derating) | Chassis Mount | 4.60" L x 2.49" W x 1.35" H (116.8mm x 63.4mm x 34.2mm) | CE | - |
|
|
CQB75W8-36S15N-CMFDRAILWAY BRICK DC-DC CQB75W8-36S1 |
0 |
|
- |
CQB75W8 (75W) | Box | Active | Enclosed | 9.5V | 75V | 1 | 15V | - | - | - | 5A | 75W | 3 kV | ITE (Commercial), Railway | 90% | -40°C ~ 105°C (With Derating) | Chassis Mount | 4.60" L x 2.49" W x 1.46" H (116.8mm x 63.4mm x 37.0mm) | CE, UKCA | 62368-1 |
