DC-DC преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Количество выходов | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Тип крепления | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

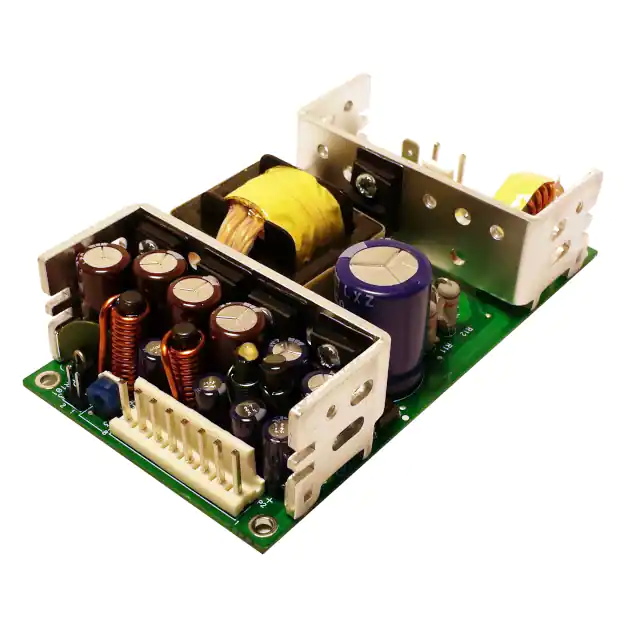

1010802DC2-70-3001 |
50 |
|
Технический лист |
DC2-70 (70W) | Box | Active | Open Frame | 18V | 36V | 3 | 5V | 12V | - | -12V | 6A, 2A, 2A | 70W | - | ITE (Commercial), Medical | 78% | 0°C ~ 70°C (With Derating) | Chassis Mount | 4.50" L x 2.50" W x 1.22" H (114.3mm x 63.5mm x 31.0mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|

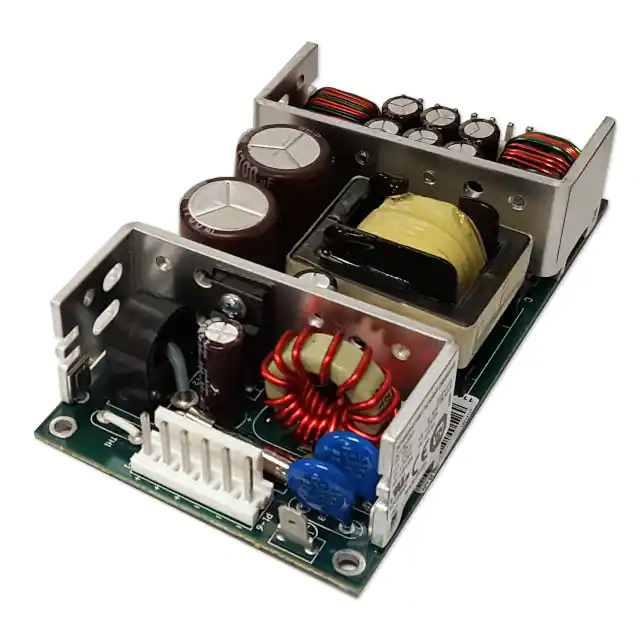

1011533DC1-80-3001 |
50 |
|
Технический лист |
DC1-80 (80W) | Box | Active | Open Frame | 9V | 18V | 3 | 5V | 12V | - | -12V | 6A, 2A, 2A | 80W | - | ITE (Commercial), Medical | 82% | 0°C ~ 70°C (With Derating) | Chassis Mount | 4.50" L x 2.50" W x 1.17" H (114.3mm x 63.5mm x 29.7mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
|
1010774DC4-70-4002 |
72 |
|
Технический лист |
DC4-70 (70W) | Box | Active | Open Frame | 36V | 72V | 4 | 5V | 3.3V | 12V | -12V | 6A, 5A, 2A, 2A | 70W | - | ITE (Commercial), Medical | 78% | 0°C ~ 70°C (With Derating) | Chassis Mount | 4.50" L x 2.50" W x 1.22" H (114.3mm x 63.5mm x 31.0mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
|
1011535DC1-80-4001 |
50 |
|
Технический лист |
DC1-80 (80W) | Box | Active | Open Frame | 9V | 18V | 4 | 3.3V | 5V | 12V | -12V | 6A, 5A, 2A, 2A | 80W | - | ITE (Commercial), Medical | 82% | 0°C ~ 70°C (With Derating) | Chassis Mount | 4.50" L x 2.50" W x 1.17" H (114.3mm x 63.5mm x 29.7mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
|
1010775DC4-70-4003 |
50 |
|
Технический лист |
DC4-70 (70W) | Box | Active | Open Frame | 36V | 72V | 4 | 5V | 3.3V | 15V | -15V | 6A, 5A, 2A, 2A | 70W | - | ITE (Commercial), Medical | 78% | 0°C ~ 70°C (With Derating) | Chassis Mount | 4.50" L x 2.50" W x 1.22" H (114.3mm x 63.5mm x 31.0mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
|
1011539DC1-80-4005 |
50 |
|
Технический лист |
DC1-80 (80W) | Box | Active | Open Frame | 9V | 18V | 4 | 5V | 24V | 12V | -12V | 6A, 2A, 2A, 2A | 80W | - | ITE (Commercial), Medical | 82% | 0°C ~ 70°C (With Derating) | Chassis Mount | 4.50" L x 2.50" W x 1.17" H (114.3mm x 63.5mm x 29.7mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
|
1010800DC2-70-4006 |
40 |
|
Технический лист |
DC2-70 (70W) | Box | Active | Open Frame | 18V | 36V | 4 | 5V | 24V | 12V | -12V | 6A, 2A, 2A, 2A | 70W | - | ITE (Commercial), Medical | 78% | 0°C ~ 70°C (With Derating) | Chassis Mount | 4.50" L x 2.50" W x 1.22" H (114.3mm x 63.5mm x 31.0mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
|
1010776DC4-70-4004 |
34 |
|
Технический лист |
DC4-70 (70W) | Box | Active | Open Frame | 36V | 72V | 4 | 5V | -5V | 12V | -12V | 6A, 5A, 2A, 2A | 70W | - | ITE (Commercial), Medical | 78% | 0°C ~ 70°C (With Derating) | Chassis Mount | 4.50" L x 2.50" W x 1.22" H (114.3mm x 63.5mm x 31.0mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
1010806CHDC2-70-2003CH |
50 |
|
Технический лист |
DC2-70 (70W) | Box | Active | Chassis | 18V | 36V | 2 | 5V | 24V | - | - | 6A, 2A | 70W | - | ITE (Commercial), Medical | 78% | 0°C ~ 70°C (With Derating) | Chassis Mount | 4.79" L x 2.62" W x 1.48" H (121.6mm x 66.5mm x 37.6mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
|
1010807CHDC2-70-2004CH |
50 |
|
Технический лист |
DC2-70 (70W) | Box | Active | Chassis | 18V | 36V | 2 | 12V | -12V | - | - | 3A, 3A | 70W | - | ITE (Commercial), Medical | 78% | 0°C ~ 70°C (With Derating) | Chassis Mount | 4.79" L x 2.62" W x 1.48" H (121.6mm x 66.5mm x 37.6mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
|
1010805CHDC2-70-2002CH |
50 |
|
Технический лист |
DC2-70 (70W) | Box | Active | Chassis | 18V | 36V | 2 | 5V | 12V | - | - | 6A, 4A | 70W | - | ITE (Commercial), Medical | 78% | 0°C ~ 70°C (With Derating) | Chassis Mount | 4.79" L x 2.62" W x 1.48" H (121.6mm x 66.5mm x 37.6mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
|
1010784CHDC4-70-2003CH |
50 |
|
Технический лист |
DC4-70 (70W) | Box | Active | Chassis | 36V | 72V | 2 | 5V | 24V | - | - | 6A, 2A | 70W | - | ITE (Commercial), Medical | 78% | 0°C ~ 70°C (With Derating) | Chassis Mount | 4.79" L x 2.62" W x 1.48" H (121.6mm x 66.5mm x 37.6mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
|
1010783CHDC4-70-2002CH |
50 |
|
Технический лист |
DC4-70 (70W) | Box | Active | Chassis | 36V | 72V | 2 | 5V | 12V | - | - | 6A, 4A | 70W | - | ITE (Commercial), Medical | 78% | 0°C ~ 70°C (With Derating) | Chassis Mount | 4.79" L x 2.62" W x 1.48" H (121.6mm x 66.5mm x 37.6mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
|
1010804CHDC2-70-2001CH |
50 |
|
Технический лист |
DC2-70 (70W) | Box | Active | Chassis | 18V | 36V | 2 | 3.3V | 5V | - | - | 6A, 5A | 44W | - | ITE (Commercial), Medical | 78% | 0°C ~ 70°C (With Derating) | Chassis Mount | 4.79" L x 2.62" W x 1.48" H (121.6mm x 66.5mm x 37.6mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
|
1010785CHDC4-70-2004CH |
50 |
|
Технический лист |
DC4-70 (70W) | Box | Active | Chassis | 36V | 72V | 2 | 12V | -12V | - | - | 3A, 3A | 70W | - | ITE (Commercial), Medical | 78% | 0°C ~ 70°C (With Derating) | Chassis Mount | 4.79" L x 2.62" W x 1.48" H (121.6mm x 66.5mm x 37.6mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
|
1010808CHDC2-70-2005CH |
50 |
|
Технический лист |
DC2-70 (70W) | Box | Active | Chassis | 18V | 36V | 2 | 15V | -15V | - | - | 3A, 2A | 70W | - | ITE (Commercial), Medical | 78% | 0°C ~ 70°C (With Derating) | Chassis Mount | 4.79" L x 2.62" W x 1.48" H (121.6mm x 66.5mm x 37.6mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
|
1010782CHDC4-70-2001CH |
50 |
|
Технический лист |
DC4-70 (70W) | Box | Active | Chassis | 36V | 72V | 2 | 3.3V | 5V | - | - | 6A, 5A | 44W | - | ITE (Commercial), Medical | 78% | 0°C ~ 70°C (With Derating) | Chassis Mount | 4.79" L x 2.62" W x 1.48" H (121.6mm x 66.5mm x 37.6mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
|
1010952CHDC2-70-2007CH |
50 |
|
Технический лист |
DC2-70 (70W) | Box | Active | Chassis | 18V | 36V | 2 | 5V | 29V | - | - | 6A, 2A | 70W | - | ITE (Commercial), Medical | 78% | 0°C ~ 70°C (With Derating) | Chassis Mount | 4.79" L x 2.62" W x 1.48" H (121.6mm x 66.5mm x 37.6mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
|
1010786CHDC4-70-2005CH |
50 |
|
Технический лист |
DC4-70 (70W) | Box | Active | Chassis | 36V | 72V | 3 | 15V | -15V | - | - | 3A, 2A | 70W | - | ITE (Commercial), Medical | 78% | 0°C ~ 70°C (With Derating) | Chassis Mount | 4.79" L x 2.62" W x 1.48" H (121.6mm x 66.5mm x 37.6mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|

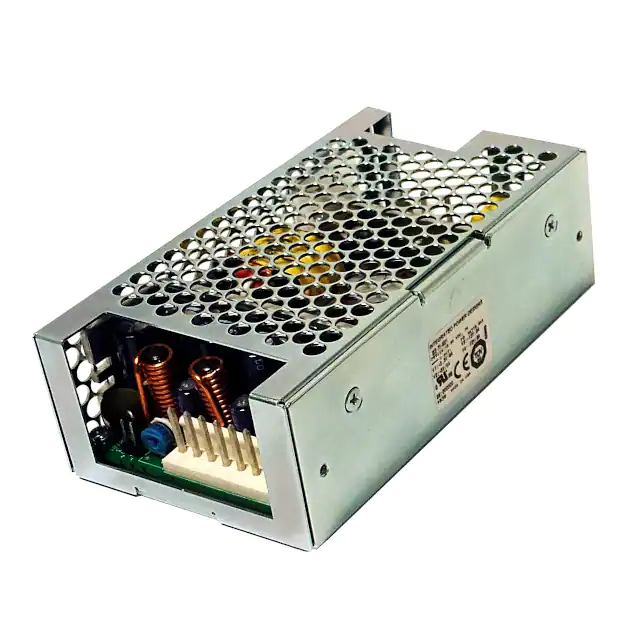

1010791CHCODC4-70-1005CHCO |
50 |
|
Технический лист |
DC4-70 (70W) | Box | Active | Enclosed | 36V | 72V | 1 | 15V | - | - | - | 4.7A | 70W | - | ITE (Commercial), Medical | 78% | 0°C ~ 70°C (With Derating) | Chassis Mount | 4.79" L x 2.62" W x 1.48" H (121.6mm x 66.5mm x 37.6mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
