Датчики тока
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Для измерения | Тип датчика | Ток - Измерение | Количество каналов | Выход | Чувствительность | Частота | Линейность | Точность | Напряжение - Питание | Время отклика | Ток - Питание (макс.) | Рабочая температура | Марка | Квалификация | Поляризация | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RIK-mA-3:RCT473PH 4-20/0-20mA INT 15" COIL KIT |
2 |
|
Технический лист |
RIK | - | Tape & Box (TB) | Active | AC | Rogowski Coil | 500A, 1000A, 2500A, 5000A, 10000A, 25000A, 50000A (Selectable) | 3 | Ratiometric, 0mA ~ 20mA, 4mA ~ 20mA | - | 50/60Hz | - | ±1% | 24VDC | 10ms | - | -20°C ~ 55°C | - | - | - | DIN Rail, Panel | - |
|
|
RIK-5A:RCT473PH 5A INT 15" COIL KIT |
2 |
|
Технический лист |
RIK | - | Tape & Box (TB) | Active | AC | Rogowski Coil | 500A, 1000A, 2500A, 5000A, 10000A, 25000A, 50000A (Selectable) | 3 | Ratiometric, 5A | - | 50/60Hz | - | ±1% | 24VDC | 10ms | - | -20°C ~ 55°C | - | - | - | DIN Rail, Panel | - |
|
ACS71240KEXBLT-030B3SENSOR CURRENT HALL 30A 12PWRQFN |
0 |
|
Технический лист |
- | 12-PowerWFQFN | Tape & Reel (TR) | Active | AC/DC | Hall Effect, Open Loop | 30A | 1 | Voltage | 44mV/A | 120kHz | ±1% | ±6% | 3V ~ 3.6V | 4µs | 12mA | -40°C ~ 125°C | Automotive | AEC-Q100 | Bidirectional | Surface Mount | - |
|
HLSR 10-SMSENSOR CURRENT HALL 10A AC/DC |
0 |
|
Технический лист |
HLSR-SM | Module | Tray | Active | AC/DC | Hall Effect, Open Loop | 10A | 1 | Ratiometric, Voltage | 80mV/A | 400kHz | ±0.5% | ±1% | 5V | 2.5µs | 25mA | -40°C ~ 105°C | - | - | Bidirectional | Surface Mount | - |
|

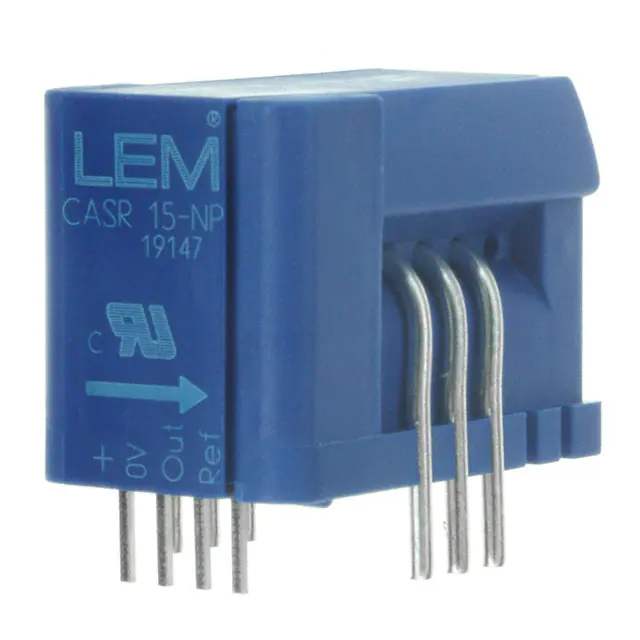

CASR 15-NPSENSOR CURRENT FLUX 15A AC/DC |
0 |
|
Технический лист |
CASR | Module | Tray | Active | AC/DC | Flux Gate, Closed Loop | 15A | 1 | Ratiometric, Voltage | 41.67mV/A | 300kHz | ±1% | ±0.8% | 4.75V ~ 5.25V | 0.3µs | 20mA | -40°C ~ 85°C | - | - | Bidirectional | Through Hole | - |
|
LXS 6-NPSSENSOR CURRENT HALL 6A UNIPOLAR |
0 |
|
Технический лист |
LXS | Module | Tray | Active | AC/DC | Hall Effect, Closed Loop | 6A | 1 | Ratiometric, Voltage | 104.2mV/A | 300kHz | ±0.1% | ±2.25% | 4.75V ~ 5.25V | 400ns | 23mA | -40°C ~ 105°C | - | - | Bidirectional | Through Hole | - |
|

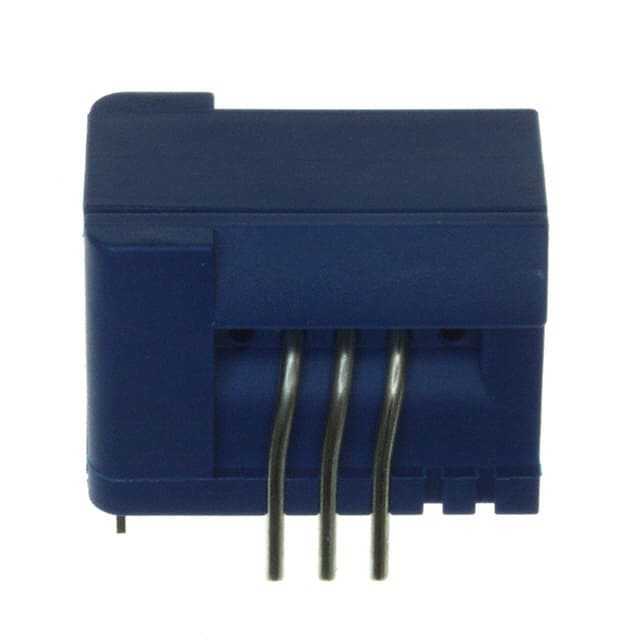

CAS 6-NPSENSOR CURRENT FLUX 6A AC/DC |
0 |
|
Технический лист |
CAS | Module | Tray | Active | AC/DC | Flux Gate, Closed Loop | 6A | 1 | Ratiometric, Voltage | 104.2mV/A | 300kHz | ±1% | ±0.8% | 4.75V ~ 5.25V | 0.3µs | 20mA | -40°C ~ 85°C | - | - | Bidirectional | Through Hole | - |
|

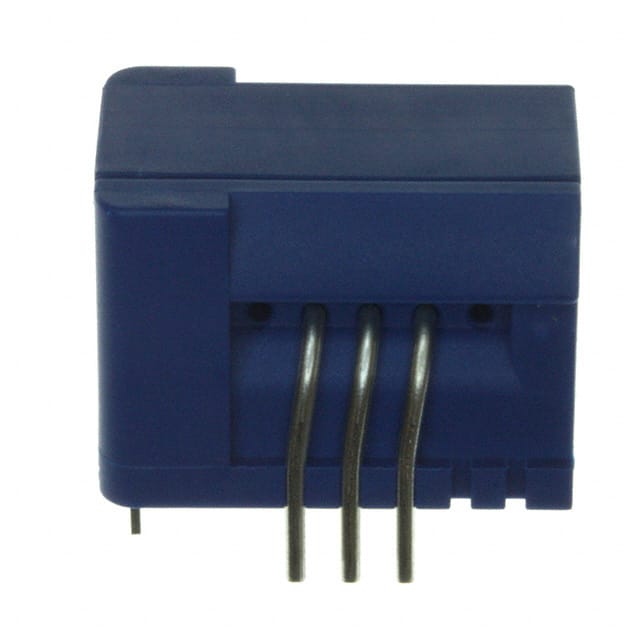

CAS 25-NPSENSOR CURRENT FLUX 25A AC/DC |
0 |
|
Технический лист |
CAS | Module | Tray | Active | AC/DC | Flux Gate, Closed Loop | 25A | 1 | Ratiometric, Voltage | 25mV/A | 300kHz | ±1% | ±0.8% | 4.75V ~ 5.25V | 0.3µs | 20mA | -40°C ~ 85°C | - | - | Bidirectional | Through Hole | - |
|

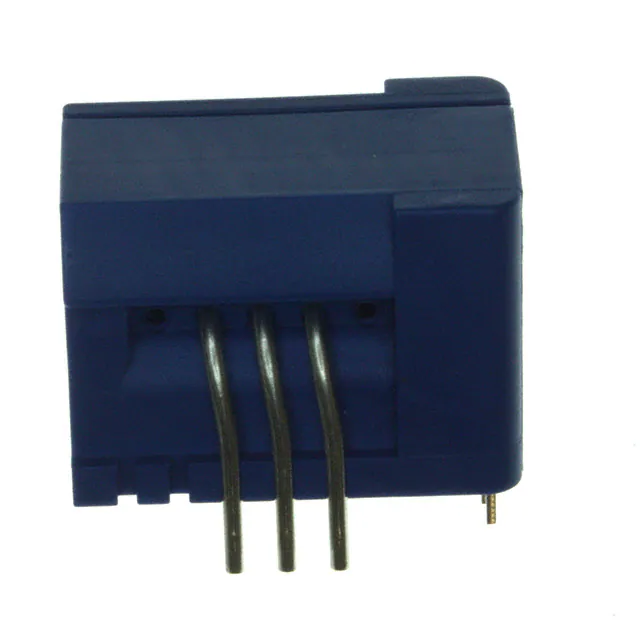

CASR 50-NPSENSOR CURRENT FLUX 50A AC/DC |
0 |
|
Технический лист |
CASR | Module | Tray | Active | AC/DC | Flux Gate, Closed Loop | 50A | 1 | Ratiometric, Voltage | 12.5mV/A | 300kHz | ±1% | ±0.8% | 4.75V ~ 5.25V | 0.3µs | 20mA | -40°C ~ 85°C | - | - | Bidirectional | Through Hole | - |
|
CAS 50-NPSENSOR CURRENT FLUX 50A AC/DC |
0 |
|
Технический лист |
CAS | Module | Tray | Active | AC/DC | Flux Gate, Closed Loop | 50A | 1 | Ratiometric, Voltage | 12.5mV/A | 300kHz | ±1% | ±0.8% | 4.75V ~ 5.25V | 0.3µs | 20mA | -40°C ~ 85°C | - | - | Bidirectional | Through Hole | - |
|

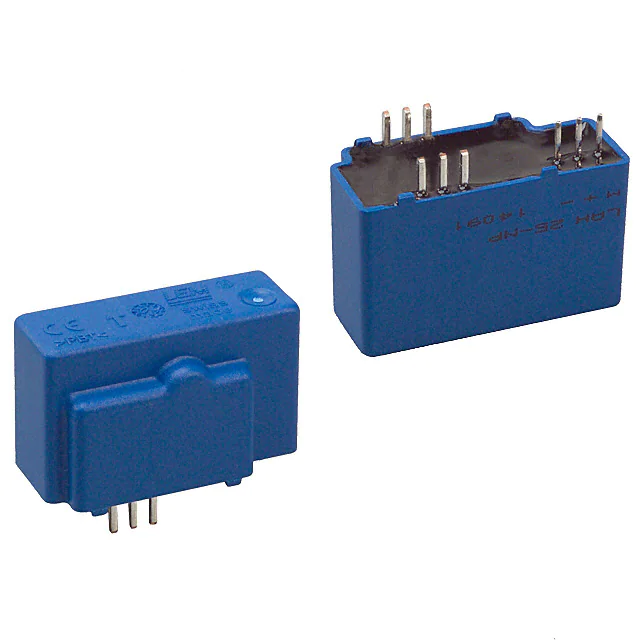

LAH 25-NPSENSOR CURRENT HALL 8A, 12A, 25A |
0 |
|
Технический лист |
LAH | Module | Bulk | Active | AC/DC | Hall Effect, Closed Loop | 8A, 12A, 25A (Selectable) | 1 | Ratiometric, Current | - | DC ~ 200kHz | ±0.2% | ±0.3% | ±12V ~ 15V | 0.5µs | 35mA | -25°C ~ 85°C | - | - | Bidirectional | Through Hole | - |
|
HASS 400-SSENSOR CURRENT HALL 400A AC/DC |
0 |
|
Технический лист |
HASS | Module | Tray | Not For New Designs | AC/DC | Hall Effect, Open Loop | 400A | 1 | Ratiometric, Voltage | - | DC ~ 50kHz | ±0.5% | ±1% | 5V | 3µs | 19mA | -40°C ~ 85°C | - | - | Bidirectional | Through Hole | - |
|
HTFS 200-PSENSOR CURRENT HALL 200A AC/DC |
0 |
|
Технический лист |
HTFS | Module | Tube | Active | AC/DC | Hall Effect, Open Loop | 200A | 1 | Ratiometric, Voltage | - | DC ~ 240kHz | ±0.5% | ±1% | 5V | 3.5µs | 25mA | -40°C ~ 105°C | - | - | Bidirectional | Through Hole | - |
|
|
HTFS 400-PSENSOR CURRENT HALL 400A AC/DC |
0 |
|
Технический лист |
HTFS | Module | Tube | Active | AC/DC | Hall Effect, Open Loop | 400A | 1 | Ratiometric, Voltage | - | DC ~ 240kHz | ±0.5% | ±1% | 5V | 3.5µs | 25mA | -40°C ~ 105°C | - | - | Bidirectional | Through Hole | - |
|

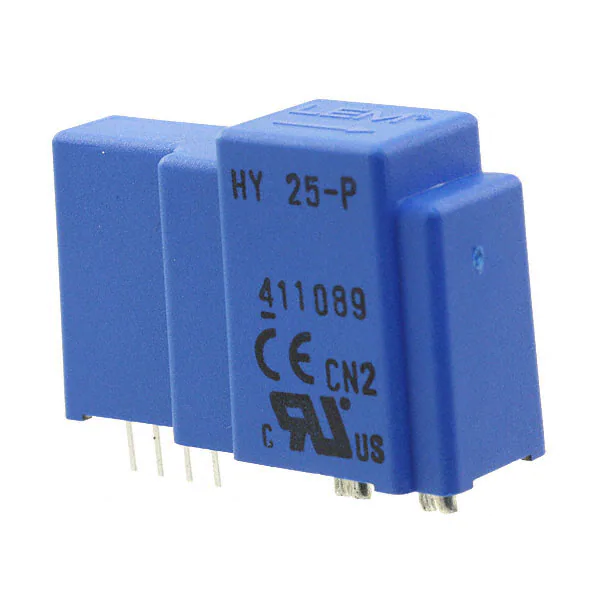

HY 25-PSENSOR CURRENT HALL 25A AC/DC |
0 |
|
Технический лист |
HY | Module | Tray | Not For New Designs | AC/DC | Hall Effect, Open Loop | 25A | 1 | Ratiometric, Voltage | - | DC ~ 50kHz | ±1% | ±1% | ±12V ~ 15V | 3µs | 10mA | -10°C ~ 80°C | - | - | Bidirectional | Through Hole | - |
|
CR9580-50SENSOR CURRENT XFMR 50A AC |
0 |
|
Технический лист |
CR9500 | Hinged Ring, 0.40" Dia, Wire Leads | Bulk | Active | AC | Transformer w/Conditioning | 50A | 1 | Ratiometric, 0V ~ 5V | - | 50Hz ~ 400Hz | - | ±0.5% | Self Powered | 100ms (On), 250ms (Off) | - | -30°C ~ 60°C | - | - | Bidirectional | - | - |
|
|
DHAB S/137SENSOR CURRENT 75A/1000A 2CH |
0 |
|
Технический лист |
DHAB | Module, Single Pass Through | Bulk | Active | AC/DC | Hall Effect, Open Loop | 75A, 1000A | 2 | Ratiometric, Voltage | 26.7mV/A | 70Hz | ±0.5% | ±2.5% | 4.75V ~ 5.25V | - | 20mA | -40°C ~ 125°C | - | - | Unidirectional | Through Hole | - |
|
AT 5 B5SENSOR CURRENT XFMR 5A AC |
0 |
|
Технический лист |
AT | Module | Bulk | Active | AC | Transformer w/Conditioning | 5A | 1 | Ratiometric, 0V ~ 5V | - | 50/60Hz | ±0.5% | ±1.5% | Self Powered | 300ms | - | -20°C ~ 60°C | - | - | Bidirectional | Chassis Mount | - |
|
|
AT 50 B10SENSOR CURRENT XFMR 50A AC |
0 |
|
Технический лист |
AT | Module | Bulk | Active | AC | Transformer w/Conditioning | 50A | 1 | Ratiometric, 0V ~ 10V | - | 50/60Hz | ±0.5% | ±1.5% | Self Powered | 300ms | - | -20°C ~ 60°C | - | - | Bidirectional | Chassis Mount | - |
|
|
CAB 500-C/SP5AUTOMOTIVE CURRENT TRANSDUCER |
0 |
|
Технический лист |
CAB 500-C | Module, Single Pass Through | Bulk | Active | DC | Flux Gate | 500A | 1 | Ratiometric, Current | - | - | ±0.1% | 0.5% | 8V ~ 16V | - | 160mA | -40°C ~ 85°C | - | - | Unidirectional | Chassis Mount | - |
