Датчики тока
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Для измерения | Тип датчика | Ток - Измерение | Количество каналов | Выход | Чувствительность | Частота | Линейность | Точность | Напряжение - Питание | Время отклика | Ток - Питание (макс.) | Рабочая температура | Марка | Квалификация | Поляризация | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CAS 25-NP/SP1TRANSDUCER |
0 |
|
- |
CASR | Module | Bulk | Active | AC/DC | Hall Effect, Closed Loop | 25A | 1 | Voltage | 25mV/A | DC ~ 300kHz | ±0.1% | ±0.8% | 4.75V ~ 5.25V | 300ns | - | -40°C ~ 85°C | - | - | Unidirectional | Through Hole | - |
|
|
CAS 15-NP/SP1TRANSDUCER |
0 |
|
- |
CASR | Module | Bulk | Active | AC/DC | Hall Effect, Closed Loop | 15A | 1 | Voltage | 41.67mV/A | DC ~ 300kHz | ±0.1% | ±0.8% | 4.75V ~ 5.25V | 300ns | - | -40°C ~ 85°C | - | - | Unidirectional | Through Hole | - |
|
|
L03S800D15WJCURRENT SENSOR (800A; 15V) |
0 |
|
Технический лист |
L03S | Module, Single Pass Through | Bulk | Active | AC/DC | Hall Effect, Closed Loop | 800A | 1 | Ratiometric, Voltage | - | - | ±1% | - | ±12V ~ 15V | 10µs | 20mA | -10°C ~ 80°C | - | - | Bidirectional | Chassis Mount | - |
|
|
L03S800D15WMCURRENT SENSOR (800A; 15V) |
0 |
|
Технический лист |
L03S | Module, Single Pass Through | Bulk | Active | AC/DC | Hall Effect, Open Loop | 800A | 1 | Ratiometric, Voltage | - | - | ±1% | - | ±12V ~ 15V | 10µs | 20mA | -20°C ~ 80°C | - | - | Bidirectional | Chassis Mount | - |
|

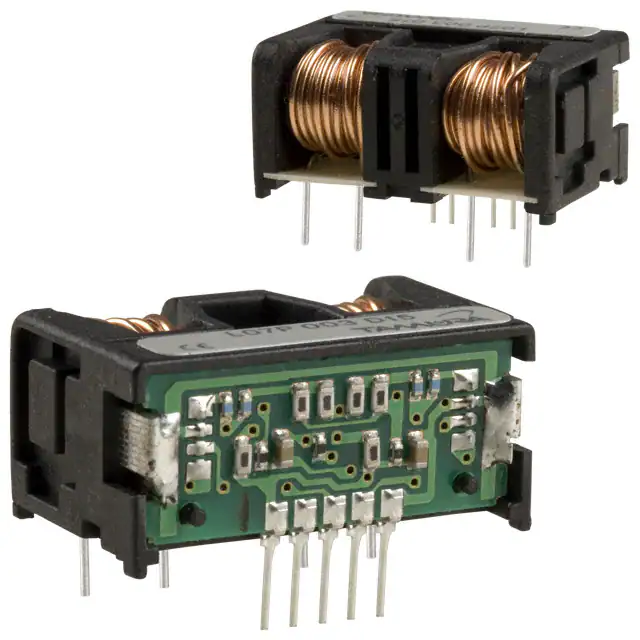

L07P003D15SENSOR CURRENT HALL 3A AC/DC |
0 |
|
Технический лист |
L07P | Module | Bulk | Obsolete | AC/DC | Hall Effect, Open Loop | 3A | 1 | Ratiometric, Voltage | - | DC ~ 100kHz | ±1% | - | ±15V | 5µs | 30mA | -30°C ~ 80°C | - | - | Bidirectional | Through Hole | - |
|
L07P005D15SENSOR CURRENT HALL 5A AC/DC |
0 |
|
Технический лист |
L07P | Module | Bulk | Obsolete | AC/DC | Hall Effect, Open Loop | 5A | 1 | Ratiometric, Voltage | - | DC ~ 100kHz | ±1% | - | ±15V | 5µs | 30mA | -30°C ~ 80°C | - | - | Bidirectional | Through Hole | - |
|

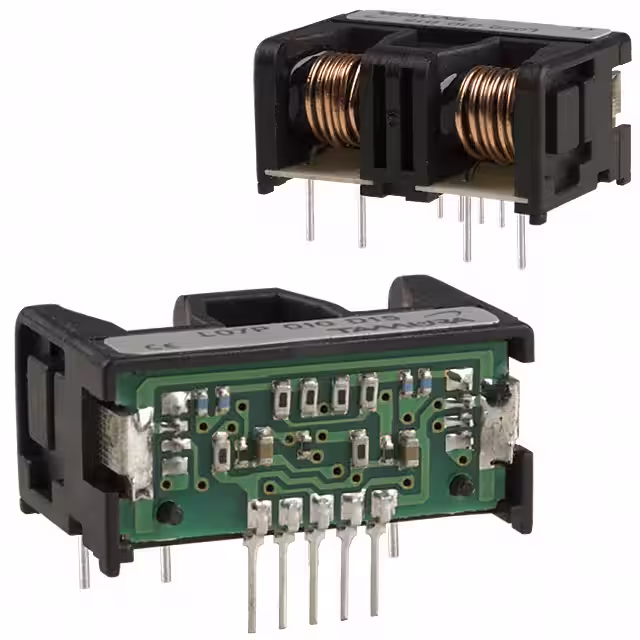

L07P010D15SENSOR CURRENT HALL 10A AC/DC |
0 |
|
Технический лист |
L07P | Module | Bulk | Obsolete | AC/DC | Hall Effect, Open Loop | 10A | 1 | Ratiometric, Voltage | - | DC ~ 100kHz | ±1% | - | ±15V | 5µs | 30mA | -30°C ~ 80°C | - | - | Bidirectional | Through Hole | - |
|
L07P015D15SENSOR CURRENT HALL 15A AC/DC |
0 |
|
Технический лист |
L07P | Module | Bulk | Obsolete | AC/DC | Hall Effect, Open Loop | 15A | 1 | Ratiometric, Voltage | - | DC ~ 100kHz | ±1% | - | ±15V | 5µs | 30mA | -30°C ~ 80°C | - | - | Bidirectional | Through Hole | - |
|

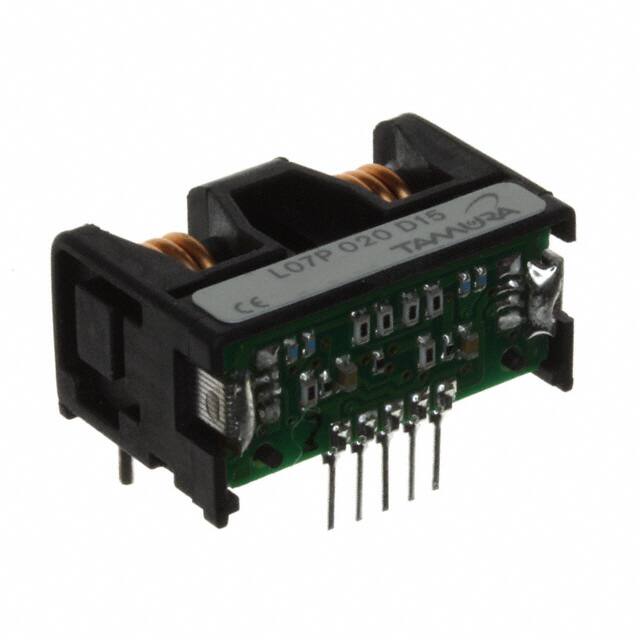

L07P020D15SENSOR CURRENT HALL 20A AC/DC |
0 |
|
Технический лист |
L07P | Module | Bulk | Obsolete | AC/DC | Hall Effect, Open Loop | 20A | 1 | Ratiometric, Voltage | - | DC ~ 100kHz | ±1% | - | ±15V | 5µs | 30mA | -30°C ~ 80°C | - | - | Bidirectional | Through Hole | - |
|

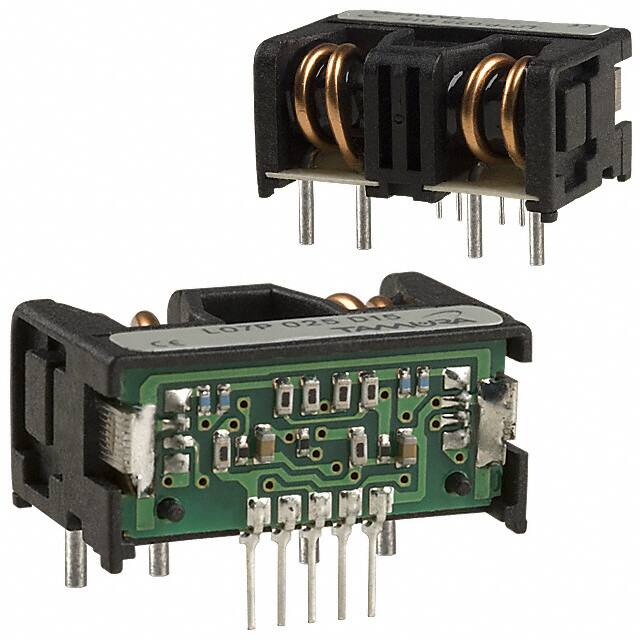

L07P025D15SENSOR CURRENT HALL 25A AC/DC |
0 |
|
Технический лист |
L07P | Module | Bulk | Obsolete | AC/DC | Hall Effect, Open Loop | 25A | 1 | Ratiometric, Voltage | - | DC ~ 100kHz | ±1% | - | ±15V | 5µs | 30mA | -30°C ~ 80°C | - | - | Bidirectional | Through Hole | - |
|
|
L07P030D15SENSOR CURRENT HALL 30A AC/DC |
0 |
|
Технический лист |
L07P | Module | Bulk | Obsolete | AC/DC | Hall Effect, Open Loop | 30A | 1 | Ratiometric, Voltage | - | DC ~ 100kHz | ±1% | - | ±15V | 5µs | 30mA | -30°C ~ 80°C | - | - | Bidirectional | Through Hole | - |
|
|
L32P050S05FSSENSOR CURRENT HALL 50A AC/DC |
0 |
|
Технический лист |
- | Module, Single Pass Through | Bulk | Active | AC/DC | Hall Effect, Open Loop | 50A | 1 | Ratiometric, Voltage | - | DC ~ 50kHz | ±0.5% | - | 5V | 5µs | 15mA | -40°C ~ 85°C | - | - | Bidirectional | Through Hole | - |
|
|
L31S600S05FSSENSOR CURRENT HALL 600A AC/DC |
0 |
|
Технический лист |
L31SXXXS05S | Module, Single Pass Through | Bulk | Active | AC/DC | Hall Effect, Open Loop | 600A | 1 | Ratiometric, Voltage | - | DC ~ 100kHz | ±0.5% | - | 5V | 5µs | 15mA | -40°C ~ 85°C | - | - | Bidirectional | Chassis Mount | - |
|
|
CASR 25-NP/SP1TRANSDUCER |
0 |
|
- |
CASR | Module | Bulk | Active | AC/DC | Closed Loop | 25A | 1 | Voltage | 25mV/A | DC ~ 300kHz | ±0.1% | ±0.8% | 4.75V ~ 5.25V | 300ns | - | -40°C ~ 105°C | - | - | Unidirectional | Through Hole | - |
|
|
CASR 15-NP/SP1TRANSDUCER |
0 |
|
- |
CASR | Module | Bulk | Active | AC/DC | Closed Loop | 15A | 1 | Voltage | 41.67mV/A | DC ~ 300kHz | ±0.1% | ±0.8% | 4.75V ~ 5.25V | 300ns | - | -40°C ~ 85°C | - | - | Unidirectional | Through Hole | - |
|
|
CASR 6-NP/SP3TRANSDUCER |
0 |
|
- |
CASR | Module | Bulk | Active | AC/DC | Closed Loop | 6A | 1 | Voltage | 104.2mV/A | DC ~ 300kHz | ±0.1% | ±0.8% | 4.75V ~ 5.25V | 300ns | - | -40°C ~ 105°C | - | - | Unidirectional | Through Hole | - |
|
HLSR 40-SMSENSOR CURRENT HALL 40A AC/DC |
0 |
|
Технический лист |
HLSR-SM | Module | Tray | Active | AC/DC | Hall Effect, Open Loop | 40A | 1 | Ratiometric, Voltage | 20mV/A | 400kHz | ±0.5% | ±1% | 5V | 2.5µs | 25mA | -40°C ~ 105°C | - | - | Bidirectional | Surface Mount | - |
|
F01P015S05SENSOR CURRENT FLUX GATE 15A AC |
0 |
|
Технический лист |
F01P | Module | Bulk | Obsolete | AC | Flux Gate, Closed Loop | 15A | 1 | Ratiometric, Voltage | 41.67mV/A | 300kHz | ±1% | ±1.9% | 5V | 0.3µs | 30mA | -40°C ~ 105°C | - | - | Bidirectional | Through Hole | - |
|
F02P015S05SENSOR CURRENT FLUX GATE 15A AC |
0 |
|
Технический лист |
F02P | Module | Bulk | Obsolete | AC | Flux Gate, Closed Loop | 15A | 1 | Ratiometric, Voltage | 41.67mV/A | 300kHz | ±1% | ±1.2% | 5V | 0.3µs | 30mA | -40°C ~ 105°C | - | - | Bidirectional | Through Hole | - |
|
|
L32P100S05FSSENSOR CURRENT HALL 100A AC/DC |
0 |
|
Технический лист |
- | Module, Single Pass Through | Bulk | Active | AC/DC | Hall Effect, Open Loop | 100A | 1 | Ratiometric, Voltage | - | DC ~ 50kHz | ±0.5% | - | 5V | 5µs | 15mA | -40°C ~ 85°C | - | - | Bidirectional | Through Hole | - |
