Контакторы (электромеханические)
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Особенности | Тип вывода | Рабочая температура | Необходимое рабочее напряжение | Необходимое отпускающее напряжение |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DCNHR100PF48CVP RELAY |
27 |
|
Технический лист |
DCNHR | Bulk | Active | Chassis Mount | 48VDC | SPST-NO (1 Form A) | 100 A | 900VDC - Max | - | Stud, Wire Leads | -40°C ~ 85°C | 33.6 VDC | 4.8 VDC |
|

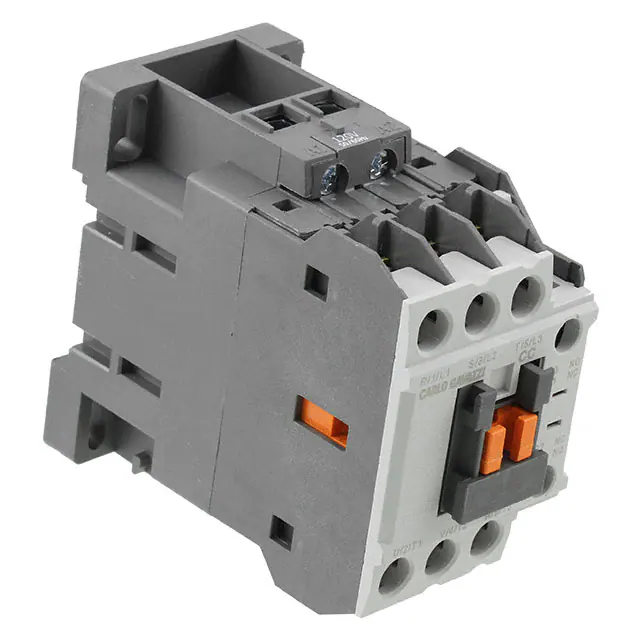

CC22SA2403P CONT S 240V 50/60HZ 1NO1NC |
55 |
|
Технический лист |
CC | Bulk | Active | Chassis Mount, DIN Rail | 240VAC | 3PST-NO (3 Form A) | 22 A | 690VAC - Max | Auxiliary Contacts | Screw Terminal | -5°C ~ 60°C | 204 VAC | 72 VAC |
|
CGMU-12A-120-20REV CONTACT AC COIL 2NO AUX |
33 |
|
Технический лист |
CGMU | Bulk | Active | Chassis Mount, DIN Rail | 120VAC | 3PST-NO (3 Form A) | 12 A | 690VAC - Max | Auxiliary Contacts | Screw Terminal | - | - | - |
|
AEV250-MCAEV250 SERIES 500A DC CONTACTOR |
28 |
|
Технический лист |
AEV250 | Box | Active | Chassis Mount | 12 ~ 24VDC | SPST-NO (DM) (1 Form X) | 500 A | 1000VDC - Max | - | Stud, Wire Leads | -40°C ~ 85°C | 9 VDC | 6 VDC |
|
IHV50A6ANHRELAY CONTACTOR SPST 50A 48V |
42 |
|
Технический лист |
IHV50 | Box | Active | Chassis Mount | 48VDC | SPST-NO (DM) (1 Form X) | 50 A | 900VDC - Max | Sealed - Hermetically | Stud, Wire Leads | -40°C ~ 85°C | 33 VDC | 4.8 VDC |
|
|
AEV250-FNAEV250 SERIES 500A DC CONTACTOR |
59 |
|
Технический лист |
AEV250 | Box | Active | Chassis Mount | 72VDC | SPST-NO (DM) (1 Form X) | 500 A | 1000VDC - Max | - | Stud, Wire Leads | -40°C ~ 85°C | 48 VDC | 27 VDC |
|

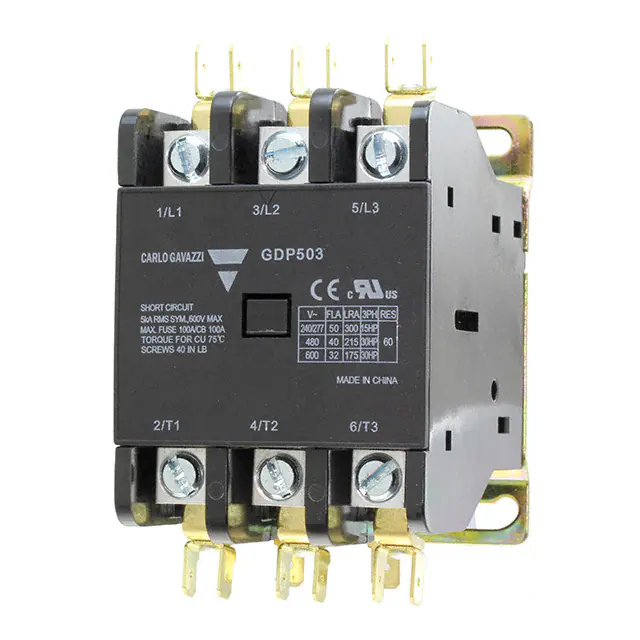

GDP503L24V3P DPC LUG TERM 50A 24VAC |
46 |
|
Технический лист |
GDP | Bulk | Active | Chassis Mount | 24VAC | 3PST-NO (3 Form A) | 50 A | 277VAC - Nom | - | Box Lug, Quick Connect - 0.250" (6.3mm) | -5°C ~ 40°C | 20.4 VAC | 4.8 VAC |
|
|
GDP503L220V3P DPC LUG TERM 50A 220VAC |
43 |
|
Технический лист |
GDP | Bulk | Active | Chassis Mount | 220VAC | 3PST-NO (3 Form A) | 50 A | 277VAC - Nom | - | Box Lug, Quick Connect - 0.250" (6.3mm) | -5°C ~ 40°C | 187 VAC | 44 VAC |
|
GDP603L24V3P DPC LUG TERM 60A 24VAC |
40 |
|
Технический лист |
GDP | Bulk | Active | Chassis Mount | 24VAC | 3PST-NO (3 Form A) | 60 A | 277VAC - Nom | - | Box Lug, Quick Connect - 0.250" (6.3mm) | -5°C ~ 40°C | 20.4 VAC | 4.8 VAC |
|
IHV350ADNFARELAY CONTACTOR SPST 350A 24V |
30 |
|
Технический лист |
IHV350 | Box | Active | Chassis Mount | 24VDC | SPST-NO (DM) (1 Form X) | 350 A | 1800VDC - Max | Auxiliary Contacts, Economizer, Sealed - Hermetically | Screw Terminal, Quick Connect | -40°C ~ 85°C | 19 VDC | 9 VDC |
|
DCNLEV50-ESDC CONTACTOR 50A 900V 48VIN |
30 |
|
Технический лист |
DCNLEV50 | Bulk | Active | Chassis Mount | 48VDC | SPST-NO (DM) (1 Form X) | 50 A | 750VDC - Nom | - | Stud, Wire Leads | -40°C ~ 85°C | 33 VDC | 4.8 VDC |
|
|
2071584-4RELAY EV CONTACTORS |
41 |
|
Технический лист |
ECK50B | Box | Active | Chassis Mount | 12VDC | SPST-NO (DM) (1 Form X) | 50 A | 1000VDC - Max | Sealed - Hermetically | Stud, Wire Leads | -40°C ~ 85°C | 9 VDC | 1.2 VDC |
|
|
DCNHR40PF12DC CONTACTOR CVP RELAY |
30 |
|
Технический лист |
DCNHR | Bulk | Active | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 40 A | 900VDC - Max | - | Stud, Wire Leads | -40°C ~ 85°C | 9 VDC | 1 VDC |
|
|
2071584-5RELAY EV CONTACTORS |
38 |
|
Технический лист |
ECK50B | Box | Active | Chassis Mount | 24VDC | SPST-NO (DM) (1 Form X) | 50 A | 1000VDC - Max | Sealed - Hermetically | Stud, Wire Leads | -40°C ~ 85°C | 18 VDC | 2.4 VDC |
|
|
DCNLJ125NB24DC CONTACTOR CVP RELAY |
72 |
|
Технический лист |
DCNLJ | Bulk | Active | Chassis Mount | 24VDC | SPST-NO (1 Form A) | 125 A | 60VDC - Max | - | Screw Terminal, Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C | 16.8 VDC | 2 VDC |
|
|
DCNHR30PF12-01DC CONTACTOR CVP RELAY |
43 |
|
Технический лист |
DCNHR | Bulk | Active | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 30 A | 900VDC - Max | - | Stud, Wire Leads | -40°C ~ 85°C | 9 VDC | 1 VDC |
|
|
DCNHR20PF12-01DC CONTACTOR CVP RELAY |
29 |
|
Технический лист |
DCNHR | Bulk | Active | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 20 A | 900VDC - Max | - | Stud, Wire Leads | -40°C ~ 85°C | 9 VDC | 1 VDC |
|
|
DCNHR30PF48-01DC CONTACTOR CVP RELAY |
43 |
|
Технический лист |
DCNHR | Bulk | Active | Chassis Mount | 48VDC | SPST-NO (1 Form A) | 30 A | 900VDC - Max | - | Stud, Wire Leads | -40°C ~ 85°C | 36 VDC | 4 VDC |
|
DCNLEV100-BSDC CONTACTOR 100A 750V 12VIN |
30 |
|
Технический лист |
DCNLEV100 | Bulk | Active | Chassis Mount | 12VDC | SPST-NO (DM) (1 Form X) | 100 A | 750VDC - Nom | - | Stud, Wire Leads | -40°C ~ 85°C | 8 VDC | 1.2 VDC |
|
DCNLEV50-BASNDC CONTACTOR 50A 900V 12VIN |
28 |
|
Технический лист |
DCNLEV50 | Bulk | Active | Chassis Mount | 12VDC | SPST-NO (DM) (1 Form X) | 50 A | 750VDC - Nom | Auxiliary Contacts | Stud, Wire Leads | -40°C ~ 85°C | 8 VDC | 1.2 VDC |
