Синфазные дроссели
| Фото | Номер производителя | Наличие | Количество | Технический лист | Корпус/корпус | Тип фильтра | Количество линий | Импеданс при частоте | Номинальный ток (макс.) | Сопротивление постоянному току (DCR) (макс.) | Номинальное напряжение - постоянный ток | Номинальное напряжение - переменный ток | Рабочая температура | Номинальные значения | Сертифицирующее агентство | Особенности | Тип крепления | Размер/измерение | Высота (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
C20530A-233CMC 23.5mH 36mOhm 5.5 Amp Max. |
16 |
|
Технический лист |
Vertical, 4 PC Pin | Power Line | 2 | - | 23.5 mH @ 10 kHz | 5.5A | 36mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
C20530A-453CMC 45mH 85mOhm 3.6 Amp Max. |
16 |
|
Технический лист |
Vertical, 4 PC Pin | Power Line | 2 | - | 45 mH @ 10 kHz | 3.6A | 85mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
C20530A-653CMC 65mH 138mOhm 2.8 Amp Max. |
16 |
|
Технический лист |
Vertical, 4 PC Pin | Power Line | 2 | - | 65 mH @ 10 kHz | 2.8A | 138mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

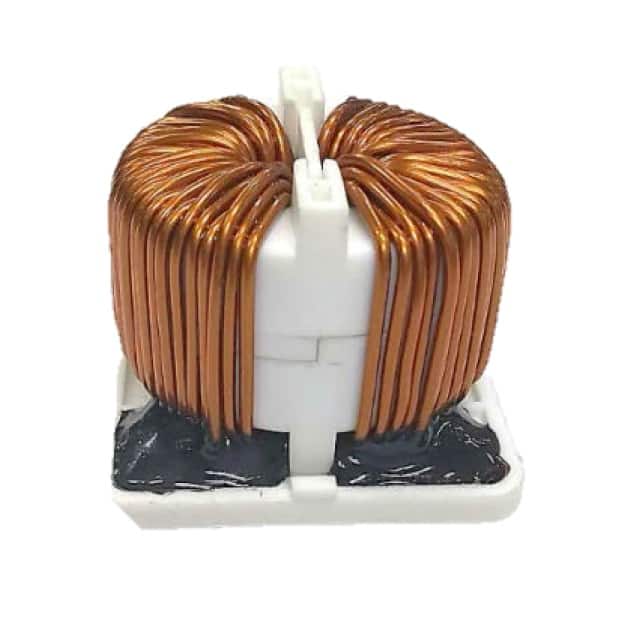

C301369A-752NU7.5mH, 30%, 32.5mOhm, 7.0A Max. |
12 |
|
Технический лист |
Horizontal, 4 PC Pin | Power Line | 2 | - | 7.5 mH @ 1 kHz | 7A | 32.5mOhm | - | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
|
C301369A-103NU10.0mH, 30%, 44.0mOhm, 6.0A Max |
12 |
|
Технический лист |
Horizontal, 4 PC Pin | Power Line | 2 | - | 10 mH @ 1 kHz | 6A | 44mOhm | - | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
|
C301369A-532NU5.3mH, 30%, 27.0mOhm, 7.6A Max. |
12 |
|
Технический лист |
Horizontal, 4 PC Pin | Power Line | 2 | - | 5.3 mH @ 1 kHz | 7.6A | 27mOhm | - | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
C20200-187,300uH, 32mOhm, 9.3Amp Max. |
9 |
|
Технический лист |
Radial, Vertical - 4 Leads | Power Line | 2 | - | 7.3 mH @ 1 kHz | 9.3A | 32mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
C20200-202,400uH, 8mOhm, 17Amp Max. |
9 |
|
Технический лист |
Radial, Vertical - 4 Leads | Power Line | 2 | - | 2.4 mH @ 1 kHz | 17A | 8mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
C20200-211,000uH, 7mOhm, 20Amp Max. |
9 |
|
Технический лист |
Radial, Vertical - 4 Leads | Power Line | 2 | - | 1 mH @ 1 kHz | 20A | 7mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
C20200-23600uH, 3.6mOhm 25Amp Max. |
9 |
|
Технический лист |
Radial, Vertical - 4 Leads | Power Line | 2 | - | 600 µH @ 1 kHz | 25A | 3.6mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
C20200-243.0mH, 13.0A Rated. |
9 |
|
Технический лист |
Radial, Vertical - 4 Leads | Power Line | 2 | - | 3 mH @ 1 kHz | 13A | 11mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
C301306-672NHF6.7mH, 35mOhm, 7.5A Rated. |
9 |
|
Технический лист |
Horizontal, 4 PC Pin | Power Line | 2 | - | 6.7 mH @ 10 kHz | 7.5A | 35mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
C301306-202NHF2.0mH, 30%, 8.0mOhm, 16A Rated. |
9 |
|
Технический лист |
Horizontal, 4 PC Pin | Power Line | 2 | - | 2 mH @ 10 kHz | 16A | 8mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
C301306-172NHF1.7mH, 30%, 6.5mOhm, 18A Rated |
9 |
|
Технический лист |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1.7 mH @ 10 kHz | 18A | 6.5mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
ACM2012-201-2P-T002CMC 350MA 2LN 200 OHM SMD |
20 |
|
Технический лист |
Horizontal, 4 PC Pad | Signal Line | 2 | 200 Ohms @ 100 MHz | - | 350mA | 250mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
IP3319CX6,135CMC 2LN SMD ESD |
0 |
|
Технический лист |
6-UFBGA, WLCSP | Signal Line | 2 | - | - | - | 6Ohm (Typ) | - | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
MCZ1210AH301CPTA0GCMC 100MA 2LN 300 OHM SMD |
0 |
|
Технический лист |
0504 (1210 Metric), 4 Lead | Signal Line | 2 | 300 Ohms @ 100 MHz | - | 100mA | 4.5Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
SRF2012A-801YCMC 300MA 2LN 800OHM SMD AECQ200 |
0 |
|
Технический лист |
Horizontal, 4 PC Pad | - | 2 | 800 Ohms @ 100 MHz | - | 300mA | 880mOhm | 50V | - | -55°C ~ 125°C | - | - | - | - | - |
|
ACP3225-501-2P-T000CMC 2A 2LN 500 OHM SMD |
0 |
|
Технический лист |
Horizontal, 4 PC Pad | Power Line | 2 | 500 Ohms @ 100 MHz | - | 2A | 40mOhm (Typ) | 60V | - | -40°C ~ 85°C | - | - | - | - | - |
|
ACM4520V-901-2P-T00CMC 1.2A 2LN 900OHM SMD AEC-Q200 |
0 |
|
Технический лист |
Horizontal, 4 PC Pad | Power Line | 2 | 900 Ohms @ 100 MHz | - | 1.2A | 60mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
