Кабельные и шнуровые зажимы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Корпус/корпус | Тип | Внешний диаметр кабеля (мин.) | Внешний диаметр кабеля (макс.) | Размер резьбы | Длина резьбы | Размер втулки кабелепровода | Размер отверстия панели | Материал | Включает | Цвет | Защита от проникновения | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1720370000CABLE GLAND 12-14MM PG16 BRASS |
0 |
|
Технический лист |
Cable Gland | 0.472" (12.00mm) | 0.551" (14.00mm) | PG16 | 0.276" (7.00mm) | - | - | Brass, Nickel Plated | Strain Relief | Silver | IP65 - Dust Tight, Water Resistant | -10°C ~ 80°C | |
|
|
1778360000CABLE GLAND 12-14MM M25 BRASS |
0 |
|
Технический лист |
Cable Gland | 0.472" (12.00mm) | 0.551" (14.00mm) | M25x1.5 | 0.276" (7.00mm) | - | - | Brass, Nickel Plated | - | Silver | IP54 - Dust Protected, Water Resistant | -20°C ~ 60°C | |
|
|
1778370000CABLE GLAND 10-12MM M20 BRASS |
0 |
|
Технический лист |
Cable Gland | 0.394" (10.00mm) | 0.472" (12.00mm) | M20x1.5 | 0.256" (6.50mm) | - | - | Brass, Nickel Plated | - | Silver | IP54 - Dust Protected, Water Resistant | -20°C ~ 60°C | |
|
|
1778380000CABLE GLAND 8-10MM M20 BRASS |
0 |
|
Технический лист |
Cable Gland | 0.315" (8.00mm) | 0.394" (10.00mm) | M20x1.5 | 0.256" (6.50mm) | - | - | Brass, Nickel Plated | - | Silver | IP54 - Dust Protected, Water Resistant | -20°C ~ 60°C | |
|
|
1816790000CABLE GLAND 3-8MM M20 BRASS |
0 |
|
Технический лист |
Cable Gland | 0.118" (3.00mm) | 0.315" (8.00mm) | M20x1.5 | 0.591" (15.00mm) | - | - | Brass | Seal | Silver | IP68 - Dust Tight, Waterproof | -60°C ~ 100°C | |
|
|
1301210060CABLE GLAND 2 1/2" NPT NEOPRENE |
0 |
|
- |
Cable Gland - Flat Cables | - | - | 2 1/2" NPT | - | - | 3.000" (76.2mm) | Neoprene | Compression Nut | Black | - | - | |
|

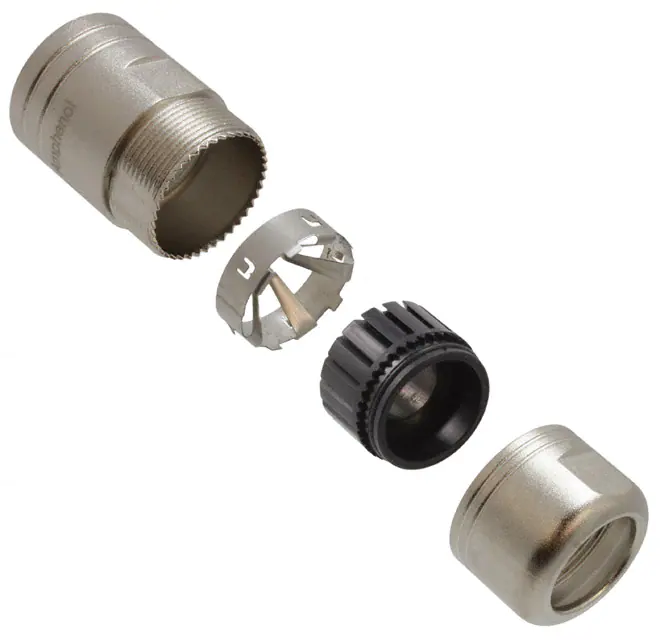

MA3CG-S2CABLE GRIP 7.5-11MM ZINC |
0 |
|
Технический лист |
Cable Grip | 0.295" (7.50mm) | 0.433" (11.00mm) | - | - | - | 0.910" (23.1mm) | Zinc | Gasket, Nut, Seal | Gray | IP67 - Dust Tight, Waterproof | - | |
|
|
MA3CG-S3CABLE GRIP 11-15MM ZINC |
0 |
|
Технический лист |
Cable Grip | 0.433" (11.00mm) | 0.591" (15.00mm) | - | - | - | 0.910" (23.1mm) | Zinc | Gasket, Nut, Seal | Gray | IP67 - Dust Tight, Waterproof | - | |
|
|
MB3CG-S3CABLE GRIP 15-16.99MM ZINC |
0 |
|
Технический лист |
Cable Grip | 0.591" (15.00mm) | 0.669" (16.99mm) | - | - | - | 0.945" (24.0mm) | Zinc | Gasket, Nut, Seal | Gray | IP67 - Dust Tight, Waterproof | - | |
|
|
TCFR-36-19B-020-100CHCABLE FEEDTHR 30.1MM M36 ALUM |
0 |
|
Технический лист |
Cable Feedthrough | - | 1.185" (30.10mm) | M36x1.5 | 0.787" (20.00mm) | - | - | Aluminum Alloy, Cadmium Plated, Electroless | Shrinkable Boot | Olive | - | - | |
|
|
1300970253CABLE GRP RA 39.62-42.67MM 2"NPT |
0 |
|
Технический лист |
Cable Grip - 90° | 1.560" (39.62mm) | 1.680" (42.67mm) | 2" NPT | - | - | - | Aluminum | Compression Nut, Grommet, Strain Relief | Silver | - | - | |
|
|
GSC.00.290.CD17ZCABLE GRP 15.49-17.53MM M5 BRASS |
0 |
|
Технический лист |
Cable Grip | 0.610" (15.49mm) | 0.690" (17.53mm) | M5x0.5 | 0.157" (4.00mm) | - | 0.059" (1.5mm) | Brass | Collet Nut | Silver | IP50 | - | |
|
|
GSC.1S.290.ND42ZCABLE GRIP 3.3-4.32MM M9 BRASS |
0 |
|
Технический лист |
Cable Grip | 0.130" (3.30mm) | 0.170" (4.32mm) | M9x0.6 | 0.295" (7.50mm) | - | 0.197" (5.0mm) | Brass | Collet Nut | Silver | IP50 | - | |
|
|
GSC.1S.290.NM27CABLE GRIP 2.29-2.79MM M9 BRASS |
0 |
|
Технический лист |
Cable Grip | 0.090" (2.29mm) | 0.110" (2.79mm) | M9x0.6 | 0.295" (7.50mm) | - | 0.197" (5.0mm) | Brass | - | Silver | IP50 | - | |
|
|
GSC.1S.290.NM31ZCABLE GRIP 2.29-3.3MM M9 BRASS |
0 |
|
Технический лист |
Cable Grip | 0.090" (2.29mm) | 0.130" (3.30mm) | M9x0.6 | 0.295" (7.50mm) | - | 0.197" (5.0mm) | Brass | Collet Nut | Silver | IP50 | - | |
|
|
GSC.3S.290.CM52ZCABLE GRIP 4.32-5.08MM M15 BRASS |
0 |
|
Технический лист |
Cable Grip | 0.170" (4.32mm) | 0.200" (5.08mm) | M15x1 | 0.472" (12.00mm) | - | 0.319" (8.1mm) | Brass | Collet Nut | Silver | IP50 | - | |
|
|
FCCSR10BLDCF (DIELECTRIC CONDUITED FIBER) |
0 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | |
|
|
1300960041CABLE GRIP 1/2" NPT |
0 |
|
Технический лист |
Cable Grip | - | - | 1/2" NPT | - | - | - | - | Strain Relief | Silver | - | - | |
|
|
1300970186CABLE GRIP 9.53-12.7MM 1/2" NPT |
0 |
|
Технический лист |
Cable Grip | 0.375" (9.53mm) | 0.500" (12.70mm) | 1/2" NPT | - | - | - | Aluminum | Compression Nut, Grommet, Strain Relief | Silver | - | - | |
|
|
1300970222CABLE GRP RA 25.4-28.45MM 1 1/4" |
0 |
|
Технический лист |
Cable Grip - 90° | 1.000" (25.40mm) | 1.120" (28.45mm) | 1 1/4" NPT | - | - | - | Aluminum | Compression Nut, Grommet, Strain Relief | Silver | - | - |
