Кабельные и шнуровые зажимы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Корпус/корпус | Тип | Внешний диаметр кабеля (мин.) | Внешний диаметр кабеля (макс.) | Размер резьбы | Длина резьбы | Размер втулки кабелепровода | Размер отверстия панели | Материал | Включает | Цвет | Защита от проникновения | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
21150.7CABLE GLND 3.5-5.5MM PG9 S STEEL |
0 |
|
- |
Cable Gland - Flat Cables | 0.138" (3.50mm) | 0.217" (5.50mm) | PG9 | 0.240" (6.10mm) | - | 0.600" (15.2mm) | Stainless Steel | Sealing Ring | Silver | IP65 - Dust Tight, Water Resistant; NEMA 3 | -60°C ~ 500°C | |
|
|
20687.5CABLE GLAND 26.92-31.5MM PG36 |
0 |
|
- |
Cable Gland | 1.060" (26.92mm) | 1.240" (31.50mm) | PG36 | - | - | 1.850" (47.0mm) | Polyvinylidene Fluoride (PVDF) | - | Black | IP54 - Dust Protected, Water Resistant; NEMA 13 | -40°C ~ 150°C | |
|
|
20688.5CABLE GLAND 32-36.07MM PG36 PVDF |
0 |
|
- |
Cable Gland | 1.260" (32.00mm) | 1.420" (36.07mm) | PG36 | - | - | 1.850" (47.0mm) | Polyvinylidene Fluoride (PVDF) | - | Black | IP54 - Dust Protected, Water Resistant; NEMA 13 | -40°C ~ 150°C | |
|
|
98677.6.2CABLE FEEDTHROUGH 7.11-8.38MM |
0 |
|
- |
Cable Feedthrough | 0.280" (7.11mm) | 0.330" (8.38mm) | M20x1.5 | 0.390" (9.91mm) | - | 0.790" (20.1mm) | Brass, Chrome Plated | - | Silver | IP56 - Dust Protected, Water Resistant | - | |
|
|
98678.6.2CABLE FEEDTHROUGH 7.87-10.41MM |
0 |
|
- |
Cable Feedthrough | 0.310" (7.87mm) | 0.410" (10.41mm) | M20x1.5 | 0.390" (9.91mm) | - | 0.790" (20.1mm) | Brass, Chrome Plated | - | Silver | IP56 - Dust Protected, Water Resistant | - | |
|
|
98677.6CABLE FEEDTHROUGH 7.11-8.38MM |
0 |
|
- |
Cable Feedthrough | 0.280" (7.11mm) | 0.330" (8.38mm) | M20x1.5 | 0.390" (9.91mm) | - | 0.790" (20.1mm) | Brass, Nickel Plated | - | Silver | IP56 - Dust Protected, Water Resistant | - | |
|
|
98678.6CABLE FEEDTHROUGH 7.87-10.41MM |
0 |
|
- |
Cable Feedthrough | 0.310" (7.87mm) | 0.410" (10.41mm) | M20x1.5 | 0.390" (9.91mm) | - | 0.790" (20.1mm) | Brass, Nickel Plated | - | Silver | IP56 - Dust Protected, Water Resistant | - | |
|
|
96630.4CABLE GLAND M50 PVDF |
0 |
|
- |
Cable Gland | - | - | M50x1.5 | - | - | - | Polyvinylidene Fluoride (PVDF) | - | - | - | - | |
|
|
96729.4CABLE GLAND M50 PVDF |
0 |
|
- |
Cable Gland | - | - | M50x1.5 | - | - | - | Polyvinylidene Fluoride (PVDF) | - | - | - | - | |
|
CD63MA-GYCABLE GLAND 37.08-43.94MM M63 |
5 |
|
Технический лист |
Cable Gland | 1.460" (37.08mm) | 1.730" (43.94mm) | M63x1.5 | 0.550" (13.97mm) | - | 1.969" (50.0mm) | Polyamide (PA66), Nylon 6/6 | - | Gray | IP68/IP69K - Dust Tight, Water Resistant, Waterproof; NEMA 4, 6 | -40°C ~ 100°C | |
|
|
20542.7CABLE GLAND 7.11-10.41MM PG11 |
0 |
|
- |
Cable Gland | 0.280" (7.11mm) | 0.410" (10.41mm) | PG11 | 0.240" (6.10mm) | - | 0.752" (19.1mm) | Stainless Steel | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -60°C ~ 500°C | |
|
|
53015070CABLE GLAND 24-32MM PG36 |
0 |
|
Технический лист |
Cable Gland | 0.945" (24.00mm) | 1.260" (32.00mm) | PG36 | 0.524" (13.30mm) | - | - | Polyamide | - | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
|
S41.20PLUGM20A3P4W9H220250V BLUEIP44FL |
0 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | |
|
|
19142.6CABLE GLAND 32-36.07MM 1 1/2" |
0 |
|
- |
Cable Gland | 1.260" (32.00mm) | 1.420" (36.07mm) | 1 1/2" NPT | 0.870" (22.10mm) | - | 1.900" (48.3mm) | Brass, Nickel Plated | - | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|

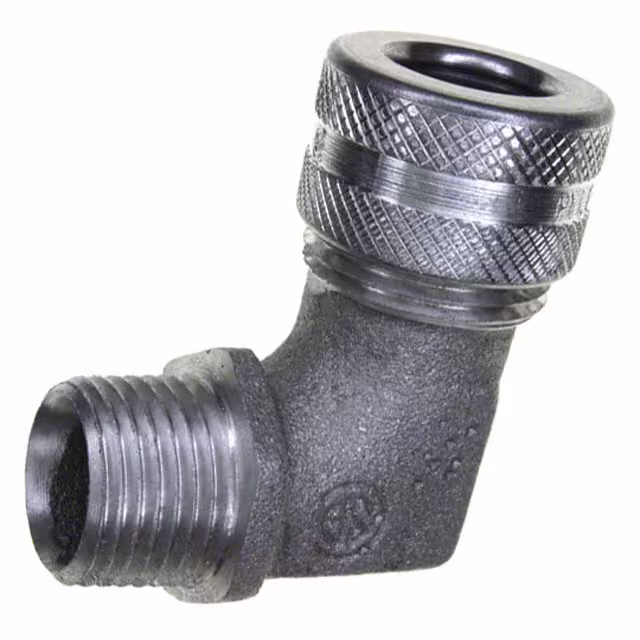

DB-1090CABLE GRIP RA 12.7-15.88MM METAL |
0 |
|
Технический лист |
Cable Grip - 90° | 0.500" (12.70mm) | 0.625" (15.88mm) | - | - | 1/2" (12.7mm) | 0.875" (22.2mm), 7/8" | Metal Alloy | Compression Nut, Strain Relief | Silver | - | - | |
|
|
95060.7CABLE GLAND 4.06-6.6MM M12 |
0 |
|
- |
Cable Gland | 0.160" (4.06mm) | 0.260" (6.60mm) | M12x1.5 | 0.200" (5.08mm) | - | 0.470" (11.9mm) | Stainless Steel | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -60°C ~ 500°C | |
|
|
21741.6CABLE GLAND EMI CORD GRIP |
0 |
|
- |
Cable Gland | - | - | - | - | - | - | - | - | - | - | - | |
|
|
20922.7CABLE GLAND PG11 S STEEL |
0 |
|
- |
Cable Gland - No Openings | - | - | PG11 | - | - | - | Stainless Steel | Sealing Ring | Silver | - | - | |
|
|
4220740CABLE GLAND 1-22MM M40 BRASS |
0 |
|
- |
Cable Gland | 0.039" (1.00mm) | 0.866" (22.00mm) | M40x1.5 | 0.315" (8.00mm) | - | 0.157" (4.0mm) | Brass, Nickel Plated | - | Silver | IP68 - Dust Tight, Waterproof | -25°C ~ 100°C | |
|
|
95773.5CABLE GLAND 20.07-24.89MM M32 |
0 |
|
- |
Cable Gland | 0.790" (20.07mm) | 0.980" (24.89mm) | M32x1.5 | 0.430" (10.92mm) | - | 1.260" (32.0mm) | Polyvinylidene Fluoride (PVDF) | - | Black | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 150°C |
