Кабельные и шнуровые зажимы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Корпус/корпус | Тип | Внешний диаметр кабеля (мин.) | Внешний диаметр кабеля (макс.) | Размер резьбы | Длина резьбы | Размер втулки кабелепровода | Размер отверстия панели | Материал | Включает | Цвет | Защита от проникновения | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
19010.6CABLE GLAND 8.89-12.95MM 3/8" |
0 |
|
- |
Cable Gland | 0.350" (8.89mm) | 0.510" (12.95mm) | 3/8" NPT | 0.510" (12.95mm) | - | 0.681" (17.3mm) | Brass, Nickel Plated | Strain Relief | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
|
95634.6CABLE GLAND RA 5.08-7.87MM M20 |
0 |
|
- |
Cable Gland - 90° | 0.200" (5.08mm) | 0.310" (7.87mm) | M20x1.5 | 0.980" (24.89mm) | - | 0.790" (20.1mm) | Zinc, Galvanized | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -20°C ~ 105°C | |
|
|
95635.6CABLE GLND RA 6.6-9.4MM M20 ZINC |
0 |
|
- |
Cable Gland - 90° | 0.260" (6.60mm) | 0.370" (9.40mm) | M20x1.5 | 0.980" (24.89mm) | - | 0.790" (20.1mm) | Zinc, Galvanized | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -20°C ~ 105°C | |
|
|
95636.6CABLE GLAND RA 7.11-10.41MM M20 |
0 |
|
- |
Cable Gland - 90° | 0.280" (7.11mm) | 0.410" (10.41mm) | M20x1.5 | 0.980" (24.89mm) | - | 0.790" (20.1mm) | Zinc, Galvanized | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -20°C ~ 105°C | |
|
|
95637.6CABLE GLAND RA 8.89-12.95MM M20 |
0 |
|
- |
Cable Gland - 90° | 0.350" (8.89mm) | 0.510" (12.95mm) | M20x1.5 | 0.980" (24.89mm) | - | 0.790" (20.1mm) | Zinc, Galvanized | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -20°C ~ 105°C | |
|
|
1424541CABLE GLAND 3-6.5MM M12 S STEEL |
0 |
|
Технический лист |
Cable Gland | 0.118" (3.00mm) | 0.256" (6.50mm) | M12x1.5 | 0.236" (6.00mm) | - | - | Stainless Steel | O-Ring, Seal | Silver | IP66/IP68/IP69 - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
|
98652.6CABLE GLND 7.11-8.38MM M20 BRASS |
0 |
|
- |
Cable Gland | 0.280" (7.11mm) | 0.330" (8.38mm) | M20x1.5 | 0.390" (9.91mm) | - | 0.790" (20.1mm) | Brass | - | Copper | IP65 - Dust Tight, Water Resistant | - | |
|
|
98653.6CABLE GLAND 7.87-10.41MM M20 |
0 |
|
- |
Cable Gland | 0.310" (7.87mm) | 0.410" (10.41mm) | M20x1.5 | 0.390" (9.91mm) | - | 0.790" (20.1mm) | Brass | - | Copper | IP65 - Dust Tight, Water Resistant | - | |
|
|
23693.6CABLE GLAND 1" NPT |
0 |
|
- |
Cable Gland | - | - | 1" NPT | - | - | - | - | - | - | - | - | |
|
|
23698.6CABLE GLAND 1" NPT |
0 |
|
- |
Cable Gland | - | - | 1" NPT | - | - | - | - | - | - | - | - | |
|
|
19125.6CABLE GLAND RA PG21 ZINC |
0 |
|
- |
Cable Gland - 90° | - | - | PG21 | - | - | - | Zinc, Galvanized | - | Silver | - | - | |
|

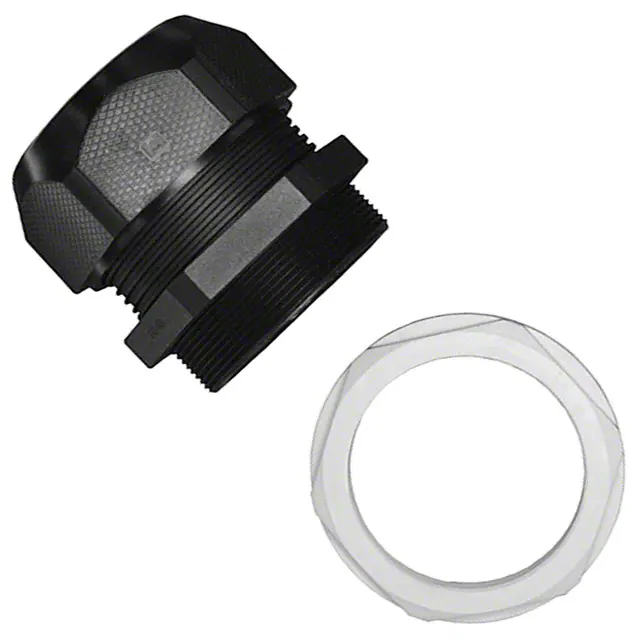

A1545.48.44CABLE GLAND 32-44MM PG48 |
0 |
|
Технический лист |
Cable Gland | 1.260" (32.00mm) | 1.732" (44.00mm) | PG48 | 0.591" (15.00mm) | - | 2.338" (59.3mm) | Polyamide (PA), Nylon | Sealing Ring | Black | IP68 - Dust Tight, Waterproof | -30°C ~ 100°C | |
|
A1555.48.44CABLE GLAND 32-44MM PG48 |
0 |
|
Технический лист |
Cable Gland | 1.260" (32.00mm) | 1.732" (44.00mm) | PG48 | 0.591" (15.00mm) | - | 2.338" (59.3mm) | Polyamide (PA), Nylon | Sealing Ring | Light Gray | IP68 - Dust Tight, Waterproof | -30°C ~ 100°C | |
|
|
98285.6CABLE GLAND 22.1-32MM PG36 BRASS |
0 |
|
- |
Cable Gland | 0.870" (22.10mm) | 1.260" (32.00mm) | PG36 | 0.350" (8.89mm) | - | 1.860" (47.2mm) | Brass, Nickel Plated | - | Silver | IP68 - Dust Tight, Waterproof | - | |
|
97151.6CABLE GLAND 11.43-15.5MM M32 |
3 |
|
Технический лист |
Cable Gland | 0.450" (11.43mm) | 0.610" (15.50mm) | M32x1.5 | 0.310" (7.87mm) | - | 1.260" (32.0mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
|
905036CABLE GLAND M50 POLYAMIDE |
0 |
|
Технический лист |
Cable Gland | - | - | M50x1.5 | 0.748" (19.00mm) | - | - | Polyamide (PA6), Nylon 6 | - | Black | IP43 | -40°C ~ 125°C | |
|
|
25342.4CABLE GLAND 17.02-20.57MM M40 |
0 |
|
- |
Cable Gland | 0.670" (17.02mm) | 0.810" (20.57mm) | M40x1.5 | 0.450" (11.43mm) | - | 1.570" (39.9mm) | Polyvinylidene Fluoride (PVDF) | - | Opaque | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 150°C | |
|
|
154DWR21MCABLE GLAND PG21 |
0 |
|
- |
Cable Gland | - | - | PG21 | - | - | - | - | - | - | - | - | |
|
|
98768.6.1CABLE FEEDTHROUGH 16-18.54MM M32 |
0 |
|
- |
Cable Feedthrough | 0.630" (16.00mm) | 0.730" (18.54mm) | M32x1.5 | - | - | 1.260" (32.0mm) | Brass | - | Copper | IP66 - Dust Tight, Water Resistant | - | |
|
|
98769.6.1CABLE FEEDTHROUGH 18.03-20.57MM |
0 |
|
- |
Cable Feedthrough | 0.710" (18.03mm) | 0.810" (20.57mm) | M32x1.5 | - | - | 1.260" (32.0mm) | Brass | - | Copper | IP66 - Dust Tight, Water Resistant | - |
