Кабельные и шнуровые зажимы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Корпус/корпус | Тип | Внешний диаметр кабеля (мин.) | Внешний диаметр кабеля (макс.) | Размер резьбы | Длина резьбы | Размер втулки кабелепровода | Размер отверстия панели | Материал | Включает | Цвет | Защита от проникновения | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
1SNG605110R0000EP-VEP-SFAF25-GR-B |
2,000 |
|
Технический лист |
- | - | - | - | - | - | - | Polyamide (PA6), Nylon 6 | - | - | - | - | |
|
|
5308 905/SETCABLE GLAND 3-9MM 1/2" NPT |
404 |
|
Технический лист |
Cable Gland | 0.118" (3.00mm) | 0.354" (9.00mm) | 1/2" NPT | 0.551" (14.00mm) | - | 0.835" (21.2mm) | Polyamide (PA), Nylon | Locknut | Gray | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
|
5308 925/SETCABLE GLAND 3-9MM 1/2" NPT |
328 |
|
Технический лист |
Cable Gland | 0.118" (3.00mm) | 0.354" (9.00mm) | 1/2" NPT | 0.551" (14.00mm) | - | 0.835" (21.2mm) | Polyamide (PA), Nylon | Locknut | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
|
1SNG602075R0000CABLE GLAND 10-14MM NPT 1/2" |
340 |
|
Технический лист |
Cable Gland, Anti-Vibration | 0.394" (10.00mm) | 0.551" (14.00mm) | 1/2" NPT | 0.512" (13.00mm) | - | - | Brass, Nickel Plated | Seal | Silver | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|

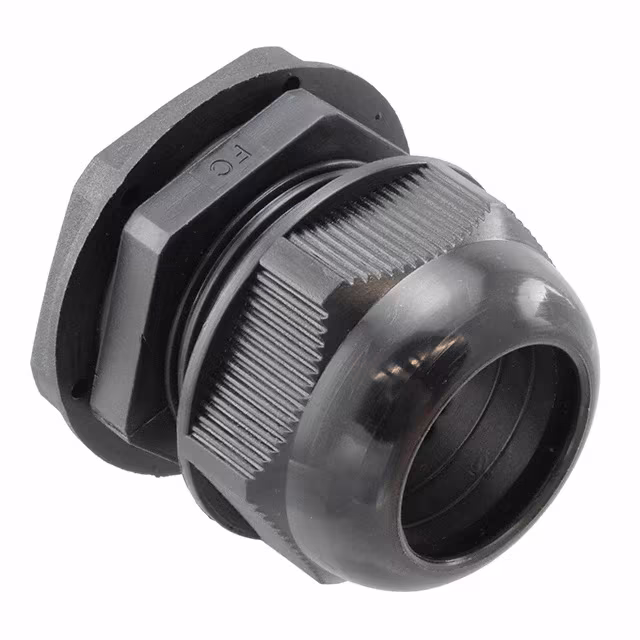

GC1000-GCABLE GLAND 22-32MM M50 POLYAMID |
180 |
|
Технический лист |
Cable Gland | 0.866" (22.00mm) | 1.260" (32.00mm) | M50x1.5 | 0.492" (12.50mm) | - | 2.008" (51.0mm) | Polyamide (PA), Nylon | Locknut, O-Ring, Seal | Black | IP67 - Dust Tight, Waterproof | -30°C ~ 120°C | |
|
50.612 M/EMVCABLE GLAND 3-6MM M12 BRASS |
345 |
|
Технический лист |
Cable Gland | 0.118" (3.00mm) | 0.236" (6.00mm) | M12x1.5 | 0.197" (5.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
|
5308 953/SETCABLE GLAND 9-18.01MM M25 |
235 |
|
Технический лист |
Cable Gland | 0.354" (9.00mm) | 0.709" (18.01mm) | M25x1.5 | 0.394" (10.00mm) | - | 0.984" (25.0mm) | Polyamide (PA), Nylon | Locknut | Gray | IP68 - Dust Tight, Waterproof | -25°C ~ 100°C | |
|
|
5309 624/SETCABLE GLAND 5-12MM M25 POLYAMIDE |
479 |
|
Технический лист |
Cable Gland | 0.197" (5.00mm) | 0.472" (12.00mm) | M25x1.5 | 0.394" (10.00mm) | - | 0.984" (25.0mm) | Polyamide (PA), Nylon | Locknut | Gray | IP68 - Dust Tight, Waterproof | -25°C ~ 100°C | |
|
|
CG-M-PG29CABLE GLND 18.01-22MM PG29 BRASS |
157 |
|
Технический лист |
Cable Gland | 0.709" (18.01mm) | 0.866" (22.00mm) | PG29 | 0.433" (11.00mm) | - | 1.457" (37.0mm) | Brass, Nickel Plated | - | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
|
5308 521/SETCABLE GLAND 9-18.01MM PG21 |
236 |
|
Технический лист |
Cable Gland | 0.354" (9.00mm) | 0.709" (18.01mm) | PG21 | 0.433" (11.00mm) | - | 1.114" (28.3mm) | Polyamide (PA6), Nylon 6 | Locknut | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
|
5309 207/SETCABLE GLAND 1.5-5MM PG7 POLYAMID |
428 |
|
Технический лист |
Cable Gland | 0.059" (1.50mm) | 0.197" (5.00mm) | PG7 | 0.315" (8.00mm) | - | 0.492" (12.5mm) | Polyamide (PA), Nylon | Locknut | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
|
1SNG605080R0000EP-VEP-M20-GR-D |
995 |
|
Технический лист |
- | - | - | - | - | - | - | Polyamide (PA6), Nylon 6 | - | - | - | - | |
|
|
1SNG613005R0000CABLE GLAND 5-10MM M16 BRASS |
579 |
|
Технический лист |
Cable Gland | 0.197" (5.00mm) | 0.394" (10.00mm) | M16x1.5 | 0.256" (6.50mm) | - | - | Brass, Nickel Plated | Seal | Silver | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
|
5309 221/SETCABLE GLAND 7-16MM PG21 POLYAMID |
160 |
|
Технический лист |
Cable Gland | 0.276" (7.00mm) | 0.630" (16.00mm) | PG21 | 0.433" (11.00mm) | - | 1.114" (28.3mm) | Polyamide (PA), Nylon | Locknut | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
|
5308 926/SETCABLE GLAND 7-16MM 3/4" NPT |
158 |
|
Технический лист |
Cable Gland | 0.276" (7.00mm) | 0.630" (16.00mm) | 3/4" NPT | 0.591" (15.00mm) | - | 1.050" (26.7mm) | Polyamide (PA), Nylon | Locknut | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
|
1SNG626008R0000EP-SGL-M16-GR-C |
1,987 |
|
Технический лист |
Cable Gland | 0.079" (2.00mm) | 0.236" (6.00mm) | M16x1.5 | 0.591" (15.00mm) | - | - | - | - | Gray | - | -20°C ~ 100°C | |
|
|
1SNG605068R0000EP-VEP-M16-GR-D |
994 |
|
Технический лист |
- | - | - | - | - | - | - | Polyamide (PA6), Nylon 6 | - | - | - | - | |
|
|
1SNG614001R0000CABLE GLAND 3-6.5MM M12 BRASS |
1,111 |
|
Технический лист |
Cable Gland | 0.118" (3.00mm) | 0.256" (6.50mm) | M12x1.5 | 0.236" (6.00mm) | - | - | Brass, Nickel Plated | Seal | Silver | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
|
CG-P-M50-1.5CABLE GLAND 30-38MM M50 POLYAMID |
165 |
|
Технический лист |
Cable Gland | 1.181" (30.00mm) | 1.496" (38.00mm) | M50 | 0.709" (18.01mm) | - | 1.980" (50.3mm) | Polyamide (PA66), Nylon 6/6 | Locknut, Seal | - | IP68 - Dust Tight, Waterproof | - | |
|
|
5308 944/SETCABLE GLAND 14-25MM M32 POLYAMID |
168 |
|
Технический лист |
Cable Gland | 0.551" (14.00mm) | 0.984" (25.00mm) | M32x1.5 | 0.394" (10.00mm) | - | 1.260" (32.0mm) | Polyamide (PA), Nylon | Locknut | Black | IP68 - Dust Tight, Waterproof | -25°C ~ 100°C |
