Кабельные и шнуровые зажимы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Корпус/корпус | Тип | Внешний диаметр кабеля (мин.) | Внешний диаметр кабеля (макс.) | Размер резьбы | Длина резьбы | Размер втулки кабелепровода | Размер отверстия панели | Материал | Включает | Цвет | Защита от проникновения | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5542NMLWCABLE GRP 15.88-19.05MM 3/4" NPT |
22 |
|
- |
Cable Grip | 0.625" (15.88mm) | 0.750" (19.05mm) | 3/4" NPT | - | - | - | Polyamide (PA), Nylon | Lockwasher, Strain Relief | Gray | - | - | |
|
|
5534SSCABLE GRIP 14.22-16MM 1/2" NPT |
7 |
|
- |
Cable Grip | 0.560" (14.22mm) | 0.630" (16.00mm) | 1/2" NPT | - | - | - | Stainless Steel | Compression Nut, Grommet | Gray | - | - | |
|
|
5526SSCABLE GRIP 7.87-9.65MM 1/2" NPT |
5 |
|
- |
Cable Grip | 0.310" (7.87mm) | 0.380" (9.65mm) | 1/2" NPT | - | - | - | Stainless Steel | Compression Nut, Grommet | Gray | - | - | |
|
|
MMS-63CG 300 Metal M63 CR: 34-44 mm |
20 |
|
Технический лист |
Cable Gland | 1.339" (34.00mm) | 1.732" (44.00mm) | M63x1.5 | 0.551" (14.00mm) | - | 2.480" (63.0mm) | Brass, Nickel Plated | O-Ring | Silver | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
|
1300970173CABLE GRIP 22.23-25.4MM 1" NPT |
4 |
|
- |
Cable Grip | 0.875" (22.23mm) | 1.000" (25.40mm) | 1" NPT | - | - | - | Aluminum | Compression Nut, Grommet, Strain Relief | Silver | - | - | |
|
EM2-50CCABLE GLAND 27-44.04MM M50 BRASS |
20 |
|
Технический лист |
Cable Gland | 1.063" (27.00mm) | 1.734" (44.04mm) | M50x1.5 | 0.354" (9.00mm) | - | 1.969" (50.0mm) | Brass, Nickel Plated | O-Ring | Silver | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
|
5550NMCABLE GRIP 14.28-17.45MM 1" NPT |
2 |
|
- |
Cable Grip | 0.562" (14.28mm) | 0.687" (17.45mm) | 1" NPT | 0.687" (17.45mm) | - | - | Polyamide (PA), Nylon | Compression Nut, Grommet, Strain Relief | Gray | - | - | |
|
|
5548NMCABLE GRIP 12.7-15.88MM 1" NPT |
2 |
|
- |
Cable Grip | 0.500" (12.70mm) | 0.625" (15.88mm) | 1" NPT | 0.687" (17.45mm) | - | - | Polyamide (PA), Nylon | Compression Nut, Grommet, Strain Relief | Gray | - | - | |
|
|
1136710000Cable gland straight M 75 |
5 |
|
Технический лист |
Cable Gland | 2.283" (58.00mm) | 2.677" (68.00mm) | M75 | 0.748" (19.00mm) | - | - | Brass, Nickel Plated | - | Silver | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -60°C ~ 180°C | |
|
|
SN6-1/2Stainless Steel NPT 1/2 CR: 6-12 |
3 |
|
Технический лист |
Cable Gland | 0.236" (6.00mm) | 0.472" (12.00mm) | 1/2" NPT | 0.512" (13.00mm) | - | 0.840" (21.3mm) | Stainless Steel | O-Ring | Silver | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
1300970273Cable Glands, Strain Reliefs & C |
2 |
|
- |
Cable Grip | 1.620" (41.15mm) | 2.000" (50.80mm) | 2 1/2" NPT | 1.350" (34.29mm) | - | - | Aluminum | Locknut, Strain Relief | Silver | - | - | |
|
|
1136610000Cable gland straight M 63 |
10 |
|
Технический лист |
Cable Gland | 2.299" (58.40mm) | 2.591" (65.80mm) | M63 | 0.748" (19.00mm) | - | - | Brass, Nickel Plated | - | Silver | IP54/IP66/IP67/IP68 - Dust Protected, Dust Tight, Water Resistant, Waterproof | -60°C ~ 180°C | |
|
|
SM3-32Stainless Steel M32 CR: 13-18 mm |
10 |
|
Технический лист |
Cable Gland | 0.512" (13.00mm) | 0.709" (18.01mm) | M32x1.5 | 0.354" (9.00mm) | - | 1.260" (32.0mm) | Stainless Steel | O-Ring | Silver | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
|
5558SSCABLE GRP 20.57-23.88MM 3/4" NPT |
8 |
|
- |
Cable Grip | 0.810" (20.57mm) | 0.940" (23.88mm) | 3/4" NPT | - | - | - | Stainless Steel | Compression Ring | Silver | - | - | |
|
|
5562SSCABLE GRIP 25.4-27.94MM 3/4" NPT |
9 |
|
- |
Cable Grip | 1.000" (25.40mm) | 1.100" (27.94mm) | 3/4" NPT | - | - | - | Stainless Steel | Compression Ring | Silver | - | - | |
|

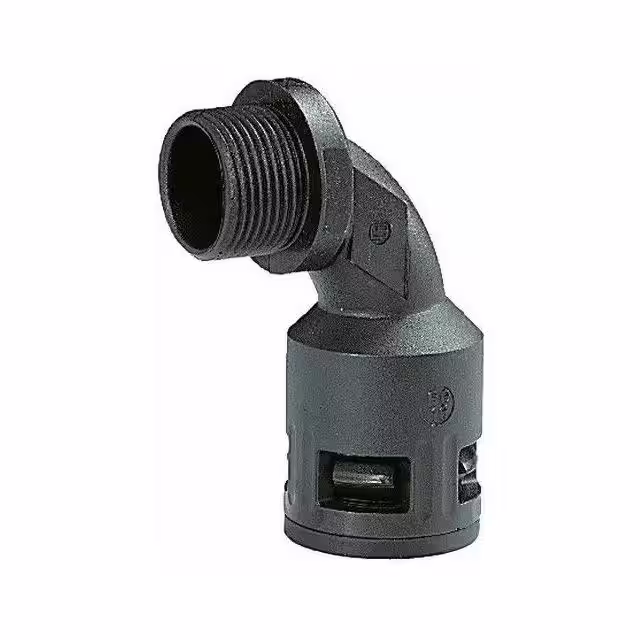

5020.018.209RQB90, 90-DEGREE BEND CONNECTOR, |
8 |
|
Технический лист |
Cable Grip - 90° | 1.400" (35.56mm) | 2.520" (64.00mm) | 1 1/2" NPT | 0.670" (17.02mm) | - | - | Polyamide (PA), Nylon | - | Black | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 120°C | |
|

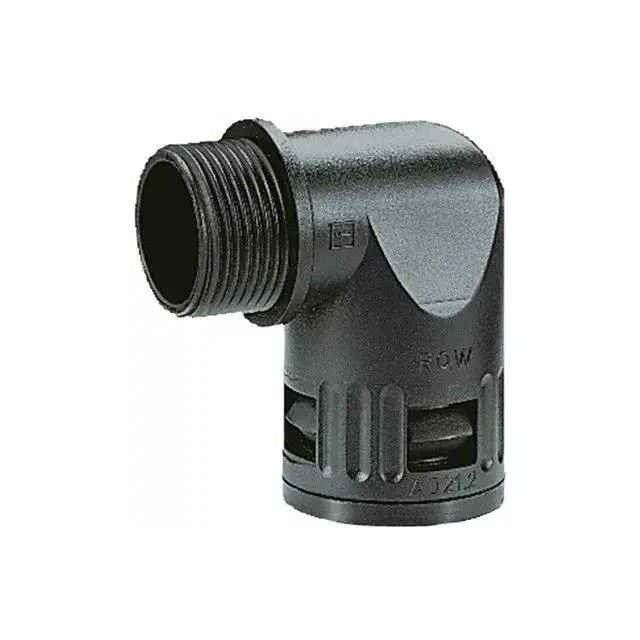

5020.057.209RQW 90 DEGREE ELBOW CONNECTOR, I |
4 |
|
Технический лист |
Cable Grip - 90° | 1.610" (40.89mm) | 2.520" (64.00mm) | 1 1/2" NPT | 0.710" (18.03mm) | - | - | Polyamide (PA), Nylon | - | Black | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 120°C | |
|
5020.017.209RQB45, 45-DEGREE CONNECTOR, IP69 |
4 |
|
Технический лист |
Cable Grip - 45° | 1.380" (35.05mm) | 2.520" (64.00mm) | 1 1/2" NPT | 0.670" (17.02mm) | - | - | Polyamide (PA), Nylon | - | Black | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 120°C | |
|
|
5020.064.250RQW 90 DEGREE ELBOW CONNECTOR, I |
2 |
|
Технический лист |
Cable Grip - 90° | 1.540" (39.12mm) | 2.520" (64.00mm) | M50x1.5 | 0.590" (14.99mm) | - | - | Polyamide (PA), Nylon | - | Black | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 120°C | |
|
|
5020.017.210RQB45, 45-DEGREE CONNECTOR, IP69 |
2 |
|
Технический лист |
Cable Grip - 45° | 1.770" (44.96mm) | 2.580" (65.53mm) | 2" NPT | 0.670" (17.02mm) | - | - | Polyamide (PA), Nylon | - | Black | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 120°C |
