Кабельные и шнуровые зажимы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Корпус/корпус | Тип | Внешний диаметр кабеля (мин.) | Внешний диаметр кабеля (макс.) | Размер резьбы | Длина резьбы | Размер втулки кабелепровода | Размер отверстия панели | Материал | Включает | Цвет | Защита от проникновения | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1300980221CABLE GRIP 6.35-9.53MM 3/4" NPT |
0 |
|
Технический лист |
Cable Grip | 0.250" (6.35mm) | 0.375" (9.53mm) | 3/4" NPT | - | - | - | Polyamide (PA), Nylon | Compression Nut, Grommet | Gray | - | - | |
|
FMB-25CABLE GLAND 13-18.01MM M25 |
54 |
|
Технический лист |
Cable Gland | 0.512" (13.00mm) | 0.709" (18.01mm) | M25x1.5 | 0.394" (10.00mm) | - | 0.984" (25.0mm) | Polyamide (PA6), Nylon 6 | - | Black | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
1300980107CABLE GRIP 12.7-15.88MM 3/4" NPT |
0 |
|
Технический лист |
Cable Grip | 0.500" (12.70mm) | 0.625" (15.88mm) | 3/4" NPT | - | - | - | Polyamide (PA), Nylon | Compression Nut, Grommet | Gray | - | - | |
|
|
2525CABLE GLAND 15.88-19.05MM 1/2" |
16 |
|
- |
Cable Gland | 0.625" (15.88mm) | 0.750" (19.05mm) | 1/2" NPT | 0.625" (15.88mm) | 1/2" (12.7mm) | - | Zinc, Die-Cast | Strain Relief | Silver | - | - | |
|
|
1300980045CABLE GRP RA 3.18-4.75MM 1/2"NPT |
0 |
|
Технический лист |
Cable Grip - 90° | 0.125" (3.18mm) | 0.187" (4.75mm) | 1/2" NPT | - | - | - | Polyamide (PA), Nylon | Compression Nut, Grommet, Locknut, O-Ring | Gray | - | - | |
|
MPS-16CABLE GLAND 10-14MM PG16 BRASS |
92 |
|
Технический лист |
Cable Gland | 0.394" (10.00mm) | 0.551" (14.00mm) | PG16 | 0.394" (10.00mm) | - | 0.886" (22.5mm) | Brass, Nickel Plated | O-Ring | Silver | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
|
FNB-3/4CABLE GLAND 13-18.01MM 3/4" NPT |
88 |
|
Технический лист |
Cable Gland | 0.512" (13.00mm) | 0.709" (18.01mm) | 3/4" NPT | 0.591" (15.00mm) | - | 1.050" (26.7mm) | Polyamide (PA6), Nylon 6 | - | Black | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
|
1427NCGM63BCABLE GRIP 37-44MM M63 NYLON |
0 |
|
Технический лист |
Cable Grip | 1.457" (37.00mm) | 1.732" (44.00mm) | M63x1.5 | 0.551" (14.00mm) | - | 2.480" (63.0mm) | Nylon | - | Black | IP68 - Dust Tight, Waterproof; NEMA 4, 4X, 6, 12, 13 | -40°C ~ 100°C | |
|
|
1427NCGM63GCABLE GRIP 37-44MM M63 NYLON |
0 |
|
Технический лист |
Cable Grip | 1.457" (37.00mm) | 1.732" (44.00mm) | M63x1.5 | 0.551" (14.00mm) | - | 2.480" (63.0mm) | Nylon | - | Gray | IP68 - Dust Tight, Waterproof; NEMA 4, 4X, 6, 12, 13 | -40°C ~ 100°C | |
|

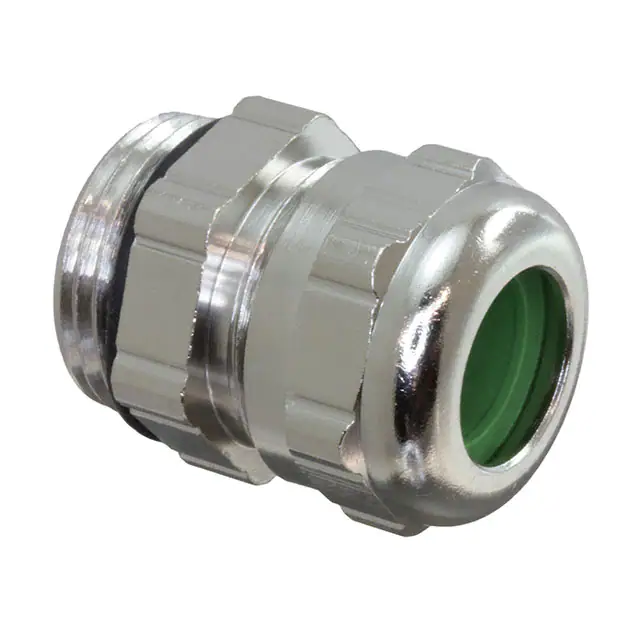

21654.6CABLE GLAND 7.87-10.41MM PG11 |
41 |
|
Технический лист |
Cable Gland | 0.310" (7.87mm) | 0.410" (10.41mm) | PG11 | - | - | 0.752" (19.1mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
PMG-40CABLE GLAND 22-32MM M40 POLYAMID |
34 |
|
Технический лист |
Cable Gland | 0.866" (22.00mm) | 1.260" (32.00mm) | M40x1.5 | 0.709" (18.01mm) | - | 1.575" (40.0mm) | Polyamide (PA6), Nylon 6 | Locknut | Gray | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
|
1136430000CABLE GLAND 9.4-12.5MM M20 BRASS |
20 |
|
Технический лист |
Cable Gland | 0.370" (9.40mm) | 0.492" (12.50mm) | M20 | 0.630" (16.00mm) | - | - | Brass, Nickel Plated | Seal | Silver | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -60°C ~ 180°C | |
|
PNG-1RCABLE GLAND 12-20MM 1" NPT |
33 |
|
Технический лист |
Cable Gland | 0.472" (12.00mm) | 0.787" (20.00mm) | 1" NPT | 0.709" (18.01mm) | - | 1.315" (33.4mm) | Polyamide (PA6), Nylon 6 | - | Gray | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|

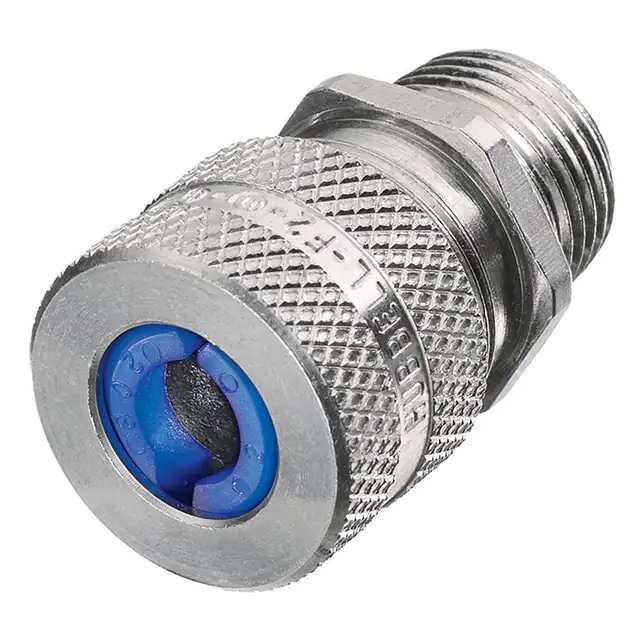

SHC1023CABLE GLAND 9.65-12.7MM 1/2" NPT |
17 |
|
- |
Cable Gland | 0.380" (9.65mm) | 0.500" (12.70mm) | 1/2" NPT | - | - | - | Aluminum | - | Silver | - | -34°C ~ 107°C | |
|
FNG-3/4RCABLE GLAND 9-16MM 3/4" NPT |
20 |
|
Технический лист |
Cable Gland | 0.354" (9.00mm) | 0.630" (16.00mm) | 3/4" NPT | 0.591" (15.00mm) | - | 1.050" (26.7mm) | Polyamide (PA6), Nylon 6 | - | Black | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
|
MMS-25LCABLE GLAND 10-14MM M25 BRASS |
12 |
|
Технический лист |
Cable Gland | 0.394" (10.00mm) | 0.551" (14.00mm) | M25x1.5 | 0.472" (12.00mm) | - | 0.984" (25.0mm) | Brass, Nickel Plated | O-Ring | Silver | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
SHC1024CABLE GLAND 12.7-16MM 1/2" NPT |
28 |
|
- |
Cable Gland | 0.500" (12.70mm) | 0.630" (16.00mm) | 1/2" NPT | - | - | - | Aluminum | - | Silver | - | -34°C ~ 107°C | |
|
|
26503.6CABLE GLAND 7.11-11.94MM M25 |
43 |
|
- |
Cable Gland | 0.280" (7.11mm) | 0.470" (11.94mm) | M25x1.5 | 0.280" (7.11mm) | - | 0.980" (24.9mm) | Brass, Nickel Plated | - | Silver | IP68 - Dust Tight, Waterproof | - | |
|
|
73872092CABLE GLAND 10.41-16.99MM 3/4" |
6 |
|
- |
Cable Gland | 0.410" (10.41mm) | 0.669" (16.99mm) | 3/4" NPT | 0.551" (14.00mm) | - | - | Stainless Steel | - | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 105°C | |
|

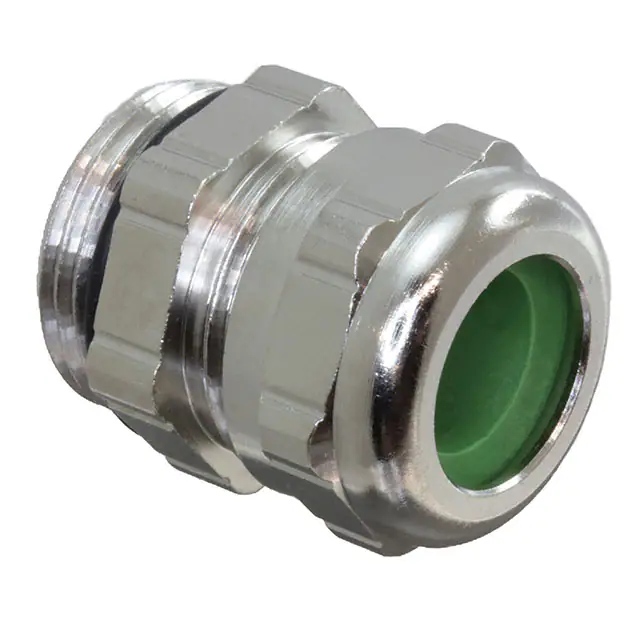

21656.6CABLE GLAND 6.86-10.41MM PG13.5 |
35 |
|
Технический лист |
Cable Gland | 0.270" (6.86mm) | 0.410" (10.41mm) | PG13.5 | 0.260" (6.60mm) | - | 0.810" (20.6mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C |
