Кабельные и шнуровые зажимы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Корпус/корпус | Тип | Внешний диаметр кабеля (мин.) | Внешний диаметр кабеля (макс.) | Размер резьбы | Длина резьбы | Размер втулки кабелепровода | Размер отверстия панели | Материал | Включает | Цвет | Защита от проникновения | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
4515CABLE GRIP 8-11MM M20 BRASS |
40 |
|
Технический лист |
Cable Grip | 0.315" (8.00mm) | 0.433" (11.00mm) | M20x1.5 | 0.390" (9.91mm) | - | 0.787" (20.0mm) | Brass, Nickel Plated | - | Silver | IP68 - Dust Tight, Waterproof | 0°C ~ 200°C | |
|
|
50.640PA/R/GCABLE GLAND SET WITH LOCKNUT M40 |
10 |
|
Технический лист |
Cable Gland | 0.630" (16.00mm) | 1.102" (28.00mm) | M40x1.5 | 0.394" (10.00mm) | - | - | Polyamide (PA6), Nylon 6 | - | Gray | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
1300980129CABLE GRP 17.45-20.63MM 3/4" NPT |
17 |
|
Технический лист |
Cable Grip | 0.687" (17.45mm) | 0.812" (20.63mm) | 3/4" NPT | - | - | - | Polyamide (PA), Nylon | Compression Nut, Grommet | Gray | - | - | |
|
|
50.016-15MMPERFECT CABLE GLAND BRASS PG 16 |
50 |
|
Технический лист |
Cable Gland | 0.394" (10.00mm) | 0.551" (14.00mm) | PG16 | 0.591" (15.00mm) | - | - | Brass, Nickel Plated | - | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
|
19.513KLEMMBACKEN CABLE GLAND BRASS PG |
50 |
|
Технический лист |
Cable Gland | 0.354" (9.00mm) | 0.512" (13.00mm) | PG13.5 | 0.256" (6.50mm) | - | - | Brass, Nickel Plated | - | Silver | IP54 - Dust Protected, Water Resistant | -30°C ~ 100°C | |
|
|
920508CABLE GLAND M20 POLYAMIDE |
20 |
|
Технический лист |
Cable Gland | - | - | M20x1.5 | - | - | - | Polyamide (PA6), Nylon 6 | - | Gray | IP65 - Dust Tight, Water Resistant | -40°C ~ 110°C | |
|
|
111010WADI CABLE GLAND M10X1,5 - NICKE |
100 |
|
Технический лист |
Cable Gland | 0.157" (4.00mm) | 0.236" (6.00mm) | M10x1.5 | 0.236" (6.00mm) | - | - | Brass, Nickel Plated | - | Silver | IP65 - Dust Tight, Water Resistant | -30°C ~ 100°C | |
|
1424537CABLE GLAND 6-11MM M20 POLYAMIDE |
7 |
|
Технический лист |
Cable Gland | 0.236" (6.00mm) | 0.433" (11.00mm) | M20x1.5 | 0.394" (10.00mm) | - | - | Polyamide (PA), Nylon | Gasket, Seal | Black | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | -20°C ~ 100°C | |
|
|
21.116ZINC ELBOW WITH BRASS PRESSURE S |
50 |
|
Технический лист |
Cable Gland - 90° | 0.236" (6.00mm) | 0.630" (16.00mm) | PG16 | 0.256" (6.50mm) | - | - | Brass, Nickel Plated | - | Silver | IP55 - Dust Protected, Water Resistant | -20°C ~ 100°C | |
|
|
920416CABLE GLAND M20 POLYAMIDE |
50 |
|
Технический лист |
Cable Gland | - | - | M20x1.5 | 0.512" (13.00mm) | - | - | Polyamide (PA6), Nylon 6 | - | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 110°C | |
|
|
98033CABLE GLAND 5-10MM M16 BRASS |
44 |
|
Технический лист |
Cable Gland | 0.197" (5.00mm) | 0.394" (10.00mm) | M16x1.5 | 0.236" (6.00mm) | - | - | Brass, Nickel Plated | - | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
|
K152-1032-00-67WADI ONE CABLE GLAND WITH MULTI- |
22 |
|
Технический лист |
Cable Grip, Multi-Hole | 0.197" (5.00mm) | 0.276" (7.00mm) | M32x1.5 | 0.354" (9.00mm) | - | - | Brass, Nickel Plated | - | Silver | IP68/IP69 - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
|
CSG-CSP004CABLE GLND 5.5-7MM 13/16-28 ZINC |
9 |
|
Технический лист |
Cable Gland | 0.217" (5.50mm) | 0.276" (7.00mm) | 13/16-28 | - | - | - | Zinc, Die-Cast | - | Silver | IP67 - Dust Tight, Waterproof | -20°C ~ 105°C | |
|

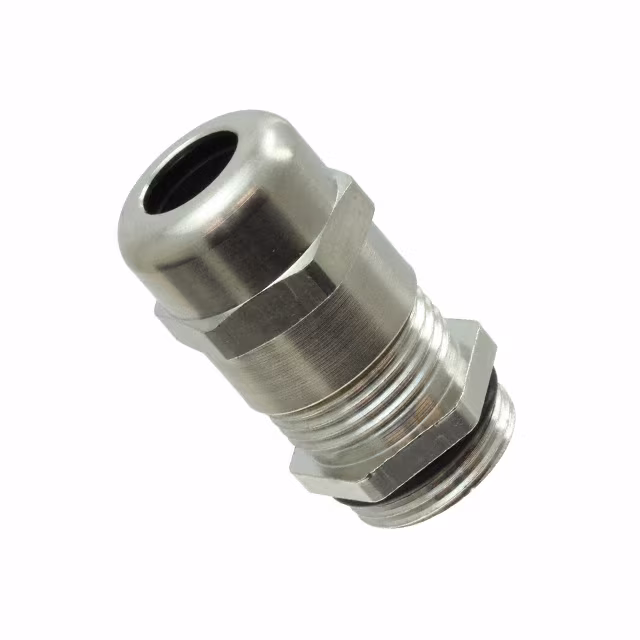

4264011CABLE GLAND 7-10.5MM PG11 BRASS |
30 |
|
Технический лист |
Cable Gland | 0.276" (7.00mm) | 0.413" (10.50mm) | PG11 | 0.236" (6.00mm) | - | 0.732" (18.6mm) | Brass, Nickel Plated | Clamping Ring, Sealing Ring | Silver | IP68 - Dust Tight, Waterproof | -25°C ~ 120°C | |
|
|
1411077CABLE GLAND 11.18-20MM M25 BRASS |
10 |
|
Технический лист |
Cable Gland | 0.440" (11.18mm) | 0.787" (20.00mm) | M25 | 0.591" (15.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP66/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | -60°C ~ 130°C | |
|
1300980236CABLE GRIP 6.35-9.53MM 3/4" NPT |
12 |
|
Технический лист |
Cable Grip | 0.250" (6.35mm) | 0.375" (9.53mm) | 3/4" NPT | - | - | - | Polyamide (PA), Nylon | Compression Nut, Grommet | Gray | - | - | |
|
|
920514CABLE GLAND M20 POLYAMIDE |
20 |
|
Технический лист |
Cable Gland | - | - | M20x1.5 | - | - | - | Polyamide (PA6), Nylon 6 | - | Black | IP65 - Dust Tight, Water Resistant | -40°C ~ 110°C | |
|
|
ESG-25M002EMC CABLE GLAND, SHORT BODY, MET |
7 |
|
Технический лист |
Cable Gland | 0.551" (14.00mm) | 0.689" (17.50mm) | M25x1.5 | 0.315" (8.00mm) | - | 0.984" (25.0mm) | - | - | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 160°C | |
|
|
23.609FAVORIT CABLE GLAND BRASS PG 9 |
50 |
|
Технический лист |
Cable Gland | 0.236" (6.00mm) | 0.335" (8.50mm) | PG9 | 0.236" (6.00mm) | - | - | Brass, Nickel Plated | - | Silver | IP54 - Dust Protected, Water Resistant | -30°C ~ 100°C | |
|
|
1SNG626050R0000EP-SGL-M20-GR-G |
997 |
|
Технический лист |
Cable Gland | 0.276" (7.00mm) | 0.512" (13.00mm) | M20x1.5 | 0.394" (10.00mm) | - | - | - | - | Gray | - | -20°C ~ 100°C |
