Автомобильные реле
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип катушки | Ток катушки | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Особенности | Тип крепления | Тип вывода | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CB1A-R-M-24VRELAY AUTOMOTIVE SPST 20A 24V |
546 |
|
Технический лист |
CB | Bulk | Active | Non Latching | 84 mA | 24VDC | SPST-NO (1 Form A) | 20 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 15 ms | 15 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|

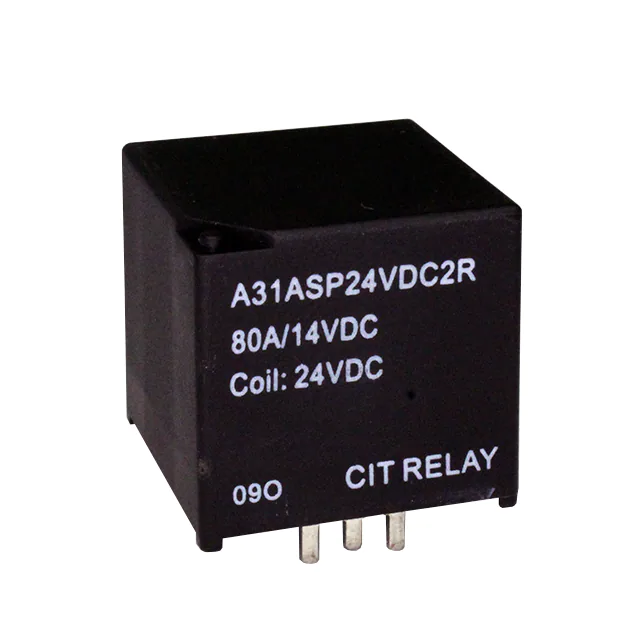

A31ASP24VDC2RRELAY AUTOMOTIVE SPST 80A 24V |
415 |
|
Технический лист |
A3 | Tray | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 80 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|
CB1-R-M-24VRELAY AUTOMOTIVE SPDT 20A 24V |
2,002 |
|
Технический лист |
CB | Tube | Active | Non Latching | 84 mA | 24VDC | SPDT (1 Form C) | 20 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 15 ms | 15 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
|
CB1A-M-24VRELAY AUTOMOTIVE SPST 20A 24V |
1,237 |
|
Технический лист |
CB | Bulk | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 20 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 15 ms | 15 ms | Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
CM1A-12VRELAY AUTOMOTIVE SPST 35A 12V |
641 |
|
Технический лист |
CM | Bulk | Active | Non Latching | 125 mA | 12VDC | SPST-NO (1 Form A) | 35 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 10 ms | 10 ms | Sealed - Fully | Socketable | Plug In | -40°C ~ 85°C |
|
ACNH3212RELAY AUTOMOTIVE SPST 30A 12V |
985 |
|
Технический лист |
ACNH | Tube | Active | Non Latching | 37.5 mA | 12VDC | SPST-NO (1 Form A) | 30 A | 14VDC - Nom | 6.5 VDC | 1 VDC | 10 ms | 10 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 110°C |
|
PC795-1A-C1-12S-RN-XRELAY AUTOMOTIVE SPST 80A 12V |
231 |
|
Технический лист |
- | Bag | Active | Non Latching | 168 mA | 12VDC | SPST-NO (1 Form A) | 80 A | 75VDC - Max | 7.8 VDC | 1.2 VDC | 7 ms | 2 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
CB1-WM-12VRELAY AUTOMOTIVE SPDT 40A 12V |
331 |
|
Технический лист |
CB | Bulk | Active | Non Latching | 117 mA | 12VDC | SPDT (1 Form C) | 40 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | 15 ms | Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
AZ9861-1C-24DC2R1RELAY AUTOMOTIVE SPDT 40A 24V |
754 |
|
Технический лист |
AZ9861 | Box | Active | Non Latching | 66.7 mA | 24VDC | SPDT (1 Form C) | 40 A | 40VDC - Max | 14.4 VDC | 2.4 VDC | 6 ms | 3 ms | 280-ISO, Resistor | Socketable | Plug In, Quick Connect - 0.110" (2.8mm) | -55°C ~ 125°C |
|
CB1AF-12VRELAY AUTOMOTIVE SPST 40A 12V |
1,648 |
|
Технический лист |
CB | Bulk | Active | Non Latching | 117 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | 15 ms | Sealed - Flux Protection | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
ACT212RELAY AUTOMOTIVE SPDTX2 20A 12V |
1,100 |
|
Технический лист |
ACT | Tube | Active | Non Latching | 66.7 mA | 12VDC | SPDT (1 Form C) x 2 | 20 A | 14VDC - Nom | 7.2 VDC | 1 VDC | 10 ms | 10 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
EP2-3N1SAUTOMOTIVE RELAYS 1 FORM CX2 12 |
486 |
|
Технический лист |
EP2 | Tube | Active | Non Latching | 53.5 mA | 12VDC | SPDT (1 Form C) x 2 | 25 A | 16VDC - Max | 6.5 VDC | 0.9 VDC | 5 ms | 2 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
CB1-M-24VRELAY AUTOMOTIVE SPDT 20A 24V |
3,158 |
|
Технический лист |
CB | Bulk | Active | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 20 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 15 ms | 15 ms | Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
ACNM7112RELAY AUTOMOTIVE SPST 30A 12V |
318 |
|
Технический лист |
ACNM | Tube | Active | Non Latching | 53.3 mA | 12VDC | SPST-NO (1 Form A) | 30 A | 14VDC - Nom | 7.2 VDC | 1 VDC | 10 ms | 10 ms | - | Through Hole | PC Pin | -40°C ~ 110°C |
|
AZ979-1A-12DERELAY AUTOMOTIVE SPST 80A 12V |
766 |
|
Технический лист |
AZ979 | Box | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 80 A | 30VDC - Max | 7.8 VDC | 1.2 VDC | 7 ms | 5 ms | Sealed - Epoxy, SUPER-ISO w/ Plastic Mounting Bracket | Chassis Mount | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 85°C |
|
AZ983-1A-12DERELAY AUTOMOTIVE SPST 80A 12V |
398 |
|
Технический лист |
AZ983 | Tray | Active | Non Latching | 150 mA | 12VDC | SPST-NO (1 Form A) | 80 A | 75VDC - Max | 7.8 VDC | 1.2 VDC | 7 ms | 5 ms | Sealed - Epoxy | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
EP2-3N1STAUTOMOTIVE RELAYS 1 FORM CX2 SEP |
661 |
|
Технический лист |
EP2 | Tube | Active | Non Latching | 53.5 mA | 12VDC | SPDT (1 Form C) x 2 | 25 A | 16VDC - Max | 6.5 VDC | 0.9 VDC | 5 ms | 2 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
G8ND-2S-DC12RELAY AUTOMOTIVE SPDT 30A 12V |
1,256 |
|
Технический лист |
G8ND-2 | Tube | Active | Non Latching | 66.7 mA | 12VDC | SPDT (1 Form C) x 2 | 30 A | 16VDC - Max | 6.5 VDC | 1 VDC | 10 ms | 10 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
G8ND-2-DC12RELAY AUTOMOTIVE SPDT 30A 12V |
731 |
|
Технический лист |
G8ND-2 | Tray | Active | Non Latching | 53.3 mA | 12VDC | SPDT (1 Form C) x 2 | 30 A | 16VDC - Max | 7.2 VDC | 1 VDC | 10 ms | 10 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
|
CB1F-P-12VRELAY AUTOMOTIVE SPDT 40A 12V |
3,458 |
|
Технический лист |
CB | Bulk | Active | Non Latching | 117 mA | 12VDC | SPDT (1 Form C) | 40 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | 15 ms | Sealed - Flux Protection | Through Hole | PC Pin | -40°C ~ 85°C |
