Автомобильные реле
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип катушки | Ток катушки | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Особенности | Тип крепления | Тип вывода | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G9EJ-1-E-UVD DC24RELAY AUTOMOTIVE SPST 15A 24V |
96 |
|
Технический лист |
G9EJ-1-E | Tray | Active | Non Latching | 50 mA | 24VDC | SPST-NO (1 Form A) | 15 A | 400VDC - Max | 14.4 VDC | 1.2 VDC | 50 ms | 30 ms | - | Chassis Mount | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 70°C |
|

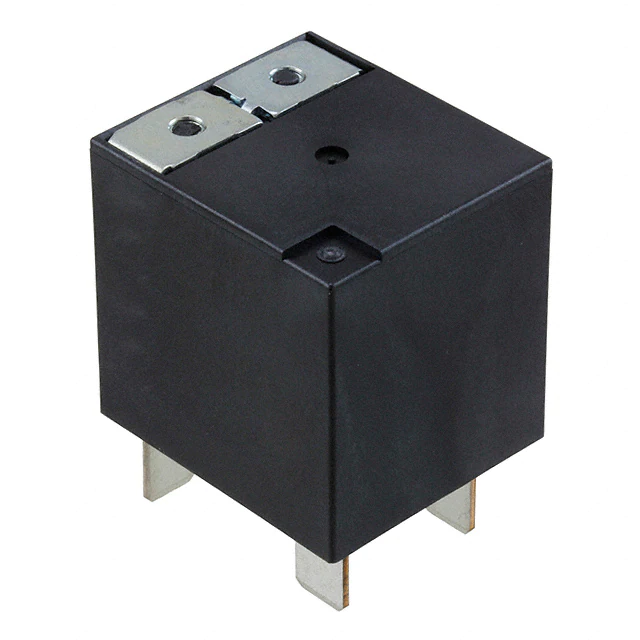

G9EJ-1-DC12RELAY AUTOMOTIVE SPST 25A 12V |
26 |
|
Технический лист |
G9EJ | Bulk | Active | Non Latching | 167 mA | 12VDC | SPST-NO (1 Form A) | 25 A | 400VDC - Max | 7.2 VDC | 0.6 VDC | 50 ms | 30 ms | - | - | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
|
G9EJ-1-P-E-UVD DC24DC POWER RELAY |
98 |
|
Технический лист |
G9EJ | Bulk | Active | Non Latching | 50 mA | 24VDC | SPST-NO (1 Form A) | 15 A | 400VDC - Max | 14.4 VDC | 1.2 VDC | 50 ms | 30 ms | - | Through Hole | PC Pin | -40°C ~ 70°C |
|
AEV14012RELAY AUTOMOTIVE SPST 120A 12V |
20 |
|
Технический лист |
AEV | Bulk | Active | Non Latching | 353 mA | 12VDC | SPST-NO (1 Form A) | 120 A | 450VDC - Nom | 9 VDC | 1 VDC | 50 ms | 30 ms | - | Chassis Mount | Stud | -40°C ~ 80°C |
|
9-1415001-5RELAY AUTOMOTIVE SPDT 130A 12V |
9 |
|
Технический лист |
- | Bulk | Active | Non Latching | 324.3 mA | 12VDC | SPDT (1 Form C) | 130 A | 12VDC - Nom | 7.2 VDC | 1.2 VDC | 25 ms | 8 ms | Resistor | Chassis Mount | Screw Terminal | -40°C ~ 125°C |
|

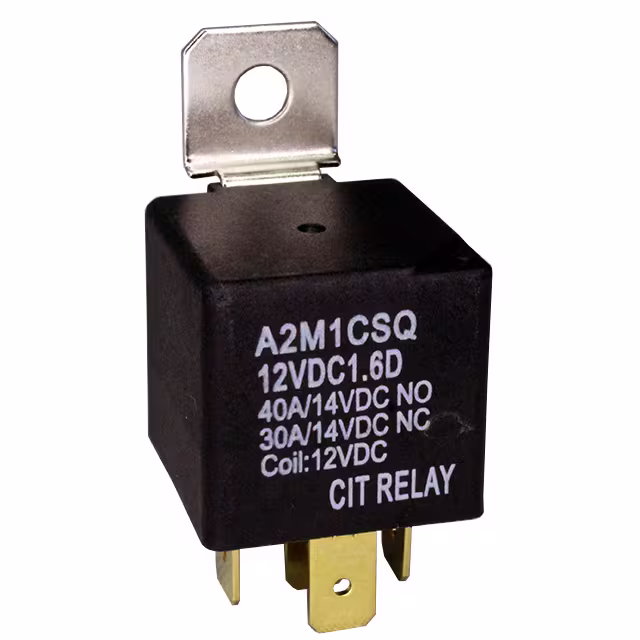

A2M1CSQ12VDC1.6DRELAY AUTOMOTIVE SPDT 40A 12V |
38 |
|
Технический лист |
A2 | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|

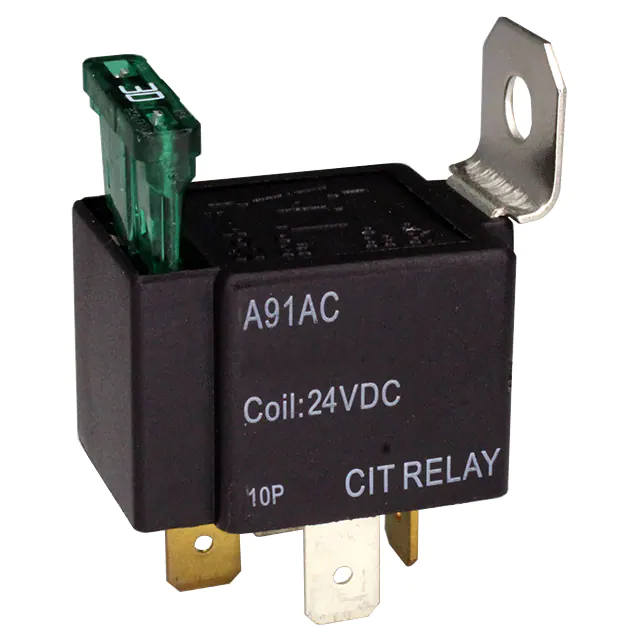

A91AC24VDCRELAY AUTOMOTIVE SPST 40A 24V |
94 |
|
Технический лист |
A9 | Tray | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | - | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
|
ACQ131CQ RELAY 1 FORM C QUIET AUTOMOTI |
32 |
|
Технический лист |
CQ | Bulk | Active | Non Latching | 53.3 mA | 12VDC | SPDT (1 Form C) | 20 A | 14VDC - Nom | 7.2 VDC | 1 VDC | 10 ms | 10 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
1-1414687-0RELAY AUTOMOTIVE SPDT 40A 12V |
40 |
|
Технический лист |
SRF-A | Bulk | Active | Non Latching | 151 mA | 12VDC | SPDT (1 Form C) | 40 A | 14VDC - Nom | 7.2 VDC | 1.2 VDC | 7 ms | 2 ms | Resistor | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
3-1414937-3RELAY GEN PURPOSE SPST 70A 24V |
27 |
|
Технический лист |
F7 | Bulk | Active | Non Latching | 83.3 mA | 24VDC | SPST-NO (1 Form A) | 70 A | 24VDC - Nom | 14.4 VDC | 2.4 VDC | 7 ms | 2 ms | - | Through Hole | PC Pin | -40°C ~ 125°C |
|
1-1393304-1RELAY AUTOMOTIVE SPST-NO 70A 24V |
86 |
|
Технический лист |
F7 | Bulk | Active | Non Latching | - | 24VDC | SPST-NO (1 Form A) | 70 A | 24VDC - Nom | 14.4 VDC | 3.2 VDC | 7 ms | 2 ms | - | Chassis Mount | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
6-1393302-0RELAY GEN PURPOSE SPDT 40A 12V |
94 |
|
Технический лист |
F4 | Bulk | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 14VDC - Nom | 7.2 VDC | 1.6 VDC | 7 ms | 2 ms | Resistor | Chassis Mount | Plug In, Quick Connect - 0.110" (2.8mm) | -40°C ~ 125°C |
|
PC775-1A-24C-D-XRELAY AUTOMOTIVE SPST 37A 24V |
70 |
|
Технический лист |
PC775 | Bag | Active | Non Latching | 120 mA | 24VDC | SPST-NO (1 Form A) | 75 A | 32VDC - Max | 15.6 VDC | 4.8 VDC | 7 ms | 5 ms | Diode | Chassis Mount | Screw Terminal | -40°C ~ 125°C |
|
|
V23134A4064X551-EV-CBOXRELAY GEN PURPOSE SPDT 60A 24V |
53 |
|
Технический лист |
F4 | Bulk | Active | Non Latching | 66.7 mA | 24VDC | SPDT (1 Form C) | 60 A | 28VDC - Nom | 14.4 VDC | 2.4 VDC | 7 ms | 2 ms | - | Chassis Mount | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
PC775-1A-24C-D2-XRELAY AUTOMOTIVE SPST 37A 24V |
90 |
|
Технический лист |
PC775 | Bag | Active | Non Latching | 120 mA | 24VDC | SPST-NO (1 Form A) | 75 A | 32VDC - Max | 15.6 VDC | 4.8 VDC | 7 ms | 5 ms | Diode | Chassis Mount | Screw Terminal | -40°C ~ 125°C |
|
PC776-1X-12S-XRELAY AUTOMOTIVE SPST 130A 12V |
10 |
|
Технический лист |
- | Bag | Active | Non Latching | 324.3 mA | 12VDC | SPST-NO (1 Form A) | 130 A | 40VDC - Max | 7.2 VDC | 1.2 VDC | 10 ms | 10 ms | Sealed - Fully | Chassis Mount | Screw Terminal | -40°C ~ 125°C |
|
AEVA1251DC CONTACTOR 500V 250A |
7 |
|
Технический лист |
- | Tray | Active | Non Latching | 500 mA | 12VDC | SPST-NO (1 Form A) | 250 A | 500VDC - Nom | 9 VDC | 0.5 VDC | 50 ms | 30 ms | - | Chassis Mount | Screw Terminal | -40°C ~ 85°C |
|

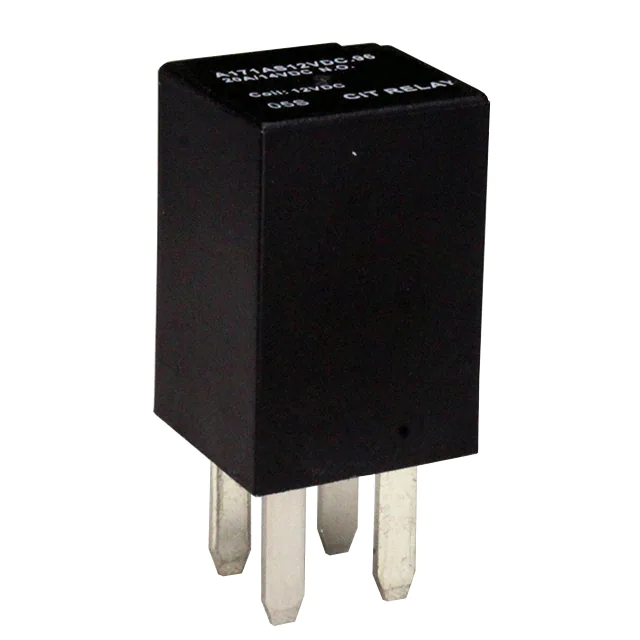

A171AS12VDC.96RELAY AUTOMOTIVE SPST 30A 12V |
69 |
|
Технический лист |
A17 | Tray | Active | Non Latching | 80 mA | 12VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 9 VDC | 1.2 VDC | 10 ms | 5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
AZ9731-1A-12DC1R1RELAY AUTOMOTIVE SPST 40A 12V |
58 |
|
Технический лист |
AZ9731 | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 5 ms | MINI-ISO w/ Steel Mounting Bracket, Resistor | Chassis Mount | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|

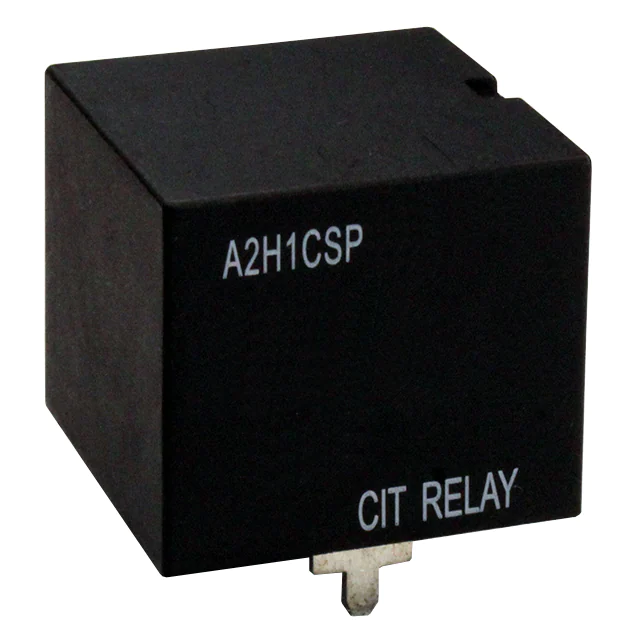

A2H1CSP24VDC1.6RELAY AUTOMOTIVE SPDT 50A 24V |
58 |
|
Технический лист |
A2H | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPDT (1 Form C) | 50 A | 75VDC - Max | 15.6 VDC | 2.4 VDC | 10 ms | 10 ms | - | Through Hole | PC Pin | -40°C ~ 125°C |
