Аудиотрансформаторы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Коэффициент трансформации - Первичный:Вторичный | Импеданс - Первичный (Ом) | Импеданс - Вторичный (Ом) | Сопротивление постоянному току (DCR) - Первичный | Сопротивление постоянному току (DCR) - Вторичный | Тип трансформатора | Диапазон частот | Частотная характеристика | Напряжение - Изоляция | Вносимые потери | Обратные потери | Уровень мощности | Рабочая температура | Сертифицирующее агентство | Тип крепления | Размер/измерение | Высота - в сидячем положении (макс.) | Тип вывода |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
108TAUDIO XFMR 10KCT / 10KCT TH |
174 |
|
Технический лист |
108 | Bulk | Active | 1:1 | 10kCT | 10kCT | 424Ohm | 426Ohm | Miniature Epoxy Potted | 300Hz ~ 50kHz | ±1.5dB | 500Vrms | - | - | 150mW | - | - | Through Hole | 1.030" L x 0.770" W (26.16mm x 19.56mm) | 0.770" (19.56mm) | PC Pin |
|
101DAUDIO XFMR 300CT / 600CT TH |
255 |
|
Технический лист |
101 | Bulk | Active | - | 300CT | 600CT | 20.4Ohm | 54Ohm | Miniature Epoxy Potted | 200Hz ~ 100kHz | ±0.5dB | - | - | - | 100mW | - | - | Through Hole | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.480" (12.19mm) | PC Pin |
|
107HAUDIO XFMR 600CT / 600CT TH |
212 |
|
Технический лист |
107 | Bulk | Active | 1:1 | 600CT | 600CT | 60Ohm | 78Ohm | Miniature Epoxy Potted | 300Hz ~ 50kHz | ±1.5dB | 100VRMS | - | - | 150mW | - | - | Through Hole | 0.630" L x 0.586" W (16.00mm x 14.88mm) | 0.630" (16.00mm) | PC Pin |
|
106QAUDIO XFMR 48CT / 3.2 TH |
173 |
|
Технический лист |
106 | Bulk | Active | - | 48CT | 3.2 | 2.4Ohm | 300mOhm | Miniature Epoxy Potted | 170Hz | -1dB | 200V | 1dB | - | 1.5W | - | - | Through Hole | 1.080" L x 0.880" W (27.43mm x 22.35mm) | 0.950" (24.13mm) | PC Pin |
|
104QAUDIO XFMR 500CT / 3.2 TH |
134 |
|
Технический лист |
104 | Bulk | Active | - | 500CT | 3.2 | 27Ohm | 400mOhm | Miniature Epoxy Potted | 200Hz | -1dB | 200V | 1dB | - | 500mW | - | - | Through Hole | 0.860" L x 0.710" W (21.84mm x 18.03mm) | 0.750" (19.05mm) | PC Pin |
|
5-2337822-1AUDIO XFMR SMD |
0 |
|
Технический лист |
- | Tube | Active | 1CT:1CT | - | - | - | - | - | - | - | 1500Vrms | -1dB Max @ 100kHz ~ 100MHz | -18dB Min @ 1MHz ~ 30MHz | - | -40°C ~ 105°C | - | Surface Mount | 0.500" L x 0.343" W (12.70mm x 8.70mm) | 0.244" (6.20mm) | Gull Wing |
|

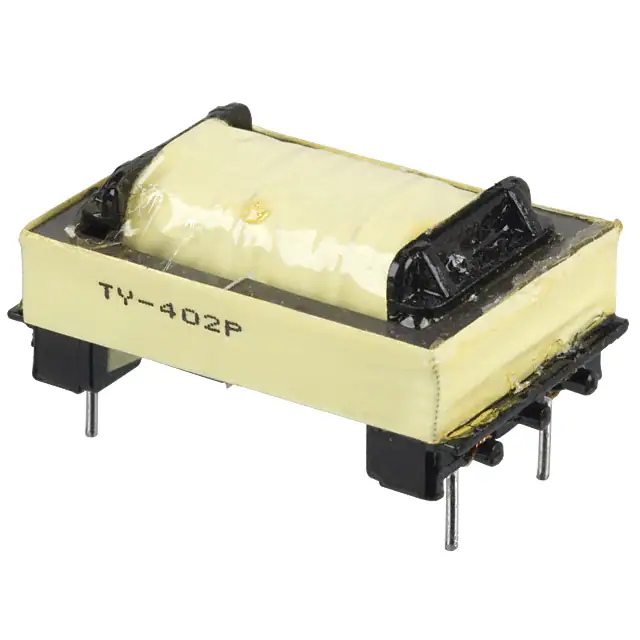

TY-402PAUDIO XFMR 600 / 600 TH |
476 |
|
Технический лист |
TY | Bulk | Active | 1:1.1 | 600 | 600 | 80Ohm | 112Ohm | Data/Voice Coupling | 300Hz ~ 3.5kHz | ±0.5dB | 1500VAC | 1.75dB Typ | 13dB Typ | -45dB ~ 7dB | -20°C ~ 85°C | - | Through Hole | 0.815" L x 1.250" W (20.70mm x 31.75mm) | 0.530" (13.46mm) | PC Pin |
|
MET-17-TAUDIO XFMR 10KCT / 500CT TH |
107 |
|
Технический лист |
MET | Bulk | Active | 4.7:1 | 10kCT | 500CT | 1kOhm | 80Ohm | Data/Voice Coupling | 300Hz ~ 100kHz | ±2dB | 1000VRMS @ 1 Second | - | - | 40mW | -20°C ~ 85°C | - | Through Hole | 0.409" L x 0.310" W (10.40mm x 7.87mm) | 0.465" (11.80mm) | PC Pin |
|
BM6210HLTXFMR PLC1:1:1 5UH FUNC INS |
650 |
|
Технический лист |
- | Tape & Reel (TR) | Active | 1:1:1 | - | - | 500mOhm | 500mOhm | Line (Audio Power Distribution) | 3MHz ~ 30MHz | - | 500V | - | - | - | -40°C ~ 125°C | - | Surface Mount | 0.354" L x 0.272" W (9.00mm x 6.90mm) | 0.197" (5.00mm) | Gull Wing |
|
|
BM6210HLXFMR PLC1:1:1 5UH FUNC INS |
347 |
|
Технический лист |
- | Tube | Active | 1:1:1 | - | - | 500mOhm | 500mOhm | Line (Audio Power Distribution) | 3MHz ~ 30MHz | - | 500V | - | - | - | -40°C ~ 125°C | - | Surface Mount | 0.354" L x 0.272" W (9.00mm x 6.90mm) | 0.197" (5.00mm) | Gull Wing |
|
|
BM6230HLXFMR PLC1:1:1 28UH REIN IN |
198 |
|
Технический лист |
- | Tube | Active | 1:1:1 | - | - | 250mOhm | 250mOhm | Line (Audio Power Distribution) | 3MHz ~ 30MHz | - | 3000V | 2.25dB | - | - | -40°C ~ 125°C | - | Surface Mount | 0.636" L x 0.583" W (16.15mm x 14.80mm) | 0.236" (6.00mm) | Gull Wing |
|
|
BM6220NLTXFMR PLC1:1 12UH FUNC INS |
486 |
|
Технический лист |
- | Tape & Reel (TR) | Active | 1:1 | - | - | 500mOhm | 500mOhm | Line (Audio Power Distribution) | 3MHz ~ 30MHz | - | 500V | -1dB | - | - | -40°C ~ 125°C | - | Surface Mount | 0.433" L x 0.374" W (11.00mm x 9.50mm) | 0.394" (10.00mm) | Gull Wing |
|
|
TG111-S12NYNLFTRISO MOD 1G POE 0.35A MINI SMD |
990 |
|
Технический лист |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BM6220NLXFMR PLC1:1 12UH FUNC INS |
248 |
|
Технический лист |
- | Tube | Active | 1:1 | - | - | 500mOhm | 500mOhm | Line (Audio Power Distribution) | 3MHz ~ 30MHz | - | 500V | -1dB | - | - | -40°C ~ 125°C | - | Surface Mount | 0.433" L x 0.374" W (11.00mm x 9.50mm) | 0.394" (10.00mm) | Gull Wing |
|
|
BM6230HLTXFMR PLC1:1:1 28UH REIN IN |
360 |
|
Технический лист |
- | Tape & Reel (TR) | Active | 1:1:1 | - | - | 250mOhm | 250mOhm | Line (Audio Power Distribution) | 3MHz ~ 30MHz | - | 3000V | 2.25dB | - | - | -40°C ~ 125°C | - | Surface Mount | 0.636" L x 0.583" W (16.15mm x 14.80mm) | 0.236" (6.00mm) | Gull Wing |
|
|
T6074NLAUDIO XFMR TH |
2,077 |
|
- |
- | Tube | Active | - | - | - | - | - | Data/Voice Coupling | - | - | - | - | - | - | - | - | Through Hole | 0.500" L x 0.350" W (12.70mm x 8.89mm) | 0.250" (6.35mm) | PC Pin |
|
619391LFAUDIO XFMR TH |
5,777 |
|
Технический лист |
- | Bulk | Active | - | - | - | 65mOhm | 100Ohm | General Purpose | - | - | - | - | - | - | -34°C ~ 85°C | - | Through Hole | 0.333" L x 0.315" W (8.45mm x 8.00mm) | 0.331" (8.40mm) | PC Pin |
|
|
K4000001Transformer, Matching, 40kHz, 10 |
4,000 |
|
Технический лист |
- | Tray | Active | 1:10 | - | - | - | - | Impedance Matching | 40kHz | - | - | - | - | - | - | - | Through Hole | 0.327" L x 0.311" W (8.30mm x 7.90mm) | 0.394" (10.00mm) | PC Pin |
|
|
K4000004Transformer, Matching, 40kHz, 6m |
3,000 |
|
Технический лист |
- | Tray | Active | 1:10 | - | - | - | - | Impedance Matching | 40kHz | - | - | - | - | - | - | - | Through Hole | 0.327" L x 0.311" W (8.30mm x 7.90mm) | 0.394" (10.00mm) | PC Pin |
|
|
K4000002Transformer,Matching, 40kHz, 5.3 |
357 |
|
Технический лист |
- | Tray | Active | 1:10 | - | - | - | - | Impedance Matching | 40kHz | - | - | - | - | - | - | - | Through Hole | 0.327" L x 0.311" W (8.30mm x 7.90mm) | 0.394" (10.00mm) | PC Pin |
