Аудиотрансформаторы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Коэффициент трансформации - Первичный:Вторичный | Импеданс - Первичный (Ом) | Импеданс - Вторичный (Ом) | Сопротивление постоянному току (DCR) - Первичный | Сопротивление постоянному току (DCR) - Вторичный | Тип трансформатора | Диапазон частот | Частотная характеристика | Напряжение - Изоляция | Вносимые потери | Обратные потери | Уровень мощности | Рабочая температура | Сертифицирующее агентство | Тип крепления | Размер/измерение | Высота - в сидячем положении (макс.) | Тип вывода |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
108HAUDIO XFMR 600CT / 600CT TH |
2 |
|
Технический лист |
108 | Bulk | Active | 1:1 | 600CT | 600CT | 50Ohm | 50Ohm | Miniature Epoxy Potted | 300Hz ~ 50kHz | ±1.5dB | 100VRMS | - | - | 150mW | - | - | Through Hole | 1.030" L x 0.770" W (26.16mm x 19.56mm) | 0.770" (19.56mm) | PC Pin |
|
|
108NAUDIO XFMR 10KCT / 600CT TH |
2 |
|
Технический лист |
108 | Bulk | Active | 4.08:1 | 10kCT | 600CT | 370Ohm | 35Ohm | Miniature Epoxy Potted | 300Hz ~ 50kHz | ±1.5dB | 100VRMS | - | - | 500mW | - | - | Through Hole | 1.030" L x 0.770" W (26.16mm x 19.56mm) | 0.770" (19.56mm) | PC Pin |
|
117J4AUDIO XFMR 3.2 / 25V CHAS MNT |
1 |
|
Технический лист |
117 | Bulk | Active | - | 3.2 | 25V | - | - | Sound Distribution | 100Hz ~ 9kHz | 1dB | - | 2dB | - | 4W | - | - | Chassis Mount | 2.810" L x 1.500" W (71.37mm x 38.10mm) | 1.690" (42.93mm) | Solder Lug |
|

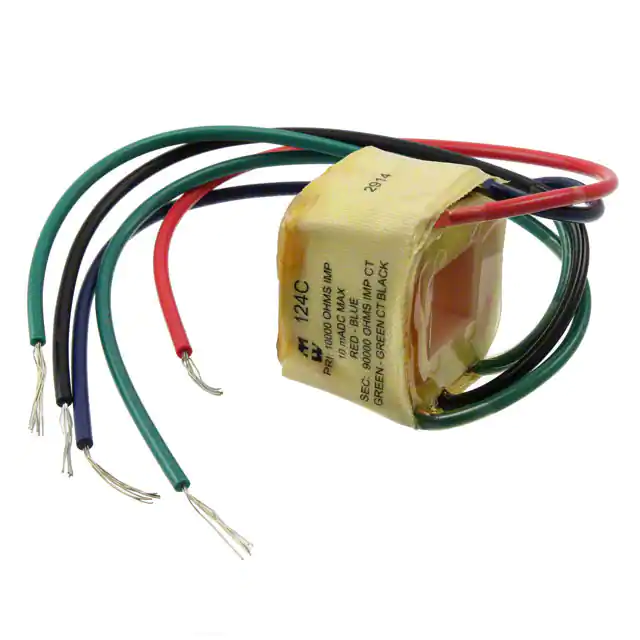

124CAUDIO XFMR 10K / 90KCT CHAS MNT |
1 |
|
Технический лист |
124 | Bulk | Active | 1:3 | 10k | 90kCT | 405Ohm | 1.525kOhm | Tube Driver and Speaker Matching | 150Hz ~ 15kHz | ±1dB | 500Vrms | - | - | 5W | - | - | Chassis Mount | - | - | Wire Leads |
|
|
117K8AUDIO XFMR 8 / 25V CHAS MNT |
4 |
|
Технический лист |
117 | Bulk | Active | - | 8 | 25V | - | - | Sound Distribution | 100Hz ~ 9kHz | 1dB | - | 2dB | - | 8W | - | - | Chassis Mount | 3.250" L x 1.750" W (82.55mm x 44.45mm) | 2.000" (50.80mm) | Solder Lug |
|
107VAUDIO XFMR 25KCT / 600CT TH |
3 |
|
Технический лист |
107 | Bulk | Active | 6.45:1 | 25kCT | 600CT | 1.4kOhm | 66Ohm | Miniature Epoxy Potted | 300Hz ~ 50kHz | ±1.5dB | 100VRMS | - | - | 150mW | - | - | Through Hole | 0.630" L x 0.586" W (16.00mm x 14.88mm) | 0.630" (16.00mm) | PC Pin |
|
104RAUDIO XFMR 500CT / 8 TH |
3 |
|
Технический лист |
104 | Bulk | Active | - | 500CT | 8 | 27Ohm | 900mOhm | Miniature Epoxy Potted | 200Hz | -1dB | 200V | 1dB | - | 500mW | - | - | Through Hole | 0.860" L x 0.710" W (21.84mm x 18.03mm) | 0.750" (19.05mm) | PC Pin |
|
106EEAUDIO XFMR 600CT / 600CT TH |
1 |
|
Технический лист |
106 | Bulk | Active | - | 600CT | 600CT | 65Ohm | 83Ohm | Miniature Epoxy Potted | 150Hz | -1dB | 200V | 1dB | - | 500mW | - | - | Through Hole | 1.080" L x 0.880" W (27.43mm x 22.35mm) | 0.950" (24.13mm) | PC Pin |
|
|
104BAUDIO XFMR 150 / 80K TH |
1 |
|
Технический лист |
104 | Bulk | Active | - | 150 | 80k | 6.6Ohm | 3.73kOhm | Miniature Epoxy Potted | 60Hz | -1dB | 200V | 1dB | - | 5mW | - | - | Through Hole | 0.860" L x 0.710" W (21.84mm x 18.03mm) | 0.750" (19.05mm) | PC Pin |
|
|
106EAUDIO XFMR 600CT / 600 TH |
1 |
|
Технический лист |
106 | Bulk | Active | - | 600CT | 600 | 65Ohm | 83Ohm | Miniature Epoxy Potted | 150Hz | -1dB | 200V | 1dB | - | 500mW | - | - | Through Hole | 1.080" L x 0.880" W (27.43mm x 22.35mm) | 0.950" (24.13mm) | PC Pin |
|
|
117K16AUDIO XFMR 8 / 25V CHAS MNT |
4 |
|
Технический лист |
117 | Bulk | Active | - | 8 | 25V | - | - | Sound Distribution | 100Hz ~ 9kHz | 1dB | - | 2dB | - | 16W | - | - | Chassis Mount | 3.690" L x 2.000" W (93.73mm x 50.80mm) | 2.310" (58.67mm) | Solder Lug |
|
|
117G16AUDIO XFMR 16 / 70V CHAS MNT |
1 |
|
Технический лист |
117 | Bulk | Active | - | 16 | 70V | - | - | Sound Distribution | 100Hz ~ 9kHz | 1dB | - | 2dB | - | 16W | - | - | Chassis Mount | 3.690" L x 2.000" W (93.73mm x 50.80mm) | 2.310" (58.67mm) | Solder Lug |
|
109NAUDIO XFMR 10KCT / 600CT TH |
1 |
|
Технический лист |
109 | Bulk | Active | 4.08:1 | 10kCT | 600CT | 660Ohm | 54Ohm | Miniature Epoxy Potted | 300Hz ~ 50kHz | ±1.5dB | 100VRMS | - | - | 2W | - | - | Through Hole | 1.315" L x 0.930" W (33.40mm x 23.62mm) | 0.920" (23.37mm) | PC Pin |
|
|
109TAUDIO XFMR 10KCT / 10KCT TH |
1 |
|
Технический лист |
109 | Bulk | Active | - | 10kCT | 10kCT | 700Ohm | 1kOhm | Miniature Epoxy Potted | 300Hz ~ 50kHz | ±1.5dB | - | - | - | 2W | - | - | Through Hole | 1.315" L x 0.930" W (33.40mm x 23.62mm) | 0.920" (23.37mm) | PC Pin |
|
|
117F16AUDIO XFMR 8 / 70V CHAS MNT |
0 |
|
Технический лист |
117 | Bulk | Active | - | 8 | 70V | - | - | Sound Distribution | 100Hz ~ 9kHz | 1dB | - | 2dB | - | 16W | - | - | Chassis Mount | 3.690" L x 2.000" W (93.73mm x 50.80mm) | 2.310" (58.67mm) | Solder Lug |
|
|
109FAUDIO XFMR 600CT / 150CT TH |
0 |
|
Технический лист |
109 | Bulk | Active | 2:1 | 600CT | 150CT | 36.65Ohm | 11.64Ohm | Miniature Epoxy Potted | 300Hz ~ 50kHz | ±1.5dB | 100VRMS | - | - | 2W | - | - | Through Hole | 1.315" L x 0.930" W (33.40mm x 23.62mm) | 0.920" (23.37mm) | PC Pin |
|
119Y30XFMR 16, 8 / 70V 25V CHAS MNT |
0 |
|
Технический лист |
119 | Bulk | Active | - | 16, 8 | 70V, 25V | - | - | Sound Distribution | 50Hz ~ 10kHz | - | 25V, 70V | - | - | 30W | - | - | Chassis Mount | 2.250" L x 4.030" W (57.15mm x 102.36mm) | 2.630" (66.80mm) | Wire Leads |
|
|
117K32AUDIO XFMR 8 / 25V CHAS MNT |
1 |
|
Технический лист |
117 | Bulk | Active | - | 8 | 25V | - | - | Sound Distribution | 100Hz ~ 9kHz | 1dB | - | 2dB | - | 32W | - | - | Chassis Mount | 4.030" L x 2.250" W (102.36mm x 57.15mm) | 2.630" (66.80mm) | Solder Lug |
|
124DXFMR 7KCT / 15.8KCT CHAS MNT |
3 |
|
Технический лист |
124 | Bulk | Active | 1:1.49 | 7kCT | 15.8kCT | 218Ohm, 236Ohm | 297Ohm, 394Ohm | Tube Driver and Speaker Matching | 150Hz ~ 15kHz | ±1dB | 500Vrms | - | - | 5W | - | - | Chassis Mount | 2.810" L x 1.460" W (71.37mm x 37.08mm) | 1.680" (42.67mm) | Wire Leads |
|

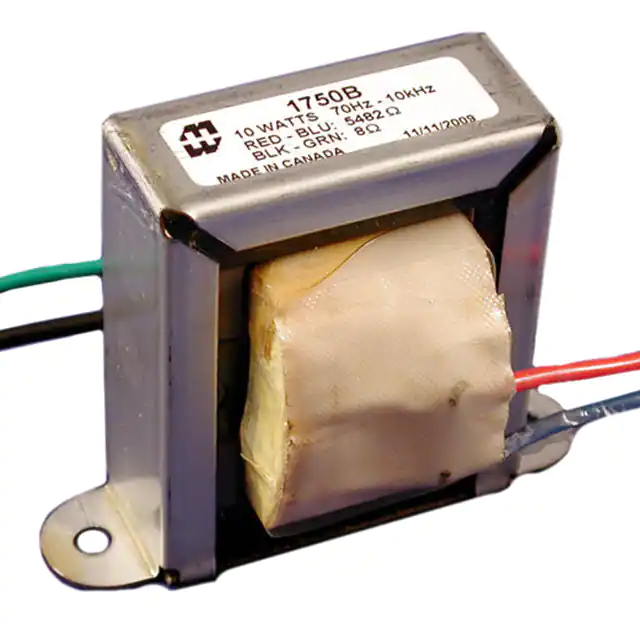

1750BAUDIO XFMR 5.482K / 8 CHAS MNT |
1 |
|
Технический лист |
1750 | Bulk | Active | - | 5.482k | 8 | 254.8Ohm | 420mOhm | - | 70Hz ~ 10kHz | ±1dB | 1750V @ 1 Second | - | - | 10W | - | - | Chassis Mount | 2.875" L x 1.900" W (73.02mm x 48.26mm) | 2.433" (61.80mm) | Wire Leads |
