Алюминий - полимерные конденсаторы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Емкость | Допуск | Напряжение - Номинальное | ESR (эквивалентное последовательное сопротивление) | Срок службы при темп. | Рабочая температура | Номинальные значения | Применение | Особенности | Пульсация тока при низкой частоте | Пульсация тока при высокой частоте | Импеданс | Расстояние между выводами | Размер/измерение | Высота - в сидячем положении (макс.) | Размер площадки для поверхностного монтажа | Тип крепления | Упаковка/корпус |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APXA4R0ARA681MJ80GCAP ALUM POLY 680UF 20% 4V SMD |
1,053 |
|
Технический лист |
NPCAP™-PXA | Tape & Reel (TR) | Active | Polymer | 680 µF | ±20% | 4 V | 20mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.13 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.303" (7.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
|
A781MS567M1ELAV022CAP ALUMHYB 560UF 20% 25V SMD |
511 |
|
Технический лист |
A781, Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 560 µF | ±20% | 25 V | 22mOhm | 2000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | Anti-Vibration | 2.98 A @ 100 Hz | 7.45 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.520" (13.20mm) | 0.425" L x 0.406" W (10.80mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
|
875075855002CAP ALUM POLY 22UF 20% 63V SMD |
281 |
|
Технический лист |
WCAP-PSLC | Tape & Reel (TR) | Active | Polymer | 22 µF | ±20% | 63 V | 35mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 90 mA @ 120 Hz | 1.8 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.461" (11.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
EEH-ZE1J820VCAP ALUM HYBRID 82UF 20% 63V SMD |
990 |
|
Технический лист |
ZE, Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 82 µF | ±20% | 63 V | 30mOhm | 2000 Hrs @ 145°C | -55°C ~ 145°C | AEC-Q200 | Automotive | - | 120 mA @ 100 Hz | 800 mA @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.425" (10.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
|
EEH-ZE1J820PCAP ALUM HYBRID 82UF 20% 63V SMD |
955 |
|
Технический лист |
ZE | Tape & Reel (TR) | Active | Hybrid | 82 µF | ±20% | 63 V | 30mOhm | 2000 Hrs @ 145°C | -55°C ~ 145°C | AEC-Q200 | Automotive | - | 120 mA @ 100 Hz | 800 mA @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
|
EEF-JX0J151RFCAP ALUM POLY 150UF 20% 6.3V SMD |
3,235 |
|
Технический лист |
SP-Cap JX | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 6.3 V | 15mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 5.1 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
PCV1V560MCL1GSCAP ALUM POLY 56UF 20% 35V SMD |
3,195 |
|
Технический лист |
PCV | Tape & Reel (TR) | Active | Polymer | 56 µF | ±20% | 35 V | 31mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 1.9 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
APXE6R3ARA391MH70GCAP ALUM POLY 390UF 20% 6.3V SMD |
931 |
|
Технический лист |
NPCAP™-PXE | Tape & Reel (TR) | Active | Polymer | 390 µF | ±20% | 6.3 V | 14mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.95 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.264" (6.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
6SEPC680M+TCAP ALUM POLY 680UF 20% 6.3V TH |
408 |
|
Технический лист |
OS-CON™, SEPC | Cut Tape (CT) | Active | Polymer | 680 µF | ±20% | 6.3 V | 7mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 332 mA @ 120 Hz | 6.64 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole | Radial, Can |
|
|
PCV1J220MCL6GSCAP ALUM POLY 22UF 20% 63V SMD |
4,425 |
|
Технический лист |
PCV | Tape & Reel (TR) | Active | Polymer | 22 µF | ±20% | 63 V | 37mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 1.7 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
|
A784MW567M1VLAV013CAP ALUMHYB 560UF 20% 35V SMD |
1,595 |
|
Технический лист |
A784, Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 560 µF | ±20% | 35 V | 13mOhm | 1000 Hrs @ 150°C | -55°C ~ 150°C | AEC-Q200 | Automotive | Anti-Vibration | 1.56 A @ 100 Hz | 3.9 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.689" (17.50mm) | 0.425" L x 0.406" W (10.80mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
|
EEH-ZC1V221VCAP ALUMHYB 220UF 20% 35V SMD |
276 |
|
Технический лист |
ZC, Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 220 µF | ±20% | 35 V | 20mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | Anti-Vibration | 300 mA @ 100 Hz | 2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.425" (10.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
|
PLS1C471MDO1TDCAP ALUM POLY 470UF 20% 16V TH |
264 |
|
Технический лист |
PLS | Cut Tape (CT) | Active | Polymer | 470 µF | ±20% | 16 V | 9mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.7 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole | Radial, Can |
|
2R5SVPT680MCAP ALUM POLY 680UF 20% 2.5V SMD |
896 |
|
Технический лист |
OS-CON™, SVPT | Tape & Reel (TR) | Active | Polymer | 680 µF | ±20% | 2.5 V | 20mOhm | 20000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 168.5 mA @ 120 Hz | 3.37 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
EEH-ZE1J560PCAP ALUM HYBRID 56UF 20% 63V SMD |
1,252 |
|
Технический лист |
ZE | Tape & Reel (TR) | Active | Hybrid | 56 µF | ±20% | 63 V | 30mOhm | 2000 Hrs @ 145°C | -55°C ~ 145°C | AEC-Q200 | Automotive | - | 120 mA @ 100 Hz | 800 mA @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
|
|
EEH-ZC1J470VCAP ALUM HYBRID 47UF 20% 63V SMD |
1,034 |
|
Технический лист |
ZC, Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 47 µF | ±20% | 63 V | 40mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | Anti-Vibration | 165 mA @ 100 Hz | 1.1 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.425" (10.80mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|

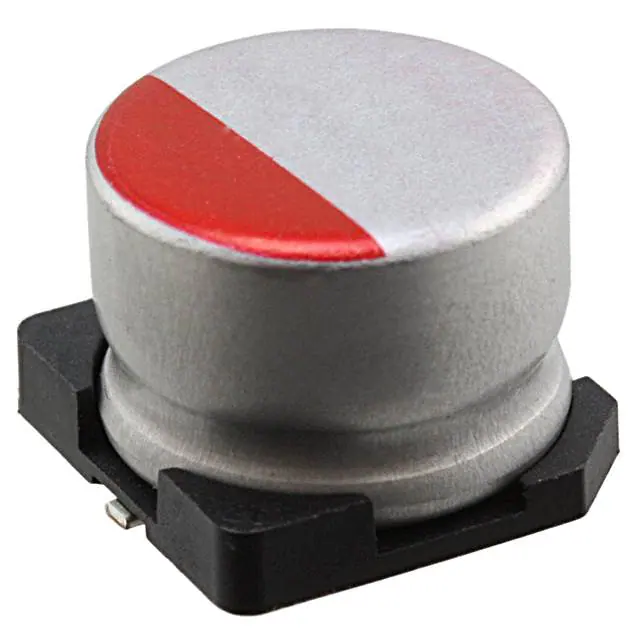

RPS1J220MCN1GSCAP ALUM POLY 22UF 20% 63V SMD |
201 |
|
Технический лист |
FPCAP, RPS | Tape & Reel (TR) | Active | Polymer | 22 µF | ±20% | 63 V | 33mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 190 mA @ 120 Hz | 1.9 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
|
|
PCV1D151MCL6GSCAP ALUM POLY 150UF 20% 20V SMD |
5,750 |
|
Технический лист |
PCV | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 20 V | 28mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
|
EEH-ZC1E331VCAP ALUMHYB 330UF 20% 25V SMD |
4,151 |
|
Технический лист |
ZC, Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 330 µF | ±20% | 25 V | 20mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | Anti-Vibration | 300 mA @ 100 Hz | 2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.425" (10.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
|
PCV1E121MCL1GSCAP ALUM POLY 120UF 20% 25V SMD |
350 |
|
Технический лист |
PCV | Tape & Reel (TR) | Active | Polymer | 120 µF | ±20% | 25 V | 35mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 1.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
