Алюминий - полимерные конденсаторы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Емкость | Допуск | Напряжение - Номинальное | ESR (эквивалентное последовательное сопротивление) | Срок службы при темп. | Рабочая температура | Номинальные значения | Применение | Особенности | Пульсация тока при низкой частоте | Пульсация тока при высокой частоте | Импеданс | Расстояние между выводами | Размер/измерение | Высота - в сидячем положении (макс.) | Размер площадки для поверхностного монтажа | Тип крепления | Упаковка/корпус |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PCV1H680MCL2GSCAP ALUM POLY 68UF 20% 50V SMD |
19,445 |
|
Технический лист |
PCV | Tape & Reel (TR) | Active | Polymer | 68 µF | ±20% | 50 V | 29mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 3.4 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.394" (10.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
|
A767MU476M1KLAE040CAP ALUM POLY 47UF 20% 80V SMD |
420 |
|
Технический лист |
A767 | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 80 V | 40mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 125 mA @ 120 Hz | 2.5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.508" (12.90mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
|
EEH-ZS1H271UVCAP ALUMHYB 270UF 20% 50V SMD |
387 |
|
Технический лист |
ZSU Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 270 µF | ±20% | 50 V | 13mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 740 mA @ 120 Hz | 3.7 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.673" (17.10mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
|
100SXE22MCAP ALUM POLY 22UF 20% 100V TH |
973 |
|
Технический лист |
OS-CON™, SXE | Bulk | Active | Polymer | 22 µF | ±20% | 100 V | 30mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 150 mA @ 120 Hz | 3 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole | Radial, Can |
|
B40940A8127M000CAP ALUMHYB 120UF 20% 63V SMD |
1,254 |
|
Технический лист |
B40940 | Tape & Reel (TR) | Active | Hybrid | 120 µF | ±20% | 63 V | 22mOhm | 4000 Hrs @ 145°C | -40°C ~ 145°C | AEC-Q200 | Automotive | - | - | 3.4 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.504" (12.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
|
63SXV68MCAP ALUM POLY 68UF 20% 63V SMD |
1,609 |
|
Технический лист |
OS-CON™, SXV | Tape & Reel (TR) | Active | Polymer | 68 µF | ±20% | 63 V | 25mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 51.5 mA @ 120 Hz | 1.03 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
|
PCR1E221MCL1GSCAP ALUM POLY 220UF 20% 25V SMD |
650 |
|
Технический лист |
PCR | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 25 V | 24mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 2.1 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
|
|
100SXV22MCAP ALUM POLY 22UF 20% 100V SMD |
310 |
|
Технический лист |
OS-CON™, SXV | Tape & Reel (TR) | Active | Polymer | 22 µF | ±20% | 100 V | 30mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 150 mA @ 120 Hz | 3 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
|
EEH-ZU1J151VCAP ALUMHYB 150UF 20% 63V SMD |
181 |
|
Технический лист |
ZU, Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 150 µF | ±20% | 63 V | 10mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 780 mA @ 100 Hz | 5.2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.673" (17.10mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
|
|
EEH-ZU1H221VCAP ALUMHYB 220UF 20% 50V SMD |
332 |
|
Технический лист |
ZU, Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 220 µF | ±20% | 50 V | 10mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 780 mA @ 100 Hz | 5.2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.673" (17.10mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
|
EEH-ZU1J121UVCAP ALUMHYB 120UF 20% 63V SMD |
993 |
|
Технический лист |
ZUU, Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 120 µF | ±20% | 63 V | 12mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 720 mA @ 100 Hz | 4.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.516" (13.10mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
|
50PZH270M10X20CAP ALUM HYBRID 270UF 20% 50V TH |
3,960 |
|
Технический лист |
PZH | Bulk | Active | Hybrid | 270 µF | ±20% | 50 V | 11mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 225 mA @ 100 Hz | 4.5 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.866" (22.00mm) | - | Through Hole | Radial, Can |
|
A700D226M016ATE018CAP ALUM POLY 22UF 20% 16V SMD |
418 |
|
Технический лист |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 22 µF | ±20% | 16 V | 18mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 3.7 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
|
35PZH680M10X20CAP ALUM HYBRID 680UF 20% 35V TH |
640 |
|
Технический лист |
PZH | Bulk | Active | Hybrid | 680 µF | ±20% | 35 V | 9mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 255 mA @ 100 Hz | 5.1 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.866" (22.00mm) | - | Through Hole | Radial, Can |
|
|
A700X227M006ATE015CAP ALUM POLY 220UF 20% 6.3V SMD |
4,011 |
|
Технический лист |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 6.3 V | 15mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 3.9 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
|
63PZH150M10X20CAP ALUM HYBRID 150UF 20% 63V TH |
3,802 |
|
Технический лист |
PZH | Bulk | Active | Hybrid | 150 µF | ±20% | 63 V | 13mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 205 mA @ 100 Hz | 4.1 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.866" (22.00mm) | - | Through Hole | Radial, Can |
|

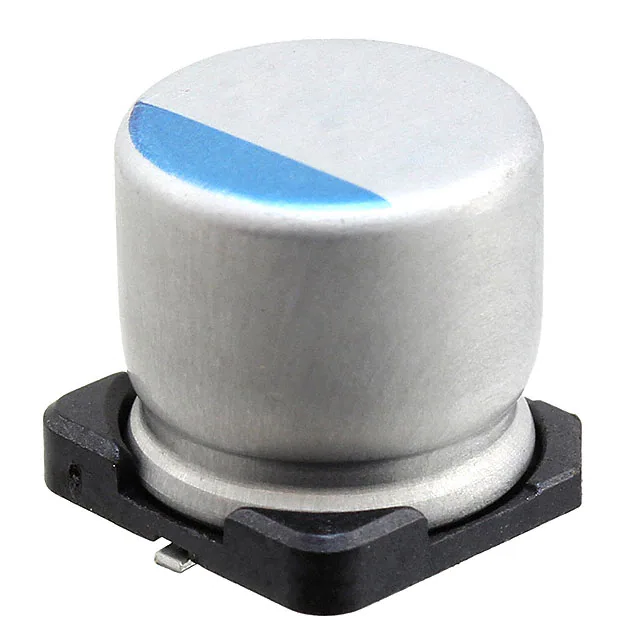

PCR1J680MCL1GSCAP ALUM POLY 68UF 20% 63V SMD |
16,075 |
|
Технический лист |
PCR | Tape & Reel (TR) | Active | Polymer | 68 µF | ±20% | 63 V | 28mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 2.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.394" (10.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
|
|
PCR1C471MCL1GSCAP ALUM POLY 470UF 20% 16V SMD |
5,013 |
|
Технический лист |
PCR | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 16 V | 22mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 2.2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
|
A780MS107M1JLAV030CAP ALUMHYB 100UF 20% 63V SMD |
2,917 |
|
Технический лист |
A780, Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 100 µF | ±20% | 63 V | 30mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | Anti-Vibration | 396 mA @ 100 Hz | 1.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.520" (13.20mm) | 0.425" L x 0.406" W (10.80mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
-V.jpg)
|
HZA337M025G24VT-FCAP ALUMHYB 330UF 20% 25V SMD |
15,716 |
|
Технический лист |
HZA_V | Tape & Reel (TR) | Active | Hybrid | 330 µF | ±20% | 25 V | 20mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive, Bypass, Decoupling | - | 250 mA @ 120 Hz | 2.5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
