Алюминий - полимерные конденсаторы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Емкость | Допуск | Напряжение - Номинальное | ESR (эквивалентное последовательное сопротивление) | Срок службы при темп. | Рабочая температура | Номинальные значения | Применение | Особенности | Пульсация тока при низкой частоте | Пульсация тока при высокой частоте | Импеданс | Расстояние между выводами | Размер/измерение | Высота - в сидячем положении (макс.) | Размер площадки для поверхностного монтажа | Тип крепления | Упаковка/корпус |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A781MN337M1ELAS025CAP ALUMHYB 330UF 20% 25V SMD |
1,346 |
|
Технический лист |
A781 | Tape & Reel (TR) | Active | Hybrid | 330 µF | ±20% | 25 V | 25mOhm | 2000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 2.8 A @ 100 Hz | 7 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
|
A768MS108M1CLAE015CAP ALUM POLY 1000UF 20% 16V SMD |
4,921 |
|
Технический лист |
A768 | Tape & Reel (TR) | Active | Polymer | 1000 µF | ±20% | 16 V | 15mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 135 mA @ 120 Hz | 2.7 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
|

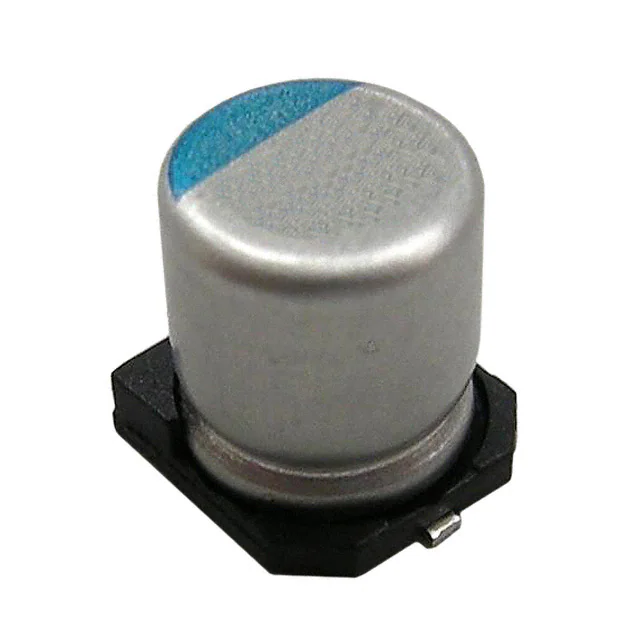

APXK4R0ARA221ME61GCAP ALUM POLY 220UF 20% 4V SMD |
3,137 |
|
Технический лист |
NPCAP™-PXK | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 4 V | 17mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.39 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.228" (5.80mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | Radial, Can - SMD |
|
RNS1C101MDN1KXCAP ALUM POLY 100UF 20% 16V TH |
2,045 |
|
Технический лист |
FPCAP, RNS | Cut Tape (CT) | Active | Polymer | 100 µF | ±20% | 16 V | 21mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 390 mA @ 120 Hz | 3.9 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | Radial, Can |
|
870055674005CAP ALUM POLY 47UF 20% 35V TH |
1,667 |
|
Технический лист |
WCAP-PTHR | Cut Tape (CT) | Active | Polymer | 47 µF | ±20% | 35 V | 25mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 144.5 mA @ 120 Hz | 2.89 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | Radial, Can |
|
|
A768MS227M1GLAS022CAP ALUM POLY 220UF 20% 40V SMD |
1,440 |
|
Технический лист |
A768 | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 40 V | 22mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 110 mA @ 120 Hz | 2.2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
|
GYA1H330MCQ1GSCAP ALUM HYBRID 33UF 20% 50V SMD |
1,253 |
|
Технический лист |
GYA | Tape & Reel (TR) | Active | Hybrid | 33 µF | ±20% | 50 V | 40mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 1.1 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | Radial, Can - SMD |
|
GYB1H330MCQ1GSCAP ALUM HYBRID 33UF 20% 50V SMD |
808 |
|
Технический лист |
GYB | Tape & Reel (TR) | Active | Hybrid | 33 µF | ±20% | 50 V | 40mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | 240 mA @ 120 Hz | 1.6 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | Radial, Can - SMD |
|
HHXC500ARA680MHA0GCAP ALUM HYBRID 68UF 20% 50V SMD |
41,891 |
|
Технический лист |
HXC | Tape & Reel (TR) | Active | Hybrid | 68 µF | ±20% | 50 V | 30mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 1.25 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
|
HHXC500ARA470MHA0GCAP ALUM HYBRID 47UF 20% 50V SMD |
37,500 |
|
Технический лист |
HXC | Tape & Reel (TR) | Active | Hybrid | 47 µF | ±20% | 50 V | 30mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 1.25 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
A750KW337M1VAAE020CAP ALUM POLY 330UF 20% 35V TH |
3,370 |
|
Технический лист |
A750 | Bulk | Active | Polymer | 330 µF | ±20% | 35 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 205 mA @ 120 Hz | 4.1 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.630" (16.00mm) | - | Through Hole | Radial, Can |
|
|
A768KS336M1KLAE038CAP ALUM POLY 33UF 20% 80V SMD |
3,218 |
|
Технический лист |
A768 | Tape & Reel (TR) | Active | Polymer | 33 µF | ±20% | 80 V | 38mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 80 mA @ 120 Hz | 1.6 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.492" (12.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
EEH-ZC1J220XPCAP ALUM HYBRID 22UF 20% 63V SMD |
795 |
|
Технический лист |
ZC | Tape & Reel (TR) | Active | Hybrid | 22 µF | ±20% | 63 V | 80mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 90 mA @ 100 Hz | 900 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | Radial, Can - SMD |
|
|
A768MS476M1KLAE034CAP ALUM POLY 47UF 20% 80V SMD |
7,146 |
|
Технический лист |
A768 | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 80 V | 34mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 90 mA @ 120 Hz | 1.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
|
25SVF100MCAP ALUM POLY 100UF 20% 25V SMD |
5,065 |
|
Технический лист |
OS-CON™, SVF | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 25 V | 24mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 50.5 mA @ 120 Hz | 1.01 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
|
A768MS157M1HLAE024CAP ALUM POLY 150UF 20% 50V SMD |
2,800 |
|
Технический лист |
A768 | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 50 V | 24mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 107.5 mA @ 120 Hz | 2.15 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
|
RNU0J102MDN1CAP ALUM POLY 1000UF 20% 6.3V TH |
2,466 |
|
Технический лист |
FPCAP, RNU | Bulk | Active | Polymer | 1000 µF | ±20% | 6.3 V | 7mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 570 mA @ 120 Hz | 5.7 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | Radial, Can |
|
|
A750MW567M1VAAE018CAP ALUM POLY 560UF 20% 35V TH |
2,340 |
|
Технический лист |
A750 | Bulk | Active | Polymer | 560 µF | ±20% | 35 V | 18mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 234.5 mA @ 120 Hz | 4.69 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.709" (18.00mm) | - | Through Hole | Radial, Can |
|
A755MS158M0JAAE013CAP ALUM POLY 1500UF 20% 6.3V TH |
2,304 |
|
Технический лист |
A755 | Bulk | Active | Polymer | 1500 µF | ±20% | 6.3 V | 13mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 262.5 mA @ 120 Hz | 5.25 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole | Radial, Can |
|
|
HHXC250ARA221MHA0GCAP ALUMHYB 220UF 20% 25V SMD |
1,524 |
|
Технический лист |
HXC | Tape & Reel (TR) | Active | Hybrid | 220 µF | ±20% | 25 V | 27mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 1.6 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
