Алюминиевые электролитические конденсаторы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Корпус/корпус | Серия | Упаковка | Состояние продукта | Емкость | Допуск | Напряжение - Номинальное | ESR (эквивалентное последовательное сопротивление) | Срок службы при темп. | Рабочая температура | Поляризация | Номинальные значения | Применение | Пульсация тока при низкой частоте | Пульсация тока при высокой частоте | Импеданс | Расстояние между выводами | Размер/измерение | Высота - в сидячем положении (макс.) | Размер площадки для поверхностного монтажа | Тип крепления |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEU-FS1A122CAP ALUM 1200UF 20% 10V RADIAL |
1,914 |
|
Технический лист |
FS-A | Bulk | Active | 1200 µF | ±20% | 10 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.032 A @ 120 Hz | 1.29 A @ 100 kHz | 43 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
|
ATB477M016F102CAP ALUM 470UF 20% 16V SMD |
14,000 |
|
Технический лист |
ATB | Tape & Reel (TR) | Active | 470 µF | ±20% | 16 V | 564.4mOhm @ 120Hz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | Bypass, Decoupling | 420 mA @ 120 Hz | 600 mA @ 100 kHz | 160 mOhms | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.346" L x 0.335" W (8.80mm x 8.50mm) | Surface Mount | |
|
UPM2A270MPD6TDCAP ALUM 27UF 20% 100V RADIAL TH |
1,949 |
|
Технический лист |
UPM | Cut Tape (CT) | Not For New Designs | 27 µF | ±20% | 100 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 205 mA @ 120 Hz | 380 mA @ 10 kHz | 500 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.571" (14.50mm) | - | Through Hole | |
|
EEE-HA0J331PCAP ALUM 330UF 20% 6.3V SMD |
1,929 |
|
Технический лист |
HA | Tape & Reel (TR) | Not For New Designs | 330 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 230 mA @ 120 Hz | 391 mA @ 10 kHz | - | - | 0.315" Dia (8.00mm) | 0.402" (10.20mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
|
ATB227M035F102CAP ALUM 220UF 20% 35V SMD |
31,950 |
|
Технический лист |
ATB | Tape & Reel (TR) | Active | 220 µF | ±20% | 35 V | 904mOhm @ 120Hz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | Bypass, Decoupling | 420 mA @ 120 Hz | 600 mA @ 100 kHz | 160 mOhms | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.346" L x 0.335" W (8.80mm x 8.50mm) | Surface Mount | |
|

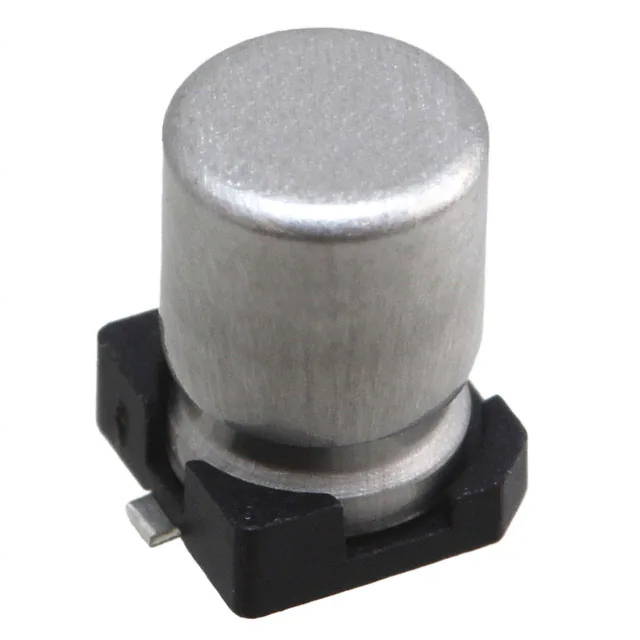

UUP1HR22MCL1GSCAP ALUM 0.22UF 20% 50V SMD |
3,503 |
|
Технический лист |
UUP | Tape & Reel (TR) | Active | 0.22 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Bi-Polar | AEC-Q200 | General Purpose | 2 mA @ 120 Hz | 3 mA @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.240" (6.10mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
EEU-FK1A122LCAP ALUM 1200UF 20% 10V RADIAL |
1,366 |
|
Технический лист |
FK | Bulk | Active | 1200 µF | ±20% | 10 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 976 mA @ 120 Hz | 1.22 A @ 100 kHz | 44 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
EDT227M010S9MAACAP ALUM 220UF 20% 10V SMD |
6,996 |
|
Технический лист |
EDT | Tape & Reel (TR) | Active | 220 µF | ±20% | 10 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 130 mA @ 120 Hz | 185.714 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
EEE-FKV680XALCAP ALUM 68UF 20% 35V SMD |
4,277 |
|
Технический лист |
FK, Halogen Free | Tape & Reel (TR) | Active | 68 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 182 mA @ 120 Hz | 280 mA @ 100 kHz | 340 mOhms | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
EEE-FKJ331XALCAP ALUM 330UF 20% 6.3V SMD |
2,561 |
|
Технический лист |
FK, Halogen Free | Tape & Reel (TR) | Active | 330 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 182 mA @ 120 Hz | 280 mA @ 100 kHz | 340 mOhms | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
UHD1H271MPDCAP ALUM 270UF 20% 50V RADIAL TH |
1,671 |
|
Технический лист |
UHD | Bulk | Not For New Designs | 270 µF | ±20% | 50 V | - | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.106 A @ 120 Hz | 1.58 A @ 100 kHz | 30 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
ELXZ100ELL102MJ16SCAP ALUM 1000UF 20% 10V RADIAL |
3,898 |
|
Технический лист |
LXZ | Bulk | Active | 1000 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 630 mA @ 120 Hz | 1.05 A @ 100 kHz | 68 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|
EEE-FC1E470APCAP ALUM 47UF 20% 25V SMD |
2,338 |
|
Технический лист |
FC | Tape & Reel (TR) | Not For New Designs | 47 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 172.5 mA @ 120 Hz | 230 mA @ 100 kHz | 400 mOhms | - | 0.315" Dia (8.00mm) | 0.244" (6.20mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
EEU-FS1K680CAP ALUM 68UF 20% 80V RADIAL TH |
1,856 |
|
Технический лист |
FS-A | Bulk | Active | 68 µF | ±20% | 80 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 413 mA @ 120 Hz | 590 mA @ 100 kHz | 112 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.650" (16.50mm) | - | Through Hole | |
|

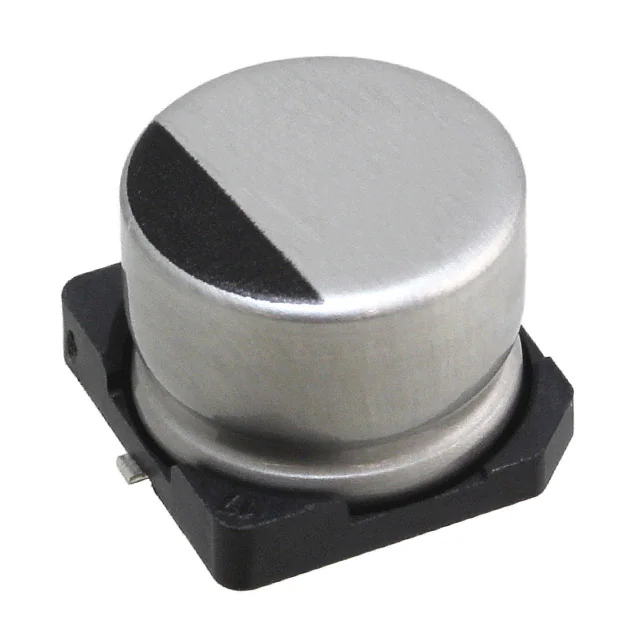

UWH1V330MCL1GSCAP ALUM 33UF 20% 35V SMD |
4,985 |
|
Технический лист |
UWH | Tape & Reel (TR) | Active | 33 µF | ±20% | 35 V | - | 1000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | General Purpose | 44 mA @ 120 Hz | 69 mA @ 10 kHz | - | - | 0.315" Dia (8.00mm) | 0.244" (6.20mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
|
UHD1C681MPDCAP ALUM 680UF 20% 16V RADIAL TH |
1,095 |
|
Технический лист |
UHD | Bulk | Not For New Designs | 680 µF | ±20% | 16 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 937.5 mA @ 120 Hz | 1.25 A @ 100 kHz | 41 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
EEU-FS1K820BCAP ALUM 82UF 20% 80V RADIAL TH |
6,654 |
|
Технический лист |
FS-A | Cut Tape (CT) | Active | 82 µF | ±20% | 80 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 413 mA @ 120 Hz | 590 mA @ 100 kHz | 112 mOhms | 0.197" (5.00mm) | 0.315" Dia (8.00mm) | 0.650" (16.50mm) | - | Through Hole | |
|
UUQ1V220MCL1GBCAP ALUM 22UF 20% 35V SMD |
1,930 |
|
Технический лист |
UUQ | Tape & Reel (TR) | Active | 22 µF | ±20% | 35 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Audio | 42 mA @ 120 Hz | 63 mA @ 10 kHz | - | - | 0.248" Dia (6.30mm) | 0.213" (5.40mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
UCD0J681MNL1GSCAP ALUM 680UF 20% 6.3V SMD |
1,878 |
|
Технический лист |
UCD | Tape & Reel (TR) | Active | 680 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 300 mA @ 120 Hz | 600 mA @ 100 kHz | 160 mOhms | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
227SMH035MCAP ALUM 220UF 20% 35V SMD |
13,989 |
|
Технический лист |
SMH | Bulk | Active | 220 µF | ±20% | 35 V | 1.06Ohm @ 120Hz | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 190 mA @ 120 Hz | 285 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.417" (10.60mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
