Алюминиевые электролитические конденсаторы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Корпус/корпус | Серия | Упаковка | Состояние продукта | Емкость | Допуск | Напряжение - Номинальное | ESR (эквивалентное последовательное сопротивление) | Срок службы при темп. | Рабочая температура | Поляризация | Номинальные значения | Применение | Пульсация тока при низкой частоте | Пульсация тока при высокой частоте | Импеданс | Расстояние между выводами | Размер/измерение | Высота - в сидячем положении (макс.) | Размер площадки для поверхностного монтажа | Тип крепления |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EKMS451VSN561MA50SCAP ALUM 560UF 20% 450V SNAP TH |
1,809 |
|
Технический лист |
KMS | Bulk | Active | 560 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.22 A @ 120 Hz | 3.1746 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.067" (52.50mm) | - | Through Hole | |
|
ALC70C102EH450CAP ALUM 1000UF 20% 450V SNAP TH |
425 |
|
Технический лист |
ALC70 | Bulk | Active | 1000 µF | ±20% | 450 V | 148.2mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.11 A @ 100 Hz | 8.53 A @ 10 kHz | 85 mOhms | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 2.441" (62.00mm) | - | Through Hole | |
|
MAL225736471E3CAP ALUM 470UF 20% 400V SNAP TH |
790 |
|
Технический лист |
257 PRM-SI | Box | Active | 470 µF | ±20% | 400 V | 400mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.34 A @ 100 Hz | 3.276 A @ 10 kHz | 330 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
450MXK560MEFC30X45CAP ALUM 560UF 20% 450V SNAP TH |
253 |
|
Технический лист |
MXK | Tray | Active | 560 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.24 A @ 120 Hz | 3.136 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
ALF80C471DG450CAP ALUM 470UF 20% 450V PRESS |
1,083 |
|
Технический лист |
ALF80 | Bulk | Active | 470 µF | ±20% | 450 V | 278.3mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.82 A @ 100 Hz | 7.62 A @ 10 kHz | 160 mOhms | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 2.244" (57.00mm) | - | Through Hole, Press-Fit | |
|
PEH227HMS5100QE4CAP ALUM 10500UF 25V SOLDER LUG |
220 |
|
Технический лист |
PEH227 | Tray | Active | 10500 µF | -10%, +30% | 25 V | 18mOhm @ 100Hz | 2000 Hrs @ 150°C | -40°C ~ 150°C | Polar | AEC-Q200 | Automotive | 3.465 A @ 100 Hz | 10.296 A @ 100 kHz | - | 0.600" (15.24mm) | 0.795" Dia (20.20mm) | 1.760" (44.70mm) | - | Through Hole | |
|
B43630A9128M000CAP ALUM 1200UF 20% 400V SNAP TH |
361 |
|
Технический лист |
B43630 | Bulk | Active | 1200 µF | ±20% | 400 V | 100mOhm @ 100Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 4.44 A @ 100 Hz | - | 170 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.244" (57.00mm) | - | Through Hole | |
|
B43508B9567M000CAP ALUM 560UF 20% 400V SNAP TH |
166 |
|
Технический лист |
B43508 | Bulk | Not For New Designs | 560 µF | ±20% | 400 V | 220mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.83 A @ 100 Hz | - | 310 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|

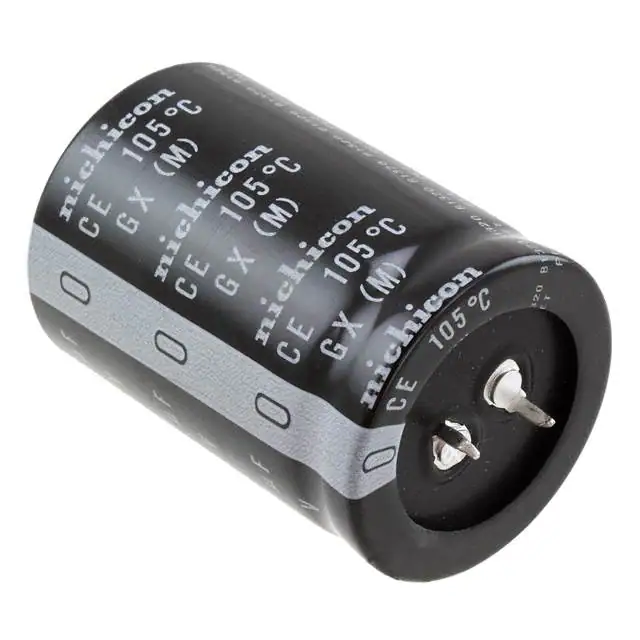

LGX2W561MELC50CAP ALUM 560UF 20% 450V SNAP TH |
184 |
|
Технический лист |
LGX | Bulk | Active | 560 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.98 A @ 120 Hz | 2.8314 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
MAL205356471E3CAP ALUM 470UF 20% 400V RADIAL |
247 |
|
Технический лист |
053 PEC-PW | Cut Tape (CT) | Active | 470 µF | ±20% | 400 V | 340mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.12 A @ 100 Hz | - | 220 mOhms | 0.787" (20.00mm) | 1.575" Dia (40.00mm) | 2.165" (55.00mm) | - | Through Hole | |
|
|
B43541A6477M000CAP ALUM 470UF 20% 500V SNAP TH |
170 |
|
Технический лист |
B43541 | Bulk | Active | 470 µF | ±20% | 500 V | 200mOhm @ 100Hz | 8000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.98 A @ 100 Hz | - | 300 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.244" (57.00mm) | - | Through Hole | |
|
382LX123M063A052CAP ALUM 12000UF 20% 63V SNAP TH |
125 |
|
Технический лист |
382LX | Bulk | Active | 12000 µF | ±20% | 63 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | - | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
EKMS401VSN821MA50SCAP ALUM 820UF 20% 400V SNAP TH |
147 |
|
Технический лист |
KMS | Bulk | Active | 820 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.69 A @ 120 Hz | 3.8467 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.067" (52.50mm) | - | Through Hole | |
|
ALA7DA681EF500CAP ALUM 680UF 20% 500V SNAP TH |
998 |
|
Технический лист |
ALA7D | Bulk | Active | 680 µF | ±20% | 500 V | 354mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 3.3 A @ 100 Hz | 6 A @ 10 kHz | 265 mOhms | 0.394" (10.00mm) | 1.575" Dia (40.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
B43642A9687M000CAP ALUM 680UF 20% 400V SNAP TH |
712 |
|
Технический лист |
B43642 | Bulk | Active | 680 µF | ±20% | 400 V | 130mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.68 A @ 100 Hz | - | 190 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
400MXH820MEFCSN30X60CAP ALUM 820UF 20% 400V SNAP TH |
282 |
|
Технический лист |
MXH | Bulk | Active | 820 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.76 A @ 120 Hz | 3.864 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.441" (62.00mm) | - | Through Hole | |
|
ALC10C221EB450CAP ALUM 220UF 20% 450V SNAP TH |
1,304 |
|
Технический лист |
ALC10 | Box | Active | 220 µF | ±20% | 450 V | 517mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.77 A @ 100 Hz | 3.68 A @ 10 kHz | 311 mOhms | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|

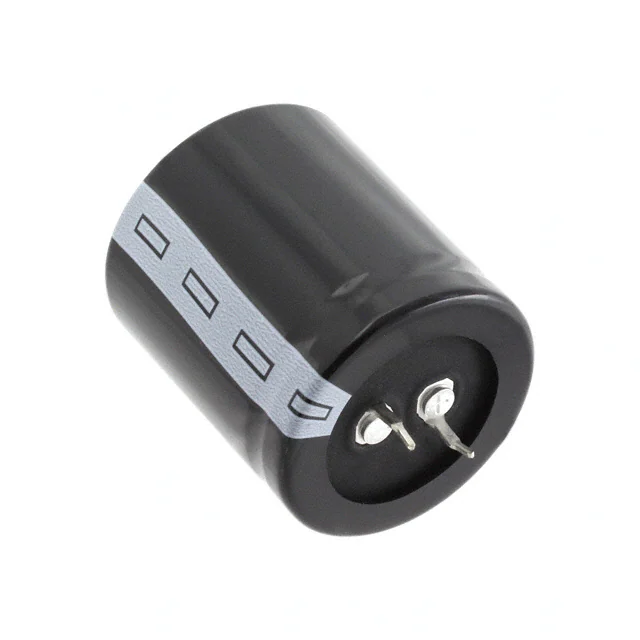

B43504A2108M000CAP ALUM 1000UF 20% 250V SNAP TH |
1,007 |
|
Технический лист |
B43504 | Bulk | Not For New Designs | 1000 µF | ±20% | 250 V | 130mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.8 A @ 100 Hz | - | 160 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
420MXK820MEFCSN30X60CAP ALUM 820UF 20% 420V SNAP TH |
216 |
|
Технический лист |
MXK | Bulk | Active | 820 µF | ±20% | 420 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.79 A @ 120 Hz | 3.906 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.441" (62.00mm) | - | Through Hole | |
|
|
450MXH680MEFCSN30X60CAP ALUM 680UF 20% 450V SNAP TH |
189 |
|
Технический лист |
MXH | Bulk | Active | 680 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.59 A @ 120 Hz | 3.626 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.441" (62.00mm) | - | Through Hole |
