Алюминиевые электролитические конденсаторы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Корпус/корпус | Серия | Упаковка | Состояние продукта | Емкость | Допуск | Напряжение - Номинальное | ESR (эквивалентное последовательное сопротивление) | Срок службы при темп. | Рабочая температура | Поляризация | Номинальные значения | Применение | Пульсация тока при низкой частоте | Пульсация тока при высокой частоте | Импеданс | Расстояние между выводами | Размер/измерение | Высота - в сидячем положении (макс.) | Размер площадки для поверхностного монтажа | Тип крепления |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELXS401VSN561MR45SCAP ALUM 560UF 20% 400V SNAP TH |
648 |
|
Технический лист |
LXS | Bulk | Active | 560 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.04 A @ 120 Hz | 2.9172 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.870" (47.50mm) | - | Through Hole | |
|
159LBA050M2EGCAP ALUM 15000UF 20% 50V SNAP TH |
491 |
|
Технический лист |
LBA | Bulk | Active | 15000 µF | ±20% | 50 V | 38.68mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.9 A @ 120 Hz | 7.375 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
30D337M035DC5ACAP ALUM 330UF 20% 35V AXIAL TH |
289 |
|
Технический лист |
30D | Bulk | Active | 330 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 0.374" Dia x 0.807" L (9.50mm x 20.50mm) | - | - | Through Hole | |
|
LGX2H221MELB45CAP ALUM 220UF 20% 500V SNAP TH |
194 |
|
Технический лист |
LGX | Bulk | Active | 220 µF | ±20% | 500 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.33 A @ 120 Hz | 1.9019 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
B43640B9687M000CAP ALUM 680UF 20% 400V SNAP TH |
1,573 |
|
Технический лист |
B43640 | Bulk | Active | 680 µF | ±20% | 400 V | 160mOhm @ 100Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.13 A @ 100 Hz | - | 250 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
MAL205656472E3CAP ALUM 4700UF 20% 25V SNAP TH |
1,106 |
|
Технический лист |
056 PSM-SI | Cut Tape (CT) | Active | 4700 µF | ±20% | 25 V | 65mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.37 A @ 100 Hz | - | 45 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
LGN2Z222MELC40CAP ALUM 2200UF 20% 180V SNAP TH |
162 |
|
Технический лист |
LGN | Bulk | Active | 2200 µF | ±20% | 180 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.9 A @ 120 Hz | 4.35 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
MAL225639222E3CAP ALUM 2200UF 20% 100V SNAP TH |
105 |
|
Технический лист |
256 PMG-SI | Bulk | Active | 2200 µF | ±20% | 100 V | 121mOhm | 2000 Hrs @ 105°C | -40°C ~ 105°C | - | - | General Purpose | - | 2.58 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ALH82A271DH600CAP ALUM 270UF 20% 600V SNAP TH |
396 |
|
Технический лист |
ALH82 | Tray | Active | 270 µF | ±20% | 600 V | 521mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.35 A @ 100 Hz | 6.25 A @ 10 kHz | 353 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.441" (62.00mm) | - | Through Hole | |
|
159TTA025MCAP ALUM 15000UF 20% 25V AXIAL |
1,224 |
|
Технический лист |
TTA | Bulk | Active | 15000 µF | ±20% | 25 V | 48.6mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.7 A @ 120 Hz | 4.736 A @ 50 kHz | - | - | 0.984" Dia x 2.010" L (25.00mm x 51.00mm) | - | - | Through Hole | |
|
380LQ681M400K052CAP ALUM 680UF 20% 400V SNAP TH |
644 |
|
Технический лист |
380LQ | Bulk | Active | 680 µF | ±20% | 400 V | 293mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.96 A @ 120 Hz | 4.14 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
381LR152M200A042CAP ALUM 1500UF 20% 200V SNAP TH |
2,319 |
|
Технический лист |
381LR | Bulk | Active | 1500 µF | ±20% | 200 V | 99mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.56 A @ 120 Hz | 5.06 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
MAL205859471E3CAP ALUM 470UF 20% 100V SNAP TH |
474 |
|
Технический лист |
058 PLL-SI | Bulk | Active | 470 µF | ±20% | 100 V | 280mOhm @ 100Hz | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.14 A @ 100 Hz | - | 190 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|

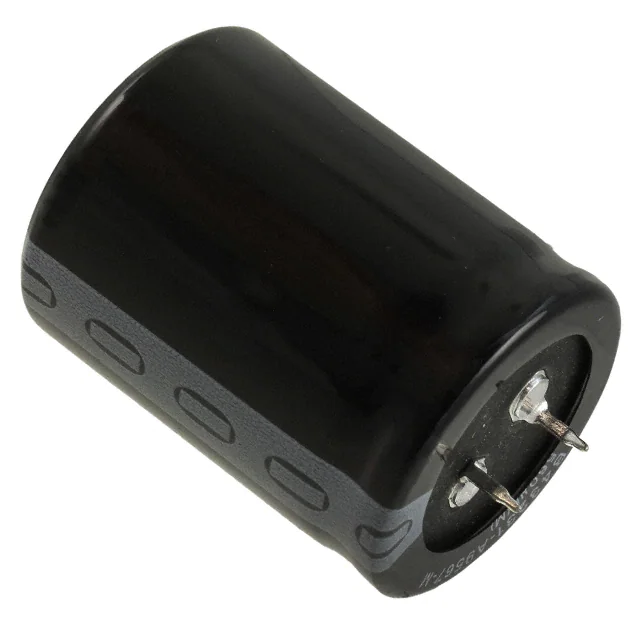

B41231A0828M000CAP ALUM 8200UF 20% 80V SNAP TH |
313 |
|
Технический лист |
B41231 | Bulk | Active | 8200 µF | ±20% | 80 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.91 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
MAL215746221E3CAP ALUM 220UF 20% 400V SNAP TH |
584 |
|
Технический лист |
157 PUM-SI | Bulk | Active | 220 µF | ±20% | 400 V | 520mOhm | 5000 Hrs @ 85°C | -25°C ~ 85°C | - | - | General Purpose | - | 2.156 A @ 10 kHz | 590 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ESMQ201VSN272MA50SCAP ALUM 2700UF 20% 200V SNAP TH |
339 |
|
Технический лист |
SMQ | Bulk | Active | 2700 µF | ±20% | 200 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 5.45 A @ 120 Hz | 8.175 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
EKMS451VSN471MA40SCAP ALUM 470UF 20% 450V SNAP TH |
570 |
|
Технический лист |
KMS | Bulk | Active | 470 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.95 A @ 120 Hz | 2.7885 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.673" (42.50mm) | - | Through Hole | |
|
LGN2W471MELC45CAP ALUM 470UF 20% 450V SNAP TH |
413 |
|
Технический лист |
LGN | Bulk | Active | 470 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.78 A @ 120 Hz | 2.5454 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|

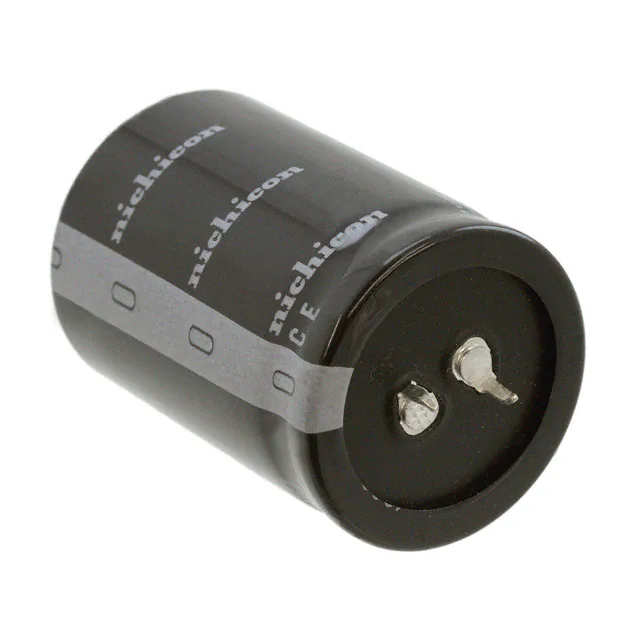

LGN2P182MELC50CAP ALUM 1800UF 20% 220V SNAP TH |
180 |
|
Технический лист |
LGN | Bulk | Active | 1800 µF | ±20% | 220 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.11 A @ 120 Hz | 4.665 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
MAL212015472E3CAP ALUM 4700UF 20% 16V AXIAL TH |
509 |
|
Технический лист |
120 ATC | Bulk | Active | 4700 µF | ±20% | 16 V | 27mOhm | 8000 Hrs @ 125°C | -40°C ~ 125°C | - | AEC-Q200 | Automotive | - | 4.35 A @ 10 kHz | 29 mOhms | - | 0.709" Dia x 1.496" L (18.00mm x 38.00mm) | - | - | Through Hole |
