Алюминиевые электролитические конденсаторы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Корпус/корпус | Серия | Упаковка | Состояние продукта | Емкость | Допуск | Напряжение - Номинальное | ESR (эквивалентное последовательное сопротивление) | Срок службы при темп. | Рабочая температура | Поляризация | Номинальные значения | Применение | Пульсация тока при низкой частоте | Пульсация тока при высокой частоте | Импеданс | Расстояние между выводами | Размер/измерение | Высота - в сидячем положении (макс.) | Размер площадки для поверхностного монтажа | Тип крепления |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LGX2W121MELA30CAP ALUM 120UF 20% 450V SNAP TH |
210 |
|
Технический лист |
LGX | Bulk | Active | 120 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 880 mA @ 120 Hz | 1.2584 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
380LX562M080A032CAP ALUM 5600UF 20% 80V SNAP TH |
1,050 |
|
Технический лист |
380LX | Bulk | Active | 5600 µF | ±20% | 80 V | 55mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.6 A @ 120 Hz | 5.2 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
450HXW150MEFR18X35CAP ALUM 150UF 20% 450V RADIAL |
285 |
|
Технический лист |
HXW | Bulk | Active | 150 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 980 mA @ 120 Hz | 1.84 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
ELXS401VSN181MQ25SCAP ALUM 180UF 20% 400V SNAP TH |
855 |
|
Технический лист |
LXS | Bulk | Active | 180 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 990 mA @ 120 Hz | 1.4157 A @ 50 kHz | - | 0.394" (10.00mm) | 1.000" Dia (25.40mm) | 1.083" (27.50mm) | - | Through Hole | |
|
LGG2G181MELA25CAP ALUM 180UF 20% 400V SNAP TH |
244 |
|
Технический лист |
LGG | Bulk | Active | 180 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 730 mA @ 120 Hz | 1.0439 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
UCY2V181MHDCAP ALUM 180UF 20% 350V RADIAL |
122 |
|
Технический лист |
UCY | Bulk | Active | 180 µF | ±20% | 350 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | General Purpose | 1.205 A @ 120 Hz | 2.41 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.634" (41.50mm) | - | Through Hole | |
|
LGU1E153MELBCAP ALUM 15000UF 20% 25V SNAP TH |
155 |
|
Технический лист |
LGU | Bulk | Active | 15000 µF | ±20% | 25 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.13 A @ 120 Hz | 3.5995 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
MAL214699011E3CAP ALUM 1500UF 20% 35V SMD |
557 |
|
Технический лист |
146 CTI | Tape & Reel (TR) | Active | 1500 µF | ±20% | 35 V | - | 6000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | 1.08 A @ 100 Hz | 1.66 A @ 100 kHz | 35 mOhms | - | 0.630" Dia (16.00mm) | 0.866" (22.00mm) | 0.630" L x 0.630" W (16.00mm x 16.00mm) | Surface Mount | |
|
500D106M100CB2ACAP ALUM 10UF 20% 100V AXIAL TH |
497 |
|
Технический лист |
500D | Bulk | Active | 10 µF | ±20% | 100 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | - | - | - | 0.315" Dia x 0.689" L (8.00mm x 17.50mm) | - | - | Through Hole | |
|
|
500D606M025CB2ACAP ALUM 60UF 20% 25V AXIAL TH |
494 |
|
Технический лист |
500D | Bulk | Active | 60 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | - | - | - | 0.315" Dia x 0.689" L (8.00mm x 17.50mm) | - | - | Through Hole | |
|
30D336M050CB2ACAP ALUM 33UF 20% 50V AXIAL TH |
225 |
|
Технический лист |
30D | Bulk | Active | 33 µF | ±20% | 50 V | 7.85Ohm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 112 mA @ 120 Hz | 156.8 mA @ 100 kHz | - | - | 0.315" Dia x 0.689" L (8.00mm x 17.50mm) | - | - | Through Hole | |
|
450QXW150MEFR18X40CAP ALUM 150UF 20% 450V RADIAL |
107 |
|
Технический лист |
QXW | Bulk | Active | 150 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 970 mA @ 120 Hz | 1.455 A @ 10 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
MAL202118152E3CAP ALUM 1500UF 20% 63V AXIAL TH |
975 |
|
Технический лист |
021 ASM | Bulk | Active | 1500 µF | ±20% | 63 V | 122mOhm | 8000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | 2.142 A @ 10 kHz | 45 mOhms | - | 0.709" Dia x 1.496" L (18.00mm x 38.00mm) | - | - | Through Hole | |
|

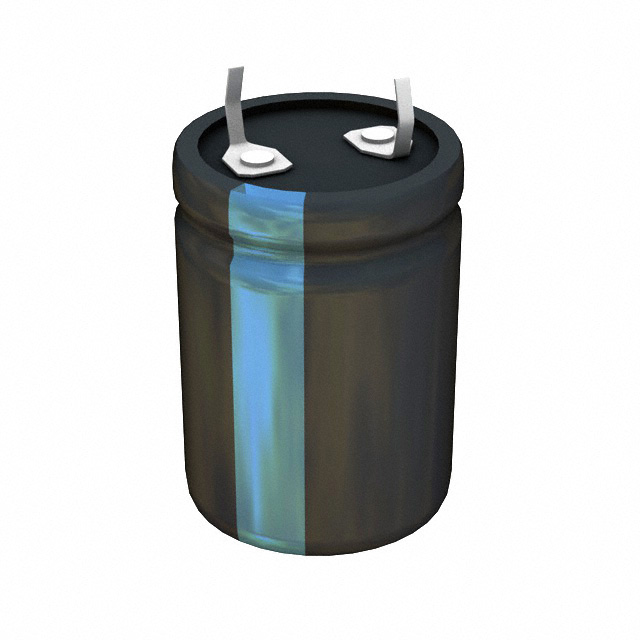

380LX820M450H022CAP ALUM 82UF 20% 450V SNAP TH |
956 |
|
Технический лист |
380LX | Bulk | Active | 82 µF | ±20% | 450 V | 2Ohm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 830 mA @ 120 Hz | 1.16 A @ 20 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
B43504B9107M000CAP ALUM 100UF 20% 400V SNAP TH |
847 |
|
Технический лист |
B43504 | Bulk | Not For New Designs | 100 µF | ±20% | 400 V | 880mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 610 mA @ 100 Hz | - | 1.09 Ohms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
MAL215266689E3CAP ALUM 68UF 20% 400V RADIAL TH |
399 |
|
Технический лист |
152 RMH | Bulk | Active | 68 µF | ±20% | 400 V | - | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 310 mA @ 100 Hz | - | 1.7 Ohms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.476" (37.50mm) | - | Through Hole | |
|
200USG470MEFCSN20X35CAP ALUM 470UF 20% 200V SNAP TH |
185 |
|
Технический лист |
USG | Bulk | Active | 470 µF | ±20% | 200 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.93 A @ 120 Hz | 2.895 A @ 10 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
UCPW6121MHD6CAP ALUM 120UF 20% 420V RADIAL |
154 |
|
Технический лист |
UCP | Bulk | Active | 120 µF | ±20% | 420 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 800 mA @ 120 Hz | 1.2 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.319" (33.50mm) | - | Through Hole | |
|
|
381LQ151M350H022CAP ALUM 150UF 20% 350V SNAP TH |
125 |
|
Технический лист |
381LQ | Bulk | Active | 150 µF | ±20% | 350 V | 1.105Ohm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 820 mA @ 120 Hz | 1.15 A @ 20 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|

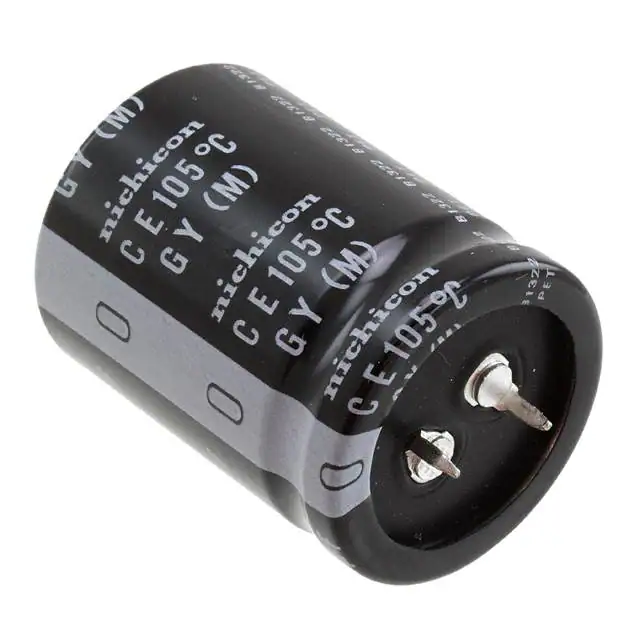

LGY1K392MELB40CAP ALUM 3900UF 20% 80V SNAP TH |
176 |
|
Технический лист |
LGY | Bulk | Active | 3900 µF | ±20% | 80 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.6 A @ 120 Hz | 2.99 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole |
