Сигнализаторы, зуммеры и сирены
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Драйвер Схема | Тип входа | Напряжение - Номинальное | Диапазон напряжений | Частота | Технология | Режим работы | Длительность | Уровень звукового давления (SPL) | Ток - Питание | Расположение порта | Рабочая температура | Сертифицирующее агентство | Номинальные значения | Защита от проникновения | Тип крепления | Оконечная нагрузка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCH110NPRBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Технический лист |
SCH | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 30 ~ 120V | 2.9kHz | Piezo | Pulse, Fast | 2 ~ 10 PPS | 90dB @ 30V, 61cm | 6 ~ 24mA | Top | -30°C ~ 65°C | CSA, cUL, UL | - | IP66, NEMA 3R, 4X, 12 | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) | 1.330" (33.77mm) |
|
|
SCH110NJRBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Технический лист |
SCH | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 30 ~ 120V | 2.9kHz | Piezo | Pulse, Slow | 1 PPS | 90dB @ 30V, 61cm | 6 ~ 24mA | Top | -30°C ~ 65°C | CSA, cUL, UL | - | IP66, NEMA 3R, 4X, 12 | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) | 1.330" (33.77mm) |
|
|
SCH110DPRBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Технический лист |
SCH | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 30 ~ 120V | 2kHz | Piezo | Pulse, Fast | 2 ~ 10 PPS | 68dB @ 30V, 61cm | 6 ~ 20mA | Top | -30°C ~ 65°C | CSA, cUL | - | IP66, NEMA 3R, 4X, 12 | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) | 1.330" (33.77mm) |
|
|
SCH250PRBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Технический лист |
SCH | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 60 ~ 250V | 2.9kHz | Piezo | Pulse, Fast | 2 ~ 10 PPS | 80dB @ 60V, 61cm | 4 ~ 13mA | Top | -30°C ~ 65°C | CSA, cUL, UL | - | IP66, NEMA 3R, 4X, 12 | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) | 1.330" (33.77mm) |
|
14100055BUZZER MULTI SOUNDER 9-60V |
0 |
|
Технический лист |
- | Box | Active | - | - | - | 9 ~ 60V | - | - | Siren, Multiple Tone | - | - | - | - | -25°C ~ 70°C | - | - | IP66 - Dust Tight, Water Resistant | - | Screw Terminal | - | - |
|
14110055BUZZER MULTI SOUNDER 9-60V |
0 |
|
Технический лист |
- | Box | Active | - | - | - | 9 ~ 60V | - | - | Siren, Multiple Tone | - | - | - | - | -25°C ~ 70°C | - | - | IP66 - Dust Tight, Water Resistant | - | Screw Terminal | - | - |
|
XVS96BMWNBUZZER 24V 58.1MMX96MM DIN RAIL |
0 |
|
Технический лист |
Harmony XVS | Box | Active | - | DC | 24 V | - | - | - | - | - | - | 250 ~ 354mA | User Defined | -20°C ~ 50°C | CE | - | IP54 - Dust Protected, Water Resistant | DIN Rail | - | 2.287" L x 3.780" W (58.10mm x 96.00mm) | 3.780" (96.01mm) |
|
|
14100068BUZZER MULTI SOUNDER 115-23 |
0 |
|
Технический лист |
- | Box | Active | - | - | - | 115 ~ 230V | - | - | Siren, Multiple Tone | - | - | - | - | -25°C ~ 70°C | - | - | IP66 - Dust Tight, Water Resistant | - | Screw Terminal | - | - |
|
|
14110068BUZZER MULTI SOUNDER 115-23 |
0 |
|
Технический лист |
- | Box | Active | - | - | - | 115 ~ 230V | - | - | Siren, Multiple Tone | - | - | - | - | -25°C ~ 70°C | - | - | IP66 - Dust Tight, Water Resistant | - | Screw Terminal | - | - |
|
14200055BUZZER MULTI SOUNDER 18-30V |
0 |
|
Технический лист |
- | Box | Active | - | - | - | 18 ~ 30V | - | - | Siren, Multiple Tone | - | - | - | - | -25°C ~ 75°C | - | - | IP66 - Dust Tight, Water Resistant | - | Screw Terminal | - | - |
|
14210055BUZZER MULTI SOUNDER 18-30V |
0 |
|
Технический лист |
- | Box | Active | - | - | - | 18 ~ 30V | - | - | Siren, Multiple Tone | - | - | - | - | -25°C ~ 75°C | - | - | IP66 - Dust Tight, Water Resistant | - | Screw Terminal | - | - |
|
|
XVS96BMWPBUZZER 24V58.17X96.01MM DIN RAIL |
0 |
|
Технический лист |
Harmony XVS | Box | Active | - | DC | 24 V | - | - | - | - | - | - | 250 ~ 354mA | User Defined | -20°C ~ 50°C | CE | - | IP54 - Dust Protected, Water Resistant | DIN Rail | - | 2.290" L x 3.780" W (58.17mm x 96.01mm) | 3.780" (96.01mm) |
|
|
14200068BUZZER MULTI SOUNDER 115-23 |
0 |
|
Технический лист |
- | Box | Active | - | - | - | 115 ~ 230V | - | - | Siren, Multiple Tone | - | - | - | - | -25°C ~ 75°C | - | - | IP66 - Dust Tight, Water Resistant | - | Screw Terminal | - | - |
|
|
14210068BUZZER MULTI SOUNDER 115-23 |
0 |
|
Технический лист |
- | Box | Active | - | - | - | 115 ~ 230V | - | - | Siren, Multiple Tone | - | - | - | - | -25°C ~ 75°C | - | - | IP66 - Dust Tight, Water Resistant | - | Screw Terminal | - | - |
|
12905255BUZZER 24V |
0 |
|
Технический лист |
- | Box | Active | - | - | 24 V | - | - | - | Siren, Multiple Tone | - | - | - | - | -40°C ~ 55°C | - | - | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | Screw Terminal | - | - |
|
|
12905267BUZZER 115V |
0 |
|
Технический лист |
- | Box | Active | - | - | 115 V | - | - | - | Siren, Multiple Tone | - | - | - | - | -40°C ~ 55°C | - | - | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | Screw Terminal | - | - |
|

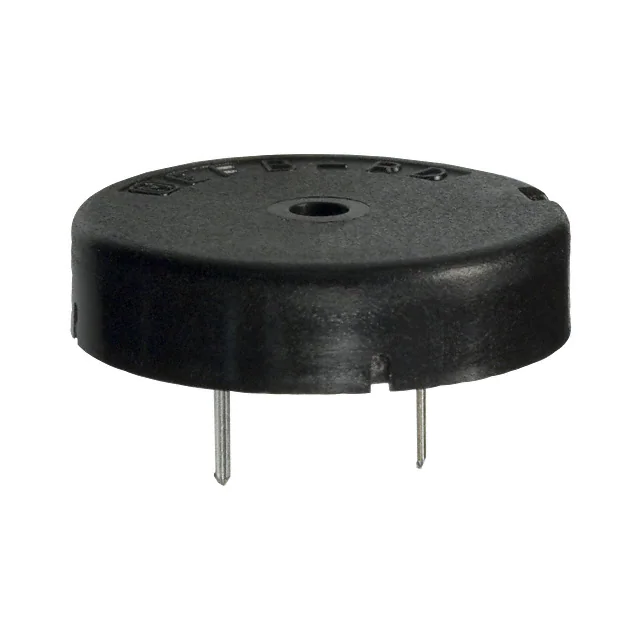

EFB-RD24C411BUZZER PIEZO 15V 24MM TH |
0 |
|
Технический лист |
EFB | Bulk | Obsolete | Transducer, Externally Driven | Peak-Peak Signal | 15 V | 30V (Max) | 4kHz | Piezo | Single Tone | - | 85dB @ 15V, 10cm | - | Top | -10°C ~ 60°C | - | - | - | Through Hole | PC Pins | 0.945" Dia (24.00mm) | 0.315" (8.00mm) |
|
|
EFB-RL20C102BUZZER PIEZO 12V 30MM TH |
0 |
|
Технический лист |
EFB | Bulk | Obsolete | Transducer, Externally Driven | DC | 12 V | - | 2kHz | Piezo (with Feedback) | Single Tone | - | 85dB @ 12V, 10cm | - | Top | -10°C ~ 60°C | - | - | - | Through Hole | PC Pins | 1.181" Dia (30.00mm) | 0.472" (12.00mm) |
|
EFB-RM38C123BUZZER PIEZO 10V 24MM TH |
0 |
|
Технический лист |
EFB | Bulk | Obsolete | Transducer, Externally Driven | DC | 10 V | - | 3.5kHz | Piezo (with Feedback) | Single Tone | - | 90dB @ 10V, 10cm | - | Top | -10°C ~ 60°C | - | - | - | Through Hole | PC Pins | 0.945" Dia (24.00mm) | 0.433" (11.00mm) |
|
EFB-RD24C41BBUZZER PIEZO 15V 24MM TH |
0 |
|
Технический лист |
EFB | Bulk | Obsolete | Transducer, Externally Driven | Peak-Peak Signal | 15 V | 30V (Max) | 4kHz | Piezo | Single Tone | - | 85dB @ 15V, 10cm | - | Top | -10°C ~ 60°C | - | - | - | Through Hole | PC Pins | 0.945" Dia (24.00mm) | 0.354" (9.00mm) |
