Сигнализаторы, зуммеры и сирены
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Драйвер Схема | Тип входа | Напряжение - Номинальное | Диапазон напряжений | Частота | Технология | Режим работы | Длительность | Уровень звукового давления (SPL) | Ток - Питание | Расположение порта | Рабочая температура | Сертифицирующее агентство | Номинальные значения | Защита от проникновения | Тип крепления | Оконечная нагрузка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCL120LA3CTBBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Технический лист |
SCL | Bulk | Active | Indicator, Internally Driven | AC | - | 48 ~ 120V | 2.9kHz | Piezo | Single Tone | - | 85dB @ 48V, 61cm | 20mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.687" Dia (42.85mm) | 1.511" (38.39mm) |
|
|
SC628AEBUZZER PIEZO 42.98MM PNL MNT |
0 |
|
Технический лист |
SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 6 ~ 28V | 2kHz | Piezo | Single Tone | - | 50dB @ 7.5V, 61cm | 2 ~ 10mA | Top | -30°C ~ 65°C | - | - | NEMA 3R, 4X, 12 | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) | 1.399" (35.54mm) |
|
|
SCE048XD3FP1BBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Технический лист |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 28 ~ 48V | 2.9kHz | Piezo | Pulse, Fast | 10 PPS | 95dB @ 28V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.687" Dia (42.85mm) | 1.511" (38.39mm) |
|
|
SCE028XD3FP1BBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Технический лист |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 2.9kHz | Piezo | Pulse, Fast | 10 PPS | 95dB @ 16V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.687" Dia (42.85mm) | 1.511" (38.39mm) |
|
|
SCE016LD3MG3BBUZZER PIEZO 42.98MM PNL MNT |
0 |
|
Технический лист |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2.95kHz | Piezo | Pin Selectable | Variable | 75dB @ 6V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block, Wire Leads | 1.692" Dia (42.98mm) | 1.511" (38.39mm) |
|
|
SCE016MD3MG4BBUZZER PIEZO 42.98MM PNL MNT |
0 |
|
Технический лист |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2.95kHz | Piezo | Pin Selectable | Variable | 75dB @ 6V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block, Wire Leads | 1.692" Dia (42.98mm) | 1.511" (38.39mm) |
|
|
SCE016LD3MG3SBUZZER PIEZO 42.98MM PNL MNT |
0 |
|
Технический лист |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2.95kHz | Piezo | Pin Selectable | Variable | 75dB @ 6V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) | 1.399" (35.54mm) |
|
|
SCE016LD3MG5BBUZZER PIEZO 42.98MM PNL MNT |
0 |
|
Технический лист |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2.9kHz | Piezo | Pin Selectable | Variable | 75dB @ 6V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block, Wire Leads | 1.692" Dia (42.98mm) | 1.511" (38.39mm) |
|
|
SCE016MD3MG5BBUZZER PIEZO 42.98MM PNL MNT |
0 |
|
Технический лист |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2.9kHz | Piezo | Pin Selectable | Variable | 75dB @ 6V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block, Wire Leads | 1.692" Dia (42.98mm) | 1.511" (38.39mm) |
|
|
SCE016SD3MG5BBUZZER PIEZO 42.98MM PNL MNT |
0 |
|
Технический лист |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2.9kHz | Piezo | Pin Selectable | Variable | 65dB @ 6V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block, Wire Leads | 1.692" Dia (42.98mm) | 1.511" (38.39mm) |
|
|
SCL028SA3CTBBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Технический лист |
SCL | Bulk | Active | Indicator, Internally Driven | AC | - | 16 ~ 28V | 2.9kHz | Piezo | Single Tone | - | 65dB @ 16V, 61cm | 20mA | Top | -40°C ~ 85°C | cUL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.687" Dia (42.85mm) | 1.511" (38.39mm) |
|

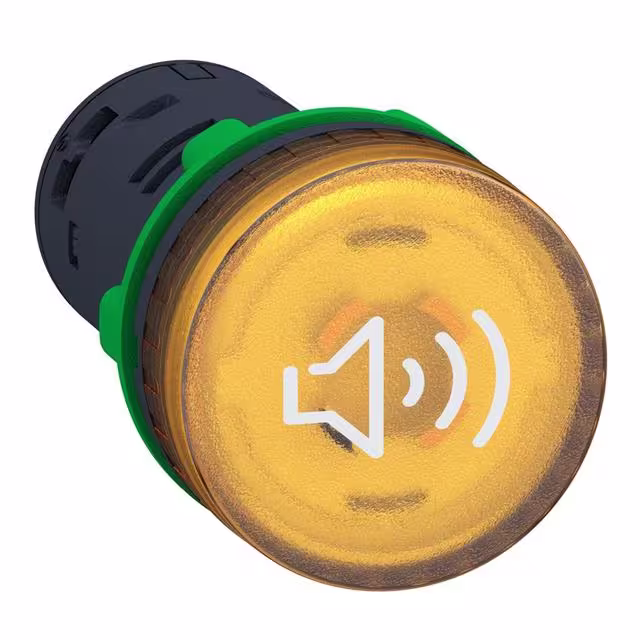

XB5KS2B8BUZZER HARMONY XB5 ILLUM |
0 |
|
Технический лист |
Harmony XB5 | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
XB5KS2G8BUZZER HARMONY XB5 ILLUM |
0 |
|
Технический лист |
Harmony XB5 | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SC648AHBUZZER PIEZO 42.98MM PNL MNT |
0 |
|
Технический лист |
SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 10 ~ 48V | 4.5kHz | Piezo | Single Tone | - | 68dB @ 10V, 61cm | 4 ~ 16mA | Top | -30°C ~ 65°C | - | - | NEMA 3R, 4X, 12 | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) | 1.399" (35.54mm) |
|
SC648AEBUZZER PIEZO 42.98MM PNL MNT |
0 |
|
Технический лист |
SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 10 ~ 48V | 1.9kHz | Piezo | Single Tone | - | 55dB @ 10V, 61cm | 3 ~ 11mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) | 1.330" (33.77mm) |
|
|
SCE028XD3DL1BBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Технический лист |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 2.9kHz | Piezo | Single Tone | 10 Sec On-Delay | 95dB @ 16V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.687" Dia (42.85mm) | 1.511" (38.39mm) |
|
|
SCE028XD3SS1BBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Технический лист |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 2.9kHz | Piezo | Single Tone | 1 Min On-Time | 95dB @ 16V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.687" Dia (42.85mm) | 1.511" (38.39mm) |
|
|
SCE028XD3SU2BBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Технический лист |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 2.9kHz | Piezo | Speed Up, Fast | 0.5 ~ 8 PPS in 30 Sec | 95dB @ 16V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.687" Dia (42.85mm) | 1.511" (38.39mm) |
|
|
SCE048XD3DL1BBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Технический лист |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 28 ~ 48V | 2.9kHz | Piezo | Single Tone | 10 Sec On-Delay | 95dB @ 28V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.687" Dia (42.85mm) | 1.511" (38.39mm) |
|
|
SCE048XD3DP2BBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Технический лист |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 28 ~ 48V | 2.9kHz | Piezo | Double Pulse, Fast | 2 PPS | 95dB @ 28V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.687" Dia (42.85mm) | 1.511" (38.39mm) |
