Сигнализаторы, зуммеры и сирены
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Драйвер Схема | Тип входа | Напряжение - Номинальное | Диапазон напряжений | Частота | Технология | Режим работы | Длительность | Уровень звукового давления (SPL) | Ток - Питание | Расположение порта | Рабочая температура | Сертифицирующее агентство | Номинальные значения | Защита от проникновения | Тип крепления | Оконечная нагрузка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ZA048LAMP1BUZZER PIEZO 30.74MM PNL MNT |
0 |
|
Технический лист |
ZA | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 28 ~ 48V | 3.3kHz | Piezo | Pulse, Medium | 5 PPS | 85dB @ 28V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) | 2.234" (56.75mm) |
|
|
ZA048LASP1BUZZER PIEZO 30.74MM PNL MNT |
0 |
|
Технический лист |
ZA | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 28 ~ 48V | 3.3kHz | Piezo | Pulse, Slow | 1 PPS | 85dB @ 28V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) | 2.234" (56.75mm) |
|
SC110KRBUZZER PIEZO 42.85MM PNL MNT |
1 |
|
Технический лист |
SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 30 ~ 120V | 2.9kHz | Piezo | Pulse, Short | 0.5 ~ 1.2 PPS | 70dB @ 30V, 61cm | 6 ~ 22mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) | 1.399" (35.54mm) |
|
LW2Z-1X4BUZZER 6V 1.016X 1.016 SMD |
0 |
|
- |
LW | Bulk | Active | Indicator, Internally Driven | AC, DC | 6 V | 12 ~ 24V | 2kHz | - | - | - | 80dB @ 6V, 10cm | 20mA | Top | -20°C ~ 55°C | - | - | IP40 | Surface Mount | Solder Tabs | 1.016" L x 1.016" W (25.80mm x 25.80mm) | 1.772" (45.00mm) |
|
|
LW1Z-1X4BUZZER |
0 |
|
Технический лист |
LW | Bulk | Active | Indicator, Internally Driven | AC, DC | 6 V | 12 ~ 24V | 2kHz | - | - | - | 80dB @ 6V, 10cm | 20mA | Top | -20°C ~ 55°C | - | - | IP40 | Surface Mount | Solder Tabs | 1.020" Dia (25.90mm) | 1.772" (45.00mm) |
|
|
SBM616PBUZZER PIEZO 42.85MM TH |
0 |
|
Технический лист |
SBM | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2.9kHz | Piezo | Pulse, Fast | 2 ~ 10 PPS | 68dB @ 6V, 61cm | 3 ~ 12mA | Top | -30°C ~ 65°C | - | - | - | Through Hole | PC Pins | 1.687" Dia (42.85mm) | 0.684" (17.37mm) |
|
|
SCE016LD3SP1BBUZZER PIEZO 42.98MM PNL MNT |
0 |
|
Технический лист |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2.9kHz | Piezo | Pulse, Slow | 1 PPS | 85dB @ 6V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.692" Dia (42.98mm) | 1.511" (38.39mm) |
|
|
SCE016MD3SP1BBUZZER PIEZO 42.98MM PNL MNT |
0 |
|
Технический лист |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2.9kHz | Piezo | Pulse, Slow | 1 PPS | 75dB @ 6V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.692" Dia (42.98mm) | 1.511" (38.39mm) |
|
|
SCL016LD3SP1BBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Технический лист |
SCL | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2.9kHz | Piezo | Pulse, Slow | 1 PPS | 85dB @ 6V, 61cm | 30mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.687" Dia (42.85mm) | 1.511" (38.39mm) |
|
|
STA32264ABUZZER PIEZO BRACKET |
0 |
|
Технический лист |
STA | Bulk | Active | Indicator, Internally Driven | DC | - | 12 ~ 48V | - | Piezo | Pulse, Slow | - | - | 600mA | User Defined | -40°C ~ 85°C | CE, UR | - | - | Bracket Mount | Screw Terminals | - | 2.795" (71.00mm) |
|
|
SC208NRBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Технический лист |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 1.8 ~ 8V | 2.9kHz | Piezo | Single Tone | - | 90dB @ 1.8V, 61cm | 40mA | Top | -32°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) | 1.399" (35.54mm) |
|

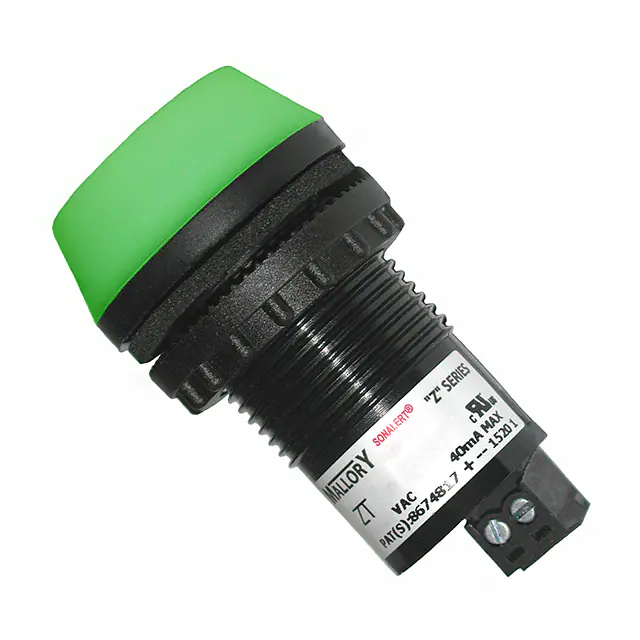

ZT028LACTGBUZZER PIEZO 30.74MM PNL MNT |
0 |
|
Технический лист |
ZT | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 20 ~ 28V | 3.7kHz | Piezo | Single Tone, Visual Indicator | - | 85dB @ 20V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) | 2.234" (56.75mm) |
|
ZT028LACTYBUZZER PIEZO 30.74MM PNL MNT |
0 |
|
Технический лист |
ZT | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 20 ~ 28V | 3.7kHz | Piezo | Single Tone, Visual Indicator | - | 85dB @ 20V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) | 2.234" (56.75mm) |
|
812510405BUZZER PNL MNT |
3 |
|
Технический лист |
- | Box | Active | - | - | - | 12 ~ 24V | - | - | Steady, Flashing | - | - | - | - | -25°C ~ 60°C | - | - | IP65 - Dust Tight, Water Resistant | Panel Mount | Screw Terminal | - | - |
|
|
SCE016LD2FP1BBUZZER PIEZO 42.98MM PNL MNT |
0 |
|
Технический лист |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2kHz | Piezo | Pulse, Fast | 10 PPS | 85dB @ 6V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.692" Dia (42.98mm) | 1.511" (38.39mm) |
|
|
SCE016MD2FP1BBUZZER PIEZO 42.98MM PNL MNT |
0 |
|
Технический лист |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2kHz | Piezo | Pulse, Fast | 10 PPS | 75dB @ 6V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.692" Dia (42.98mm) | 1.511" (38.39mm) |
|
SCE028LA3CTBBUZZER PIEZO 42.98MM PNL MNT |
0 |
|
Технический лист |
SCE | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 16 ~ 28V | 2.9kHz | Piezo | Single Tone | - | 85dB @ 16V, 61cm | 20mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.692" Dia (42.98mm) | 1.511" (38.39mm) |
|
|
SCE016LD3CK1BBUZZER PIEZO 42.98MM PNL MNT |
0 |
|
Технический лист |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2.9kHz | Piezo | Click | 1 PPS | 85dB @ 6V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.692" Dia (42.98mm) | 1.511" (38.39mm) |
|
|
SCE016LD3DL1BBUZZER PIEZO 42.98MM PNL MNT |
0 |
|
Технический лист |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2.9kHz | Piezo | Single Tone | 10 Sec On-Delay | 85dB @ 6V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.692" Dia (42.98mm) | 1.511" (38.39mm) |
|
|
SCE016LD3DP2BBUZZER PIEZO 42.98MM PNL MNT |
0 |
|
Технический лист |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2.9kHz | Piezo | Double Pulse, Fast | 2 PPS | 85dB @ 6V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.692" Dia (42.98mm) | 1.511" (38.39mm) |
