Сигнализаторы, зуммеры и сирены
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Драйвер Схема | Тип входа | Напряжение - Номинальное | Диапазон напряжений | Частота | Технология | Режим работы | Длительность | Уровень звукового давления (SPL) | Ток - Питание | Расположение порта | Рабочая температура | Сертифицирующее агентство | Номинальные значения | Защита от проникновения | Тип крепления | Оконечная нагрузка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

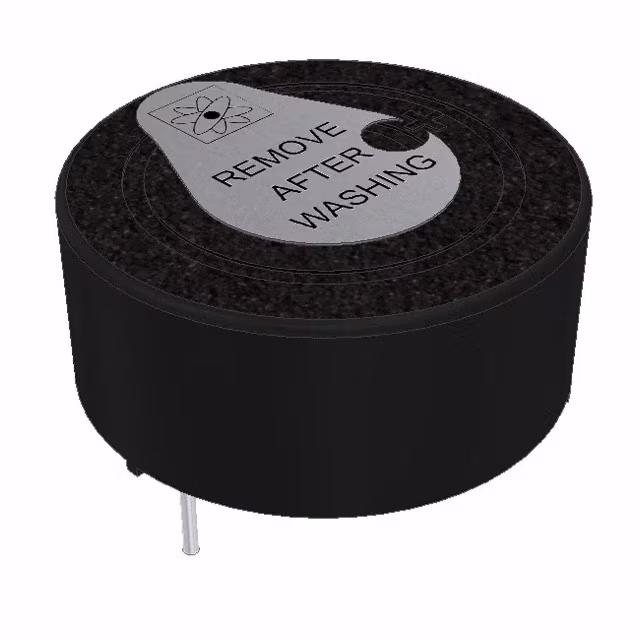

AI-2332-TWT-12V-2-RBUZZER PIEZO 12V 23.4MM TH |
15 |
|
Технический лист |
AI | Bulk | Active | Indicator, Internally Driven | DC | 12 V | 3 ~ 20V | 3.2kHz | Piezo | Single Tone | - | 85dB @ 12V, 10cm | 13mA | Top | -30°C ~ 100°C | - | - | - | Through Hole | PC Pins | 0.921" Dia (23.40mm) | 0.402" (10.20mm) |
|
PB-0927P-01QBUZZER MAGNETIC 1.5V 9MM TH |
0 |
|
Технический лист |
PB | Bulk | Active | Transducer, Externally Driven | Peak-Peak Signal | 1.5 V | 1.25 ~ 2.5V | 2.731kHz | Magnetic | Single Tone | - | 80dB @ 1.5V, 10cm | 75mA | Top | -20°C ~ 70°C | - | - | - | Through Hole | PC Pins | 0.354" Dia (9.00mm) | 0.220" (5.60mm) |
|
|
PB-0927P-03QBUZZER MAGNETIC 3V 9MM TH |
0 |
|
Технический лист |
PB | Bulk | Active | Transducer, Externally Driven | Peak-Peak Signal | 3 V | 2 ~ 5V | 2.731kHz | Magnetic | Single Tone | - | 85dB @ 3V, 10cm | 70mA | Top | -20°C ~ 70°C | - | - | - | Through Hole | PC Pins | 0.354" Dia (9.00mm) | 0.220" (5.60mm) |
|
|
PB-0927P-05QBUZZER MAGNETIC 5V 9MM TH |
0 |
|
Технический лист |
PB | Bulk | Active | Transducer, Externally Driven | Peak-Peak Signal | 5 V | 4.5 ~ 5.5V | 2.731kHz | Magnetic | Single Tone | - | 85dB @ 5V, 10cm | 65mA | Top | -20°C ~ 70°C | - | - | - | Through Hole | PC Pins | 0.354" Dia (9.00mm) | 0.220" (5.60mm) |
|
|
PB-0927PQBUZZER MAGNETIC 5V 9MM TH |
0 |
|
Технический лист |
PB | Bulk | Active | Transducer, Externally Driven | Peak-Peak Signal | 5 V | 4.5 ~ 5.5V | 2.731kHz | Magnetic | Single Tone | - | 85dB @ 5V, 10cm | 75mA | Top | -20°C ~ 70°C | - | - | - | Through Hole | PC Pins | 0.354" Dia (9.00mm) | 0.224" (5.70mm) |
|
TE092603-1BUZZER ELECTRO 3.6V 9.6MM SMD |
0 |
|
Технический лист |
- | Tape & Reel (TR) | Active | Transducer, Externally Driven | Zero-Peak Signal | 3.6 V | 2 ~ 5V | 2.67kHz | Electromechanical | - | - | 90dB @ 3.6V, 10cm | 80mA | Side | -30°C ~ 70°C | - | - | - | Surface Mount | Solder Pads | 0.378" Dia (9.60mm) | 0.134" (3.40mm) |
|
TP453212-1BUZZER PIEZO 12V 45MM TH |
0 |
|
Технический лист |
- | Tray | Active | Transducer, Externally Driven | Peak-Peak Signal | 12 V | 1 ~ 40V | 3.2kHz | Piezo | - | - | 110dB @ 12V, 10cm | 7mA | Top | -50°C ~ 105°C | - | - | - | Through Hole | Solder Tabs | 1.772" Dia (45.00mm) | 0.551" (14.00mm) |
|
EFM-471ALBUZZER 24V 37.8MM WIRE |
16 |
|
Технический лист |
- | Tray | Active | - | - | 24 V | 18 ~ 30V | 3.7kHz | - | Continuous | - | 90dB @ 24V, 30cm | 20mA | - | -20°C ~ 70°C | - | - | - | Wire Lead | Wire Leads | 1.488" Dia (37.80mm) | 0.563" (14.30mm) |
|
W-03BBUZZER 2.83V 51MM TH |
16 |
|
Технический лист |
- | Tray | Active | - | - | 2.83 V | 1 ~ 8V | 20kHz, 40kHz | - | Continuous | - | 95dB @ 2.83V, 50cm | - | - | -20°C ~ 70°C | - | - | - | Through Hole | PC Pins | 2.008" Dia (51.00mm) | 0.728" (18.50mm) |
|
|
PT-3529FWQBUZZER PIEZO 12V 42MM FLANGE |
0 |
|
Технический лист |
PT | Bulk | Active | Transducer, Externally Driven | DC | 12 V | 3 ~ 28V | 2.9kHz | Piezo (with Feedback) | Single Tone | - | 90dB @ 12V, 30cm | 8mA | Top | -20°C ~ 90°C | - | - | - | Panel Mount, Flange | Wire Leads | 1.654" Dia (42.00mm) | 0.638" (16.20mm) |
.JPG)
|
AST1628MAQBUZZER PIEZO 3V16X16MM SMD |
0 |
|
Технический лист |
AST | Strip | Active | Transducer, Externally Driven | Peak-Peak Signal | 3 V | 1 ~ 25V | 4kHz | Piezo | Single Tone | - | 75dB @ 3V, 10cm | 5mA | Side | -40°C ~ 85°C | - | - | - | Surface Mount | Solder Pads | 0.630" L x 0.630" W (16.00mm x 16.00mm) | 0.126" (3.20mm) |
|
|
TP341209-1BUZZER PIEZO 9V TH |
0 |
|
Технический лист |
- | Tray | Active | Transducer, Externally Driven | Peak-Peak Signal | 9 V | - | 1.2kHz | Piezo | - | - | 80dB @ 9V, 10cm | 7mA | Top | -20°C ~ 60°C | - | - | - | Through Hole | PC Pins | - | 0.335" (8.50mm) |
|
CC09M04M16-2000BUZZER MAGNETIC 3.6V 9MM SMD |
10 |
|
Технический лист |
- | Tape & Reel (TR) | Active | - | Zero-Peak Signal | 3.6 V | 2 ~ 4V | 2kHz | Magnetic | - | - | 80dB @ 3.6V, 10cm | 100mA | Side | -20°C ~ 70°C | - | - | - | Surface Mount | Solder Pads | 0.354" Dia (9.00mm) | 0.157" (4.00mm) |
|
PT-2736FWQBUZZER PIEZO 12V 30MM FLANGE |
1 |
|
Технический лист |
PT | Bulk | Active | Transducer, Externally Driven | DC | 12 V | 3 ~ 28V | 3.5kHz | Piezo (with Feedback) | Single Tone | - | 90dB @ 12V, 30cm | 8mA | Top | -20°C ~ 70°C | - | - | - | Panel Mount, Flange | Wire Leads | 1.181" Dia (30.00mm) | 0.402" (10.20mm) |
|

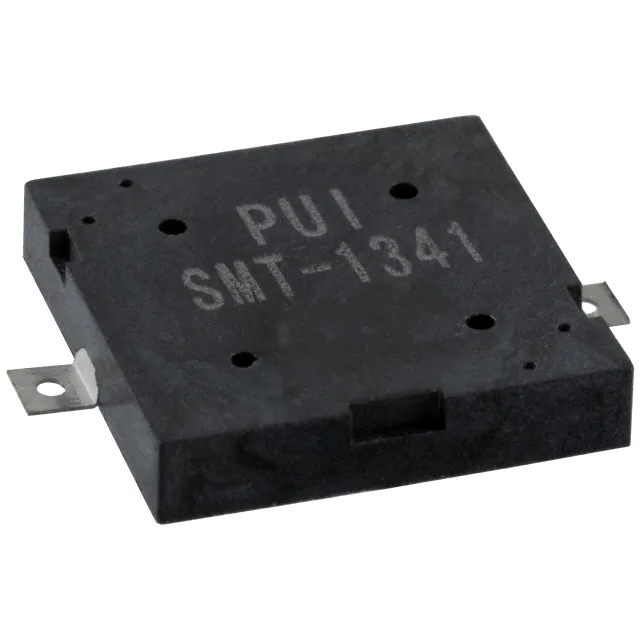

SMT-1341-T-RBUZZER MAGNETIC 5V 12.8X12.8 SMD |
0 |
|
- |
SMT | Tape & Reel (TR) | Obsolete | Transducer, Externally Driven | Zero-Peak Signal | 5 V | 1 ~ 25V | 4.1kHz | Electromechanical/Magnetic | Single Tone | - | 75dB @ 5V, 10cm | 5mA | Top | -40°C ~ 105°C | - | - | - | Surface Mount | Solder Pads | 0.504" L x 0.504" W (12.80mm x 12.80mm) | 0.118" (3.00mm) |
|
IE220409-1BUZZER ELECTRO14.9X14.1MMW TH |
0 |
|
Технический лист |
- | Tray | Active | Indicator, Internally Driven | DC | 9 V | - | 400Hz | Electromechanical | Single Tone | - | - | 25mA | - | -10°C ~ 60°C | - | - | - | Through Hole | PC Pins | 0.886" L x 0.669" W (22.50mm x 17.00mm) | 0.551" (14.00mm) |
|
IE230412-1BUZZER ELECTRO 12V 23X17MM TH |
0 |
|
Технический лист |
- | Tray | Active | Indicator, Internally Driven | DC | 12 V | 9 ~ 15V | 400Hz | Electromechanical | Single Tone | - | 81dB @ 12V, 10cm | 25mA | - | -10°C ~ 60°C | - | - | - | Through Hole | PC Pins | 0.906" L x 0.669" W (23.00mm x 17.00mm) | 0.551" (14.00mm) |
.JPG)
|
AST1109MLQBUZZER PIEZO 5V 12X12MM" W SMD |
0 |
|
Технический лист |
AST | Strip | Active | Transducer, Externally Driven | Peak-Peak Signal | 5 V | 1 ~ 20V | 4.1kHz | Piezo | Single Tone | - | 73dB @ 5V, 10cm | 1mA | Top | -20°C ~ 70°C | - | - | - | Surface Mount | Solder Pads | 0.433" L x 0.354" W (11.00mm x 9.00mm) | 0.079" (2.00mm) |
|
SMT-0540-T-6-RBUZZER MAGNETIC 3V 0.2X 0.2" SMD |
0 |
|
- |
SMT | Tape & Reel (TR) | Obsolete | Transducer, Externally Driven | Zero-Peak Signal | 3 V | 2 ~ 4V | 4kHz | Electromechanical/Magnetic | Single Tone | - | 78dB @ 3V, 10cm | 100mA | Top | -30°C ~ 70°C | - | - | - | Surface Mount | Solder Pads | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.083" (2.10mm) |
|
|
PT-2726FWQBUZZER PIEZO 12V 30MM FLANGE |
0 |
|
Технический лист |
PT | Bulk | Active | Transducer, Externally Driven | DC | 12 V | 3 ~ 28V | 2.6kHz | Piezo (with Feedback) | Single Tone | - | 90dB @ 12V, 30cm | 8mA | Top | -20°C ~ 70°C | - | - | - | Panel Mount, Flange | Wire Leads | 1.181" Dia (30.00mm) | 0.402" (10.20mm) |
