Сигнализаторы, зуммеры и сирены
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Драйвер Схема | Тип входа | Напряжение - Номинальное | Диапазон напряжений | Частота | Технология | Режим работы | Длительность | Уровень звукового давления (SPL) | Ток - Питание | Расположение порта | Рабочая температура | Сертифицирующее агентство | Номинальные значения | Защита от проникновения | Тип крепления | Оконечная нагрузка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMTB-0940-T-3V-RBUZZER PIEZO 3V 9X9MM W SMD |
8,647 |
|
Технический лист |
SMTB | Tape & Reel (TR) | Active | Transducer, Externally Driven | Peak-Peak Signal | 3 V | 1 ~ 25V | 4kHz | Piezo | - | - | 65dB @ 3V, 10cm | 3mA | Top | -40°C ~ 85°C | - | - | - | Surface Mount | Solder Pads | 0.354" L x 0.354" W (9.00mm x 9.00mm) | 0.091" (2.30mm) |
|
|
CMI-9605-1280TBUZZER MAGNETIC 12V 9.6MM TH |
2,161 |
|
Технический лист |
CMI | Box | Active | Indicator, Internally Driven | DC | 12 V | 9 ~ 15V | 2.7kHz | Magnetic | - | - | 80dB @ 12V, 10cm | 30mA | Top | -30°C ~ 70°C | - | Washable | - | Through Hole | PC Pins | 0.378" Dia (9.60mm) | 0.217" (5.50mm) |
|
|
PT-2040PQBUZZER PIEZO 5V 22MM TH |
35,460 |
|
Технический лист |
PT | Bulk | Active | Transducer, Externally Driven | Peak-Peak Signal | 5 V | 1 ~ 30V | 4kHz | Piezo | Single Tone | - | 90dB @ 5V, 10cm | 1.5mA | Top | -20°C ~ 90°C | - | - | - | Through Hole | PC Pins | 0.866" Dia (22.00mm) | 0.370" (9.40mm) |
|
|
PT-2404BUZZER PIEZO 15V 24MM FLANGE |
14,135 |
|
Технический лист |
PT | Tray | Active | Transducer, Externally Driven | Peak-Peak Signal | 15 V | 1 ~ 12V | 4.8kHz | Piezo | Single Tone | - | 85dB @ 4.8V, 10cm | 8mA | Top | -20°C ~ 70°C | - | - | - | Panel Mount, Flange | Wire Leads | 0.945" Dia (24.00mm) | 0.217" (5.50mm) |
|
|
CMI-1295IC-1285TBUZZER MAGNETIC 12V 12MM TH |
582 |
|
Технический лист |
CMI | Tray | Active | Indicator, Internally Driven | DC | 12 V | 8 ~ 15V | 2.4kHz | Magnetic | Single Tone | - | 85dB @ 12V, 10cm | 30mA | Top | -30°C ~ 70°C | - | Washable | - | Through Hole | PC Pins | 0.472" Dia (12.00mm) | 0.394" (10.00mm) |
|

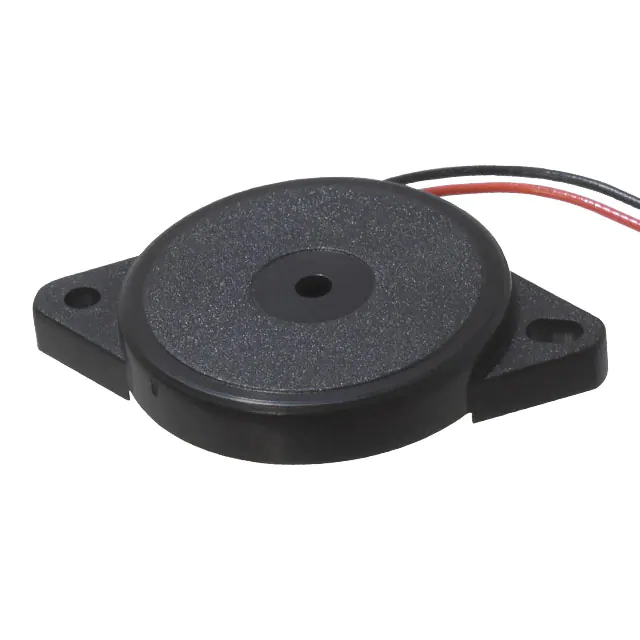

CPT-2305-90PMBUZZER PIEZO 12V 23MM FLANGE |
529 |
|
Технический лист |
CPT | Box | Active | Transducer, Externally Driven | Peak-Peak Signal | 12 V | 3 ~ 30V | 4kHz | Piezo | - | - | 90dB @ 12V, 10cm | 5mA | Top | -20°C ~ 60°C | - | - | - | Panel Mount, Flange | Wire Leads | 0.906" Dia (23.00mm) | 0.217" (5.50mm) |
|
|
TP094003-1BUZZER PIEZO 3V 9X9MM W SMD |
4,620 |
|
Технический лист |
- | Tape & Reel (TR) | Active | Transducer, Externally Driven | Peak-Peak Signal | 3 V | 1 ~ 25V | 4kHz | Piezo | - | - | 65dB @ 3V, 10cm | 3mA | Top | -30°C ~ 75°C | - | - | - | Surface Mount | Solder Pads | 0.354" L x 0.354" W (9.00mm x 9.00mm) | 0.094" (2.40mm) |
|
CMI-1210-5-95TBUZZER MAGNETIC 5V 12MM TH |
1,662 |
|
Технический лист |
CMI | Box | Active | Indicator, Internally Driven | DC | 5 V | 3 ~ 7V | 2.3kHz | Magnetic | Single Tone | - | 95dB @ 5V, 10cm | 35mA | Top | -30°C ~ 70°C | - | Washable | - | Through Hole | PC Pins | 0.472" Dia (12.00mm) | 0.394" (10.00mm) |
|
|
PT-2038WQBUZZER PIEZO 5V 24MM FLANGE |
161 |
|
Технический лист |
PT | Bulk | Active | Transducer, Externally Driven | Peak-Peak Signal | 5 V | 1 ~ 30V | 3.8kHz | Piezo | Single Tone | - | 90dB @ 5V, 10cm | 5mA | Top | -20°C ~ 70°C | - | - | - | Panel Mount, Flange | Wire Leads | 0.945" Dia (24.00mm) | 0.205" (5.20mm) |
|
|
CPT-1203-78-SMT-TRBUZZER PIEZO 5V 12X12MM SMD |
1,630 |
|
Технический лист |
CPT | Tape & Reel (TR) | Active | Transducer, Externally Driven | Peak-Peak Signal | 5 V | 1 ~ 25V | 4kHz | Piezo | - | - | 78dB @ 5V, 10cm | 5mA | Side | -40°C ~ 85°C | - | - | - | Surface Mount | Solder Pads | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.122" (3.10mm) |
|
|
SMT-1341-T-HT-RBUZZER PIEZO 5V 13X13MM SMD |
2,658 |
|
Технический лист |
SMT | Tape & Reel (TR) | Active | Transducer, Externally Driven | Peak-Peak Signal | 5 V | 1 ~ 25V | 4.1kHz | Piezo | - | - | 85dB @ 5V, 10cm | 5mA | Top | -40°C ~ 105°C | - | - | - | Surface Mount | Solder Pads | 0.512" L x 0.512" W (13.00mm x 13.00mm) | 0.110" (2.80mm) |
|
SMT-0827-T-HT-RBUZZER MAGNETIC 3.6V 0.3X0.3 SMD |
1,518 |
|
Технический лист |
SMT | Tape & Reel (TR) | Active | Transducer, Externally Driven | Zero-Peak Signal | 3.6 V | 2 ~ 5V | 2.7kHz | Electromechanical/Magnetic | - | - | 95dB @ 3.6V, 10cm | 100mA | Top | -40°C ~ 105°C | - | - | - | Surface Mount | Solder Pads | 0.335" L x 0.335" W (8.50mm x 8.50mm) | 0.169" (4.30mm) |
|
|
CMI-9605-0580TBUZZER MAGNETIC 5V 9.6MM TH |
1,477 |
|
Технический лист |
CMI | Box | Active | Indicator, Internally Driven | DC | 5 V | 3 ~ 7V | 2.7kHz | Magnetic | - | - | 80dB @ 5V, 10cm | 30mA | Top | -30°C ~ 70°C | - | - | - | Through Hole | PC Pins | 0.378" Dia (9.60mm) | 0.217" (5.50mm) |
|
|
AI-1440-TWT-24V-3-RBUZZER PIEZO 24V 13.8MM TH |
1,152 |
|
Технический лист |
AI | Tray | Active | Indicator, Internally Driven | DC | 24 V | 5 ~ 28V | 4kHz | Piezo | Single Tone | - | 88dB @ 24V, 10cm | 20mA | Top | -20°C ~ 70°C | - | Washable | - | Through Hole | PC Pins | 0.543" Dia (13.80mm) | 0.315" (8.00mm) |
|
|
CMT-1032-85-SMT-TRBUZZER MAGN 5V 10X10MMW SMD |
2,543 |
|
Технический лист |
CMT | Tape & Reel (TR) | Active | Transducer, Externally Driven | Zero-Peak Signal | 5 V | 4 ~ 6V | 2.7kHz | Magnetic | - | - | 85dB @ 5V, 10cm | 80mA | Side | -40°C ~ 85°C | - | - | - | Surface Mount | Solder Pads | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.150" (3.80mm) |
|
|
TP144009-1BUZZER PIEZO 9V 14MM TH |
1,220 |
|
Технический лист |
- | Tray | Active | Transducer, Externally Driven | Peak-Peak Signal | 9 V | 1 ~ 20V | 4kHz | Piezo | - | - | 80dB @ 9V, 10cm | 7mA | Top | -20°C ~ 70°C | - | - | - | Through Hole | PC Pins | 0.551" Dia (14.00mm) | 0.283" (7.20mm) |
|
SMTB-0827-TW-RBUZZER MAGNETIC 3.5V 0.3X0.3 SMD |
793 |
|
Технический лист |
SMTB | Tape & Reel (TR) | Active | Transducer, Externally Driven | Zero-Peak Signal | 3.5 V | 2.5 ~ 4.5V | 2.7kHz | Electromechanical/Magnetic | - | - | 85dB @ 3.5V, 10cm | 100mA | Top | -40°C ~ 105°C | - | Washable | - | Surface Mount | Solder Pads | 0.335" L x 0.335" W (8.50mm x 8.50mm) | 0.126" (3.20mm) |
|

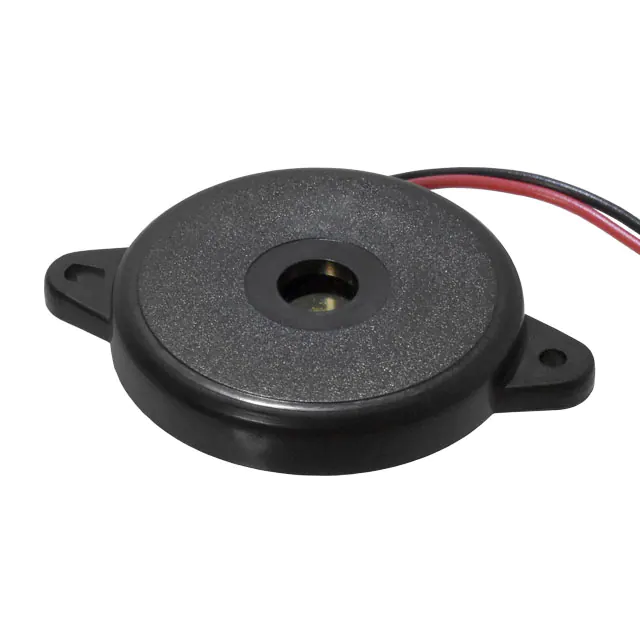

CPT-3055-90PMBUZZER PIEZO 12V 30MM FLANGE |
531 |
|
Технический лист |
CPT | Box | Active | Transducer, Externally Driven | Peak-Peak Signal | 12 V | 1 ~ 30V | 2.5kHz | Piezo | - | - | 80dB @ 12V, 10cm | 15mA | Top | -20°C ~ 60°C | - | - | - | Panel Mount, Flange | Wire Leads | 1.181" Dia (30.00mm) | 0.236" (6.00mm) |
|
SMT-1027-S-HT-RBUZZER MAGNETIC 3V 9.2MM SMD |
3,987 |
|
Технический лист |
SMT | Tape & Reel (TR) | Active | Transducer, Externally Driven | Zero-Peak Signal | 3 V | 2 ~ 5V | 2.7kHz | Electromechanical/Magnetic | - | - | 85dB @ 3V, 10cm | 80mA | Side | -40°C ~ 105°C | - | - | - | Surface Mount | Solder Pads | 0.362" Dia (9.20mm) | 0.118" (3.00mm) |
|
|
WST-1203SBUZZER MAGNETIC 3V 12MM TH |
1,238 |
|
Технический лист |
WST | Tray | Active | Indicator, Internally Driven | DC | 3 V | 2 ~ 4V | 2.3kHz | Magnetic | Single Tone | - | 85dB @ 3V, 10cm | 35mA | Top | -20°C ~ 60°C | - | Washable | - | Through Hole | PC Pins | 0.472" Dia (12.00mm) | 0.374" (9.50mm) |
