Сигнализаторы, зуммеры и сирены
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Драйвер Схема | Тип входа | Напряжение - Номинальное | Диапазон напряжений | Частота | Технология | Режим работы | Длительность | Уровень звукового давления (SPL) | Ток - Питание | Расположение порта | Рабочая температура | Сертифицирующее агентство | Номинальные значения | Защита от проникновения | Тип крепления | Оконечная нагрузка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TE122401-4BUZZER ELECTRO 1.5V 12MM TH |
0 |
|
Технический лист |
- | Tray | Active | Transducer, Externally Driven | Zero-Peak Signal | 1.5 V | 1 ~ 2V | 2.4kHz | Electromechanical | - | - | 80dB @ 1.5V, 10cm | 30mA | Top | -30°C ~ 75°C | - | Washable | - | Through Hole | PC Pins | 0.472" Dia (12.00mm) | 0.362" (9.20mm) |
|
TE122412-6BUZZER ELECTRO 12V 12MM TH |
0 |
|
Технический лист |
- | Tray | Active | Transducer, Externally Driven | DC | 12 V | 6 ~ 15V | 2.4kHz | Electromechanical | - | - | 85dB @ 12V, 10cm | 40mA | Top | -30°C ~ 75°C | - | Washable | - | Through Hole | PC Pins | 0.472" Dia (12.00mm) | 0.362" (9.20mm) |
|
TP174009-1BUZZER PIEZO 9V 17MM TH |
0 |
|
Технический лист |
- | Tray | Active | Transducer, Externally Driven | Peak-Peak Signal | 9 V | 1 ~ 25V | 4kHz | Piezo | - | - | 80dB @ 9V, 10cm | 3mA | Top | -30°C ~ 70°C | - | - | - | Through Hole | PC Pins | 0.669" Dia (17.00mm) | 0.311" (7.90mm) |
|
TP262003-1BUZZER PIEZO 3V 22X7MM W TH |
0 |
|
Технический лист |
- | Tray | Active | Transducer, Externally Driven | Peak-Peak Signal | 3 V | 1 ~ 25V | 2kHz | Piezo | - | - | 70dB @ 3V, 10cm | 1mA | Side | -40°C ~ 85°C | - | - | - | Through Hole | PC Pins | 0.866" L x 0.276" W (22.00mm x 7.00mm) | 1.043" (26.50mm) |
|
OWMB-858540SA-40-15BUZZER MAGN 5V 8.5X8.5MMSMD |
0 |
|
Технический лист |
- | Active | Transducer, Externally Driven | Zero-Peak Signal | 5 V | 1 ~ 6V | 4kHz | Magnetic | Single Tone | - | 100dB @ 5V, 10cm | 150mA | Top | -40°C ~ 85°C | - | - | - | Surface Mount | Solder Pads | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) | |
|
|
OWMB-131310SA-24-513MM MAGNETIC BUZZER |
0 |
|
- |
* | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
TP144009-2BUZZER PIEZO 9V 14MM TH |
0 |
|
Технический лист |
- | Tray | Active | Transducer, Externally Driven | Peak-Peak Signal | 9 V | 1 ~ 30V | 4kHz | Piezo | - | - | 80dB @ 9V, 10cm | 5mA | Top | -30°C ~ 70°C | - | - | - | Through Hole | PC Pins | 0.551" Dia (14.00mm) | 0.315" (8.00mm) |
|
|
CMT-0932-03-SMT-TR9MMX3.2MM 3 V, 85 DB, SURFACE M |
0 |
|
Технический лист |
CMT | Tape & Reel (TR) | Active | Transducer, Externally Driven | Zero-Peak Signal | 3 V | 2.5 ~ 4.5V | 2.731kHz | Magnetic | Single Tone | - | 85dB @ 3V, 10cm | 30mA | Side | -40°C ~ 80°C | - | - | - | Surface Mount | Solder Pads | 0.354" Dia (9.00mm) | 0.146" (3.70mm) |
|
TP124005-1BUZZER PIEZO 5V 12.8MM TH |
0 |
|
Технический лист |
- | Tray | Obsolete | Transducer, Externally Driven | Peak-Peak Signal | 5 V | 1 ~ 30V | 4kHz | Piezo | - | - | 80dB @ 5V, 10cm | 5mA | Top | -20°C ~ 60°C | - | - | - | Through Hole | PC Pins | 0.504" Dia (12.80mm) | 0.307" (7.80mm) |
|

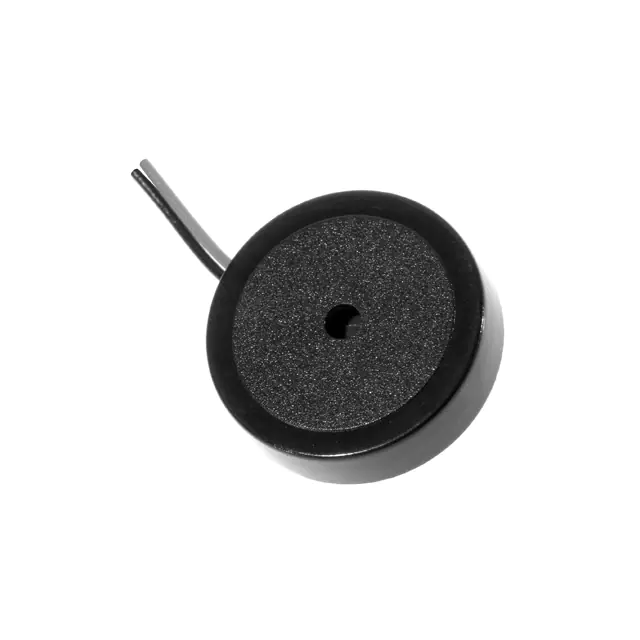

TP164009-1BUZZER PIEZO 9V 16.5MM CUSTOM |
0 |
|
Технический лист |
- | Tray | Active | Transducer, Externally Driven | Peak-Peak Signal | 9 V | 1 ~ 25V | 4kHz | Piezo | - | - | 80dB @ 9V, 10cm | 7mA | Top | -20°C ~ 60°C | - | - | - | Custom | Wire Leads | 0.650" Dia (16.50mm) | 0.157" (4.00mm) |
|
|
CMT-8503-36-SMT-TR8.5MMX3MM 3.6 V, 80 DB, TSURFAC |
0 |
|
Технический лист |
CMT | Tape & Reel (TR) | Active | Transducer, Externally Driven | Zero-Peak Signal | 3.6 V | 2.5 ~ 4.5V | 2.7kHz | Magnetic | Single Tone | - | 85dB @ 3V, 10cm | 100mA | Side | -20°C ~ 70°C | - | - | - | Surface Mount | Solder Pads | 0.335" L x 0.335" W (8.50mm x 8.50mm) | 0.138" (3.50mm) |
|
|
AT-1220-TT-3-RBUZZER MAGNETIC 1.5V 12MM TH |
0 |
|
Технический лист |
AT | Tray | Active | Transducer, Externally Driven | Peak-Peak Signal | 1.5 V | 1 ~ 3V | 2.048kHz | Electromechanical/Magnetic | Single Tone | - | 73dB @ 1.5V, 10cm | 10mA | Top | -20°C ~ 70°C | - | - | - | Through Hole | PC Pins | 0.472" Dia (12.00mm) | 0.236" (6.00mm) |
|
PS1927P02BUZZER PIEZO 10V 19MM TH |
0 |
|
Технический лист |
PS | Tray | Obsolete | Transducer, Externally Driven | Zero-Peak Signal | 10 V | 20V (Max) | 2.7kHz | Piezo | Single Tone | - | 90dB @ 10V, 10cm | - | Side | -10°C ~ 70°C | - | - | - | Through Hole | PC Pins | 0.748" Dia (19.00mm) | 0.413" (10.50mm) |
|
PS1920P02BUZZER PIEZO 10V 19MM TH |
0 |
|
Технический лист |
PS | Tray | Obsolete | Transducer, Externally Driven | Zero-Peak Signal | 10 V | 20V (Max) | 2kHz | Piezo | Single Tone | - | 80dB @ 10V, 10cm | - | Side | -10°C ~ 70°C | - | - | - | Through Hole | PC Pins | 0.748" Dia (19.00mm) | 0.413" (10.50mm) |
|
|
PKM17EPPH4001-B0BUZZER PIEZO 1.5V 17MM TH |
0 |
|
- |
PK | Bulk | Obsolete | Transducer, Externally Driven | Zero-Peak Signal | 1.5 V | 25V (Max) | 4kHz | Piezo | Ringer | - | 72dB @ 1.5V, 10cm | - | Top | -20°C ~ 70°C | - | - | - | Through Hole | PC Pins | 0.669" Dia (17.00mm) | 0.343" (8.70mm) |
|
|
CMT-0945-03-SMT-TR9MMX4.5MM 3 V, 85 DB, SURFACE M |
0 |
|
Технический лист |
CMT | Tape & Reel (TR) | Active | Transducer, Externally Driven | Zero-Peak Signal | 3 V | 2.5 ~ 4.5V | 2.7kHz | Magnetic | Single Tone | - | 85dB @ 3V, 10cm | 30mA | Top | -40°C ~ 80°C | - | - | - | Surface Mount | Solder Pads | 0.362" Dia (9.20mm) | 0.197" (5.00mm) |
|
TE122001-3BUZZER ELECTRO 1.5V 12MM TH |
0 |
|
Технический лист |
- | Tray | Active | Transducer, Externally Driven | Zero-Peak Signal | 1.5 V | 1 ~ 3V | 2.048kHz | Electromechanical | - | - | 85dB @ 1.5V, 10cm | 80mA | Side | -20°C ~ 60°C | - | - | - | Through Hole | PC Pins | 0.472" Dia (12.00mm) | 0.295" (7.50mm) |
|
TP224009-1BUZZER PIEZO 9V 22MM TH |
0 |
|
Технический лист |
- | Tray | Active | Transducer, Externally Driven | Peak-Peak Signal | 9 V | 1 ~ 30V | 4kHz | Piezo | - | - | 85dB @ 9V, 10cm | 3mA | Top | -20°C ~ 60°C | - | - | - | Through Hole | PC Pins | 0.866" Dia (22.00mm) | 0.354" (9.00mm) |
|
TP234009-1BUZZER PIEZO 9V 23MM FLANGE |
0 |
|
Технический лист |
- | Tray | Active | Transducer, Externally Driven | Peak-Peak Signal | 9 V | 3 ~ 30V | 4kHz | Piezo | - | - | 80dB @ 9V, 10cm | 10mA | Top | -20°C ~ 60°C | - | - | - | Panel Mount, Flange | Wire Leads | 0.906" Dia (23.00mm) | 0.197" (5.00mm) |
|
TP245515-2BUZZER PIEZO 15V 24MM FLANGE |
0 |
|
Технический лист |
- | Tray | Active | Transducer, Externally Driven | Peak-Peak Signal | 15 V | 1 ~ 30V | - | Piezo | - | - | 90dB @ 15V, 10cm | 8mA | Top | -30°C ~ 70°C | - | - | - | Panel Mount, Flange | Wire Leads | 0.945" Dia (24.00mm) | 0.157" (4.00mm) |
