Сигнализаторы, зуммеры и сирены
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Драйвер Схема | Тип входа | Напряжение - Номинальное | Диапазон напряжений | Частота | Технология | Режим работы | Длительность | Уровень звукового давления (SPL) | Ток - Питание | Расположение порта | Рабочая температура | Сертифицирующее агентство | Номинальные значения | Защита от проникновения | Тип крепления | Оконечная нагрузка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MSS5MMDBUZZER MAGN 5V 23X23MM TH |
1 |
|
Технический лист |
MSS | Bulk | Active | Indicator, Internally Driven | DC | 5 V | 4 ~ 6V | 2.075kHz | Magnetic | Pin Selectable | Variable | 85dB @ 5V, 10cm | 45 ~ 150mA | Top | -30°C ~ 55°C | cUL, UL | Medical | - | Through Hole | PC Pins | 0.906" L x 0.906" W (23.00mm x 23.00mm) | - |
|
SCE028XD3DB2SBUZZER PIEZO 42.85MM PNL MNT |
5 |
|
Технический лист |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 2.9kHz | Piezo | Single Tone, Pulse, Medium | 5 PPS | 95dB @ 16V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) | 1.399" (35.54mm) |
|
AW-10FRBUZZER PIEZO 24V 52.5MM FLANGE |
2 |
|
Технический лист |
AW | Bulk | Active | Indicator, Internally Driven | DC | 24 V | 9 ~ 28V | Multiple | Piezo | Pin Selectable | Variable | 88dB @ 24V, 100cm | 8 ~ 35mA | Top | -25°C ~ 70°C | - | - | IP65 - Dust Tight, Water Resistant | Panel Mount, Flange | Wire Leads | 2.067" Dia (52.50mm) | 1.713" (43.50mm) |
|

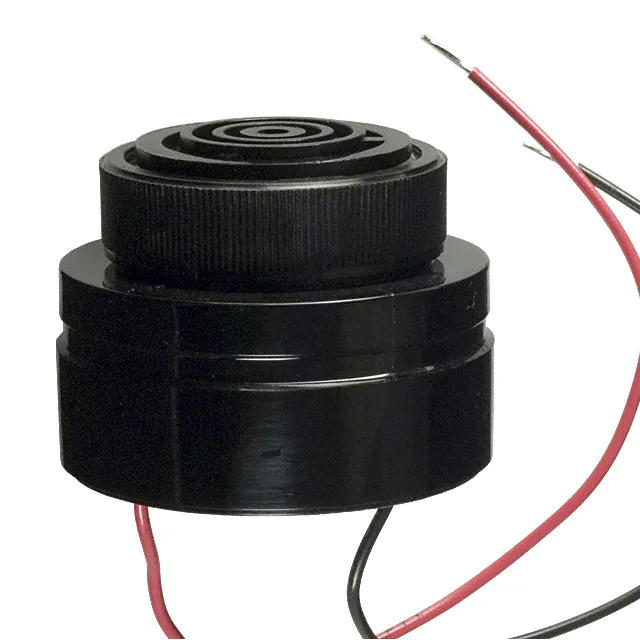

SC616NLBUZZER PIEZO 42.85MM PNL MNT |
5 |
|
Технический лист |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2.9kHz | Piezo | Single Tone | - | 80dB @ 6V, 61cm | 6 ~ 22mA | Top | -30°C ~ 65°C | UL | - | - | Panel Mount | Wire Leads | 1.687" Dia (42.85mm) | 1.809" (45.96mm) |
|
SCE028XD2DB3SBUZZER PIEZO 42.85MM PNL MNT |
1 |
|
Технический лист |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 2kHz | Piezo | Single Tone, Pulse, Slow | 1 PPS | 95dB @ 16V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) | 1.946" (49.43mm) |
|
|
SCE028XD2DB2SBUZZER PIEZO 42.85MM PNL MNT |
3 |
|
Технический лист |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 2kHz | Piezo | Single Tone, Pulse, Medium | 5 PPS | 95dB @ 16V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) | 1.946" (49.43mm) |
|
SC628P-BTRBUZZER PIEZO 42.98MM PNL MNT |
2 |
|
Технический лист |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 2.9kHz | Piezo | Pulse, Fast | 2 ~ 10 PPS | 68dB @ 6V, 61cm | 6 ~ 26mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) | 1.399" (35.54mm) |
|

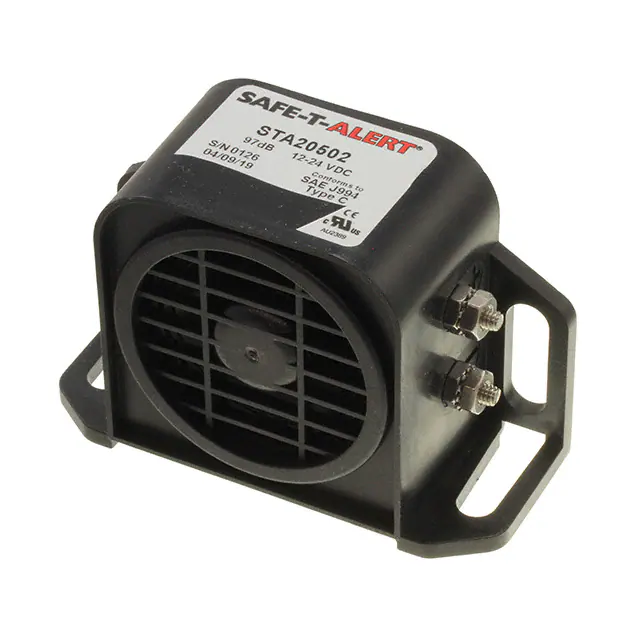

STA20502BUZZER PIEZO102X41MM BRACKET |
1 |
|
Технический лист |
SAFE-T Back Up Alarm | Bulk | Active | Indicator, Internally Driven | DC | - | 12 ~ 24V | 1.25kHz | Piezo | Pulse, Slow | - | 97dB @ 12V, 122cm | 600mA | User Defined | -40°C ~ 85°C | CE, cUL, UL | - | - | Bracket Mount | Screw Terminals | 4.016" L x 1.614" W (102.00mm x 41.00mm) | 2.717" (69.00mm) |
|
SC616NPBUZZER PIEZO 42.85MM PNL MNT |
2 |
|
Технический лист |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2.9kHz | Piezo | Pulse, Fast | 2 ~ 10 PPS | 80dB @ 6V, 61cm | 6 ~ 22mA | Top | -30°C ~ 65°C | UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) | 1.809" (45.96mm) |
|
SC628JBUZZER PIEZO 42.98MM PNL MNT |
1 |
|
Технический лист |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 2.9kHz | Piezo | Pulse, Slow | 0.5 ~ 2 PPS | 68dB @ 6V, 61cm | 5 ~ 20mA | Top | -30°C ~ 65°C | UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) | 1.330" (33.77mm) |
|
SC628ADBUZZER PIEZO 42.85MM PNL MNT |
1 |
|
Технический лист |
SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 6 ~ 28V | 2kHz | Piezo | Single Tone | - | 60dB @ 7.5V, 61cm | 6 ~ 23mA | Top | -30°C ~ 65°C | cUL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) | 1.399" (35.54mm) |
|
ZA028LACTBUZZER PIEZO 30.74MM PNL MNT |
2 |
|
Технический лист |
ZA | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 16 ~ 28V | 3.3kHz | Piezo | Single Tone | - | 85dB @ 16V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) | 2.234" (56.75mm) |
|
SC648ANRBUZZER PIEZO 42.98MM PNL MNT |
0 |
|
Технический лист |
SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 10 ~ 48V | 2.9kHz | Piezo | Single Tone | - | 80dB @ 10V, 61cm | 4 ~ 26mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) | 1.399" (35.54mm) |
|
|
SC250BUZZER PIEZO 42.85MM PNL MNT |
1 |
|
Технический лист |
SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 60 ~ 250V | 2.9kHz | Piezo | Single Tone | - | 68dB @ 60V, 61cm | 5 ~ 18mA | Top | -30°C ~ 65°C | cUL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) | 1.399" (35.54mm) |
|
SCE028XD3CTBBUZZER PIEZO 42.85MM PNL MNT |
2 |
|
Технический лист |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 2.9kHz | Piezo | Single Tone | - | 95dB @ 16V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.687" Dia (42.85mm) | 1.511" (38.39mm) |
|
STA35802BUZZER PIEZO127X100MM BRACKET |
1 |
|
Технический лист |
- | Bulk | Active | Indicator, Internally Driven | DC | - | 12 ~ 24V | 1.25kHz | Piezo | Pulse, Slow | - | 112dB @ 12V, 122cm | 1A | User Defined | -40°C ~ 85°C | CE, cUL, SAE, UL | - | - | Bracket Mount | Screw Terminals | 5.000" L x 3.937" W (127.00mm x 100.00mm) | 3.110" (79.00mm) |
|
|
SC628JU-1BUZZER PIEZO 42.98MM PNL MNT |
1 |
|
Технический лист |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 2.9kHz | Piezo | Pin Selectable | 0.5 ~ 2 PPS | 68dB @ 6V, 61cm | 3 ~ 27mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) | 1.330" (33.77mm) |
|
SC110DJRBUZZER PIEZO 42.85MM PNL MNT |
1 |
|
Технический лист |
SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 30 ~ 120V | 2kHz | Piezo | Pulse, Slow | 0.5 ~ 2.5 PPS | 60dB @ 30V, 61cm | 6 ~ 20mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) | 1.399" (35.54mm) |
|
LSC628ANBUZZER PIEZO 42.85MM PNL MNT |
1 |
|
Технический лист |
LSC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 9 ~ 28V | 2.9kHz | Piezo, LED, Red | Single Tone, Visual Indicator | - | 80dB @ 9V, 10cm | 65mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) | 1.431" (36.34mm) |
|
14015050BUZZER MULTI SOUNDER 9-28V |
1 |
|
Технический лист |
- | Box | Active | - | - | - | 9 ~ 28V | - | - | Multiple Tone | - | - | - | - | -40°C ~ 70°C | - | - | IP65 - Dust Tight, Water Resistant | - | Screw Terminal | - | - |
