Сигнализаторы, зуммеры и сирены
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Драйвер Схема | Тип входа | Напряжение - Номинальное | Диапазон напряжений | Частота | Технология | Режим работы | Длительность | Уровень звукового давления (SPL) | Ток - Питание | Расположение порта | Рабочая температура | Сертифицирующее агентство | Номинальные значения | Защита от проникновения | Тип крепления | Оконечная нагрузка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BPS8432L-12-CBUZZER PIEZO 12V 84X55MM FLANGE |
44 |
|
Технический лист |
- | Box | Active | - | DC | 12 V | 6 ~ 15V | 2.5Hz ~ 2.8Hz | Piezo | Single Tone | - | 105dB @ 12V, 100cm | 85mA | Top | -20°C ~ 70°C | - | - | - | Panel Mount, Flange | Wire Leads | 3.307" L x 2.165" W (84.00mm x 55.00mm) | 1.260" (32.00mm) |
|
PK-27A35EPDYQBUZZER PIEZO 12V 36.5MM PNL MNT |
6 |
|
Технический лист |
PK | Bulk | Active | Indicator, Internally Driven | DC | 12 V | 3 ~ 15V | 3.5kHz | Piezo, LED, Yellow | Single Tone, Visual Indicator | - | 95dB @ 12V, 30cm | 18mA | Top | -20°C ~ 70°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.189" (4.80mm) | 1.437" Dia (36.50mm) | 0.933" (23.70mm) |
|
BPS9234S-12-CBUZZER PIEZO 12V 92X92MM PNL MNT |
13 |
|
Технический лист |
- | Box | Active | - | DC | 12 V | 6 ~ 15V | 2.8kHz | Piezo | Siren, Single Tone, Pulse | - | 115dB @ 12V, 100cm | 300mA | Top | -20°C ~ 70°C | - | - | - | Panel Mount | Screw Terminals | 3.622" L x 3.622" W (92.00mm x 92.00mm) | 1.346" (34.20mm) |
|
W-18-1BUZZER 12V 70MM WIRE |
40 |
|
Технический лист |
- | Tray | Active | - | - | 12 V | 6 ~ 15V | 2.5kHz ~ 4kHz | - | Siren | - | 105dB @ 12V, 100cm | 350mA | - | -30°C ~ 70°C | - | - | - | Wire Lead | Wire Leads | 2.756" Dia (70.00mm) | 1.909" (48.50mm) |
|

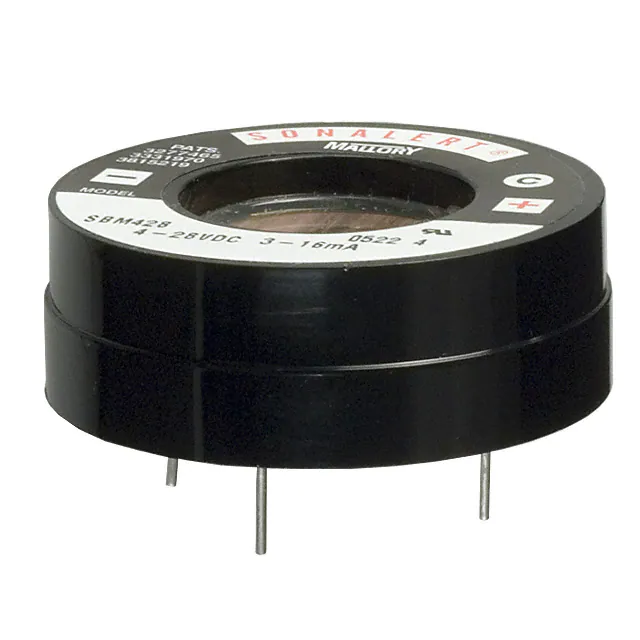

SBM428BUZZER PIEZO 42.85MM TH |
7 |
|
Технический лист |
SBM | Bulk | Active | Indicator, Internally Driven | DC | - | 4 ~ 28V | 2.9kHz | Piezo | Single Tone | - | 64dB @ 4V, 61cm | 3 ~ 16mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Through Hole | PC Pins | 1.687" Dia (42.85mm) | 0.684" (17.37mm) |
|
SBT5LMMDPCBUZZER PIEZO 44.5MM TH |
24 |
|
Технический лист |
- | Bulk | Active | Indicator, Internally Driven | DC | - | 3.3 ~ 5V | 2.075kHz | Piezo | Pin Selectable | Variable | 85dB @ 3.3V, 10cm | 15 ~ 20mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Through Hole | PC Pins | 1.752" Dia (44.50mm) | 0.551" (14.00mm) |
|
SCE016XD2CTBBUZZER PIEZO 42.98MM PNL MNT |
32 |
|
Технический лист |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2kHz | Piezo | Single Tone | - | 95dB @ 6V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.692" Dia (42.98mm) | 1.511" (38.39mm) |
|
SCE016XD2DB2SBUZZER PIEZO 42.85MM PNL MNT |
6 |
|
Технический лист |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2kHz | Piezo | Single Tone, Pulse, Medium | 5 PPS | 95dB @ 6V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) | 1.946" (49.43mm) |
|
SC648ARBUZZER PIEZO 42.98MM PNL MNT |
21 |
|
Технический лист |
SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 10 ~ 48V | 2.9kHz | Piezo | Single Tone | - | 68dB @ 10V, 61cm | 4 ~ 16mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) | 1.399" (35.54mm) |
|
ZA028LASU2BUZZER PIEZO 30.74MM PNL MNT |
2 |
|
Технический лист |
ZA | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 16 ~ 28V | 3.3kHz | Piezo | Speed Up, Fast | - | 85dB @ 16V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) | 2.234" (56.75mm) |
|

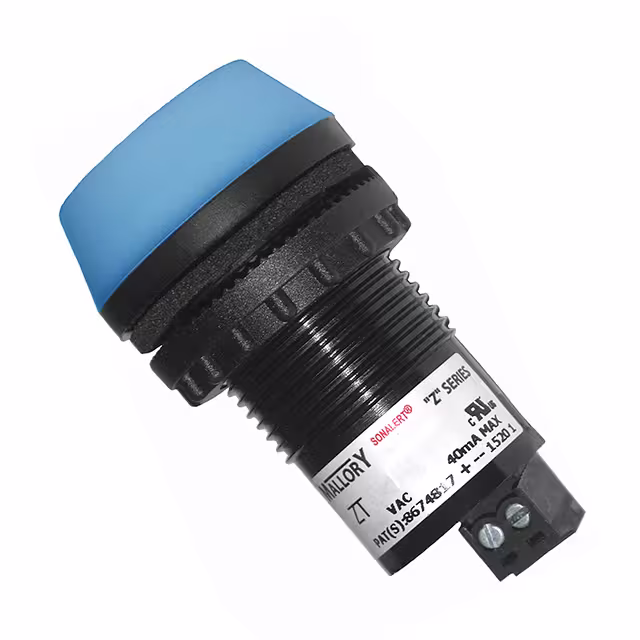

ZT028LACTBBUZZER PIEZO 30.74MM PNL MNT |
9 |
|
Технический лист |
ZT | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 20 ~ 28V | 3.7kHz | Piezo, LED, Blue | Single Tone, Visual Indicator | - | 85dB @ 20V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) | 2.234" (56.75mm) |
|
ZT120LACTGBUZZER PIEZO 30.74MM PNL MNT |
7 |
|
Технический лист |
ZT | Bulk | Active | Indicator, Internally Driven | AC | - | 90 ~ 120V | 3.7kHz | Piezo, LED, Blue | Single Tone, Visual Indicator | - | 85dB @ 90V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) | 2.234" (56.75mm) |
|
|
ZA120LASU2BUZZER PIEZO 30.74MM PNL MNT |
3 |
|
Технический лист |
ZA | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 48 ~ 120V | 3.3kHz | Piezo | Speed Up, Fast | - | 85dB @ 48V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) | 2.234" (56.75mm) |
|
SC628HPRBUZZER PIEZO 42.98MM PNL MNT |
11 |
|
Технический лист |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 4.5kHz | Piezo | Pulse, Fast | 2 ~ 10 PPS | 68dB @ 6V, 61cm | 4 ~ 16mA | Top | -30°C ~ 65°C | UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) | 1.330" (33.77mm) |
|
ZT028LACTR30BUZZER PIEZO 30.74MM PNL MNT |
8 |
|
Технический лист |
ZT | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 20 ~ 28V | 3.7kHz | Piezo, LED, Red | Single Tone, Visual Indicator | 30 Sec On-Time | 85dB @ 20V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) | 2.234" (56.75mm) |
|
|
SC648APRBUZZER PIEZO 42.98MM PNL MNT |
13 |
|
Технический лист |
SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 10 ~ 48V | 2.9kHz | Piezo | Pulse, Fast | 2 ~ 10 PPS | 68dB @ 10V, 61cm | 6 ~ 21mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) | 1.399" (35.54mm) |
|
|
ZT028LACTR15BUZZER PIEZO 30.74MM PNL MNT |
4 |
|
Технический лист |
ZT | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 20 ~ 28V | 3.7kHz | Piezo, LED, Red | Single Tone, Visual Indicator | 15 Sec On-Time | 85dB @ 20V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) | 2.234" (56.75mm) |
|
|
204330YA40/D/RN/WR Sounder |
3 |
|
Технический лист |
Yodalarm® | Tape & Box (TB) | Active | Transducer, Externally Driven | DC | 24 V | 1 ~ 28V | - | Piezo | Multiple Tone | - | 108dB @ 24V, 100cm | 35mA | Top | -35°C ~ 70°C | CE, EN | - | - | Base Mount | Screw Terminal | 0.098" Dia (2.50mm) | 3.250" (82.55mm) |
|
874170408BUZZER MULTI-TONE ALARM SND |
2 |
|
Технический лист |
- | Box | Active | - | - | - | 24 ~ 48V | - | - | Multiple Tone | - | - | - | - | -30°C ~ 60°C | - | - | IP66 - Dust Tight, Water Resistant | - | Screw Terminal | - | - |
|
|
204881YA50/D/RF/WR Sounder |
3 |
|
- |
Yodalarm® | Tape & Box (TB) | Active | Transducer, Externally Driven | DC | 24 V | 1 ~ 28V | - | Piezo | Multiple Tone | - | 112dB @ 24V | 35mA | Top | -35°C ~ 70°C | CE, EN | - | - | Base Mount | Screw Terminal | 0.098" Dia (2.50mm) | 5.000" (127.00mm) |
