Настольные, настенные блоки питания переменного тока
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Используемая область | Форма | Тип входа | Напряжение - Вход | Напряжение - выход | Ток - выход (макс.) | Мощность (Вт) | Потребляемая мощность без нагрузки | Поляризация | Применение | Эффективность | Рабочая температура | Выходной разъем | Длина шнура | Входной разъем | Особенности | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ICM36-300AC/DC WALL MOUNT ADAPTER 30V 36W |
221 |
|
Технический лист |
Tri-Mag®, ICM36 (36W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 30V | 1.2A | 36 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | Multi-Blade (Sold Separately) | - | 3.82" L x 1.77" W x 1.36" H (97.0mm x 45.0mm x 34.5mm) | cUL, FCC, UL | 62368-1 |
|
SLE24S4803B01AC/DC WALL MOUNT ADAPTER 48V 24W |
452 |
|
Технический лист |
SLE24 (24W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 48V | 500mA | 24 W | 75mW (Max) | Positive Center | ITE (Commercial), Medical | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 59" (1.50m) | Multi-Blade (Sold Separately) | - | 3.46" L x 1.18" W x 2.24" H (88.0mm x 30.0mm x 57.0mm) | CB, CCC, CE, cULus, cURus, GS, PSE, RCM, TUV | - |
|
|
SLE24S0903B01AC/DC WALL MOUNT ADAPTER 9V 21W |
426 |
|
Технический лист |
SLE24 (24W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 9V | 2.3A | 21 W | 75mW (Max) | Positive Center | ITE (Commercial), Medical | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 59" (1.50m) | Multi-Blade (Sold Separately) | - | 3.46" L x 1.18" W x 2.24" H (88.0mm x 30.0mm x 57.0mm) | CB, CCC, CE, cULus, cURus, GS, PSE, RCM, TUV | - |
|
SMI6B-5-4-P6RAC/DC WALL MOUNT ADAPTER 5V 6W |
476 |
|
Технический лист |
SMI6B (6W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 5V | 1.2A | 6 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | Multi-Blade (Included) | - | 1.85" L x 1.36" W x 1.04" H (47.0mm x 34.5mm x 26.4mm) | CB Scheme, CCC, CSA, FCC, IEC, PSE, RCM, UL | C22.2 No. 60950-1; 60950-1; 62368-1 |
|
KTPS36-240150MP-VI-P2-NAAC/DC WALL MOUNT ADAPTER 24V 36W |
494 |
|
- |
KTPS36 (36W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade, Multi-Blade (Sold Separately) | 100 ~ 240 VAC | 24V | 1.5A | 36 W | - | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 39.4" (1.00m) | NEMA 1-15P | - | 3.11" L x 1.38" W x 2.60" H (79.0mm x 35.0mm x 66.0mm) | CB, CE, cUL, GS, PSE, RCM, UL | - |
|

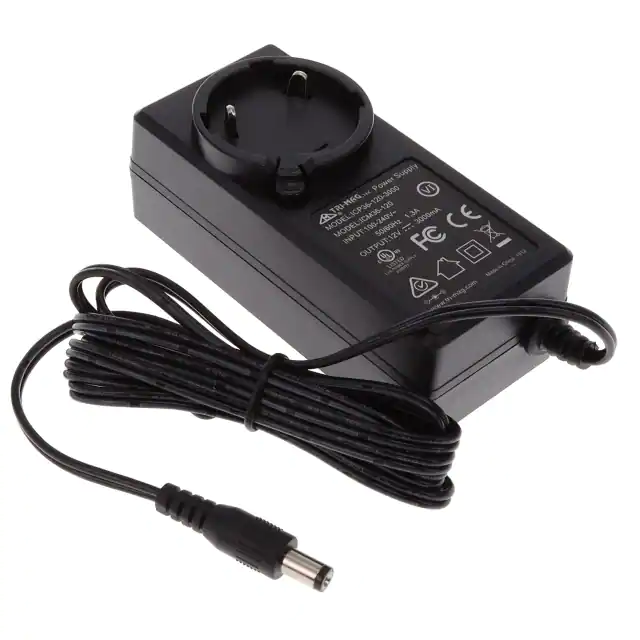

ICM36-120AC/DC WALL MOUNT ADAPTER 12V 36W |
385 |
|
Технический лист |
Tri-Mag®, ICM36 (36W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 12V | 3A | 36 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | Multi-Blade (Sold Separately) | - | 3.82" L x 1.77" W x 1.36" H (97.0mm x 45.0mm x 34.5mm) | cUL, FCC, UL | 62368-1 |
|
|
TR9CD2000LCP-N(RV)AC/DC DESKTOP ADAPTER 9V 18W |
143 |
|
Технический лист |
GT-41082-1809-T3 | Bulk | Active | International | Desktop (Class I) | Cord (Sold Separately) | 100 ~ 240 VAC | 9V | 2A | 18 W | - | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 60.2" (1.50m) | IEC 320-C14 | - | 3.17" L x 1.97" W x 1.22" H (80.6mm x 50.0mm x 31.1mm) | CB, CCC, cUL, GOST-R, NEMKO, PSE | 60950-1 |
|
SDI18-24-UD-P5AC/DC DESKTOP ADAPTER 24V 19W |
515 |
|
Технический лист |
SDI18-UD (18W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 800mA | 19 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 3.48" L x 1.97" W x 1.34" H (88.5mm x 50.0mm x 34.0mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, UL | C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 62368-1 |
|
SWH15-24-NB-P5AC/DC WALL MOUNT ADAPTER 24V 14W |
393 |
|
Технический лист |
SWH15-N (15W) | Bulk | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 24V | 600mA | 14 W | 100mW | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 70.9" (1.80m) | NEMA 1-15P | - | 2.44" L x 1.56" W x 1.31" H (62.0mm x 39.7mm x 33.2mm) | cULus, FCC | - |
|
|
SWH15-5-NB-P5AC/DC WALL MOUNT ADAPTER 5V 10W |
247 |
|
Технический лист |
SWH15-N (15W) | Bulk | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 2A | 10 W | 100mW | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 70.9" (1.80m) | NEMA 1-15P | - | 2.44" L x 1.56" W x 1.31" H (62.0mm x 39.7mm x 33.2mm) | cULus, FCC | - |
|
SMI24-24-K-P6AC/DC WALL MOUNT ADAPTER 24V 24W |
198 |
|
Технический лист |
SMI24 (24W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 24V | 1A | 24 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | Multi-Blade | - | 2.95" L x 1.38" W x 2.58" H (75.0mm x 35.0mm x 65.6mm) | CB Scheme, CCC, CSA, EN, IEC, PSE, RCM, UL | C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 62368-1 |
|
|
SDI18-24-UD-P6AC/DC DESKTOP ADAPTER 24V 19W |
157 |
|
Технический лист |
SDI18-UD (18W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 800mA | 19 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 3.48" L x 1.97" W x 1.34" H (88.5mm x 50.0mm x 34.0mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, UL | C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 62368-1 |
|
QADA-18-5-0802AC/DC DESKTOP ADAPTER 5V 15W |
307 |
|
Технический лист |
QADA-18 (18W) | Bulk | Active | International | Desktop (Class II) | Cord (Sold Separately) | 100 ~ 240 VAC | 5V | 3A | 15 W | 100mW (Max) | Positive Center | - | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 59" (1.50m) | IEC 320-C8 | - | 3.46" L x 1.97" W x 1.34" H (88.0mm x 50.0mm x 34.0mm) | BSMI, CB, CCC, CE, cULus, FCC, GS, PSE, RCM | - |
|
|
PEAMW30I-14-B2AC/DC WALL MOUNT ADAPTER 24V 30W |
140 |
|
Технический лист |
PEAMW30I (30W) | Bag | Active | International | Wall Mount (Class II) | Multi-Blade (Single Blade Included) | 90 ~ 264 VAC | 24V | 1.25A | 30 W | 100mW | Positive Center | Medical | Level VI | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 47" (1.20m) | NEMA 1-15P | - | 2.90" L x 1.69" W x 1.28" H (73.6mm x 42.8mm x 32.5mm) | CB, CCC, CE, cURus, FCC, TUV | 60601-1 |
|
TE10A1202B01AC/DC WALL MOUNT ADAPTER 12V 12W |
276 |
|
Технический лист |
TE10 (10W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade, Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 12V | 1A | 12 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P, Multi-Blade (Sold Separately) | - | 3.31" L x 1.85" W x 1.50" H (84.0mm x 47.0mm x 38.0mm) | CB, CE, DEMKO, UL | - |
|
SMM6-12-K-P6AC/DC WALL MOUNT ADAPTER 12V 6W |
262 |
|
Технический лист |
SMM6 (6W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 12V | 500mA | 6 W | 100mW (Max) | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | Multi-Blade | - | 2.24" L x 1.54" W x 1.34" H (57.0mm x 39.0mm x 34.0mm) | CB Scheme, CSA, EN, FCC, IEC, UL | C22.2 No. 60601-1; 55024; 55032 Class B; 60601-1; 60950-1; 61000-3-2; 61000-3-3 |
|
|
SMM6-12-K-P5AC/DC WALL MOUNT ADAPTER 12V 6W |
119 |
|
Технический лист |
SMM6 (6W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 12V | 500mA | 6 W | 100mW (Max) | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | Multi-Blade | - | 2.24" L x 1.54" W x 1.34" H (57.0mm x 39.0mm x 34.0mm) | CB Scheme, CSA, EN, FCC, IEC, UL | C22.2 No. 60601-1; 55024; 55032 Class B; 60601-1; 60950-1; 61000-3-2; 61000-3-3 |
|

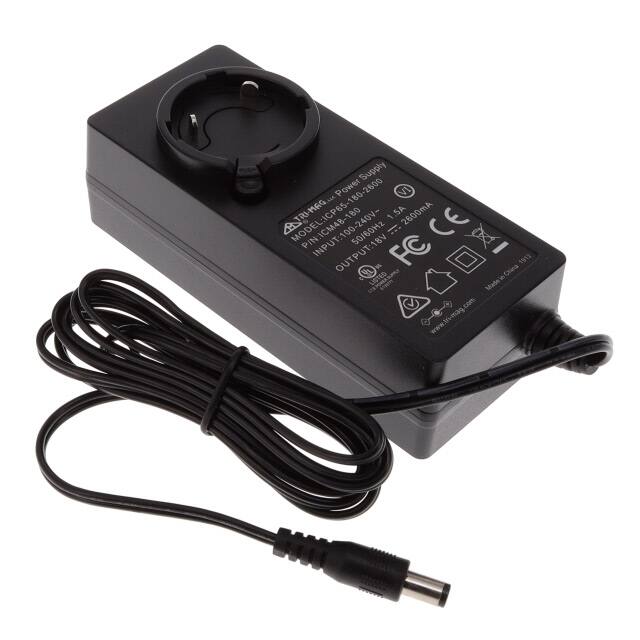

ICM48-180AC/DC WALL MOUNT ADAPTER 18V 48W |
247 |
|
Технический лист |
Tri-Mag®, ICM48 (48W) | Box | Active | International | Wall Mount (Class II) | Fixed Blade, Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 18V | 2.67A | 48 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P, Multi-Blade (Sold Separately) | - | 3.82" L x 1.77" W x 1.36" H (97.0mm x 45.0mm x 34.5mm) | cUL, FCC, UL | 60950-1 |
|

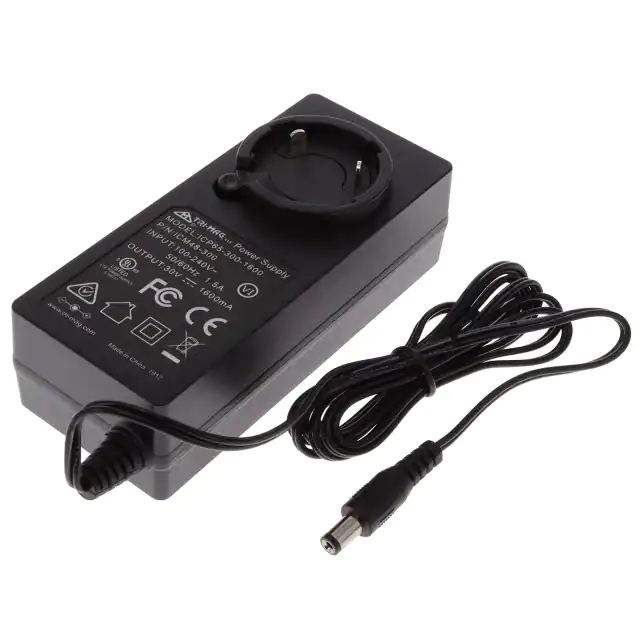

ICM48-300AC/DC WALL MOUNT ADAPTER 30V 48W |
239 |
|
Технический лист |
Tri-Mag®, ICM48 (48W) | Box | Active | International | Wall Mount (Class II) | Fixed Blade, Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 30V | 1.6A | 48 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P, Multi-Blade (Sold Separately) | - | 3.82" L x 1.77" W x 1.36" H (97.0mm x 45.0mm x 34.5mm) | cUL, FCC, UL | 60950-1 |
|
SMI12-9-VW-P5RAC/DC WALL MOUNT ADAPTER 9V 12W |
306 |
|
Технический лист |
SMI12 (12W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 9V | 1.33A | 12 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | -10°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | Multi-Blade | - | 2.72" L x 1.25" W x 1.87" H (69.0mm x 31.8mm x 47.5mm) | CE, cULus, FCC, PSE, RCM | 62368-1 |
