Настольные, настенные блоки питания переменного тока
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Используемая область | Форма | Тип входа | Напряжение - Вход | Напряжение - выход | Ток - выход (макс.) | Мощность (Вт) | Потребляемая мощность без нагрузки | Поляризация | Применение | Эффективность | Рабочая температура | Выходной разъем | Длина шнура | Входной разъем | Особенности | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DCH3-050US-0002AC/DC WALL MOUNT ADAPTER 5V 2.8W |
0 |
|
Технический лист |
DCH3 (3W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 100 ~ 240 VAC | 5V | 550mA | 2.8 W | - | - | ITE (Commercial) | Level IV | 0°C ~ 50°C | USB Micro | 59" (1.50m) | NEMA 1-15P | - | 2.28" L x 1.03" W x 1.79" H (58.0mm x 26.1mm x 45.4mm) | - | - |
|
DCH3-050US-0004AC/DC WALL MOUNT ADAPTER 5V 2.8W |
0 |
|
Технический лист |
DCH3 (3W) | Bag | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 100 ~ 240 VAC | 5V | 550mA | 2.8 W | - | - | ITE (Commercial) | Level IV | 0°C ~ 50°C | USB A Receptacle | - | NEMA 1-15P | - | 2.28" L x 1.03" W x 1.79" H (58.0mm x 26.1mm x 45.4mm) | - | - |
|
DP4012N2MAC/DC DESKTOP ADAPTER 12V 40W |
0 |
|
Технический лист |
DP40 (40W) | Bag | Obsolete | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 3.33A | 40 W | 300mW (Max) | Positive Center | ITE (Commercial), Medical | Level V | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 48" (1.22m) | IEC 320-C8 | - | 4.88" L x 2.40" W x 1.55" H (124.0mm x 61.0mm x 39.5mm) | CB, CE | - |
|

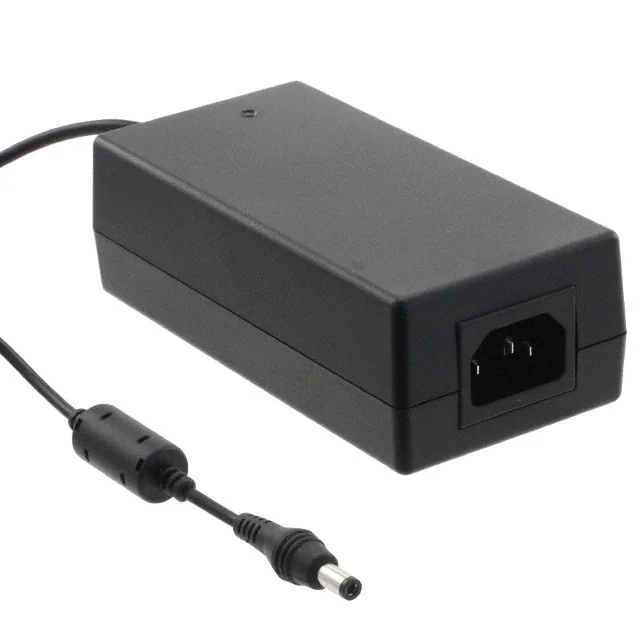

DP4012N3MAC/DC DESKTOP ADAPTER 12V 40W |
0 |
|
Технический лист |
DP40 (40W) | Bag | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 3.33A | 40 W | 300mW (Max) | Positive Center | ITE (Commercial), Medical | Level V | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 48" (1.22m) | IEC 320-C14 | - | 4.88" L x 2.40" W x 1.55" H (124.0mm x 61.0mm x 39.5mm) | CB, CE | - |
|
|
DP4018N3MAC/DC DESKTOP ADAPTER 18V 40W |
0 |
|
Технический лист |
DP40 (40W) | Bag | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 18V | 2.22A | 40 W | 300mW (Max) | Positive Center | ITE (Commercial), Medical | Level V | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 48" (1.22m) | IEC 320-C14 | - | 4.88" L x 2.40" W x 1.55" H (124.0mm x 61.0mm x 39.5mm) | CB, CE | - |
|
|
DP4024N3MAC/DC DESKTOP ADAPTER 24V 40W |
0 |
|
Технический лист |
DP40 (40W) | Bag | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 1.67A | 40 W | 300mW (Max) | Positive Center | ITE (Commercial), Medical | Level V | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 48" (1.22m) | IEC 320-C14 | - | 4.88" L x 2.40" W x 1.55" H (124.0mm x 61.0mm x 39.5mm) | CB, CE | - |
|
DP4048N2MAC/DC DESKTOP ADAPTER 48V 40W |
0 |
|
Технический лист |
DP40 (40W) | Bag | Obsolete | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 48V | 840mA | 40 W | 300mW (Max) | Positive Center | ITE (Commercial), Medical | Level V | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 48" (1.22m) | IEC 320-C8 | - | 4.88" L x 2.40" W x 1.55" H (124.0mm x 61.0mm x 39.5mm) | CB, CE | - |
|
|
DP4048N3MAC/DC DESKTOP ADAPTER 48V 40W |
0 |
|
Технический лист |
DP40 (40W) | Bag | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 48V | 840mA | 40 W | 300mW (Max) | Positive Center | ITE (Commercial), Medical | Level V | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 48" (1.22m) | IEC 320-C14 | - | 4.88" L x 2.40" W x 1.55" H (124.0mm x 61.0mm x 39.5mm) | CB, CE | - |
|
DPS53AC/DC DESKTOP ADAPTER 12V 60W |
0 |
|
Технический лист |
DPS50 (60W) | Tray | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 5A | 60 W | - | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 78.74" (2.0m) | IEC 320-C14 | - | 5.24" L x 2.39" W x 1.62" H (133.0mm x 60.7mm x 41.0mm) | CB, CE | - |
|
MWA065009A-11AAC/DC DESKTOP ADAPTER 9V 72W |
0 |
|
Технический лист |
MWA065 (65W) | Bulk | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 85 ~ 264 VAC | 9V | 8A | 72 W | 500mW (Max) | - | Medical | Level V | 0°C ~ 60°C | DIN, 5 Pin | 72" (1.83m) | IEC 320-C14 | - | 5.02" L x 2.20" W x 1.37" H (127.6mm x 55.9mm x 34.8mm) | CB, CE, cTUVus | - |
|
DCH2-050EU-0001AC/DC WALL MOUNT ADAPTER 6.5V 2W |
0 |
|
- |
DCH2 (2W) | Tape & Box (TB) | Obsolete | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 6.5V | 300mA | 2 W | - | Positive Center | ITE (Commercial) | - | 0°C ~ 50°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 72.83" (1.85m) | CEE 7/16 | - | 1.50" L x 0.70" W x 1.75" H (38.1mm x 17.9mm x 44.4mm) | CB, CE | - |
|
DCH3-050US-0001AC/DC WALL MOUNT ADAPTER 5V 2.8W |
0 |
|
Технический лист |
DCH3 (3W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 100 ~ 240 VAC | 5V | 550mA | 2.8 W | - | - | ITE (Commercial) | Level IV | 0°C ~ 50°C | USB Mini | 59" (1.50m) | NEMA 1-15P | - | 2.28" L x 1.03" W x 1.79" H (58.0mm x 26.1mm x 45.4mm) | - | - |
|
EPSA050250U-P5P-EJAC/DC WALL MOUNT ADAPTER 5V 13W |
0 |
|
Технический лист |
EPSA (12W) | Bulk | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 2.5A | 13 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 72" (1.83m) | NEMA 1-15P | - | 2.95" L x 1.97" W x 1.85" H (75.0mm x 50.0mm x 47.0mm) | cULus | - |
|
|
EPSA060200U-P5P-EJAC/DC WALL MOUNT ADAPTER 6V 12W |
0 |
|
Технический лист |
EPSA (12W) | Bulk | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 6V | 2A | 12 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 72" (1.83m) | NEMA 1-15P | - | 2.95" L x 1.38" W x 2.17" H (75.0mm x 35.0mm x 55.0mm) | cULus | - |
|
|
EPSA090130U-P5P-EJAC/DC WALL MOUNT ADAPTER 9V 12W |
0 |
|
Технический лист |
EPSA (12W) | Bulk | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 9V | 1.3A | 12 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 72" (1.83m) | NEMA 1-15P | - | 2.95" L x 1.38" W x 1.85" H (75.0mm x 35.0mm x 47.0mm) | cULus | - |
|
|
EPSA120100U-P5P-EJAC/DC WALL MOUNT ADAPTER 12V 12W |
0 |
|
Технический лист |
EPSA (12W) | Bulk | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 12V | 1A | 12 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 72" (1.83m) | NEMA 1-15P | - | 2.95" L x 1.38" W x 1.85" H (75.0mm x 35.0mm x 47.0mm) | cULus | - |
|
EPSA120100U-P5RP-EJAC/DC WALL MOUNT ADAPTER 12V 12W |
0 |
|
Технический лист |
EPSA (12W) | Bulk | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 12V | 1A | 12 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 72" (1.83m) | NEMA 1-15P | - | 2.95" L x 1.38" W x 1.85" H (75.0mm x 35.0mm x 47.0mm) | cULus | - |
|
EPSA120100U-P6P-EJAC/DC WALL MOUNT ADAPTER 12V 12W |
0 |
|
Технический лист |
EPSA (12W) | Bulk | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 12V | 1A | 12 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 72" (1.83m) | NEMA 1-15P | - | 2.95" L x 1.38" W x 1.85" H (75.0mm x 35.0mm x 47.0mm) | cULus | - |
|
ETSA050200UDC-P5P-SZAC/DC DESKTOP ADAPTER 5V 10W |
0 |
|
Технический лист |
ETSA-UD (12W) | Bulk | Obsolete | North America | Desktop (Class II) | Cord | 85 ~ 264 VAC | 5V | 2A | 10 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 72" (1.83m) | IEC 320-C8 | - | 2.95" L x 1.87" W x 1.08" H (75.0mm x 47.5mm x 27.3mm) | CE, cULus, TUVgs | - |
|
|
ETSA060200UDC-P5P-SZAC/DC DESKTOP ADAPTER 6V 12W |
0 |
|
Технический лист |
ETSA-UD (12W) | Bulk | Obsolete | North America | Desktop (Class II) | Cord | 85 ~ 264 VAC | 6V | 2A | 12 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 72" (1.83m) | IEC 320-C8 | - | 2.95" L x 1.87" W x 1.08" H (75.0mm x 47.5mm x 27.3mm) | CE, cULus, TUVgs | - |
