Настольные, настенные блоки питания переменного тока
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Используемая область | Форма | Тип входа | Напряжение - Вход | Напряжение - выход | Ток - выход (макс.) | Мощность (Вт) | Потребляемая мощность без нагрузки | Поляризация | Применение | Эффективность | Рабочая температура | Выходной разъем | Длина шнура | Входной разъем | Особенности | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

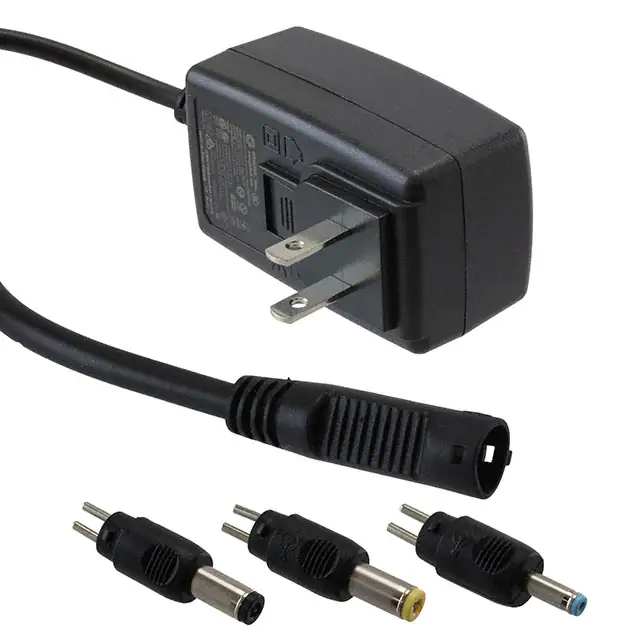

WR9QH1000T00NAIMR6BAC/DC WALL MOUNT ADAPTER 18V 18W |
66 |
|
Технический лист |
GTM96180-18VV H/M | Bulk | Active | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 18V | 1A | 18 W | 75mW (Max) | - | Household Appliances, ITE (Commercial), Medical | Level VI | -20°C ~ 40°C | Barrel Plug Kit, (1.3mm x 3.5mm, 2.1mm x 5.5mm, 2.5mm x 5.5mm) | 59" (1.50m) | Multi-Blade (Sold Separately) | - | 2.91" L x 1.71" W x 1.45" H (74.0mm x 43.5mm x 36.8mm) | BIS, CB, CCC, CE, cETLus, EAC, ETL, LPS, NOM, PSE, RCM, S-Mark, UKRSepro, UL, VCCI | 1310; 60335-1; 60601-1-11; 60601-1-2; 60950-1; 61558-1; 62368-1 |
|
25HK-AW-050A250-CPAC/DC WALL MOUNT ADAPTER 5V 13W |
38 |
|
- |
- | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 5V | 2.5A | 13 W | 100mW (Max) | - | ITE (Commercial) | 81.21% | 0°C ~ 40°C | Power DIN, 2 Pin | 72" (1.83m) | Multi-Blade (Included) | - | 2.81" L x 1.61" W x 1.35" H (71.4mm x 41.0mm x 34.3mm) | CB, CE, cUL, FCC, GS, RCM, TUV, UL | 60950-1 |
|
DFU240050F1120TRANS,WALL,REG LIN,24VDC/.5A,2.5 |
94 |
|
Технический лист |
ReliaPro | Retail Package | Active | - | Wall Mount (Class II) | Fixed Blade | 120VAC | 24V | 0.5A | 12 W | - | Positive Center | Household Appliances, ITE (Commercial) | - | -10°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11mm | 72" (1.83m) | NEMA 1-15P | - | 3.35" L x 2.68" W x 2.17" H (85.0mm x 68.0mm x 55.0mm) | cUL, UL | - |
|
GSM06U07-P1JAC/DC WALL MOUNT ADAPTER 7.5V 6W |
71 |
|
Технический лист |
GSM06U (6W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 85 ~ 264 VAC | 7.5V | 800mA | 6 W | 300mW (Max) | Positive Center | Medical | Level V | 0°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 48" (1.22m) | NEMA 1-15P | - | 2.60" L x 1.26" W x 1.89" H (66.0mm x 32.0mm x 48.0mm) | cURus | - |
|
GSM06E09-P1JAC/DC WALL MOUNT ADAPTER 9V 6W |
60 |
|
Технический лист |
GSM06E (6W) | Box | Obsolete | Europe | Wall Mount (Class II) | Fixed Blade | 85 ~ 264 VAC | 9V | 660mA | 6 W | 300mW (Max) | Positive Center | Medical | Level V | 0°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 48" (1.22m) | CEE 7/16 | - | 2.60" L x 1.26" W x 1.67" H (66.0mm x 32.0mm x 42.5mm) | CE, TUV | - |
|
1897510AC/DC WALL MOUNT ADAPTER 12V 12W |
19 |
|
- |
- | Bulk | Active | International | Wall Mount (Class II) | Multi-Blade (Included) | 100 ~ 240 VAC | 12V | 1A | 12 W | 90mW | - | ITE (Commercial), Medical | Level VI | 0°C ~ 45°C | - | 72" (1.83m) | Multi-Blade (Included) | - | 3.05" L x 1.24" W x 1.61" H (77.5mm x 31.5mm x 40.9mm) | CE, cULus, TUV, PSE, SIQ | 60601-1; 60950-1 |
|
CENB1020A0503B01AC/DC WALL MOUNT ADAPTER 5V 15W |
0 |
|
Технический лист |
CENB1020 (20W) | Bulk | Obsolete | North America | Wall Mount (Class II) | Fixed Blade, Multi-Blade (Sold Separately) | 100 ~ 240 VAC | 5V | 3A | 15 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P, Multi-Blade (Sold Separately) | - | 3.27" L x 1.85" W x 1.50" H (83.0mm x 47.0mm x 38.0mm) | CE, cULus | - |
|

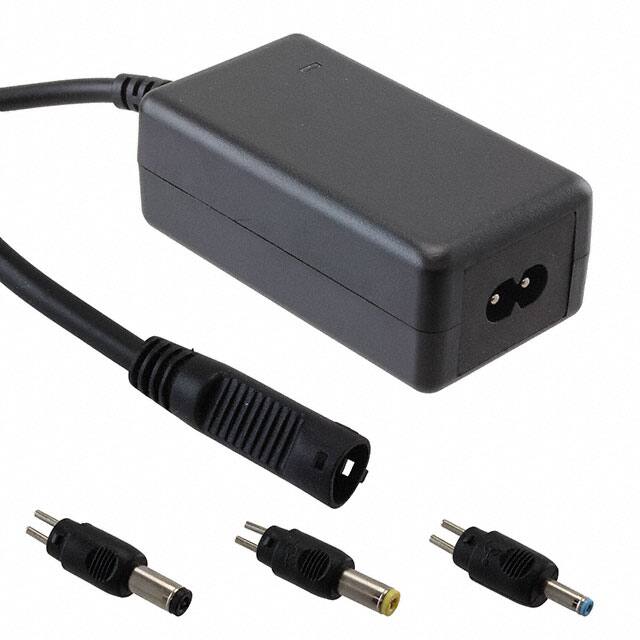

TR9KD2000T00-IMR6BAC/DC DESKTOP ADAPTER 9V 18W |
44 |
|
Технический лист |
GTM96180-18VV-T3 | Bulk | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 9V | 2A | 18 W | 75mW (Max) | - | Household Appliances, ITE (Commercial), Medical | Level VI | -20°C ~ 40°C | Barrel Plug Kit, (1.3mm x 3.5mm, 2.1mm x 5.5mm, 2.5mm x 5.5mm) | 47.2" (1.20m) | IEC 320-C8 | - | 3.43" L x 1.85" W x 1.26" H (87.0mm x 47.0mm x 32.0mm) | CB, CCC, CE, cETLus, EAC, ETL, FCC, LPS, PSE, RCM, S-Mark, UKRSepro, UL, VCCI | 1310; 60335-1; 60601-1-11; 60601-1-2; 60950-1; 61558-1; 62368-1 |
|
PSAC30U-560L6AC/DC DESKTOP ADAPTER 56V 30W |
39 |
|
Технический лист |
PSAC30U (30W) | Bulk | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 56V | 540mA | 30 W | - | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 59" (1.50m) | IEC 320-C14 | - | 4.07" L x 1.65" W x 1.13" H (103.4mm x 42.0mm x 28.7mm) | CE, cULus | - |
|
AMA18XUR4-120150YAC/DC WALL MOUNT ADAPTER 12V 18W |
6 |
|
Технический лист |
AMA18X-Y | Box | Active | North America | Wall Mount (Class II) | Multi-Blade (Single Blade Included) | 90 ~ 264 VAC | 12V | 1.5A | 18 W | 75mW (Max) | Positive Center | ITE (Commercial) | 85% | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.50m) | Multi-Blade | - | 3.55" L x 1.97" W x 1.49" H (90.3mm x 50.0mm x 37.9mm) | CE, UL | 60950-1; 62368-1 |
|
VEL18US240-US-JAAC/DC WALL MOUNT ADAPTER 24V 18W |
85 |
|
Технический лист |
VEL18 (18W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 24V | 750mA | 18 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 59" (1.50m) | NEMA 1-15P | - | 3.54" L x 1.34" W x 1.87" H (90.0mm x 34.0mm x 47.5mm) | CB, TUV, UL | 62368-1 |
|
VEL18US150-EU-JAAC/DC WALL MOUNT ADAPTER 15V 19W |
58 |
|
Технический лист |
VEL18 (18W) | Box | Active | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 15V | 1.25A | 19 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 59" (1.50m) | CEE 7/16 | - | 3.54" L x 1.34" W x 2.26" H (90.0mm x 34.0mm x 57.6mm) | CB, TUV, UL | 62368-1 |
|
|
VEL18US240-EU-JAAC/DC WALL MOUNT ADAPTER 24V 18W |
15 |
|
Технический лист |
VEL18 (18W) | Box | Active | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 24V | 750mA | 18 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 59" (1.50m) | CEE 7/16 | - | 3.54" L x 1.34" W x 2.26" H (90.0mm x 34.0mm x 57.6mm) | CB, TUV, UL | 62368-1 |
|
GS06U-11P1JAC/DC WALL MOUNT ADAPTER 7.5V 6W |
97 |
|
Технический лист |
GS06U (6W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 7.5V | 800mA | 6 W | 75mW (Max) | Positive Center | - | Level VI | 0°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47.2" (1.20m) | NEMA 1-15P | - | 2.60" L x 1.26" W x 1.89" H (66.0mm x 32.0mm x 48.0mm) | cULus | - |
|
|
GS06U-2P1JAC/DC WALL MOUNT ADAPTER 9V 6W |
77 |
|
Технический лист |
GS06U (6W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 9V | 660mA | 6 W | 75mW (Max) | Positive Center | - | Level VI | 0°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47.2" (1.20m) | NEMA 1-15P | - | 2.60" L x 1.26" W x 1.89" H (66.0mm x 32.0mm x 48.0mm) | cULus | - |
|
GS06E-2P1JAC/DC WALL MOUNT ADAPTER 9V 6W |
15 |
|
Технический лист |
GS06E (6W) | Box | Obsolete | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 9V | 660mA | 6 W | 75mW (Max) | Positive Center | - | Level VI | 0°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 47.2" (1.20m) | CEE 7/16 | - | 2.60" L x 1.26" W x 1.67" H (66.0mm x 32.0mm x 42.5mm) | CE, GS | - |
|
|
GS06E-5P1JAC/DC WALL MOUNT ADAPTER 18V 6W |
12 |
|
Технический лист |
GS06E (6W) | Box | Obsolete | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 18V | 330mA | 6 W | 75mW (Max) | Positive Center | - | Level VI | 0°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 70.9" (1.80m) | CEE 7/16 | - | 2.60" L x 1.26" W x 1.67" H (66.0mm x 32.0mm x 42.5mm) | CE, GS | - |
|
GST18E12-P1JAC/DC WALL MOUNT ADAPTER 12V 18W |
0 |
|
Технический лист |
GST18E (18W) | Box | Active | Europe | Wall Mount (Class II) | Fixed Blade | 85 ~ 264 VAC | 12V | 1.5A | 18 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | -30°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 47.2" (1.20m) | CEE 7/16 | - | 3.11" L x 2.13" W x 1.30" H (79.0mm x 54.0mm x 33.0mm) | CB, CE, cUL, EAC, GS, SIRIM | - |
|
|
GST18E24-P1JAC/DC WALL MOUNT ADAPTER 24V 18W |
0 |
|
Технический лист |
GST18E (18W) | Box | Active | Europe | Wall Mount (Class II) | Fixed Blade | 85 ~ 264 VAC | 24V | 750mA | 18 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | -30°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 70.9" (1.80m) | CEE 7/16 | - | 3.11" L x 2.13" W x 1.30" H (79.0mm x 54.0mm x 33.0mm) | CB, CE, cUL, EAC, GS, SIRIM | - |
|
DA10-050USAC/DC WALL MOUNT ADAPTER 5V 10W |
9 |
|
Технический лист |
DA10 (10W) | Bulk | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 2A | 10 W | 75mW (Max) | - | ITE (Commercial) | Level VI, CoC Tier 2 | -10°C ~ 40°C | USB A Receptacle | - | NEMA 1-15P | - | 0.98" L x 1.56" W x 1.73" H (25.0mm x 39.5mm x 44.0mm) | CCC, CE, CSA, DEMKO CB, PSE, UL | - |
