Настольные, настенные блоки питания переменного тока
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Используемая область | Форма | Тип входа | Напряжение - Вход | Напряжение - выход | Ток - выход (макс.) | Мощность (Вт) | Потребляемая мощность без нагрузки | Поляризация | Применение | Эффективность | Рабочая температура | Выходной разъем | Длина шнура | Входной разъем | Особенности | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GSM18E15-P1JAC/DC WALL MOUNT ADAPTER 15V 18W |
13 |
|
Технический лист |
GSM18E (18W) | Box | Active | Europe | Wall Mount (Class II) | Fixed Blade | 80 ~ 264 VAC | 15V | 1.2A | 18 W | 100mW (Max) | Positive Center | Medical | Level VI | -25°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 70.9" (1.80m) | CEE 7/16 | - | 3.11" L x 2.13" W x 1.30" H (79.0mm x 54.0mm x 33.0mm) | CB, CE, TUV | - |
|
GSM18U07-P1JAC/DC WALL MNT ADAPTER 7.5V 15W |
11 |
|
Технический лист |
GSM18U (18W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 80 ~ 264 VAC | 7.5V | 2A | 15 W | 100mW (Max) | Positive Center | Medical | Level V | -25°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 47.2" (1.20m) | NEMA 1-15P | - | 3.11" L x 2.13" W x 1.30" H (79.0mm x 54.0mm x 33.0mm) | CB, cRUus, TUV | - |
|
GSM18B07-P1JAC/DC DESKTOP ADAPTER 7.5V 15W |
10 |
|
Технический лист |
GSM18B (18W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 80 ~ 264 VAC | 7.5V | 2A | 15 W | 100mW (Max) | Positive Center | Medical | Level V | -25°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 47.2" (1.20m) | IEC 320-C8 | - | 3.11" L x 2.13" W x 1.30" H (79.0mm x 54.0mm x 33.0mm) | CB, CE, cRUus, TUV | - |
|
|
GSM18B09-P1JAC/DC DESKTOP ADAPTER 9V 18W |
7 |
|
Технический лист |
GSM18B (18W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 80 ~ 264 VAC | 9V | 2A | 18 W | 100mW (Max) | Positive Center | Medical | Level V | -25°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 47.2" (1.20m) | IEC 320-C8 | - | 3.11" L x 2.13" W x 1.30" H (79.0mm x 54.0mm x 33.0mm) | CB, CE, cRUus, TUV | - |
|
RR9LG2400T00NAIMR6BAC/DC DSKTP/WALL MT ADPT 15V 36W |
46 |
|
Технический лист |
GTM96300-36VV-R3A | Bulk | Active | International | Desktop, Wall Mount (Class I) | Cord (Sold Separately), Multi-Blade (Single Blade Included) | 90 ~ 264 VAC | 15V | 2.4A | 36 W | 75mW (Max) | - | Household Appliances, ITE (Commercial), Medical | Level VI | -20°C ~ 40°C | Barrel Plug Kit, (1.3mm x 3.5mm, 2.1mm x 5.5mm, 2.5mm x 5.5mm) | 59" (1.50m) | IEC 320-C6, Multi-Blade (Single Blade Included) | - | 4.00" L x 1.83" W x 1.50" H (101.7mm x 46.5mm x 38.2mm) | CB, CCC, CE, cETLus, EAC, ETL, FCC, LPS, PSE, RCM, S-Mark, UKRSepro, VCCI | 1310; 60335-1; 60601-1-11; 60601-1-2; 60950-1; 62368-1 |
|

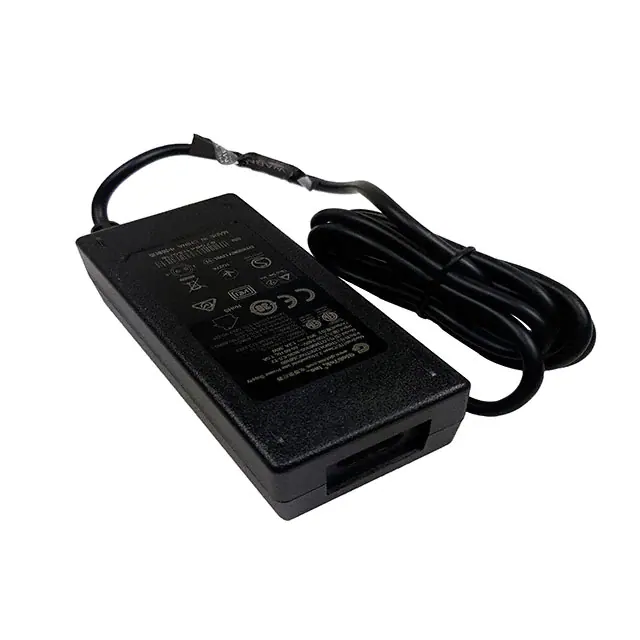

TR9KR1200T00CIMR6BAC/DC DESKTOP ADAPTER 30V 36W |
43 |
|
Технический лист |
GTM96300-36VV-T2 | Bulk | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 30V | 1.2A | 36 W | 75mW (Max) | - | Household Appliances, ITE (Commercial), Medical | Level VI | -20°C ~ 40°C | Barrel Plug Kit, (1.3mm x 3.5mm, 2.1mm x 5.5mm, 2.5mm x 5.5mm) | 59" (1.50m) | IEC 320-C8 | - | 4.13" L x 1.97" W x 1.40" H (105.0mm x 50.0mm x 35.5mm) | CB, CCC, CE, EAC, ETL, LPS, PSE, RCM, S-Mark, UKRSepro, VCCI | 1310; 60335-1; 60601-1-11; 60601-1-2; 60950-1; 62368-1 |
|
GSM25B09-P1JAC/DC DESKTOP ADAPTER 9V 25W |
68 |
|
Технический лист |
GSM25B (25W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 80 ~ 264 VAC | 9V | 2.77A | 25 W | 100mW (Max) | Positive Center | Medical | Level V | -25°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 47.2" (1.20m) | IEC 320-C8 | - | 3.11" L x 2.13" W x 1.30" H (79.0mm x 54.0mm x 33.0mm) | CB, CE, cRUus, TUV | - |
|
GSM25E07-P1JAC/DC WALL MNT ADAPTER 7.5V 22W |
52 |
|
Технический лист |
GSM25E (25W) | Box | Active | Europe | Wall Mount (Class II) | Fixed Blade | 80 ~ 264 VAC | 7.5V | 2.93A | 22 W | 100mW (Max) | Positive Center | Medical | Level V | -25°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 47.2" (1.20m) | CEE 7/16 | - | 3.11" L x 2.13" W x 1.30" H (79.0mm x 54.0mm x 33.0mm) | CB, CE, TUV | - |
|
|
GSM25B48-P1JAC/DC DESKTOP ADAPTER 48V 25W |
34 |
|
Технический лист |
GSM25B (25W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 80 ~ 264 VAC | 48V | 520mA | 25 W | 100mW (Max) | Positive Center | Medical | Level VI | -25°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 70.9" (1.80m) | IEC 320-C8 | - | 3.11" L x 2.13" W x 1.30" H (79.0mm x 54.0mm x 33.0mm) | CB, CE, cRUus, TUV | - |
|
|
GSM25E48-P1JAC/DC WALL MOUNT ADAPTER 48V 25W |
17 |
|
Технический лист |
GSM25E (25W) | Box | Active | Europe | Wall Mount (Class II) | Fixed Blade | 80 ~ 264 VAC | 48V | 520mA | 25 W | 100mW (Max) | Positive Center | Medical | Level VI | -25°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 70.9" (1.80m) | CEE 7/16 | - | 3.11" L x 2.13" W x 1.30" H (79.0mm x 54.0mm x 33.0mm) | CB, CE, TUV | - |
|
GSM25U15-P1JAC/DC WALL MOUNT ADAPTER 15V 25W |
15 |
|
Технический лист |
GSM25U (25W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 80 ~ 264 VAC | 15V | 1.66A | 25 W | 100mW (Max) | Positive Center | Medical | Level VI | -25°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 70.9" (1.80m) | NEMA 1-15P | - | 3.11" L x 2.13" W x 1.30" H (79.0mm x 54.0mm x 33.0mm) | CB, cRUus, TUV | - |
|
|
GSM25U18-P1JAC/DC WALL MOUNT ADAPTER 18V 25W |
15 |
|
Технический лист |
GSM25U (25W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 80 ~ 264 VAC | 18V | 1.38A | 25 W | 100mW (Max) | Positive Center | Medical | Level VI | -25°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 70.9" (1.80m) | NEMA 1-15P | - | 3.11" L x 2.13" W x 1.30" H (79.0mm x 54.0mm x 33.0mm) | CB, cRUus, TUV | - |
|
|
GSM25E24-P1JAC/DC WALL MOUNT ADAPTER 24V 25W |
12 |
|
Технический лист |
GSM25E (25W) | Box | Active | Europe | Wall Mount (Class II) | Fixed Blade | 80 ~ 264 VAC | 24V | 1.04A | 25 W | 100mW (Max) | Positive Center | Medical | Level VI | -25°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 70.9" (1.80m) | CEE 7/16 | - | 3.11" L x 2.13" W x 1.30" H (79.0mm x 54.0mm x 33.0mm) | CB, CE, TUV | - |
|
|
GSM25E15-P1JAC/DC WALL MOUNT ADAPTER 15V 25W |
13 |
|
Технический лист |
GSM25E (25W) | Box | Active | Europe | Wall Mount (Class II) | Fixed Blade | 80 ~ 264 VAC | 15V | 1.66A | 25 W | 100mW (Max) | Positive Center | Medical | Level VI | -25°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 70.9" (1.80m) | CEE 7/16 | - | 3.11" L x 2.13" W x 1.30" H (79.0mm x 54.0mm x 33.0mm) | CB, CE, TUV | - |
|
|
GSM25E12-P1JAC/DC WALL MOUNT ADAPTER 12V 25W |
10 |
|
Технический лист |
GSM25E (25W) | Box | Active | Europe | Wall Mount (Class II) | Fixed Blade | 80 ~ 264 VAC | 12V | 2.08A | 25 W | 100mW (Max) | Positive Center | Medical | Level VI | -25°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 70.9" (1.80m) | CEE 7/16 | - | 3.11" L x 2.13" W x 1.30" H (79.0mm x 54.0mm x 33.0mm) | CB, CE, TUV | - |
|
|
GSM25E05-P1JAC/DC WALL MOUNT ADAPTER 5V 20W |
7 |
|
Технический лист |
GSM25E (25W) | Box | Active | Europe | Wall Mount (Class II) | Fixed Blade | 80 ~ 264 VAC | 5V | 4A | 20 W | 100mW (Max) | Positive Center | Medical | Level V | -25°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 47.2" (1.20m) | CEE 7/16 | - | 3.11" L x 2.13" W x 1.30" H (79.0mm x 54.0mm x 33.0mm) | CB, CE, TUV | - |
|
15DYS851-480105WEXTERNAL POWER SUPPLY |
64 |
|
Технический лист |
15DYS851 (51W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 48V | 1.05A | 50 W | - | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 59" (1.50m) | IEC 320-C8 | - | 3.84" L x 2.07" W x 1.27" H (97.5mm x 52.5mm x 32.3mm) | CE, C-Tick, cULus, FCC, TUV, UKCA | 60601-1 |
|
RR9KD3333T00NAIMR6BAC/DC DSKTP/WALL MT ADAPT 9V 30W |
73 |
|
Технический лист |
GTM96300-36VV-R2 | Bulk | Active | International | Desktop, Wall Mount (Class II) | Cord (Sold Separately), Multi-Blade (Single Blade Included) | 90 ~ 264 VAC | 9V | 3.33A | 30 W | 75mW (Max) | - | Household Appliances, ITE (Commercial), Medical | Level VI | -20°C ~ 40°C | Barrel Plug Kit, (1.3mm x 3.5mm, 2.1mm x 5.5mm, 2.5mm x 5.5mm) | 47.2" (1.20m) | IEC 320-C8, Multi-Blade (Single Blade Included) | - | 4.00" L x 1.83" W x 1.50" H (101.7mm x 46.5mm x 38.2mm) | CB, CCC, CE, cETLus, EAC, ETL, FCC, LPS, PSE, RCM, S-Mark, UKRSepro, UL, VCCI | 1310; 60335-1; 60601-1-11; 60601-1-2; 60950-1; 62368-1 |
|
RR9LA4500T00-IMR6BAC/DC DSKTP/WALL MT ADAPT 5V 23W |
61 |
|
Технический лист |
GTM96300-36VV-R3A | Bulk | Active | International | Desktop, Wall Mount (Class I) | Cord, Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 5V | 4.5A | 23 W | 75mW (Max) | - | Household Appliances, ITE (Commercial), Medical | Level VI | -20°C ~ 40°C | Barrel Plug Kit, (1.3mm x 3.5mm, 2.1mm x 5.5mm, 2.5mm x 5.5mm) | 47.2" (1.20m) | IEC 320-C6, Multi-Blade (Sold Separately) | - | 4.00" L x 1.83" W x 1.50" H (101.7mm x 46.5mm x 38.2mm) | CB, CCC, CE, cETLus, EAC, ETL, FCC, LPS, Morocco, PSE, RCM, S-Mark, UKCA, UKRSepro, VCCI | 1310; 60335-1; 60601-1-11; 60601-1-2; 60950-1; 62368-1 |
|
RR9LG2400LCPCIMR6BAC/DC DSKTP/WALL MT ADPT 15V 36W |
48 |
|
Технический лист |
GTM96300-36VV-R3A | Bulk | Active | International | Desktop, Wall Mount (Class I) | Cord, Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 15V | 2.4A | 36 W | 75mW (Max) | Positive Center | Household Appliances, ITE (Commercial), Medical | Level VI | -20°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 60.2" (1.53m) | IEC 320-C6, Multi-Blade (Sold Separately) | - | 4.00" L x 1.83" W x 1.50" H (101.7mm x 46.5mm x 38.2mm) | CB, CCC, CE, cETLus, EAC, ETL, FCC, LPS, PSE, RCM, S-Mark, UKRSepro, VCCI | 1310; 60335-1; 60601-1-11; 60601-1-2; 60950-1; 62368-1 |
