Преобразователи переменного и постоянного тока
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - Вход | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - Выход 1 | Ток - Выход 2 | Ток - Выход 3 | Ток - Выход 4 | Ток - Выход 5 | Ток - Выход 6 | Мощность (Вт) | Применение | Напряжение - Изоляция | Эффективность | Рабочая температура | Особенности | Тип крепления | Размер/измерение | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAP110-4004GAC/DC CNVRTR 5V 24V +/-15V 80W |
27 |
|
Технический лист |
MAP110 (110W) | Bulk | Active | Open Frame | 4 | 85 ~ 264 VAC | 5V | 24V | -15V | 15V | - | - | 12 A | 3 A | 1 A | 1 A | - | - | 80W (110W Forced Air) | ITE (Commercial) | 4.242 kV | 80% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 7.00" L x 4.30" W x 1.97" H (177.8mm x 109.2mm x 50.0mm) | CB, cCSAus, CE |
|
LCM600Q-T-4-AAC/DC CONVERTER 24V 600W |
31 |
|
Технический лист |
LCM600 (600W) | Bulk | Active | Front End | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 27 A | - | - | - | - | - | 600W | ITE (Commercial), Medical | 4 kV | 89% | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 7.50" L x 4.50" W x 2.40" H (190.5mm x 114.3mm x 61.0mm) | CB |
|
SHP650PS36-EFAC/DC CONVERTER 36V 650W |
88 |
|
Технический лист |
SHP (650W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 36V | - | - | - | - | - | 18 A | - | - | - | - | - | 650W | ITE (Commercial) | 3 kV | 85% | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 9.18" L x 4.00" W x 2.50" H (233.2mm x 101.6mm x 63.5mm) | CB |
|
EMH350PS12AC/DC CONVERTER 12V 350W |
78 |
|
Технический лист |
EMH (350W) | Box | Active | Open Frame | 1 | 80 ~ 275 VAC | 12V | - | - | - | - | - | 29.2 A | - | - | - | - | - | 350W | ITE (Commercial), Medical | 4 kV | 87% | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.43" H (127.0mm x 76.2mm x 36.3mm) | CB, CE, TUV, UL |
|

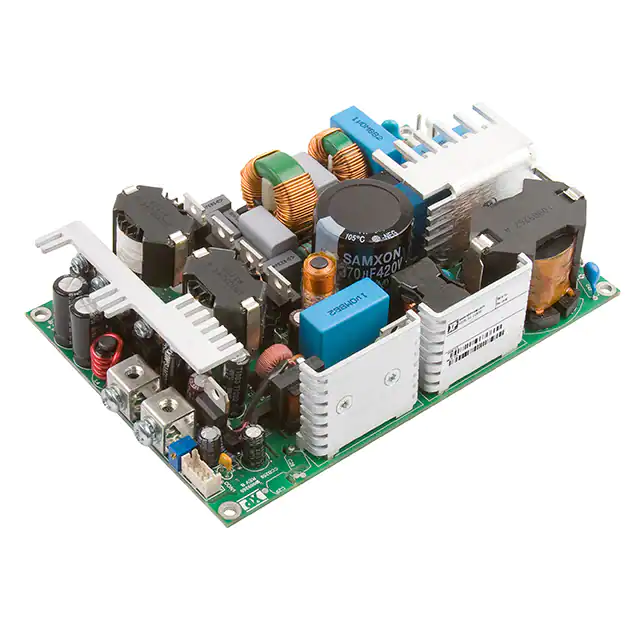

CCB250PS28AC/DC CONVERTER 28V 249W |
40 |
|
Технический лист |
CCB250 (250W) | Box | Active | Open Frame | 1 | 80 ~ 275 VAC | 28V | - | - | - | - | - | 8.9 A | - | - | - | - | - | 249W | ITE (Commercial), Medical | 4 kV | 95% | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 6.00" L x 4.00" W x 1.50" H (152.4mm x 101.6mm x 38.1mm) | CB, TUV, UL |
|
IMA-S1000-48-YYPLIAC/DC CONVERTER 48V 1000W |
32 |
|
Технический лист |
IMA-1000 (1000W) | Box | Active | Enclosed | 1 | 80 ~ 275 VAC, 120 ~ 300 VDC | 48V | - | - | - | - | - | 21 A | - | - | - | - | - | 1000W | ITE (Commercial), Medical | 4 kV | 94% | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, PMBus™, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 8.25" L x 5.00" W x 1.60" H (209.6mm x 127.0mm x 40.6mm) | CCC, CE, cURus |
|
|
MAP80-1024GAC/DC CONVERTER 24V 80W |
89 |
|
Технический лист |
MAP80 (80W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 3.8 A | - | - | - | - | - | 80W | ITE (Commercial) | 2.6 kV | 80% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 7.20" L x 4.20" W x 1.80" H (182.9mm x 106.7mm x 45.7mm) | CE |
|
|
MAP80-4010GAC/DC CNVRTR 5V 12V -5V -12V 80W |
42 |
|
Технический лист |
MAP80 (80W) | Bulk | Active | Open Frame | 4 | 90 ~ 264 VAC | 5V | 12V | -5V | -12V | - | - | 14 A | 4 A | 1 A | 3 A | - | - | 80W | ITE (Commercial) | 2.6 kV | 80% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 7.20" L x 4.20" W x 1.80" H (182.9mm x 106.7mm x 45.7mm) | CE |
|
CCM250PS12AC/DC CONVERTER 12V 250W |
39 |
|
Технический лист |
CCM (250W) | Box | Active | Open Frame | 1 | 80 ~ 275 VAC | 12V | - | - | - | - | - | 20.8 A | - | - | - | - | - | 250W | ITE (Commercial), Medical | 4 kV | 95% | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 6.00" L x 4.00" W x 1.54" H (152.4mm x 101.6mm x 39.1mm) | CB, TUV, UL |
|

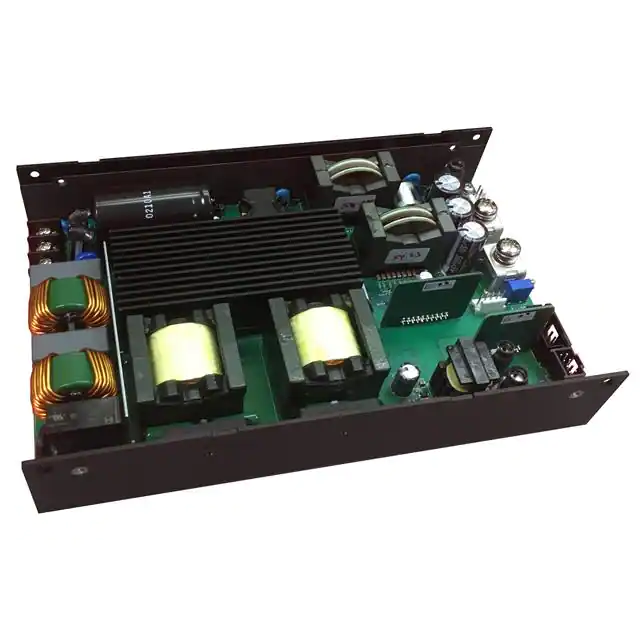

PQU1000-24AC/DC CONVERTER 24V 1001W |
36 |
|
Технический лист |
PQU1000 (1000W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 41.7 A | - | - | - | - | - | 1001W | ITE (Commercial), Medical | 4 kV | 95% | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, PMBus™, Remote Sense, Standby Output, Universal Input | Chassis Mount | 8.00" L x 5.00" W x 1.57" H (203.2mm x 127.0mm x 40.0mm) | CB, CCC, CE, cCSAus, cTUVus, TUV |
|
RWS1000B-48AC/DC CONVERTER 48V 1000W |
202 |
|
Технический лист |
RWS1000B (1000W) | Bulk | Active | Enclosed | 1 | 85 ~ 265 VAC, 120 ~ 340 VDC | 48V | - | - | - | - | - | 21 A | - | - | - | - | - | 1000W | ITE (Commercial) | 4 kV | 88% | -20°C ~ 60°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote Sense, Universal Input | Chassis Mount | 7.80" L x 5.00" W x 2.48" H (198.0mm x 127.0mm x 63.0mm) | CE |
|
|
RWS1000B-24AC/DC CONVERTER 24V 1000W |
37 |
|
Технический лист |
RWS1000B (1000W) | Bulk | Active | Enclosed | 1 | 85 ~ 265 VAC, 120 ~ 340 VDC | 24V | - | - | - | - | - | 42 A | - | - | - | - | - | 1000W | ITE (Commercial) | 4 kV | 88% | -20°C ~ 60°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote Sense, Universal Input | Chassis Mount | 7.80" L x 5.00" W x 2.48" H (198.0mm x 127.0mm x 63.0mm) | CE |
|
TXLN 960-148AC/DC CONVERTER 48V 960W |
49 |
|
Технический лист |
TXLN 960 (960W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 127 ~ 375 VDC | 48V | - | - | - | - | - | 20 A | - | - | - | - | - | 960W | ITE (Commercial) | 3 kV | 89% | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 10.83" L x 4.92" W x 2.48" H (275.0mm x 125.0mm x 63.0mm) | CB, CE, cURus |
|
HWS300-48AC/DC CONVERTER 48V 300W |
55 |
|
Технический лист |
HWS (300W) | Bulk | Active | Enclosed, Conformal Coated | 1 | 85 ~ 265 VAC | 48V | - | - | - | - | - | 7 A | - | - | - | - | - | 300W | ITE (Commercial) | 3 kV | 85% | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 6.50" L x 2.40" W x 3.23" H (165.1mm x 61.0mm x 82.0mm) | CE |
|
HDS800PS24AC/DC CONVERTER 24V 800W |
96 |
|
Технический лист |
HDS800 (800W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 33.5 A | - | - | - | - | - | 800W | ITE (Commercial) | 3 kV | 92% | -20°C ~ 70°C (With Derating) | Adjustable Output, I2C Interface, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.80" L x 5.00" W x 1.61" H (249.0mm x 127.0mm x 40.9mm) | CB, TUV, UL |
|

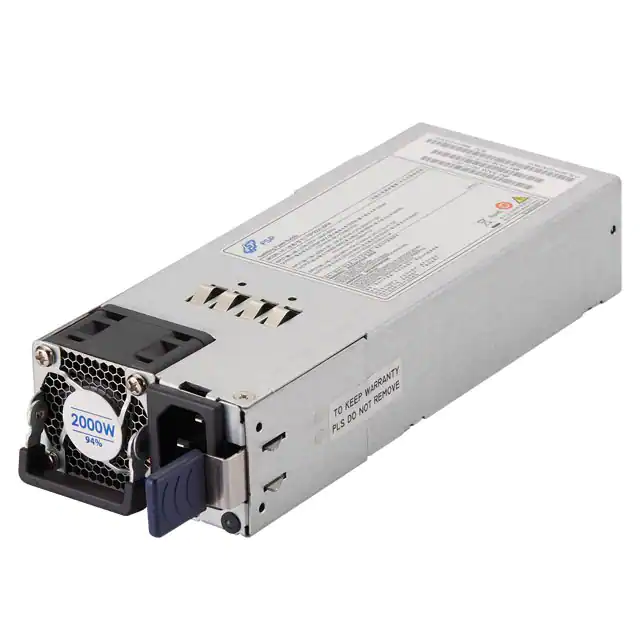

FSP2000-20FMAC/DC CONVERTER 12V 2000W |
52 |
|
Технический лист |
FSP2000-20FM (6272W) | Box | Active | Front End | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 163.6 A | - | - | - | - | - | 2000W | ITE (Commercial) | - | 80% | 0°C ~ 55°C | PMBus™, Universal Input | Rack Mount | 7.28" L x 2.89" W x 1.53" H (184.9mm x 73.4mm x 38.9mm) | CCC, CE, cURus, TUV |
|
PCA600F-24-TAC/DC CONVERTER 24V 648W |
642 |
|
Технический лист |
PCA (600W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 88 ~ 370 VDC | 24V | - | - | - | - | - | 27 A | - | - | - | - | - | 648W | ITE (Commercial), Medical | 4 kV | 93% | -20°C ~ 70°C | Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 5.98" L x 3.50" W x 1.61" H (152.0mm x 89.0mm x 41.0mm) | CE, CSA, cURus, D-Mark, UL |
|
|
MAP130-1012GAC/DC CONVERTER 12V 130W |
36 |
|
Технический лист |
MAP130 (130W) | Bulk | Active | Open Frame | 1 | 90 ~ 132 VAC, 175 ~ 264 VAC | 12V | - | - | - | - | - | 12 A | - | - | - | - | - | 130W | ITE (Commercial) | 2.6 kV | 80% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 8.50" L x 4.50" W x 2.00" H (215.9mm x 114.3mm x 50.8mm) | CB, cCSAus, CE |
|
|
MAP130-4000GAC/DC CNVRTR 5V +/-12V -5V 130W |
28 |
|
Технический лист |
MAP130 (130W) | Bulk | Active | Open Frame | 4 | 90 ~ 132 VAC, 175 ~ 264 VAC | 5V | 12V | -12V | -5V | - | - | 20 A | 5 A | 1 A | 1 A | - | - | 130W | ITE (Commercial) | 2.6 kV | 80% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 8.50" L x 4.50" W x 2.00" H (215.9mm x 114.3mm x 50.8mm) | CB, cCSAus, CE |
|

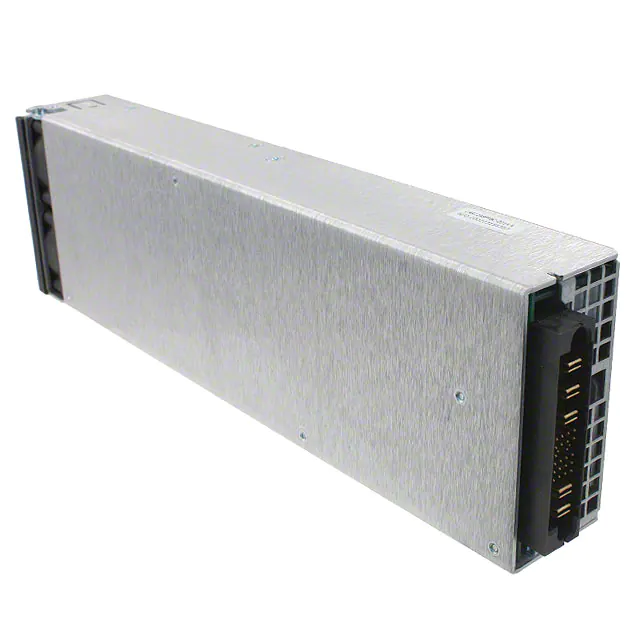

CAR1248FPBC-Z01AAC/DC CONVERTER 48V 1200W |
67 |
|
Технический лист |
CAR1248FP (1200W) | Box | Active | Front End | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 25 A | - | - | - | - | - | 1200W | ITE (Commercial) | 3 kV | 91% | -10°C ~ 70°C (With Derating) | Adjustable Output, Hot Swappable, I2C Interface, Load Sharing, PFC, PMBus™, Remote Sense, Standby Output, Universal Input | Rack Mount | 11.20" L x 3.44" W x 1.65" H (284.5mm x 87.4mm x 41.9mm) | - |
