Преобразователи переменного и постоянного тока
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - Вход | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - Выход 1 | Ток - Выход 2 | Ток - Выход 3 | Ток - Выход 4 | Ток - Выход 5 | Ток - Выход 6 | Мощность (Вт) | Применение | Напряжение - Изоляция | Эффективность | Рабочая температура | Особенности | Тип крепления | Размер/измерение | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

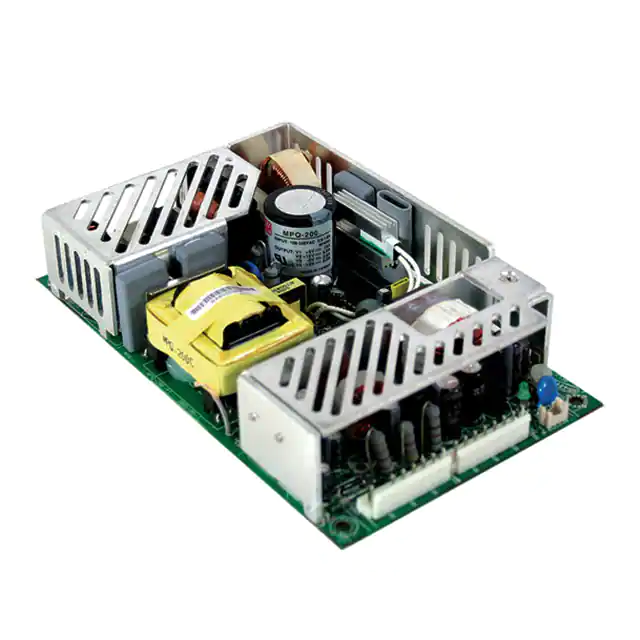

MPQ-200BAC/DC CNVRT 5V 12V -5V -12V 141W |
491 |
|
Технический лист |
MPQ-200 (200W) | Box | Active | Open Frame | 4 | 90 ~ 264 VAC, 127 ~ 370 VDC | 5V | 12V | -5V | -12V | - | - | 12 A | 5.3 A | 1 A | 1 A | - | - | 141W (133W Forced Air) | Medical | 4 kV | 78% | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 7.00" L x 4.22" W x 1.40" H (177.8mm x 107.2mm x 35.6mm) | CB, CE, cURus, TUV |
|
HB28-1-A+GAC/DC CONVERTER 28V 28W |
148 |
|
Технический лист |
Linear B | Bulk | Active | Linear | 1 | 100 ~ 240 VAC | 28V | - | - | - | - | - | 1 A | - | - | - | - | - | 28W | ITE (Commercial) | - | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.88" L x 4.00" W x 1.80" H (124.0mm x 101.6mm x 45.7mm) | CE, cURus, TUV |
|

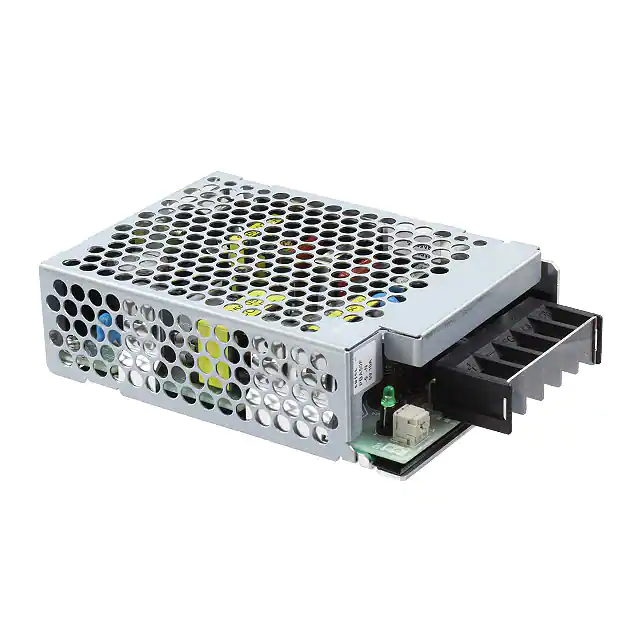

PBA50F-5-NAC/DC CONVERTER 5V 50W |
44 |
|
Технический лист |
PBA (50W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 5V | - | - | - | - | - | 10 A | - | - | - | - | - | 50W | ITE (Commercial) | - | 82% | - | DC Input Capable, Universal Input | Chassis Mount | - | CE, cURus, TUV |
|
HWS50A-15/AAC/DC CONVERTER 15V 50W |
794 |
|
Технический лист |
HWS-A (50W) | Bulk | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 15V | - | - | - | - | - | 4.3 A | - | - | - | - | - | 50W | Industrial, ITE (Commercial) | 3 kV | 81% | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.72" L x 1.04" W x 3.23" H (119.9mm x 26.4mm x 82.0mm) | CE |
|

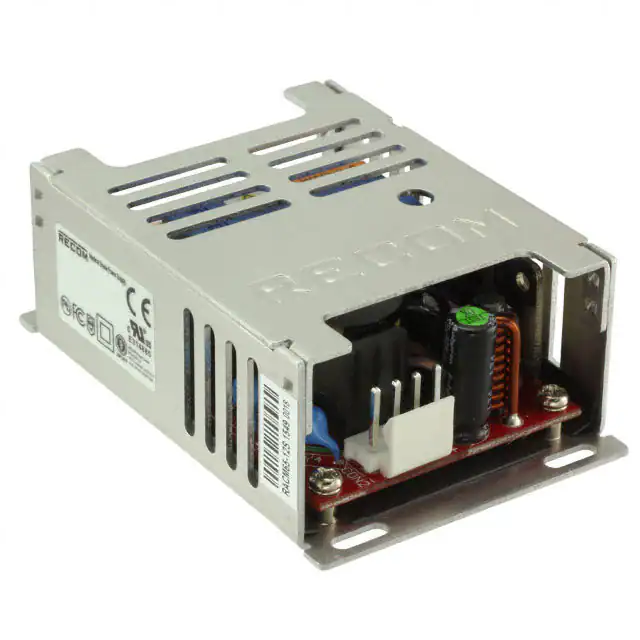

RACM40-24SAC/DC CONVERTER 24V 40W |
108 |
|
Технический лист |
MEDLINE RACM40 (40W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 1.67 A | - | - | - | - | - | 40W | Medical | 4 kV | 92% | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.60" L x 2.38" W x 1.31" H (91.4mm x 60.5mm x 33.3mm) | CE, cURus |
|
RPS-400-24-SFAC/DC CONVERTER 24V 252W |
187 |
|
Технический лист |
RPS-400 (400W) | Box | Active | Enclosed | 1 | 80 ~ 264 VAC, 113 ~ 370 VDC | 24V | - | - | - | - | - | 10.5 A | - | - | - | - | - | 252W (401W Forced Air) | Medical | 4 kV | 93% | -30°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 6.30" L x 3.39" W x 1.69" H (160.0mm x 86.1mm x 42.9mm) | CB, CE, cURus, TUV |
|
QP-150-3BAC/DC CNVRTR 5V 3.3V +/-12V 150W |
37 |
|
Технический лист |
QP-150 (150W) | Box | Active | Enclosed | 4 | 90 ~ 264 VAC, 127 ~ 370 VDC | 5V | 3.3V | 12V | -12V | - | - | 10 A | 10 A | 5 A | 600 mA | - | - | 150W | ITE (Commercial) | 3 kV | 75% | -10°C ~ 60°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 7.83" L x 3.90" W x 1.97" H (199.0mm x 99.0mm x 50.0mm) | CB, CE, cURus, TUV |
|
TMM 40124CAC/DC CONVERTER 24V 40W |
30 |
|
Технический лист |
TMM 40 (40W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 24V | - | - | - | - | - | 1.66 A | - | - | - | - | - | 40W | Industrial, ITE (Commercial), Medical | 4 kV | 84% | -40°C ~ 80°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.41" L x 2.51" W x 1.34" H (112.0mm x 63.8mm x 34.0mm) | CB, CE, cULus, cURus |
|
EPP-500-12AC/DC CONVERTER 12V 320W |
46 |
|
Технический лист |
EPP-500 (500W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC, 113 ~ 370 VDC | 12V | - | - | - | - | - | 26.7 A | - | - | - | - | - | 320W (499W Forced Air) | ITE (Commercial) | 3 kV | 91% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.69" H (127.0mm x 76.2mm x 43.0mm) | CB, CE, cURus, EAC, TUV |
|
HB15-1.5-A+GAC/DC CONVERTER 15V |
14 |
|
Технический лист |
Linear B | Bulk | Active | Linear | 1 | 100 ~ 240 VAC | 15V | - | - | - | - | - | 1.5 A | - | - | - | - | - | - | ITE (Commercial) | - | 55% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.88" L x 4.00" W x 1.63" H (124.0mm x 101.6mm x 41.4mm) | CE, cURus, TUV |
|
FSP220-60MPCACDC CNVT 3.3V 5V 12V -5V 2X-12V |
70 |
|
Технический лист |
MPC (250W) | Box | Active | ATX | 7 | 90 ~ 264 VAC | 3.3V | 5V | 12V | -5V | -12V | 3.3V | 9 A | 12 A | 14 A | 300 mA | 300 mA | - | 263W | ITE (Commercial), Medical | - | 85% | 0°C ~ 50°C (With Derating) | PFC, Standby Output, Universal Input | Chassis Mount | 7.48" L x 3.23" W x 1.61" H (190.0mm x 82.0mm x 41.0mm) | CE, cURus, FCC, TUV, VCCI |
|
CUT75-522AC/DC CONVERTER 5V +/-12V 75W |
34 |
|
Технический лист |
CUT75 (75W) | Bulk | Active | Open Frame | 3 | 85 ~ 265 VAC | 5V | 12V | -12V | - | - | - | 8 A | 3 A | 1 A | - | - | - | 75W | ITE (Commercial) | 3 kV | 85% | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.06" H (127.0mm x 76.2mm x 26.9mm) | CE, TUV |
|

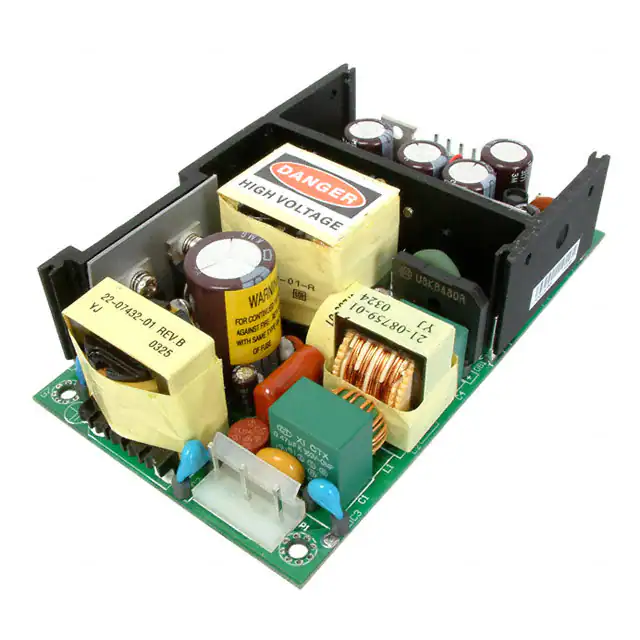

VSBU-120-24AC/DC CONVERTER 24V 120W |
119 |
|
Технический лист |
VSBU-120 (120W) | Box | Not For New Designs | Open Frame | 1 | 90 ~ 260 VAC | 24V | - | - | - | - | - | 5 A | - | - | - | - | - | 120W | ITE (Commercial) | 4.242 kV | 80% | 0°C ~ 70°C (With Derating) | PFC, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.28" H (127.0mm x 76.2mm x 32.5mm) | CB Scheme, EN, IEC, SIQ, TUV, UL |
|

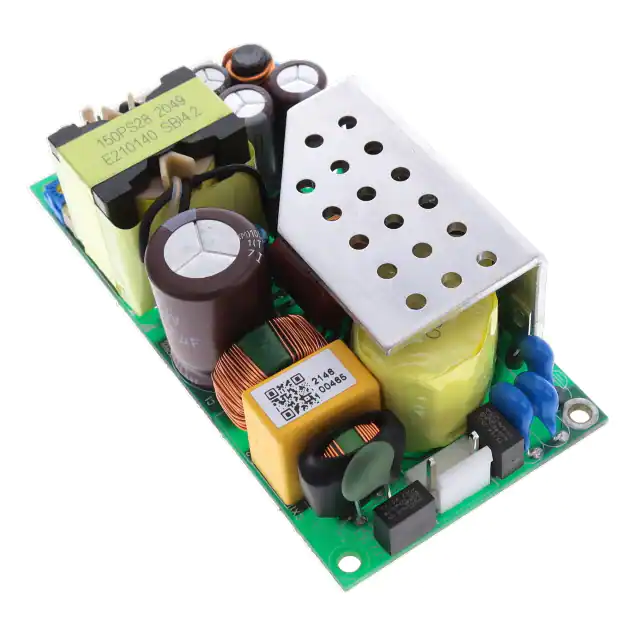

ECP150PS28AC/DC CONVERTER 28V 100W |
158 |
|
Технический лист |
ECP (150W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 28V | - | - | - | - | - | 3.5 A | - | - | - | - | - | 100W (150W Forced Air) | ITE (Commercial), Medical | 4 kV | 92% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.26" H (101.6mm x 50.8mm x 32.0mm) | CB, CE, TUV, UL |
|
TXLN 200-124AC/DC CONVERTER 24V 202W |
43 |
|
Технический лист |
TXLN 200 (200W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 375 VDC | 24V | - | - | - | - | - | 8.4 A | - | - | - | - | - | 202W | ITE (Commercial) | 3 kV | 88% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 8.35" L x 4.53" W x 1.18" H (212.0mm x 115.0mm x 30.0mm) | CB, CE, cURus |
|
UMP-400-24AC/DC CONVERTER 24V 401W |
31 |
|
Технический лист |
UMP-400 (400W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 24V | - | - | - | - | - | 16.7 A | - | - | - | - | - | 401W | ITE (Commercial), Medical | 4 kV | 88.5% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 9.84" L x 3.50" W x 1.46" H (250.0mm x 89.0mm x 37.0mm) | CB, CE, cURus, EAC |
|
HEP-240-54AAC/DC CONVERTER 54V 240W |
532 |
|
Технический лист |
HEP-240 (240W) | Box | Active | Enclosed | 1 | 90 ~ 305 VAC, 127 ~ 431 VDC | 54V | - | - | - | - | - | 4.45 A | - | - | - | - | - | 240W | ITE (Commercial) | 3.75 kV | 93.5% | -55°C ~ 70°C (With Derating) | Adjustable Output, IP65, PFC, Universal Input | Chassis Mount | 9.61" L x 2.68" W x 1.53" H (244.2mm x 68.0mm x 38.8mm) | CB, CE, cURus |
|
|
HEP-240-12AAC/DC CONVERTER 12V 192W |
188 |
|
Технический лист |
HEP-240 (240W) | Box | Active | Enclosed | 1 | 90 ~ 305 VAC, 127 ~ 431 VDC | 12V | - | - | - | - | - | 16 A | - | - | - | - | - | 192W | ITE (Commercial) | 3.75 kV | 90% | -55°C ~ 70°C (With Derating) | Adjustable Output, IP65, PFC, Universal Input | Chassis Mount | 9.61" L x 2.68" W x 1.53" H (244.2mm x 68.0mm x 38.8mm) | CB, CE, cURus |
|

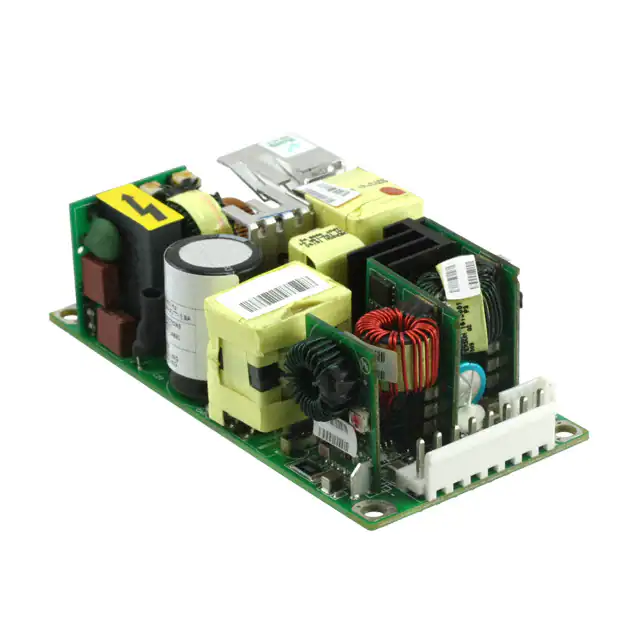

LPT104-MAC/DC CONVERTER 5V 24V 12V 80W |
72 |
|
Технический лист |
LPT100-M (130W) | Bulk | Active | Open Frame | 3 | 90 ~ 264 VAC | 5V | 24V | 12V | - | - | - | 18 A | 3 A | 2.3 A | - | - | - | 80W (130W Forced Air) | ITE (Commercial), Medical | - | 82% | 0°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote Sense, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.28" H (102.0mm x 51.0mm x 32.6mm) | CB, CE |
|
|
LPT103-MAC/DC CONVERTER 5V +/-15V 80W |
60 |
|
Технический лист |
LPT100-M (130W) | Bulk | Active | Open Frame | 3 | 90 ~ 264 VAC | 5V | 15V | -15V | - | - | - | 18 A | 7.2 A | 1.5 A | - | - | - | 80W (130W Forced Air) | ITE (Commercial), Medical | - | 82% | 0°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote Sense, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.28" H (102.0mm x 51.0mm x 32.6mm) | CB, CE |
