Преобразователи переменного и постоянного тока
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - Вход | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - Выход 1 | Ток - Выход 2 | Ток - Выход 3 | Ток - Выход 4 | Ток - Выход 5 | Ток - Выход 6 | Мощность (Вт) | Применение | Напряжение - Изоляция | Эффективность | Рабочая температура | Особенности | Тип крепления | Размер/измерение | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Switching Power Supply ALRS24V1R5ATAC/DC CONVERTER 24V 36W |
10 |
|
Технический лист |
- | Tape & Box (TB) | Active | Enclosed | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 1.5 A | - | - | - | - | - | - | ITE (Commercial) | 1.5 kV | 83% | -10°C ~ 60°C | Adjustable Output, Universal Input | Chassis Mount | 3.35" L x 2.28" W x 1.30" H (85.1mm x 57.9mm x 33.0mm) | - |
|
|
BPS-005Low Cost 24 VAC To 24 VDC Power |
4 |
|
- |
* | Retail Package | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
GSK060A4848V Embedded AC/DC |
2 |
|
Технический лист |
GSK | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | - | - | - | - | - | - | - | ITE (Commercial) | - | 90% | -10°C ~ 70°C (With Derating) | OCP, OTP, OVP, SCP, UVLO | Chassis Mount | 2.00" L x 3.00" W x 1.24" H (50.8mm x 76.2mm x 31.6mm) | - |
|
|
GSK060A2424V Embedded AC/DC |
1 |
|
Технический лист |
GSK | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | - | - | - | - | - | - | - | ITE (Commercial) | - | 90% | -10°C ~ 70°C (With Derating) | OCP, OTP, OVP, SCP, UVLO | Chassis Mount | 2.00" L x 3.00" W x 1.24" H (50.8mm x 76.2mm x 31.6mm) | - |
|
AMEOF30-9SJZAC/DC CONVERTER 9V 30W |
3 |
|
Технический лист |
AMEOF30-JZ (30W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC, 100 ~ 370 VDC | 9V | - | - | - | - | - | 3.333 A | - | - | - | - | - | 30W | ITE (Commercial) | 3 kV | 82% | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.06" H (76.2mm x 50.8mm x 27.0mm) | CE, cURus |
|
|
AMEOF30-5SJZAC/DC CONVERTER 5V 20.5W |
3 |
|
Технический лист |
AMEOF30-JZ (30W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC, 100 ~ 370 VDC | 5V | - | - | - | - | - | 4.1 A | - | - | - | - | - | 21W | ITE (Commercial) | 3 kV | 78% | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.06" H (76.2mm x 50.8mm x 27.0mm) | CE, cURus |
|
|
AMEOF30-24SJZAC/DC CONVERTER 24V 30W |
3 |
|
Технический лист |
AMEOF30-JZ (30W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC, 100 ~ 370 VDC | 24V | - | - | - | - | - | 1.25 A | - | - | - | - | - | 30W | ITE (Commercial) | 3 kV | 87% | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.06" H (76.2mm x 50.8mm x 27.0mm) | CE, cURus |
|
|
AMEOF30-48SJZAC/DC CONVERTER 48V 30W |
3 |
|
Технический лист |
AMEOF30-JZ (30W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC, 100 ~ 370 VDC | 48V | - | - | - | - | - | 625 mA | - | - | - | - | - | 30W | ITE (Commercial) | 3 kV | 88% | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.06" H (76.2mm x 50.8mm x 27.0mm) | CE, cURus |
|
|
AMEOF30-3.3SJZAC/DC CONVERTER 3.3V 13.5W |
3 |
|
Технический лист |
AMEOF30-JZ (30W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC, 100 ~ 370 VDC | 3.3V | - | - | - | - | - | 4.1 A | - | - | - | - | - | 14W | ITE (Commercial) | 3 kV | 73% | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.06" H (76.2mm x 50.8mm x 27.0mm) | CE, cURus |
|
|
BPS-015Regulated Power Supply 24VAC To |
3 |
|
- |
* | Retail Package | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

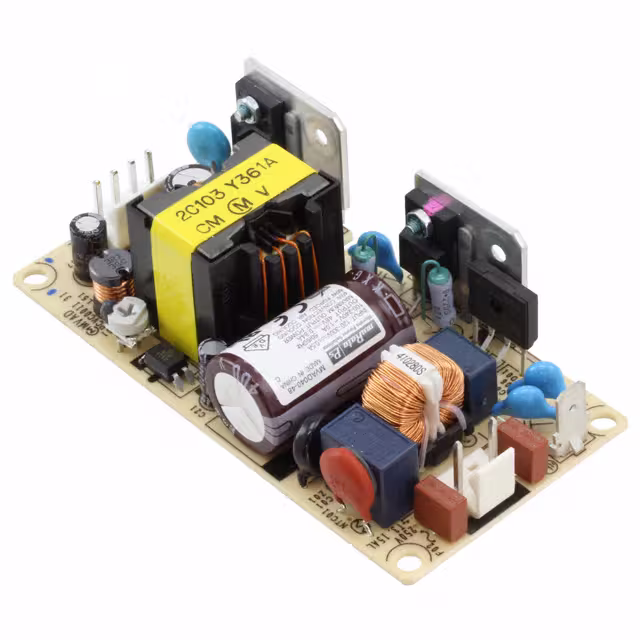

MVAD040-48AC-DC Regulated Power Supply Mod |
4 |
|
- |
MVAD040 (40W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC, 120 ~ 300 VDC | 48V | - | - | - | - | - | 840 mA | - | - | - | - | - | 40W | ITE (Commercial), Medical | 1.5 kV | 89% | -20°C ~ 70°C (With Derating) | DC Input Capable, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.24" H (101.6mm x 50.8mm x 31.5mm) | CB, CE, cURus, VDE |
|
|
MPM-S05524V/2.08A medical 50W convection |
5 |
|
Технический лист |
MPM-S055 (50W) | Bulk | Active | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 2.5 A | - | - | - | - | - | 50W (60W Forced Air) | Medical | 4 kV | 88% | -20°C ~ 80°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.01" H (76.2mm x 50.8mm x 25.6mm) | CB, CE, cUL, TUV, UL |
|
AMEOF65-48SHAMJZ-BAC/DC CONVERTER 48V 65W |
2 |
|
Технический лист |
AMEOF65-HAMJZ (65W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 48V | - | - | - | - | - | 1.36 A | - | - | - | - | - | 65W | Household Appliances, ITE (Commercial), Medical | 4 kV | 91% | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.04" H (76.2mm x 50.8mm x 26.4mm) | - |
|
|
AMEOF65-48SHAMJZAC/DC CONVERTER 48V 65W |
2 |
|
Технический лист |
AMEOF65-HAMJZ (65W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 48V | - | - | - | - | - | 1.36 A | - | - | - | - | - | 65W | Household Appliances, ITE (Commercial), Medical | 4 kV | 91% | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.04" H (76.2mm x 50.8mm x 26.4mm) | - |
|
|
GSK048A2424V Embedded AC/DC |
2 |
|
Технический лист |
GSK | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | - | - | - | - | - | - | - | ITE (Commercial) | - | 90% | -10°C ~ 70°C (With Derating) | OCP, OTP, OVP, SCP, UVLO | Chassis Mount | 2.00" L x 3.00" W x 0.90" H (50.8mm x 76.2mm x 23.6mm) | - |
|

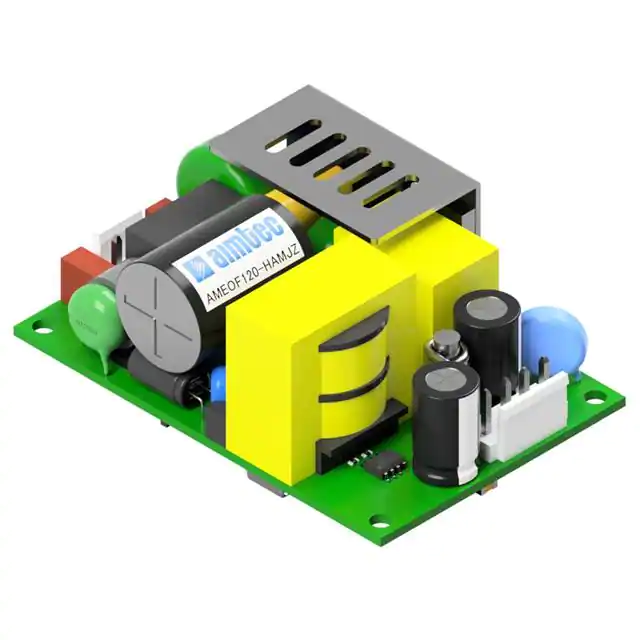

AMEOF120-48SHAMJZ-BAC/DC CONVERTER 48V 120W |
4 |
|
Технический лист |
AMEOF120-HAMJZ (120W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 48V | - | - | - | - | - | 2.5 A | - | - | - | - | - | 120W | Household Appliances, ITE (Commercial), Medical | 4 kV | 94.5% | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.22" H (76.2mm x 50.8mm x 31.0mm) | cULus, cURus |
|
|
AMEOF120-36SHAMJZ-BAC/DC CONVERTER 36V 120W |
3 |
|
Технический лист |
AMEOF120-HAMJZ (120W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 36V | - | - | - | - | - | 3.33 A | - | - | - | - | - | 120W | Household Appliances, ITE (Commercial), Medical | 4 kV | 94% | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.22" H (76.2mm x 50.8mm x 31.0mm) | cULus, cURus |
|
|
AMEOF120-12SHAMJZ-BAC/DC CONVERTER 12V 114W |
3 |
|
Технический лист |
AMEOF120-HAMJZ (114W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 12V | - | - | - | - | - | 9.5 A | - | - | - | - | - | 114W | Household Appliances, ITE (Commercial), Medical | 4 kV | 94% | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.22" H (76.2mm x 50.8mm x 31.0mm) | cULus, cURus |
|
|
AMEOF120-27SHAMJZ-BAC/DC CONVERTER 27V 120W |
3 |
|
Технический лист |
AMEOF120-HAMJZ (120W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 27V | - | - | - | - | - | 4.44 A | - | - | - | - | - | 120W | Household Appliances, ITE (Commercial), Medical | 4 kV | 95% | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.22" H (76.2mm x 50.8mm x 31.0mm) | cULus, cURus |
|
|
AMEOF120-15SHAMJZ-BAC/DC CONVERTER 15V 114W |
2 |
|
Технический лист |
AMEOF120-HAMJZ (114W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 15V | - | - | - | - | - | 7.6 A | - | - | - | - | - | 114W | Household Appliances, ITE (Commercial), Medical | 4 kV | 94% | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.22" H (76.2mm x 50.8mm x 31.0mm) | cULus, cURus |
