Преобразователи переменного и постоянного тока
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - Вход | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - Выход 1 | Ток - Выход 2 | Ток - Выход 3 | Ток - Выход 4 | Ток - Выход 5 | Ток - Выход 6 | Мощность (Вт) | Применение | Напряжение - Изоляция | Эффективность | Рабочая температура | Особенности | Тип крепления | Размер/измерение | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

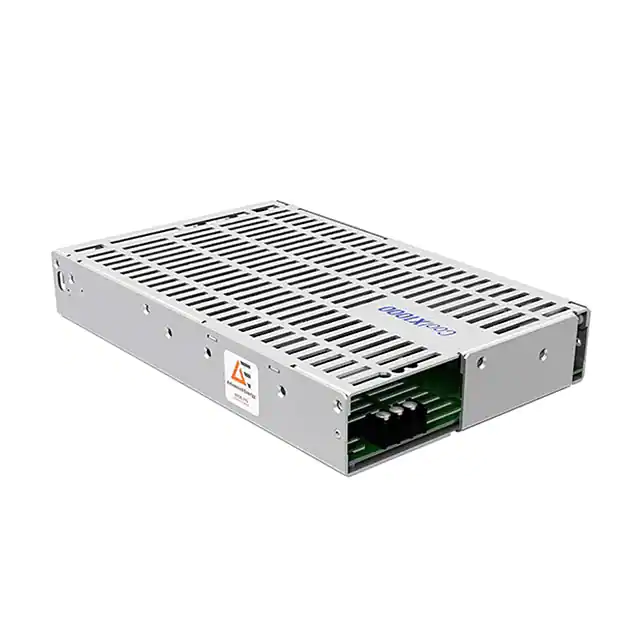

CX10S-ACGA00-P-A-DK00000AC/DC CONVERTER 5V 3X24V 5V 530W |
0 |
|
Технический лист |
COOLX®1000 | Box | Active | Enclosed | 5 | 85 ~ 264 VAC | 5V | 24V | 24V | 24V | 5V | - | 21 A | 8.3 A | 3 A | 3 A | 21 A | - | 530W | ITE (Commercial), Medical | 4 kV | 93% | -40°C ~ 85°C | Adjustable Output, PMBus™, Remote Sense, Standby Output, Universal Input | Chassis Mount | 10.22" L x 6.46" W x 1.60" H (259.5mm x 164.0mm x 40.6mm) | CSA, EN, IEC, UL |
|
|
CX10S-ACCHDH-P-A-DK00000AC/DC CNVT 5V 24V 48V 5V 2X24V |
0 |
|
Технический лист |
COOLX®1000 | Box | Active | Enclosed | 8 | 85 ~ 264 VAC | 5V | 24V | 24V | 5V | 24V | 48V | 21 A | 8.3 A | 8.3 A | 6 A | 3 A | 4.17 A | 905W | ITE (Commercial), Medical | 4 kV | 93% | -40°C ~ 85°C | Adjustable Output, PMBus™, Remote Sense, Standby Output, Universal Input | Chassis Mount | 10.22" L x 6.46" W x 1.60" H (259.5mm x 164.0mm x 40.6mm) | CSA, EN, IEC, UL |
|
|
CX10S-B0BDA0-P-A-DK00000AC/DC CNVRTR 5V 48V 2X12V 665W |
0 |
|
Технический лист |
COOLX®1000 | Box | Active | Enclosed | 4 | 85 ~ 264 VAC | 12V | 12V | 48V | 5V | - | - | 15 A | 15 A | 4.17 A | 21 A | - | - | 665W | ITE (Commercial), Medical | 4 kV | 93% | -40°C ~ 85°C | Adjustable Output, PMBus™, Remote Sense, Standby Output, Universal Input | Chassis Mount | 10.22" L x 6.46" W x 1.60" H (259.5mm x 164.0mm x 40.6mm) | CSA, EN, IEC, UL |
|
|
CX10S-AACCD0-P-A-DK00000AC/DC CNVT 2X5V 2X24V 48V 810W |
0 |
|
Технический лист |
COOLX®1000 | Box | Active | Enclosed | 5 | 85 ~ 264 VAC | 5V | 5V | 24V | 24V | 48V | - | 21 A | 21 A | 8.3 A | 8.3 A | 4.17 A | - | 810W | ITE (Commercial), Medical | 4 kV | 93% | -40°C ~ 85°C | Adjustable Output, PMBus™, Remote Sense, Standby Output, Universal Input | Chassis Mount | 10.22" L x 6.46" W x 1.60" H (259.5mm x 164.0mm x 40.6mm) | CSA, EN, IEC, UL |
|
|
CX10S-0GAAD0-P-A-DK00000AC/DC CNVT 2X24V 2X5V 48V 530W |
0 |
|
Технический лист |
COOLX®1000 | Box | Active | Enclosed | 5 | 85 ~ 264 VAC | 24V | 24V | 5V | 5V | 48V | - | 3 A | 3 A | 21 A | 21 A | 4.17 A | - | 530W | ITE (Commercial), Medical | 4 kV | 93% | -40°C ~ 85°C | Adjustable Output, PMBus™, Remote Sense, Standby Output, Universal Input | Chassis Mount | 10.22" L x 6.46" W x 1.60" H (259.5mm x 164.0mm x 40.6mm) | CSA, EN, IEC, UL |
|
AMEOF30-15SJZAC/DC CONVERTER 15V 30W |
0 |
|
Технический лист |
AMEOF30-JZ (30W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC, 100 ~ 370 VDC | 15V | - | - | - | - | - | 2 A | - | - | - | - | - | 30W | ITE (Commercial) | 3 kV | 86% | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.06" H (76.2mm x 50.8mm x 27.0mm) | CE, cURus |
|
RACM60-05SK/OF/2X4AC/DC CONVERTER 5V 40W |
0 |
|
Технический лист |
POWERLINE RACM60-K/OF (60W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC, 120 ~ 370 VDC | 5V | - | - | - | - | - | 8 A | - | - | - | - | - | 40W | Household Appliances, ITE (Commercial), Medical | 4 kV | 89% | -40°C ~ 85°C (With Derating) | Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.09" W x 1.24" H (101.6mm x 53.0mm x 31.5mm) | CE, cURus |
|
|
CM4006JBCM4 24ZC |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
T100106170-F028D00LFMERCURYFLEX RECTIFIER, 3.8KW 2U |
0 |
|
Технический лист |
MercuryFlex (3800W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 28V | - | - | - | - | - | 160 A | - | - | - | - | - | 3800W | ITE (Commercial) | 3 kV | 91% | -30°C ~ 55°C | Adjustable Output, Universal Input, Programmable, CV, CC, CP | Rack Mount | 15.15" L x 4.25" W x 3.42" H (384.7mm x 108.0mm x 86.8mm) | FCC, UL |
|
|
T100106170-F450D00LFMERCURYFLEX RECTIFIER, 3.8KW 2U |
0 |
|
Технический лист |
MercuryFlex (3800W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 450V | - | - | - | - | - | 10.2 A | - | - | - | - | - | 3800W | ITE (Commercial) | 3 kV | 93% | -30°C ~ 55°C | Adjustable Output, Universal Input, Programmable, CV, CC, CP | Rack Mount | 15.15" L x 4.25" W x 3.42" H (384.7mm x 108.0mm x 86.8mm) | FCC, UL |
|
|
T100106170-F125D00LFMERCURYFLEX RECTIFIER, 3.8KW 2U |
0 |
|
Технический лист |
MercuryFlex (3800W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 125V | - | - | - | - | - | 34.5 A | - | - | - | - | - | 3800W | ITE (Commercial) | 3 kV | 93% | -30°C ~ 55°C | Adjustable Output, Universal Input, Programmable, CV, CC, CP | Rack Mount | 15.15" L x 4.25" W x 3.42" H (384.7mm x 108.0mm x 86.8mm) | FCC, UL |
|
T100103091-1-LF16.5KW LIQUABLADE 1U RECTIFIER, |
0 |
|
Технический лист |
LiquaBlade (16500W) | Box | Active | Enclosed | 1 | 380 ~ 480 VAC (3 Phase) | 60V | - | - | - | - | - | 360 A | - | - | - | - | - | 16500W | ITE (Commercial) | 4.242 kV | 91% | 5°C ~ 50°C | Programmable, Modular, Scalabe, CV, CP, CC, Water Cooled Power Supply, Full Power Factor Correction | Rack Mount | 29.87" L x 19.00" W x 1.72" H (758.0mm x 482.0mm x 43.0mm) | UL, CSA, EN, IEC |
|
AMES150-24S277NZAC/DC CONVERTER 24V 156W |
0 |
|
Технический лист |
AMES150-277NZ (156W) | Obsolete | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 431 VDC | 24V | - | - | - | - | - | 6.5 A | - | - | - | - | - | 156W | Household Appliances, ITE (Commercial) | 4 kV | 88% | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) | CB, CE, EN, IEC, UL | |
|
|
AMES100-12S277NZ-QAC/DC CONVERTER 12V 102W |
0 |
|
Технический лист |
AMES100-277NZ (102W) | Obsolete | Enclosed, Conformal Coated | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 12V | - | - | - | - | - | 8.5 A | - | - | - | - | - | 102W | Household Appliances, ITE (Commercial) | 4 kV | 87% | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 5.08" L x 3.82" W x 1.18" H (129.0mm x 97.0mm x 30.0mm) | CB, CE, EN, IEC, UL | |
|
|
AMES150-48S277NZ-PAC/DC CONVERTER 48V 158W |
0 |
|
Технический лист |
AMES150-277NZ (158W) | Obsolete | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 431 VDC | 48V | - | - | - | - | - | 3.3 A | - | - | - | - | - | 158W | Household Appliances, ITE (Commercial) | 4 kV | 89% | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) | CB, CE, EN, IEC, UL | |
|
AMES75-0512DNZAC/DC CONVERTER 5V 12V 71W |
0 |
|
Технический лист |
AMES75-NZ (71W) | Obsolete | Enclosed | 2 | 90 ~ 264 VAC, 120 ~ 373 VDC | 5V | 12V | - | - | - | - | 7 A | 3 A | - | - | - | - | 71W | Household Appliances, ITE (Commercial) | 4 kV | 82% | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 5.07" L x 3.82" W x 1.18" H (129.0mm x 97.0mm x 30.0mm) | CB, CE, EN, IEC, UL | |
|
|
AMES75-0524DNZAC/DC CONVERTER 5V 24V 73W |
0 |
|
Технический лист |
AMES75-NZ (73W) | Obsolete | Enclosed | 2 | 90 ~ 264 VAC, 120 ~ 373 VDC | 5V | 24V | - | - | - | - | 5 A | 2 A | - | - | - | - | 73W | Household Appliances, ITE (Commercial) | 4 kV | 87% | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 5.07" L x 3.82" W x 1.18" H (129.0mm x 97.0mm x 30.0mm) | CB, CE, EN, IEC, UL | |
|
|
AMES75-12SNZ-QAC/DC CONVERTER 12V 72W |
0 |
|
Технический лист |
AMES75-NZ (72W) | Box | Active | Enclosed, Conformal Coated | 1 | 85 ~ 264 VAC, 120 ~ 373 VDC | 12V | - | - | - | - | - | 6 A | - | - | - | - | - | 72W | Household Appliances, ITE (Commercial) | 4 kV | 88% | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) | CB, CE, EN, IEC, UL |
|
|
AMES150-24S277NZ-PAC/DC CONVERTER 24V 156W |
0 |
|
Технический лист |
AMES150-277NZ (156W) | Box | Active | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 431 VDC | 24V | - | - | - | - | - | 6.5 A | - | - | - | - | - | 156W | Household Appliances, ITE (Commercial) | 4 kV | 88% | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) | CB, CE, EN, IEC, UL |
|
|
AMES100-36S277NZ-QAC/DC CONVERTER 36V 101W |
0 |
|
Технический лист |
AMES100-277NZ (101W) | Box | Active | Enclosed, Conformal Coated | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 36V | - | - | - | - | - | 2.8 A | - | - | - | - | - | 101W | Household Appliances, ITE (Commercial) | 4 kV | 89.5% | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 5.08" L x 3.82" W x 1.18" H (129.0mm x 97.0mm x 30.0mm) | CB, CE, EN, IEC, UL |
