Преобразователи переменного и постоянного тока
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - Вход | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - Выход 1 | Ток - Выход 2 | Ток - Выход 3 | Ток - Выход 4 | Ток - Выход 5 | Ток - Выход 6 | Мощность (Вт) | Применение | Напряжение - Изоляция | Эффективность | Рабочая температура | Особенности | Тип крепления | Размер/измерение | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TP-150DAC/DC CONVERTER 5V 24V 12V 154W |
0 |
|
Технический лист |
TP-150 (150W) | Box | Obsolete | Enclosed | 3 | 90 ~ 264 VAC, 127 ~ 370 VDC | 5V | 24V | 12V | - | - | - | 15 A | 3 A | 600 mA | - | - | - | 154W | ITE (Commercial) | 3 kV | 78% | -10°C ~ 60°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 7.83" L x 3.90" W x 1.97" H (199.0mm x 99.0mm x 50.0mm) | CB, CE, cURus, TUV |
|

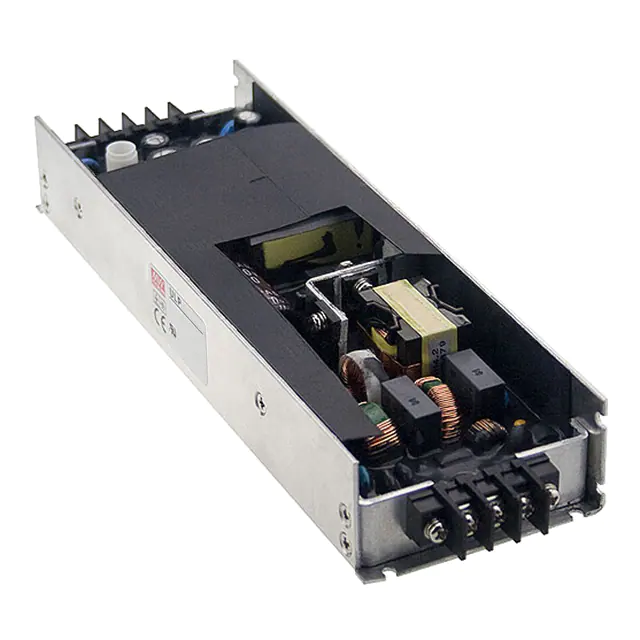

ULP-150-24AC/DC CONVERTER 24V 151W |
0 |
|
Технический лист |
ULP-150 (150W) | Box | Obsolete | Open Frame | 1 | 90 ~ 295 VAC, 127 ~ 417 VDC | 24V | - | - | - | - | - | 6.3 A | - | - | - | - | - | 151W | LED Lighting | 3.75 kV | 93% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 8.46" L x 2.65" W x 1.30" H (215.0mm x 67.4mm x 33.0mm) | CE |
|
|
ULP-150-36AC/DC CONVERTER 36V 151W |
0 |
|
Технический лист |
ULP-150 (150W) | Box | Obsolete | Open Frame | 1 | 90 ~ 295 VAC, 127 ~ 417 VDC | 36V | - | - | - | - | - | 4.2 A | - | - | - | - | - | 151W | LED Lighting | 3.75 kV | 93% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 8.46" L x 2.65" W x 1.30" H (215.0mm x 67.4mm x 33.0mm) | CE |
|
USP-150-12AC/DC CONVERTER 12V 150W |
0 |
|
Технический лист |
USP-150 (150W) | Box | Obsolete | Open Frame | 1 | 90 ~ 295 VAC, 127 ~ 417 VDC | 12V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 150W | ITE (Commercial) | 3 kV | 91.5% | -30°C ~ 65°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 8.46" L x 2.65" W x 1.30" H (215.0mm x 67.4mm x 33.0mm) | CE, cURus |
|
|
USP-150-15AC/DC CONVERTER 15V 150W |
0 |
|
Технический лист |
USP-150 (150W) | Box | Obsolete | Open Frame | 1 | 90 ~ 295 VAC, 127 ~ 417 VDC | 15V | - | - | - | - | - | 10 A | - | - | - | - | - | 150W | ITE (Commercial) | 3 kV | 91.5% | -30°C ~ 65°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 8.46" L x 2.65" W x 1.30" H (215.0mm x 67.4mm x 33.0mm) | CE, cURus |
|
|
USP-150-24AC/DC CONVERTER 24V 151W |
0 |
|
Технический лист |
USP-150 (150W) | Box | Obsolete | Open Frame | 1 | 90 ~ 295 VAC, 127 ~ 417 VDC | 24V | - | - | - | - | - | 6.3 A | - | - | - | - | - | 151W | ITE (Commercial) | 3 kV | 93% | -30°C ~ 65°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 8.46" L x 2.65" W x 1.30" H (215.0mm x 67.4mm x 33.0mm) | CE, cURus |
|
|
USP-150-36AC/DC CONVERTER 36V 151W |
0 |
|
Технический лист |
USP-150 (150W) | Box | Obsolete | Open Frame | 1 | 90 ~ 295 VAC, 127 ~ 417 VDC | 36V | - | - | - | - | - | 4.2 A | - | - | - | - | - | 151W | ITE (Commercial) | 3 kV | 93% | -30°C ~ 65°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 8.46" L x 2.65" W x 1.30" H (215.0mm x 67.4mm x 33.0mm) | CE, cURus |
|

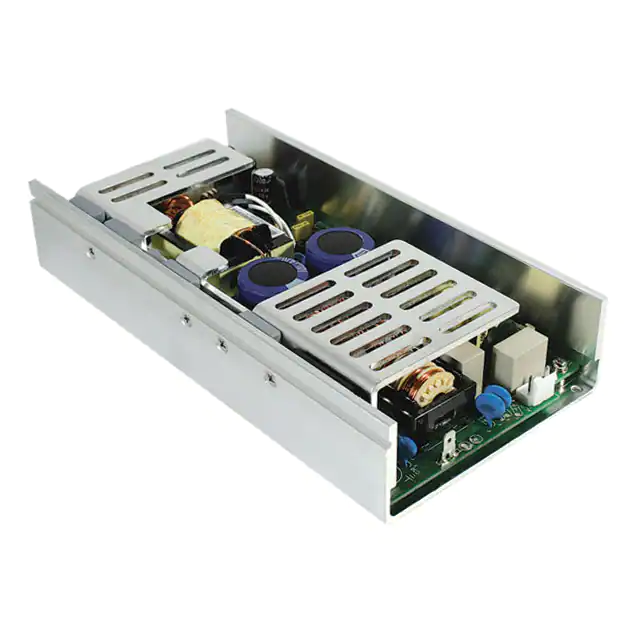

USP-225-12AC/DC CONVERTER 12V 224W |
0 |
|
Технический лист |
USP-225 (225W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 12V | - | - | - | - | - | 18.7 A | - | - | - | - | - | 224W | ITE (Commercial) | 3 kV | 83% | -20°C ~ 65°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 7.95" L x 4.00" W x 1.50" H (202.0mm x 101.5mm x 38.0mm) | CB, CE, cURus, TUV |
|
|
USP-225-15AC/DC CONVERTER 15V 225W |
0 |
|
Технический лист |
USP-225 (225W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 15V | - | - | - | - | - | 15 A | - | - | - | - | - | 225W | ITE (Commercial) | 3 kV | 84% | -20°C ~ 65°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 7.95" L x 4.00" W x 1.50" H (202.0mm x 101.5mm x 38.0mm) | CB, CE, cURus, TUV |
|
|
USP-225-24AC/DC CONVERTER 24V 226W |
0 |
|
Технический лист |
USP-225 (225W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 24V | - | - | - | - | - | 9.4 A | - | - | - | - | - | 226W | ITE (Commercial) | 3 kV | 85% | -20°C ~ 65°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 7.95" L x 4.00" W x 1.50" H (202.0mm x 101.5mm x 38.0mm) | CB, CE, cURus, TUV |
|
|
USP-225-3.3AC/DC CONVERTER 3.3V 132W |
0 |
|
Технический лист |
USP-225 (225W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 3.3V | - | - | - | - | - | 40 A | - | - | - | - | - | 132W | ITE (Commercial) | 3 kV | 72% | -20°C ~ 65°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 7.95" L x 4.00" W x 1.50" H (202.0mm x 101.5mm x 38.0mm) | CB, CE, cURus, TUV |
|
|
USP-225-48AC/DC CONVERTER 48V 226W |
0 |
|
Технический лист |
USP-225 (225W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 48V | - | - | - | - | - | 4.7 A | - | - | - | - | - | 226W | ITE (Commercial) | 3 kV | 86% | -20°C ~ 65°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 7.95" L x 4.00" W x 1.50" H (202.0mm x 101.5mm x 38.0mm) | CB, CE, cURus, TUV |
|
|
USP-225-5AC/DC CONVERTER 5V 200W |
0 |
|
Технический лист |
USP-225 (225W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 5V | - | - | - | - | - | 40 A | - | - | - | - | - | 200W | ITE (Commercial) | 3 kV | 77% | -20°C ~ 65°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 7.95" L x 4.00" W x 1.50" H (202.0mm x 101.5mm x 38.0mm) | CB, CE, cURus, TUV |
|

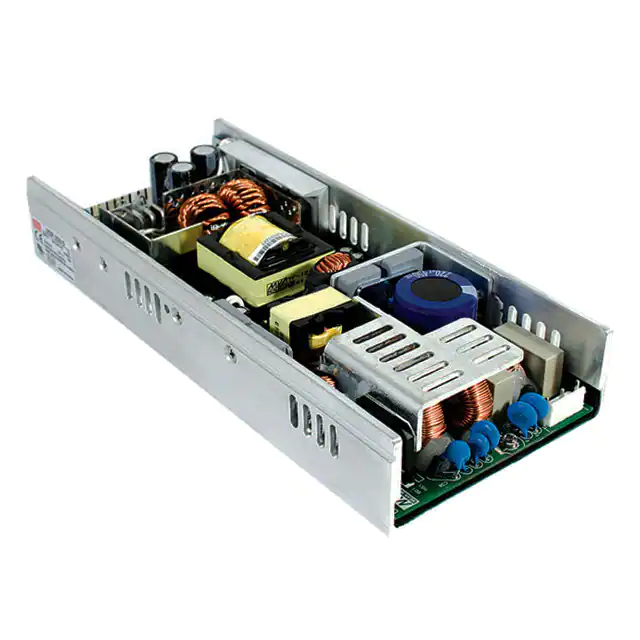

USP-350-12AC/DC CONVERTER 12V 300W |
0 |
|
Технический лист |
USP-350 (350W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 12V | - | - | - | - | - | 25 A | - | - | - | - | - | 300W (350W Forced Air) | ITE (Commercial) | 3 kV | 88% | -10°C ~ 65°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 9.26" L x 4.00" W x 1.50" H (235.2mm x 101.5mm x 38.0mm) | CB, CE, cURus, TUV |
|
|
USP-350-15AC/DC CONVERTER 15V 300W |
0 |
|
Технический лист |
USP-350 (350W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 15V | - | - | - | - | - | 20 A | - | - | - | - | - | 300W (351W Forced Air) | ITE (Commercial) | 3 kV | 88% | -10°C ~ 65°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 9.26" L x 4.00" W x 1.50" H (235.2mm x 101.5mm x 38.0mm) | CB, CE, cURus, TUV |
|
|
USP-350-24AC/DC CONVERTER 24V 300W |
0 |
|
Технический лист |
USP-350 (350W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 24V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 300W (350W Forced Air) | ITE (Commercial) | 3 kV | 88% | -10°C ~ 65°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 9.26" L x 4.00" W x 1.50" H (235.2mm x 101.5mm x 38.0mm) | CB, CE, cURus, TUV |
|
|
USP-350-3.3AC/DC CONVERTER 3.3V 165W |
0 |
|
Технический лист |
USP-350 (350W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 3.3V | - | - | - | - | - | 50 A | - | - | - | - | - | 165W (231W Forced Air) | ITE (Commercial) | 3 kV | 78% | -10°C ~ 65°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 9.26" L x 4.00" W x 1.50" H (235.2mm x 101.5mm x 38.0mm) | CB, CE, cURus, TUV |
|
|
USP-350-48AC/DC CONVERTER 48V 300W |
0 |
|
Технический лист |
USP-350 (350W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 48V | - | - | - | - | - | 6.25 A | - | - | - | - | - | 300W (350W Forced Air) | ITE (Commercial) | 3 kV | 89% | -10°C ~ 65°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 9.26" L x 4.00" W x 1.50" H (235.2mm x 101.5mm x 38.0mm) | CB, CE, cURus, TUV |
|
|
USP-350-5AC/DC CONVERTER 5V 250W |
0 |
|
Технический лист |
USP-350 (350W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 5V | - | - | - | - | - | 50 A | - | - | - | - | - | 250W (350W Forced Air) | ITE (Commercial) | 3 kV | 84% | -10°C ~ 65°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 9.26" L x 4.00" W x 1.50" H (235.2mm x 101.5mm x 38.0mm) | CB, CE, cURus, TUV |
|
USP-500-12AC/DC CONVERTER 12V 396W |
0 |
|
Технический лист |
USP-500 (500W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 12V | - | - | - | - | - | 33 A | - | - | - | - | - | 396W (504W Forced Air) | ITE (Commercial) | 3 kV | 90% | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Universal Input | Chassis Mount | 10.00" L x 5.00" W x 1.61" H (254.0mm x 127.0mm x 41.0mm) | CB, CE, cURus, TUV |
