Преобразователи переменного и постоянного тока
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - Вход | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - Выход 1 | Ток - Выход 2 | Ток - Выход 3 | Ток - Выход 4 | Ток - Выход 5 | Ток - Выход 6 | Мощность (Вт) | Применение | Напряжение - Изоляция | Эффективность | Рабочая температура | Особенности | Тип крепления | Размер/измерение | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LDA100W-5AC/DC CONVERTER 5V 100W |
0 |
|
Технический лист |
LDA (100W) | Box | Obsolete | Open Frame | 1 | 85 ~ 132 VAC, 170 ~ 264 VAC | 5V | - | - | - | - | - | 20 A | - | - | - | - | - | 100W | ITE (Commercial) | 3 kV | 79% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 8.74" L x 2.44" W x 1.38" H (222.0mm x 62.0mm x 35.0mm) | cCSAus, CE, cURus, TUV |
|
|
LDA10F-12AC/DC CONVERTER 12V 11W |
0 |
|
Технический лист |
LDA (10W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 110 ~ 370 VDC | 12V | - | - | - | - | - | 900 mA | - | - | - | - | - | 11W | ITE (Commercial) | 3 kV | 74% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.13" L x 1.97" W x 0.83" H (105.0mm x 50.0mm x 21.0mm) | cCSAus, CE, cURus, TUV |
|
|
LDA10F-12-GAC/DC CONVERTER 12V 11W |
0 |
|
Технический лист |
LDA (10W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 110 ~ 370 VDC | 12V | - | - | - | - | - | 900 mA | - | - | - | - | - | 11W | ITE (Commercial) | - | 74% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.13" L x 1.97" W x 0.83" H (105.0mm x 50.0mm x 21.0mm) | cCSAus, CE, cURus, TUV |
|
|
LDA10F-12-GYAC/DC CONVERTER 12V 11W |
0 |
|
Технический лист |
LDA (10W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 110 ~ 370 VDC | 12V | - | - | - | - | - | 900 mA | - | - | - | - | - | 11W | ITE (Commercial) | - | 74% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.13" L x 1.97" W x 0.83" H (105.0mm x 50.0mm x 21.0mm) | cCSAus, CE, cURus, TUV |
|
|
LDA10F-12-YAC/DC CONVERTER 12V 11W |
0 |
|
Технический лист |
LDA (10W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 110 ~ 370 VDC | 12V | - | - | - | - | - | 900 mA | - | - | - | - | - | 11W | ITE (Commercial) | 3 kV | 74% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.13" L x 1.97" W x 0.83" H (105.0mm x 50.0mm x 21.0mm) | cCSAus, CE, cURus, TUV |
|
|
LDA10F-15AC/DC CONVERTER 15V 11W |
0 |
|
Технический лист |
LDA (10W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 110 ~ 370 VDC | 15V | - | - | - | - | - | 700 mA | - | - | - | - | - | 11W | ITE (Commercial) | 3 kV | 74% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.13" L x 1.97" W x 0.83" H (105.0mm x 50.0mm x 21.0mm) | cCSAus, CE, cURus, TUV |
|
|
LDA10F-15-SNAC/DC CONVERTER 15V 11W |
0 |
|
Технический лист |
LDA (10W) | Box | Obsolete | Enclosed | 1 | 85 ~ 264 VAC, 110 ~ 370 VDC | 15V | - | - | - | - | - | 700 mA | - | - | - | - | - | 11W | ITE (Commercial) | 3 kV | 74% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.92" L x 2.24" W x 1.26" H (125.0mm x 57.0mm x 32.0mm) | cCSAus, CE, cURus, TUV |
|
|
LDA10F-15-SNYAC/DC CONVERTER 15V 11W |
0 |
|
Технический лист |
LDA (10W) | Box | Obsolete | Enclosed | 1 | 85 ~ 264 VAC, 110 ~ 370 VDC | 15V | - | - | - | - | - | 700 mA | - | - | - | - | - | 11W | ITE (Commercial) | 3 kV | 74% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.92" L x 2.24" W x 1.26" H (125.0mm x 57.0mm x 32.0mm) | cCSAus, CE, cURus, TUV |
|
|
LDA10F-24AC/DC CONVERTER 24V 12W |
0 |
|
Технический лист |
LDA (10W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 110 ~ 370 VDC | 24V | - | - | - | - | - | 500 mA | - | - | - | - | - | 12W | ITE (Commercial) | 3 kV | 78% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.13" L x 1.97" W x 0.83" H (105.0mm x 50.0mm x 21.0mm) | cCSAus, CE, cURus, TUV |
|
|
LDA10F-24-CAC/DC CONVERTER 24V 12W |
0 |
|
Технический лист |
LDA (10W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 110 ~ 370 VDC | 24V | - | - | - | - | - | 500 mA | - | - | - | - | - | 12W | ITE (Commercial) | - | 78% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.13" L x 1.97" W x 0.83" H (105.0mm x 50.0mm x 21.0mm) | cCSAus, CE, cURus, TUV |
|
|
LDA10F-24-CYAC/DC CONVERTER 24V 12W |
0 |
|
Технический лист |
LDA (10W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 110 ~ 370 VDC | 24V | - | - | - | - | - | 500 mA | - | - | - | - | - | 12W | ITE (Commercial) | - | 78% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.13" L x 1.97" W x 0.83" H (105.0mm x 50.0mm x 21.0mm) | cCSAus, CE, cURus, TUV |
|
|
LDA10F-24-SNAC/DC CONVERTER 24V 12W |
0 |
|
Технический лист |
LDA (10W) | Box | Obsolete | Enclosed | 1 | 85 ~ 264 VAC, 110 ~ 370 VDC | 24V | - | - | - | - | - | 500 mA | - | - | - | - | - | 12W | ITE (Commercial) | 3 kV | 78% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.92" L x 2.24" W x 1.26" H (125.0mm x 57.0mm x 32.0mm) | cCSAus, CE, cURus, TUV |
|
|
LDA10F-24-SNYAC/DC CONVERTER 24V 12W |
0 |
|
Технический лист |
LDA (10W) | Box | Obsolete | Enclosed | 1 | 85 ~ 264 VAC, 110 ~ 370 VDC | 24V | - | - | - | - | - | 500 mA | - | - | - | - | - | 12W | ITE (Commercial) | 3 kV | 78% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.92" L x 2.24" W x 1.26" H (125.0mm x 57.0mm x 32.0mm) | cCSAus, CE, cURus, TUV |
|
|
LDA10F-24-YAC/DC CONVERTER 24V 12W |
0 |
|
Технический лист |
LDA (10W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 110 ~ 370 VDC | 24V | - | - | - | - | - | 500 mA | - | - | - | - | - | 12W | ITE (Commercial) | 3 kV | 78% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.13" L x 1.97" W x 0.83" H (105.0mm x 50.0mm x 21.0mm) | cCSAus, CE, cURus, TUV |
|
|
LDA10F-3-SNAC/DC CONVERTER 3V 6W |
0 |
|
Технический лист |
LDA (10W) | Box | Obsolete | Enclosed | 1 | 85 ~ 264 VAC, 110 ~ 370 VDC | 3V | - | - | - | - | - | 2 A | - | - | - | - | - | 6W | ITE (Commercial) | 3 kV | 68% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.92" L x 2.24" W x 1.26" H (125.0mm x 57.0mm x 32.0mm) | cCSAus, CE, cURus, TUV |
|

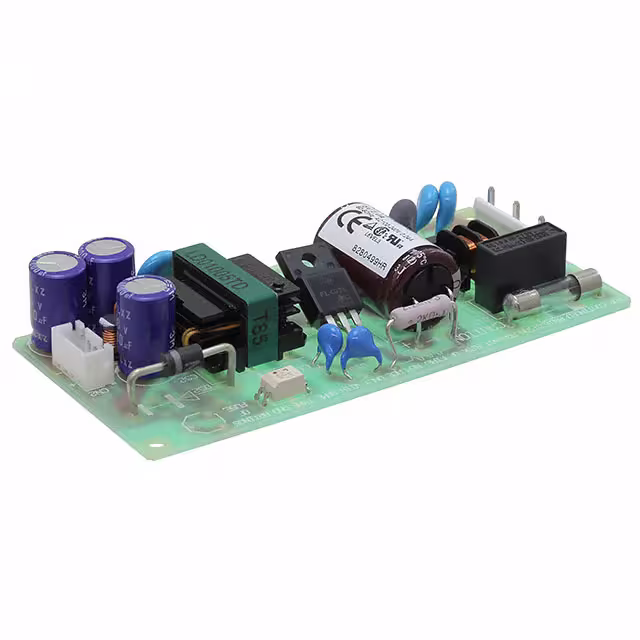

LDA10F-5AC/DC CONVERTER 5V 10W |
0 |
|
Технический лист |
LDA (10W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 110 ~ 370 VDC | 5V | - | - | - | - | - | 2 A | - | - | - | - | - | 10W | ITE (Commercial) | 3 kV | 72% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.13" L x 1.97" W x 0.83" H (105.0mm x 50.0mm x 21.0mm) | cCSAus, CE, cURus, TUV |
|
|
LDA10F-5-CYAC/DC CONVERTER 5V 10W |
0 |
|
Технический лист |
LDA (10W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 110 ~ 370 VDC | 5V | - | - | - | - | - | 2 A | - | - | - | - | - | 10W | ITE (Commercial) | - | 72% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.13" L x 1.97" W x 0.83" H (105.0mm x 50.0mm x 21.0mm) | cCSAus, CE, cURus, TUV |
|
|
LDA10F-5-SNCAC/DC CONVERTER 5V 10W |
0 |
|
Технический лист |
LDA (10W) | Box | Obsolete | Enclosed | 1 | 85 ~ 264 VAC, 110 ~ 370 VDC | 5V | - | - | - | - | - | 2 A | - | - | - | - | - | 10W | ITE (Commercial) | - | 72% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.92" L x 2.24" W x 1.26" H (125.0mm x 57.0mm x 32.0mm) | cCSAus, CE, cURus, TUV |
|
|
LDA10F-5-SNCYAC/DC CONVERTER 5V 10W |
0 |
|
Технический лист |
LDA (10W) | Box | Obsolete | Enclosed | 1 | 85 ~ 264 VAC, 110 ~ 370 VDC | 5V | - | - | - | - | - | 2 A | - | - | - | - | - | 10W | ITE (Commercial) | - | 72% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.92" L x 2.24" W x 1.26" H (125.0mm x 57.0mm x 32.0mm) | cCSAus, CE, cURus, TUV |
|
|
LDA10F-5-VAC/DC CONVERTER 5V 10W |
0 |
|
Технический лист |
LDA (10W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 110 ~ 370 VDC | 5V | - | - | - | - | - | 2 A | - | - | - | - | - | 10W | ITE (Commercial) | - | 72% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.13" L x 1.97" W x 0.83" H (105.0mm x 50.0mm x 21.0mm) | cCSAus, CE, cURus, TUV |
