Преобразователи переменного и постоянного тока
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - Вход | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - Выход 1 | Ток - Выход 2 | Ток - Выход 3 | Ток - Выход 4 | Ток - Выход 5 | Ток - Выход 6 | Мощность (Вт) | Применение | Напряжение - Изоляция | Эффективность | Рабочая температура | Особенности | Тип крепления | Размер/измерение | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

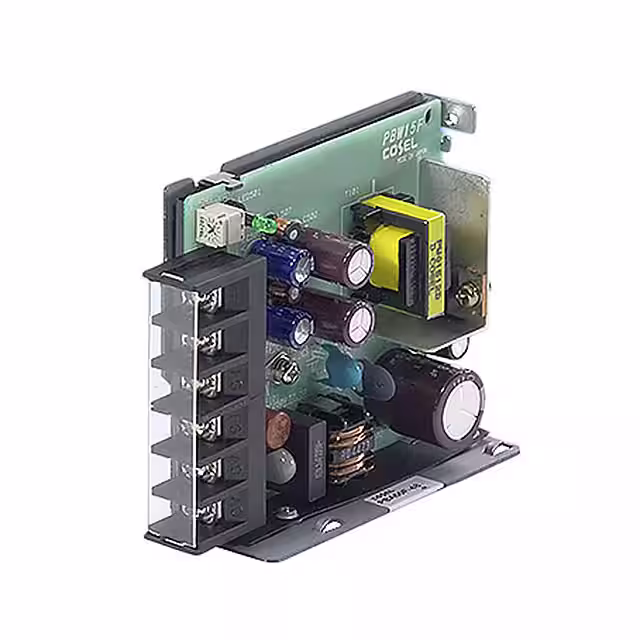

PBW15F-12-JAC/DC CONVERTER +/-12V |
0 |
|
Технический лист |
PBW (15W) | Box | Obsolete | Open Frame | 2 | 85 ~ 264 VAC | 12V | -12V | - | - | - | - | 700 mA | 1.4 A | - | - | - | - | - | ITE (Commercial) | 3 kV | 77% | -10°C ~ 71°C (With Derating) | - | Chassis Mount | 3.35" L x 1.22" W x 3.07" H (85.1mm x 31.0mm x 78.0mm) | CE, cURus, TUV |
|
PBW15F-12-JNAC/DC CONVERTER +/-12V |
0 |
|
Технический лист |
PBW (15W) | Box | Obsolete | Open Frame | 2 | 85 ~ 264 VAC | 12V | -12V | - | - | - | - | 700 mA | 1.4 A | - | - | - | - | - | ITE (Commercial) | 3 kV | 77% | -10°C ~ 71°C (With Derating) | - | Chassis Mount | 3.35" L x 1.22" W x 3.07" H (85.1mm x 31.0mm x 78.0mm) | CE, cURus, TUV |
|
|
PBW15F-15-CJAC/DC CONVERTER +/-15V |
0 |
|
Технический лист |
PBW (15W) | Box | Obsolete | Open Frame | 2 | 85 ~ 264 VAC | 15V | -15V | - | - | - | - | 500 mA | 1 A | - | - | - | - | - | ITE (Commercial) | 3 kV | 80% | -10°C ~ 71°C (With Derating) | - | Chassis Mount | 3.35" L x 1.22" W x 3.07" H (85.1mm x 31.0mm x 78.0mm) | CE, cURus, TUV |
|
|
PBW15F-15-JAC/DC CONVERTER +/-15V |
0 |
|
Технический лист |
PBW (15W) | Box | Obsolete | Open Frame | 2 | 85 ~ 264 VAC | 15V | -15V | - | - | - | - | 500 mA | 1 A | - | - | - | - | - | ITE (Commercial) | 3 kV | 80% | -10°C ~ 71°C (With Derating) | - | Chassis Mount | 3.35" L x 1.22" W x 3.07" H (85.1mm x 31.0mm x 78.0mm) | CE, cURus, TUV |
|
|
PBW15F-15-JNAC/DC CONVERTER +/-15V |
0 |
|
Технический лист |
PBW (15W) | Box | Obsolete | Open Frame | 2 | 85 ~ 264 VAC | 15V | -15V | - | - | - | - | 500 mA | 1 A | - | - | - | - | - | ITE (Commercial) | 3 kV | 80% | -10°C ~ 71°C (With Derating) | - | Chassis Mount | 3.35" L x 1.22" W x 3.07" H (85.1mm x 31.0mm x 78.0mm) | CE, cURus, TUV |
|
PBW30F-12-EJAC/DC CONVERTER +/-12V |
0 |
|
Технический лист |
PBW (30W) | Box | Obsolete | Open Frame | 2 | 85 ~ 264 VAC | 12V | -12V | - | - | - | - | 1.3 A | 1.7 A | - | - | - | - | - | ITE (Commercial) | 3 kV | 81% | -10°C ~ 71°C (With Derating) | - | Chassis Mount | 4.06" L x 1.22" W x 3.07" H (103.1mm x 31.0mm x 78.0mm) | CE, cURus, TUV |
|
PBW30F-12-EJNAC/DC CONVERTER +/-12V |
0 |
|
Технический лист |
PBW (30W) | Box | Obsolete | Enclosed | 2 | 85 ~ 264 VAC | 12V | -12V | - | - | - | - | 1.3 A | 1.7 A | - | - | - | - | - | ITE (Commercial) | 3 kV | 81% | -10°C ~ 71°C (With Derating) | - | Chassis Mount | 4.06" L x 1.22" W x 3.07" H (103.1mm x 31.0mm x 78.0mm) | CE, cURus, TUV |
|
|
PBW30F-12-JAC/DC CONVERTER +/-12V |
0 |
|
Технический лист |
PBW (30W) | Box | Obsolete | Open Frame | 2 | 85 ~ 264 VAC | 12V | -12V | - | - | - | - | 1.3 A | 1.7 A | - | - | - | - | - | ITE (Commercial) | 3 kV | 81% | -10°C ~ 71°C (With Derating) | - | Chassis Mount | 4.06" L x 1.22" W x 3.07" H (103.1mm x 31.0mm x 78.0mm) | CE, cURus, TUV |
|
|
PBW30F-12-JNAC/DC CONVERTER +/-12V |
0 |
|
Технический лист |
PBW (30W) | Box | Obsolete | Enclosed | 2 | 85 ~ 264 VAC | 12V | -12V | - | - | - | - | 1.3 A | 1.7 A | - | - | - | - | - | ITE (Commercial) | 3 kV | 81% | -10°C ~ 71°C (With Derating) | - | Chassis Mount | 4.06" L x 1.22" W x 3.07" H (103.1mm x 31.0mm x 78.0mm) | CE, cURus, TUV |
|
|
PBW30F-15-CJNAC/DC CONVERTER +/-15V |
0 |
|
Технический лист |
PBW (30W) | Box | Obsolete | Enclosed | 2 | 85 ~ 264 VAC | 15V | -15V | - | - | - | - | 1 A | 1.4 A | - | - | - | - | - | ITE (Commercial) | 3 kV | 79% | -10°C ~ 71°C (With Derating) | - | Chassis Mount | 4.06" L x 1.22" W x 3.07" H (103.1mm x 31.0mm x 78.0mm) | CE, cURus, TUV |
|
|
PBW30F-15-JAC/DC CONVERTER +/-15V |
0 |
|
Технический лист |
PBW (30W) | Box | Obsolete | Open Frame | 2 | 85 ~ 264 VAC | 15V | -15V | - | - | - | - | 1 A | 1.4 A | - | - | - | - | - | ITE (Commercial) | 3 kV | 79% | -10°C ~ 71°C (With Derating) | - | Chassis Mount | 4.06" L x 1.22" W x 3.07" H (103.1mm x 31.0mm x 78.0mm) | CE, cURus, TUV |
|
|
PBW30F-15-JNAC/DC CONVERTER +/-15V |
0 |
|
Технический лист |
PBW (30W) | Box | Obsolete | Enclosed | 2 | 85 ~ 264 VAC | 15V | -15V | - | - | - | - | 1 A | 1.4 A | - | - | - | - | - | ITE (Commercial) | 3 kV | 79% | -10°C ~ 71°C (With Derating) | - | Chassis Mount | 4.06" L x 1.22" W x 3.07" H (103.1mm x 31.0mm x 78.0mm) | CE, cURus, TUV |
|
|
PBW30F-5-JAC/DC CONVERTER +/-5V |
0 |
|
Технический лист |
PBW (30W) | Box | Obsolete | Open Frame | 2 | 85 ~ 264 VAC | 5V | -5V | - | - | - | - | 1.5 A | 2 A | - | - | - | - | - | ITE (Commercial) | 3 kV | 75% | -10°C ~ 71°C (With Derating) | - | Chassis Mount | 4.06" L x 1.22" W x 3.07" H (103.1mm x 31.0mm x 78.0mm) | CE, cURus, TUV |
|
|
PBW30F-5-JNAC/DC CONVERTER +/-5V |
0 |
|
Технический лист |
PBW (30W) | Box | Obsolete | Enclosed | 2 | 85 ~ 264 VAC | 5V | -5V | - | - | - | - | 1.5 A | 2 A | - | - | - | - | - | ITE (Commercial) | 3 kV | 75% | -10°C ~ 71°C (With Derating) | - | Chassis Mount | 4.06" L x 1.22" W x 3.07" H (103.1mm x 31.0mm x 78.0mm) | CE, cURus, TUV |
|
PBW50F-12-EJAC/DC CONVERTER +/-12V |
0 |
|
Технический лист |
PBW (50W) | Box | Obsolete | Open Frame | 2 | 85 ~ 264 VAC | 12V | -12V | - | - | - | - | 2.1 A | 2.7 A | - | - | - | - | - | ITE (Commercial) | 3 kV | 83% | -10°C ~ 71°C (With Derating) | - | Chassis Mount | 4.72" L x 1.22" W x 3.23" H (119.9mm x 31.0mm x 82.0mm) | CE, cURus, TUV |
|
|
PBW50F-12-JAC/DC CONVERTER +/-12V |
0 |
|
Технический лист |
PBW (50W) | Box | Obsolete | Open Frame | 2 | 85 ~ 264 VAC | 12V | -12V | - | - | - | - | 2.1 A | 2.7 A | - | - | - | - | - | ITE (Commercial) | 3 kV | 83% | -10°C ~ 71°C (With Derating) | - | Chassis Mount | 4.72" L x 1.22" W x 3.23" H (119.9mm x 31.0mm x 82.0mm) | CE, cURus, TUV |
|
PBW50F-12-JNAC/DC CONVERTER +/-12V |
0 |
|
Технический лист |
PBW (50W) | Box | Obsolete | Enclosed | 2 | 85 ~ 264 VAC | 12V | -12V | - | - | - | - | 2.1 A | 2.7 A | - | - | - | - | - | ITE (Commercial) | 3 kV | 83% | -10°C ~ 71°C (With Derating) | - | Chassis Mount | 4.72" L x 1.22" W x 3.23" H (119.9mm x 31.0mm x 82.0mm) | CE, cURus, TUV |
|
|
PBW50F-15-JAC/DC CONVERTER +/-15V |
0 |
|
Технический лист |
PBW (50W) | Box | Obsolete | Open Frame | 2 | 85 ~ 264 VAC | 15V | -15V | - | - | - | - | 1.7 A | 2.4 A | - | - | - | - | - | ITE (Commercial) | 3 kV | 83% | -10°C ~ 71°C (With Derating) | - | Chassis Mount | 4.72" L x 1.22" W x 3.23" H (119.9mm x 31.0mm x 82.0mm) | CE, cURus, TUV |
|
|
PBW50F-15-JNAC/DC CONVERTER +/-15V |
0 |
|
Технический лист |
PBW (50W) | Box | Obsolete | Enclosed | 2 | 85 ~ 264 VAC | 15V | -15V | - | - | - | - | 1.7 A | 2.4 A | - | - | - | - | - | ITE (Commercial) | 3 kV | 83% | -10°C ~ 71°C (With Derating) | - | Chassis Mount | 4.72" L x 1.22" W x 3.23" H (119.9mm x 31.0mm x 82.0mm) | CE, cURus, TUV |
|
|
PBW50F-15-JVAC/DC CONVERTER +/-15V |
0 |
|
Технический лист |
PBW (50W) | Box | Obsolete | Open Frame | 2 | 85 ~ 264 VAC | 15V | -15V | - | - | - | - | 1.7 A | 2.4 A | - | - | - | - | - | ITE (Commercial) | 3 kV | 83% | -10°C ~ 71°C (With Derating) | - | Chassis Mount | 4.72" L x 1.22" W x 3.23" H (119.9mm x 31.0mm x 82.0mm) | CE, cURus, TUV |
