Преобразователи переменного и постоянного тока
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - Вход | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - Выход 1 | Ток - Выход 2 | Ток - Выход 3 | Ток - Выход 4 | Ток - Выход 5 | Ток - Выход 6 | Мощность (Вт) | Применение | Напряжение - Изоляция | Эффективность | Рабочая температура | Особенности | Тип крепления | Размер/измерение | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CSP-3000-250AC/DC CONVERTER 250V 3000W |
135 |
|
Технический лист |
CSP-3000 (3000W) | Box | Active | Enclosed | 1 | 180 ~ 264 VAC, 254 ~ 370 VDC | 250V | - | - | - | - | - | 12 A | - | - | - | - | - | 3000W | ITE (Commercial) | 3 kV | 92.5% | -20°C ~ 65°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off | Chassis Mount | 10.94" L x 7.00" W x 2.50" H (278.0mm x 177.8mm x 63.5mm) | CB, CE, CQC, cURus, EAC |
|

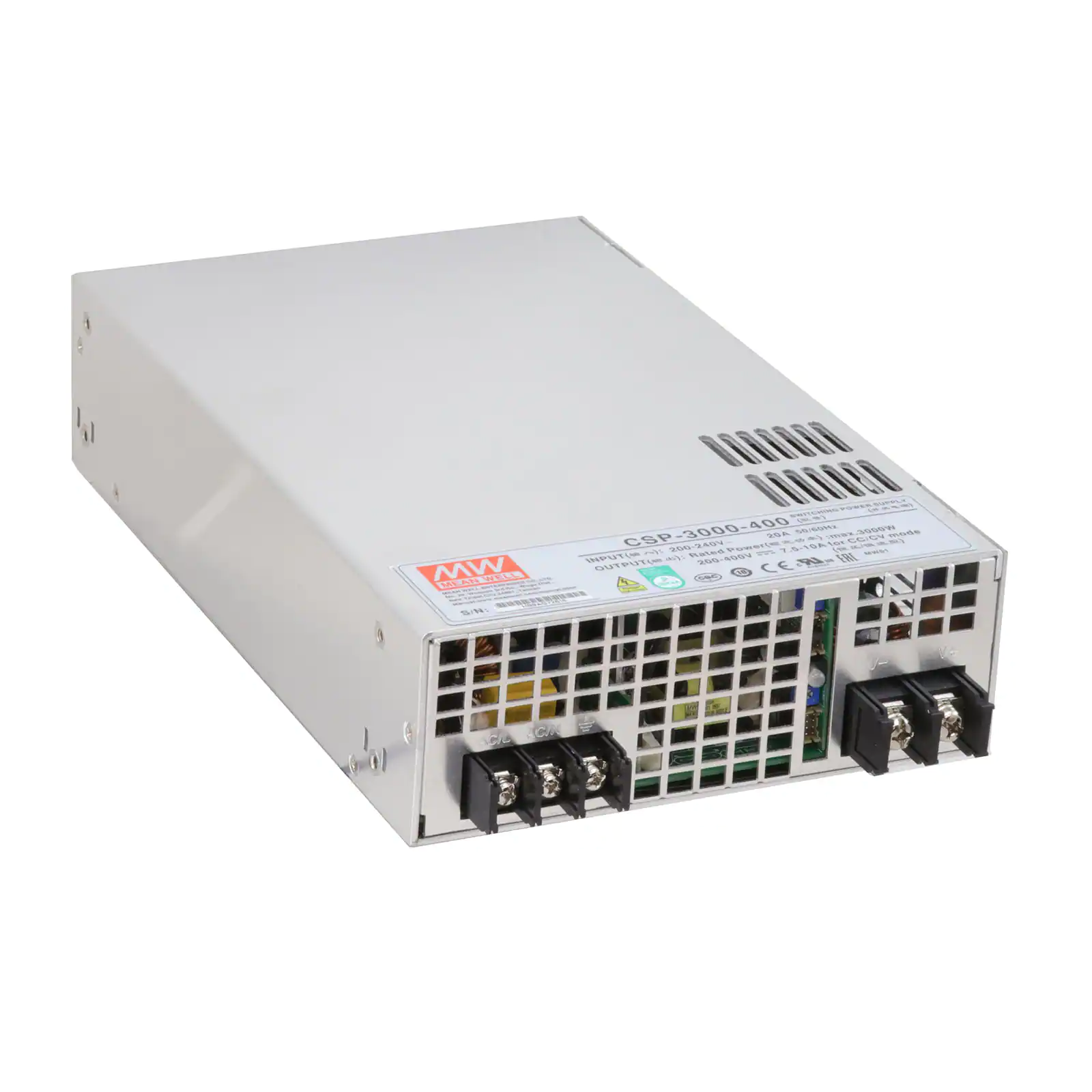

CSP-3000-400AC/DC CONVERTER 400V 3000W |
31 |
|
Технический лист |
CSP-3000 (3000W) | Box | Active | Enclosed | 1 | 180 ~ 264 VAC, 254 ~ 370 VDC | 400V | - | - | - | - | - | 7.5 A | - | - | - | - | - | 3000W | ITE (Commercial) | 3 kV | 93% | -20°C ~ 65°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off | Chassis Mount | 10.94" L x 7.00" W x 2.50" H (278.0mm x 177.8mm x 63.5mm) | CB, CE, CQC, cURus, EAC |
|
CSU2400AP-3-100AC/DC CONVERTER 12.2V 2400W |
67 |
|
Технический лист |
CSU2400AP (2400W) | Bulk | Active | Front End | 1 | 90 ~ 127 VAC, 180 ~ 264 VAC | 12.2V | - | - | - | - | - | 196.7 A | - | - | - | - | - | 2400W | ITE (Commercial) | - | 94% | -5°C ~ 55°C (With Derating) | Adjustable Output, Load Sharing, PFC, PMBus™, Standby Output | Rack Mount | 7.28" L x 2.89" W x 1.54" H (185.0mm x 73.5mm x 39.0mm) | CB, CE, CQC, cUL, EAC, KC, UL |
|
RSP-1500-12AC/DC CONVERTER 12V 1500W |
10 |
|
Технический лист |
RSP-1500 (1500W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 12V | - | - | - | - | - | 125 A | - | - | - | - | - | 1500W | ITE (Commercial) | 3 kV | 87% | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 10.94" L x 5.00" W x 3.29" H (278.0mm x 127.0mm x 83.5mm) | CB, CE, cURus, TUV |
|
|
RSP-1500-48AC/DC CONVERTER 48V 1536W |
30 |
|
Технический лист |
RSP-1500 (1500W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 48V | - | - | - | - | - | 32 A | - | - | - | - | - | 1536W | ITE (Commercial) | 3 kV | 91% | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 10.94" L x 5.00" W x 3.29" H (278.0mm x 127.0mm x 83.5mm) | CB, CE, cURus, TUV |
|
HDS800PS36AC/DC CONVERTER 36V 800W |
44 |
|
Технический лист |
HDS800 (800W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 36V | - | - | - | - | - | 22.3 A | - | - | - | - | - | 800W | ITE (Commercial) | 3 kV | 92% | -20°C ~ 70°C (With Derating) | Adjustable Output, I2C Interface, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.80" L x 5.00" W x 1.61" H (249.0mm x 127.0mm x 40.9mm) | CB, TUV, UL |
|
2904623AC/DC CONVERTER 24V 960W |
88 |
|
Технический лист |
Quint | Bulk | Active | Enclosed | 1 | 400 ~ 500 VAC (3PH), 260 ~ 300 VDC | 24V | - | - | - | - | - | 40 A | - | - | - | - | - | 960W | Industrial, ITE (Commercial) | 4 kV | 95.7% | -25°C ~ 70°C (With Derating) | IP20 | Chassis Mount | 4.92" L x 4.72" W x 5.12" H (125.0mm x 120.0mm x 130.0mm) | - |
|
RSP-1600-12AC/DC CONVERTER 12V 1500W |
63 |
|
Технический лист |
RSP-1600 (1600W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 12V | - | - | - | - | - | 125 A | - | - | - | - | - | 1500W | ITE (Commercial) | 3 kV | 89% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 11.81" L x 3.35" W x 1.61" H (300.0mm x 85.0mm x 41.0mm) | CB, CE, cURus, TUV |
|
|
RSP-1600-48AC/DC CONVERTER 48V 1608W |
37 |
|
Технический лист |
RSP-1600 (1600W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 48V | - | - | - | - | - | 33.5 A | - | - | - | - | - | 1608W | ITE (Commercial) | 3 kV | 93% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 11.81" L x 3.35" W x 1.61" H (300.0mm x 85.0mm x 41.0mm) | CB, CE, cURus, TUV |
|
LCM1500W-TAC/DC CONVERTER 48V 1500W |
107 |
|
Технический лист |
LCM1500 (1500W) | Bulk | Active | Front End | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 33 A | - | - | - | - | - | 1500W | ITE (Commercial), Medical | 4 kV | 91% | -40°C ~ 70°C (With Derating) | Adjustable Output, I2C Interface, Load Sharing, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 10.00" L x 5.20" W x 2.43" H (254.0mm x 132.0mm x 61.7mm) | BSMI, CB, CCC, CE, cURus, TUV |
|
RCP-2000-48AC/DC CONVERTER 48V 2016W |
26 |
|
Технический лист |
RCP-2000 (2000W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 48V | - | - | - | - | - | 42 A | - | - | - | - | - | 2016W | ITE (Commercial) | 3 kV | 92% | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input | Rack Mount | 11.61" L x 5.00" W x 1.61" H (295.0mm x 127.0mm x 41.0mm) | CB, CE, cURus, TUV |
|
RWS1500B-48AC/DC CONVERTER 48V 1500W |
61 |
|
Технический лист |
RWS1500B (1500W) | Bulk | Active | Enclosed | 1 | 85 ~ 265 VAC, 120 ~ 340 VDC | 48V | - | - | - | - | - | 32 A | - | - | - | - | - | 1500W | ITE (Commercial) | 4 kV | 88% | -20°C ~ 60°C (With Derating) | Adjustable Output, PFC, Remote Sense, Universal Input | Chassis Mount | 10.28" L x 5.00" W x 2.48" H (261.0mm x 127.0mm x 63.0mm) | CE |
|

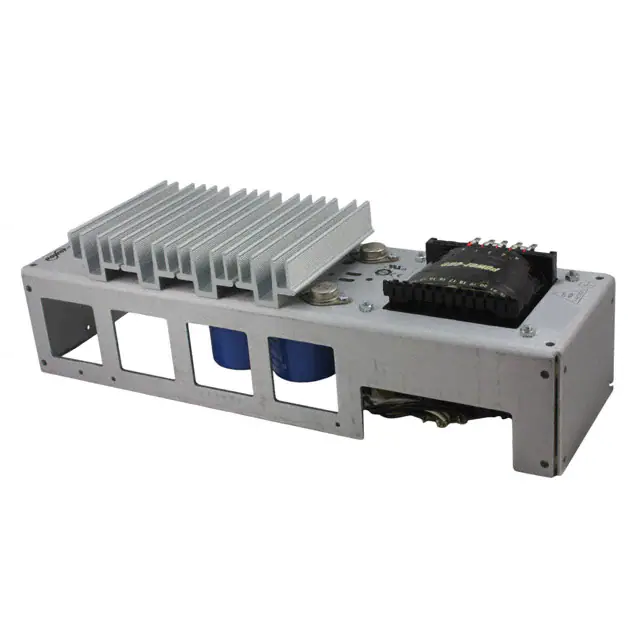

F24-12-AGAC/DC CONVERTER 24V 288W |
78 |
|
Технический лист |
Linear F | Bulk | Active | Linear | 1 | 100, 120, 220, 230, 240 VAC | 24V | - | - | - | - | - | 12 A | - | - | - | - | - | 288W | ITE (Commercial) | 4.242 kV | 60% | 0°C ~ 50°C | Adjustable Output, Remote Sense | Chassis Mount | 16.75" L x 4.88" W x 5.00" H (425.5mm x 124.0mm x 127.0mm) | CE, CSA, UL |
|
RSP-2000-48AC/DC CONVERTER 48V 2016W |
127 |
|
Технический лист |
RSP-2000 (2000W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 250 ~ 320 VDC | 48V | - | - | - | - | - | 42 A | - | - | - | - | - | 2016W | ITE (Commercial) | 3 kV | 92% | -35°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 11.60" L x 5.00" W x 1.61" H (294.6mm x 127.0mm x 41.0mm) | CB, CE, cURus, TUV |
|
|
RSP-2000-12AC/DC CONVERTER 12V 1200W |
118 |
|
Технический лист |
RSP-2000 (2000W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 250 ~ 320 VDC | 12V | - | - | - | - | - | 100 A | - | - | - | - | - | 1200W | ITE (Commercial) | 3 kV | 87% | -35°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 11.60" L x 5.00" W x 1.61" H (294.6mm x 127.0mm x 41.0mm) | CB, CE, cURus, TUV |
|
|
RSP-2000-24AC/DC CONVERTER 24V 1920W |
0 |
|
Технический лист |
RSP-2000 (2000W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 250 ~ 320 VDC | 24V | - | - | - | - | - | 80 A | - | - | - | - | - | 1920W | ITE (Commercial) | 3 kV | 90.5% | -35°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 11.60" L x 5.00" W x 1.61" H (294.6mm x 127.0mm x 41.0mm) | CB, CE, cURus, TUV |
|
|
LCM1500W-T-4AC/DC CONVERTER 48V 1500W |
130 |
|
Технический лист |
LCM1500 (1500W) | Bulk | Active | Front End | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 33 A | - | - | - | - | - | 1500W | ITE (Commercial), Medical | 4 kV | 91% | -40°C ~ 70°C (With Derating) | Adjustable Output, I2C Interface, Load Sharing, PFC, PMBus™, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 10.00" L x 5.20" W x 2.43" H (254.0mm x 132.0mm x 61.7mm) | BSMI, CB, CCC, CE, cURus, TUV |
|

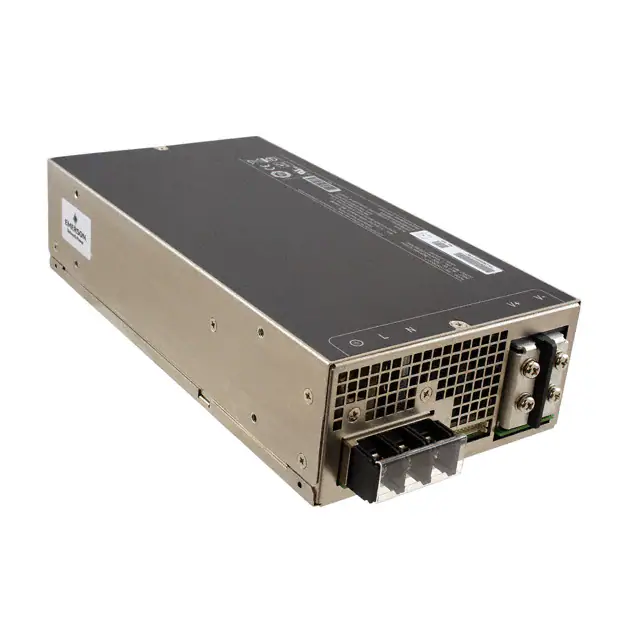

LCM1500Q-T-4AC/DC CONVERTER 24V 1500W |
177 |
|
Технический лист |
LCM1500 (1500W) | Bulk | Active | Front End | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 67 A | - | - | - | - | - | 1500W | ITE (Commercial), Medical | 4 kV | 91% | -40°C ~ 70°C (With Derating) | Adjustable Output, I2C Interface, Load Sharing, PFC, PMBus™, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 10.00" L x 5.20" W x 2.43" H (254.0mm x 132.0mm x 61.7mm) | BSMI, CB, CCC, CE, cURus, TUV |
|

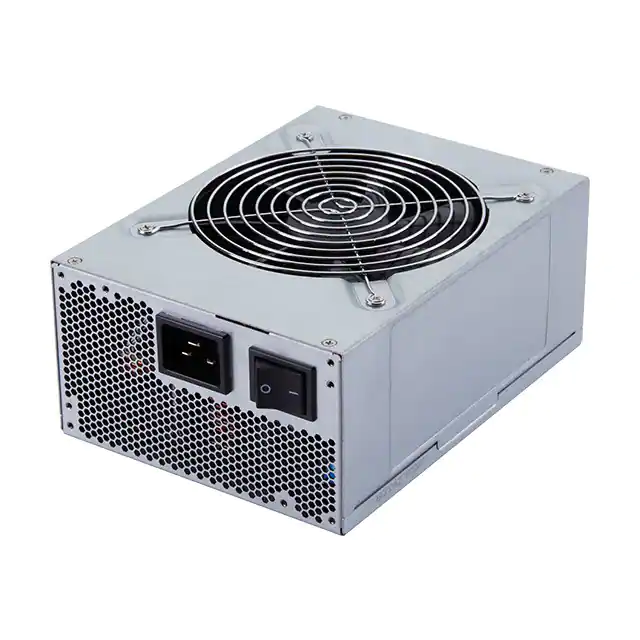

FSP2000-52AGPBIAC/DC CNVRT 3.3V 5V +/-12V 2213W |
47 |
|
Технический лист |
FSP2000-52AGPBI (2213W) | Box | Active | ATX | 4 | 90 ~ 264 VAC | 3.3V | 5V | 12V | -12V | - | - | 25 A | 25 A | 166.6 A | 500 mA | - | - | 2213W | ITE (Commercial) | - | 80% | 0°C ~ 50°C | Standby Output, Universal Input | Benchtop | 7.87" L x 5.91" W x 3.39" H (199.9mm x 150.1mm x 86.1mm) | CE, cURus, TUV |
|
RSP-2400-48AC/DC CONVERTER 48V 2400W |
30 |
|
Технический лист |
RSP-2400 (2400W) | Box | Active | Enclosed | 1 | 180 ~ 264 VAC, 254 ~ 370 VDC | 48V | - | - | - | - | - | 50 A | - | - | - | - | - | 2400W | ITE (Commercial) | 3 kV | 91.5% | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote On/Off, Remote Sense | Chassis Mount | 10.94" L x 7.00" W x 2.50" H (278.0mm x 177.8mm x 63.5mm) | CB, CE, cURus, TUV |
