Преобразователи переменного и постоянного тока
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - Вход | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - Выход 1 | Ток - Выход 2 | Ток - Выход 3 | Ток - Выход 4 | Ток - Выход 5 | Ток - Выход 6 | Мощность (Вт) | Применение | Напряжение - Изоляция | Эффективность | Рабочая температура | Особенности | Тип крепления | Размер/измерение | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

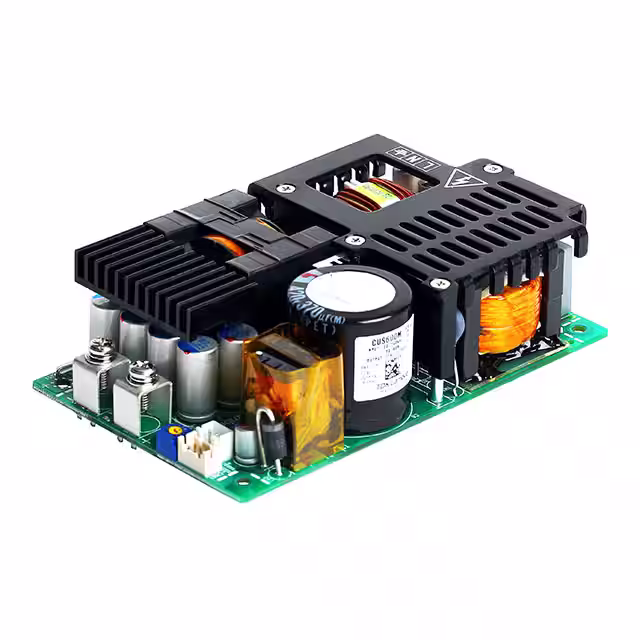

CUS600M-19AC/DC CONVERTER 19V 401W |
48 |
|
Технический лист |
CUS600M (600W) | Box | Active | Open Frame | 1 | 85 ~ 265 VAC | 19V | - | - | - | - | - | 21.1 A | - | - | - | - | - | 401W (600W Forced Air) | ITE (Commercial), Medical | 4 kV | 96% | -20°C ~ 70°C (With Derating) | Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.34" H (127.0mm x 76.2mm x 34.0mm) | CE |
|
VF-D320-D1224A-CFSAC/DC CONVERTER 12V 24V 320W |
1,702 |
|
Технический лист |
VF-D320-D (300W) | Box | Active | Enclosed | 2 | 90 ~ 132 VAC, 180 ~ 264 VAC | 12V | 24V | - | - | - | - | 16.67 A | 8.33 A | - | - | - | - | 320W | ITE (Commercial) | 3 kV | 75% | 0°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 7.00" L x 4.00" W x 1.60" H (177.8mm x 101.6mm x 40.6mm) | CB Scheme, EN, IEC, SIQ, TUV, UL |
|
PEC550-12-074NAAC/DC CONVERTER 12V 540W |
100 |
|
Технический лист |
PEC550 (550W) | Box | Active | Front End | 1 | 90 ~ 264 VAC, 180 ~ 300 VDC | 12V | - | - | - | - | - | 45 A | - | - | - | - | - | 540W | ITE (Commercial) | 3 kV | 94% | 0°C ~ 55°C | Adjustable Output, Load Sharing, Remote Sense, Standby Output, Universal Input | Rack Mount | 7.28" L x 2.89" W x 1.57" H (185.0mm x 73.5mm x 40.0mm) | CE |
|
CNS658-MUAC/DC CONVERTER 48V 400W |
265 |
|
Технический лист |
CNS650-M (650W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 8.3 A | - | - | - | - | - | 400W (650W Forced Air) | ITE (Commercial), Medical | 4 kV | - | -20°C ~ 80°C (With Derating) | Adjustable Output, Load Sharing, PFC, PMBus™ Interface, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 6.00" L x 4.00" W x 1.54" H (152.4mm x 101.6mm x 39.2mm) | CE |
|

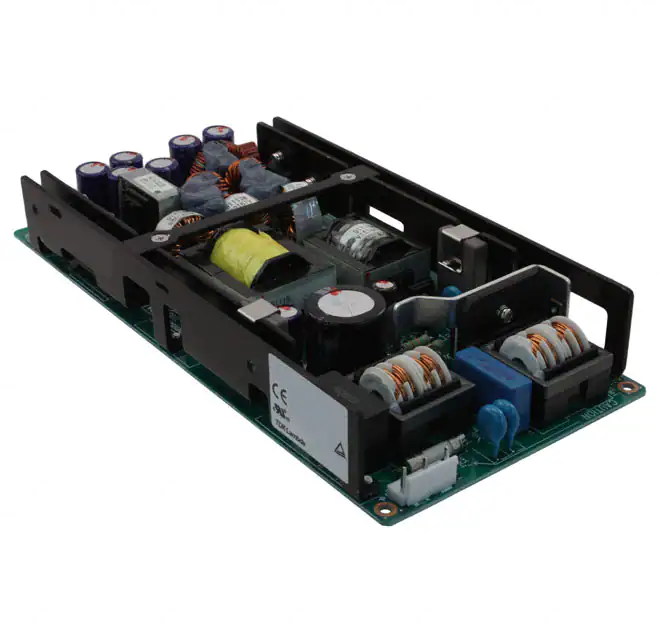

ZWQ130-5224AC/DC CNVRTR 5V +/-12V 24V 130W |
31 |
|
Технический лист |
ZWQ (130W) | Bulk | Active | Open Frame | 4 | 85 ~ 265 VAC | 5V | 12V | -12V | 24V | - | - | 15 A | 4 A | 4 A | 2 A | - | - | 130W | ITE (Commercial) | 3 kV | 72% | -10°C ~ 60°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 8.86" L x 4.17" W x 1.38" H (225.0mm x 106.0mm x 35.0mm) | CE |
|
|
CNS655-MUAC/DC CONVERTER 24V 400W |
221 |
|
Технический лист |
CNS650-M (650W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 16.7 A | - | - | - | - | - | 400W (650W Forced Air) | ITE (Commercial), Medical | 4 kV | - | -20°C ~ 80°C (With Derating) | Adjustable Output, Load Sharing, PFC, PMBus™ Interface, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 6.00" L x 4.00" W x 1.54" H (152.4mm x 101.6mm x 39.2mm) | CE |
|
ABC400-1048GAC/DC CONVERTER 48V 400W |
180 |
|
Технический лист |
ABC400 (400W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 8.5 A | - | - | - | - | - | 400W | ITE (Commercial) | 4.242 kV | 90% | -10°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.50" H (127.0mm x 76.2mm x 38.1mm) | CB, CE |
|
|
ABC400-1012GAC/DC CONVERTER 12V 400W |
0 |
|
Технический лист |
ABC400 (400W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 30 A | - | - | - | - | - | 400W | ITE (Commercial) | 4.242 kV | 90% | -10°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.50" H (127.0mm x 76.2mm x 38.1mm) | CB, CE |
|
RSP-750-12AC/DC CONVERTER 12V 750W |
0 |
|
Технический лист |
RSP-750 (750W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 12V | - | - | - | - | - | 62.5 A | - | - | - | - | - | 750W | ITE (Commercial) | 3 kV | 87% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | CB, CE, cURus, TUV |
|
|
RSP-750-24AC/DC CONVERTER 24V 751W |
44 |
|
Технический лист |
RSP-750 (750W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 24V | - | - | - | - | - | 31.3 A | - | - | - | - | - | 751W | ITE (Commercial) | 3 kV | 90.5% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | CB, CE, cURus, TUV |
|
|
RSP-750-5AC/DC CONVERTER 5V 500W |
11 |
|
Технический лист |
RSP-750 (750W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 5V | - | - | - | - | - | 100 A | - | - | - | - | - | 500W | ITE (Commercial) | 3 kV | 82% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | CB, CE, cURus, TUV |
|
|
RSP-750-48AC/DC CONVERTER 48V 754W |
39 |
|
Технический лист |
RSP-750 (750W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 48V | - | - | - | - | - | 15.7 A | - | - | - | - | - | 754W | ITE (Commercial) | 3 kV | 92% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | CB, CE, cURus, TUV |
|
|
RSP-750-27AC/DC CONVERTER 27V 751W |
7 |
|
Технический лист |
RSP-750 (750W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 27V | - | - | - | - | - | 27.8 A | - | - | - | - | - | 751W | ITE (Commercial) | 3 kV | 90.5% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | CB, CE, cURus, TUV |
|
MSP-600-48AC/DC CONVERTER 48V 624W |
45 |
|
Технический лист |
MSP-600 (600W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 48V | - | - | - | - | - | 13 A | - | - | - | - | - | 624W | Medical | 4 kV | 89% | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 8.58" L x 4.13" W x 2.50" H (218.0mm x 105.0mm x 63.5mm) | CB, CE, cURus |
|
|
MSP-600-24AC/DC CONVERTER 24V 648W |
43 |
|
Технический лист |
MSP-600 (600W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 24V | - | - | - | - | - | 27 A | - | - | - | - | - | 648W | Medical | 4 kV | 88% | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 8.58" L x 4.13" W x 2.50" H (218.0mm x 105.0mm x 63.5mm) | CB, CE, cURus |
|
HEP-480-48AAC/DC CONVERTER 48V 480W |
240 |
|
Технический лист |
HEP-480 (480W) | Box | Active | Enclosed | 1 | 90 ~ 305 VAC, 127 ~ 431 VDC | 48V | - | - | - | - | - | 10 A | - | - | - | - | - | 480W | ITE (Commercial) | 3.75 kV | 94.5% | -55°C ~ 65°C (With Derating) | Adjustable Output, IP65, PFC, Universal Input | Chassis Mount | 10.31" L x 4.92" W x 1.72" H (262.0mm x 125.0mm x 43.8mm) | CB, CE, cURus |
|
|
HEP-480-24AAC/DC CONVERTER 24V 480W |
62 |
|
Технический лист |
HEP-480 (480W) | Box | Active | Enclosed | 1 | 90 ~ 305 VAC, 127 ~ 431 VDC | 24V | - | - | - | - | - | 20 A | - | - | - | - | - | 480W | ITE (Commercial) | 3.75 kV | 94% | -55°C ~ 65°C (With Derating) | Adjustable Output, IP65, PFC, Universal Input | Chassis Mount | 10.31" L x 4.92" W x 1.72" H (262.0mm x 125.0mm x 43.8mm) | CB, CE, cURus |
|
UHP-750-24AC/DC CONVERTER 24V 751W |
48 |
|
Технический лист |
UHP-750 (750W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 24V | - | - | - | - | - | 31.3 A | - | - | - | - | - | 751W | Household Appliances, ITE (Commercial) | 3.75 kV | 95% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 9.33" L x 3.94" W x 1.61" H (237.0mm x 100.0mm x 41.0mm) | CB, CE, cURus, EAC, TUV |
|
|
UHP-750-12AC/DC CONVERTER 12V 720W |
42 |
|
Технический лист |
UHP-750 (750W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 12V | - | - | - | - | - | 60 A | - | - | - | - | - | 720W | Household Appliances, ITE (Commercial) | 3.75 kV | 93.5% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 9.33" L x 3.94" W x 1.61" H (237.0mm x 100.0mm x 41.0mm) | CB, CE, cURus, EAC, TUV |
|
|
UHP-750-36AC/DC CONVERTER 36V 752W |
39 |
|
Технический лист |
UHP-750 (750W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 36V | - | - | - | - | - | 20.9 A | - | - | - | - | - | 752W | Household Appliances, ITE (Commercial) | 3.75 kV | 95% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 9.33" L x 3.94" W x 1.61" H (237.0mm x 100.0mm x 41.0mm) | CB, CE, cURus, EAC, TUV |
