Преобразователи переменного и постоянного тока
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - Вход | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - Выход 1 | Ток - Выход 2 | Ток - Выход 3 | Ток - Выход 4 | Ток - Выход 5 | Ток - Выход 6 | Мощность (Вт) | Применение | Напряжение - Изоляция | Эффективность | Рабочая температура | Особенности | Тип крепления | Размер/измерение | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1011029CHNXT-325-1004,RE STBY CH |
50 |
|
Технический лист |
NXT-325 (350W) | Box | Active | Chassis | 1 | 100 ~ 240 VAC | 12V | - | - | - | - | - | 29.2 A | - | - | - | - | - | 350W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 6.20" L x 4.00" W x 1.75" H (157.5mm x 101.6mm x 44.5mm) | CE, cURus, TUV, UKCA |
|
B24G170AC/DC CONVERTER |
999 |
|
Технический лист |
B | Bulk | Active | Enclosed | 1 | 105 ~ 125 VAC | 24V | - | - | - | - | - | 1.7 A | - | - | - | - | - | - | ITE (Commercial) | - | - | 0°C ~ 71°C | Adjustable Output | Chassis Mount | 5.12" L x 5.09" W x 3.44" H (130.0mm x 129.3mm x 87.4mm) | CE, cURus |
|
|
TD15-40AC/DC CONVERTER |
998 |
|
Технический лист |
- | Bulk | Active | Enclosed | 2 | 105 ~ 125 VAC | 15V | -15V | - | - | - | - | 400 mA | 400 mA | - | - | - | - | - | ITE (Commercial) | - | - | -10°C ~ 71°C | Adjustable Output, Remote Sense | Chassis Mount | 5.09" L x 5.12" W x 3.44" H (129.3mm x 130.0mm x 87.4mm) | CE, cURus |
|

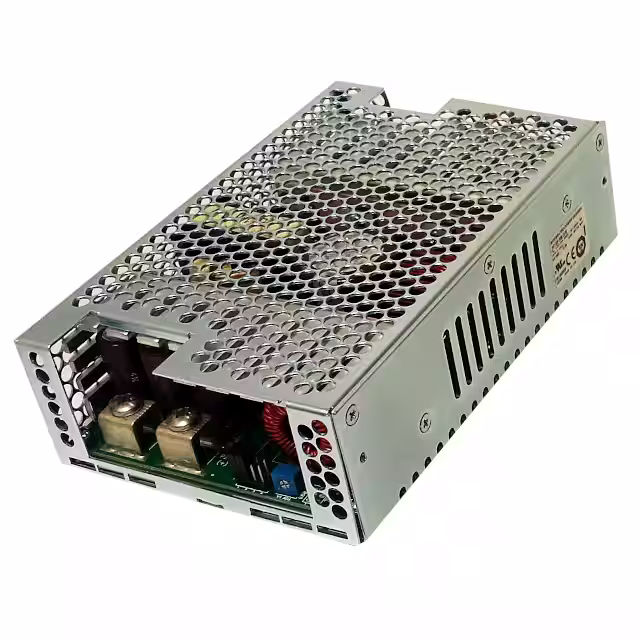

1011004CHCONXT-325-1003,LS CHCO |
50 |
|
Технический лист |
NXT-325 (350W) | Box | Active | Enclosed | 1 | 100 ~ 240 VAC | 5V | - | - | - | - | - | 65 A | - | - | - | - | - | 325W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 6.20" L x 4.00" W x 1.75" H (157.5mm x 101.6mm x 44.5mm) | CE, cURus, TUV, UKCA |
|
1011015NXT-325-1006,LS-RE |
50 |
|
Технический лист |
NXT-325 (350W) | Box | Active | Open Frame | 1 | 100 ~ 240 VAC | 24V | - | - | - | - | - | 14.6 A | - | - | - | - | - | 350W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 6.00" L x 3.87" W x 1.50" H (152.4mm x 98.3mm x 38.0mm) | CE, cURus, TUV, UKCA |
|
|
1011010NXT-325-1001,LS-RE |
50 |
|
Технический лист |
NXT-325 (350W) | Box | Active | Open Frame | 1 | 100 ~ 240 VAC | 2.5V | - | - | - | - | - | 65 A | - | - | - | - | - | 325W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 6.00" L x 3.87" W x 1.50" H (152.4mm x 98.3mm x 38.0mm) | CE, cURus, TUV, UKCA |
|
|
1011008CHCONXT-325-1007,LS CHCO |
50 |
|
Технический лист |
NXT-325 (350W) | Box | Active | Enclosed | 1 | 100 ~ 240 VAC | 28V | - | - | - | - | - | 11.6 A | - | - | - | - | - | 350W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 6.20" L x 4.00" W x 1.75" H (157.5mm x 101.6mm x 44.5mm) | CE, cURus, TUV, UKCA |
|
|
1011009CHCONXT-325-1008,LS CHCO |
50 |
|
Технический лист |
NXT-325 (350W) | Box | Active | Enclosed | 1 | 100 ~ 240 VAC | 48V | - | - | - | - | - | 7.3 A | - | - | - | - | - | 350W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 6.20" L x 4.00" W x 1.75" H (157.5mm x 101.6mm x 44.5mm) | CE, cURus, TUV, UKCA |
|
|
1011006CHCONXT-325-1005,LS CHCO |
50 |
|
Технический лист |
NXT-325 (350W) | Box | Active | Enclosed | 1 | 100 ~ 240 VAC | 15V | - | - | - | - | - | 23.3 A | - | - | - | - | - | 350W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 6.20" L x 4.00" W x 1.75" H (157.5mm x 101.6mm x 44.5mm) | CE, cURus, TUV, UKCA |
|
|
1011003CHCONXT-325-1002,LS CHCO |
50 |
|
Технический лист |
NXT-325 (350W) | Box | Active | Enclosed | 1 | 100 ~ 240 VAC | 3.3V | - | - | - | - | - | 65 A | - | - | - | - | - | 325W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 6.20" L x 4.00" W x 1.75" H (157.5mm x 101.6mm x 44.5mm) | CE, cURus, TUV, UKCA |
|
|
1011011NXT-325-1002,LS-RE |
50 |
|
Технический лист |
NXT-325 (350W) | Box | Active | Open Frame | 1 | 100 ~ 240 VAC | 3.3V | - | - | - | - | - | 65 A | - | - | - | - | - | 325W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 6.00" L x 3.87" W x 1.50" H (152.4mm x 98.3mm x 38.0mm) | CE, cURus, TUV, UKCA |
|
|
1011007CHCONXT-325-1006,LS CHCO |
50 |
|
Технический лист |
NXT-325 (350W) | Box | Active | Enclosed | 1 | 100 ~ 240 VAC | 24V | - | - | - | - | - | 14.6 A | - | - | - | - | - | 350W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 6.20" L x 4.00" W x 1.75" H (157.5mm x 101.6mm x 44.5mm) | CE, cURus, TUV, UKCA |
|
|
1011005CHCONXT-325-1004,LS CHCO |
50 |
|
Технический лист |
NXT-325 (350W) | Box | Active | Enclosed | 1 | 100 ~ 240 VAC | 12V | - | - | - | - | - | 29.2 A | - | - | - | - | - | 350W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 6.20" L x 4.00" W x 1.75" H (157.5mm x 101.6mm x 44.5mm) | CE, cURus, TUV, UKCA |
|
|
1011002CHCONXT-325-1001,LS CHCO |
50 |
|
Технический лист |
NXT-325 (350W) | Box | Active | Enclosed | 1 | 100 ~ 240 VAC | 2.5V | - | - | - | - | - | 65 A | - | - | - | - | - | 325W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 6.20" L x 4.00" W x 1.75" H (157.5mm x 101.6mm x 44.5mm) | CE, cURus, TUV, UKCA |
|
|
1011013NXT-325-1004,LS-RE |
26 |
|
Технический лист |
NXT-325 (350W) | Box | Active | Open Frame | 1 | 100 ~ 240 VAC | 12V | - | - | - | - | - | 29.2 A | - | - | - | - | - | 350W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 6.00" L x 3.87" W x 1.50" H (152.4mm x 98.3mm x 38.0mm) | CE, cURus, TUV, UKCA |
|
|
1011032CHCONXT-325-1007,RE STBY CHCO |
50 |
|
Технический лист |
NXT-325 (350W) | Box | Active | Enclosed | 1 | 100 ~ 240 VAC | 28V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 350W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 6.20" L x 4.00" W x 1.75" H (157.5mm x 101.6mm x 44.5mm) | CE, cURus, TUV, UKCA |
|
|
1011030CHCONXT-325-1005,RE STBY CHCO |
50 |
|
Технический лист |
NXT-325 (350W) | Box | Active | Enclosed | 1 | 100 ~ 240 VAC | 15V | - | - | - | - | - | 23.3 A | - | - | - | - | - | 350W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 6.20" L x 4.00" W x 1.75" H (157.5mm x 101.6mm x 44.5mm) | CE, cURus, TUV, UKCA |
|
|
1011026CHCONXT-325-1001,RE STBY CHCO |
50 |
|
Технический лист |
NXT-325 (350W) | Box | Active | Enclosed | 1 | 100 ~ 240 VAC | 2.5V | - | - | - | - | - | 65 A | - | - | - | - | - | 325W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 6.20" L x 4.00" W x 1.75" H (157.5mm x 101.6mm x 44.5mm) | CE, cURus, TUV, UKCA |
|
|
1011033CHCONXT-325-1008,RE STBY CHCO |
50 |
|
Технический лист |
NXT-325 (350W) | Box | Active | Enclosed | 1 | 100 ~ 240 VAC | 48V | - | - | - | - | - | 7.3 A | - | - | - | - | - | 350W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 6.20" L x 4.00" W x 1.75" H (157.5mm x 101.6mm x 44.5mm) | CE, cURus, TUV, UKCA |
|
|
1011029CHCONXT-325-1004,RE STBY CHCO |
50 |
|
Технический лист |
NXT-325 (350W) | Box | Active | Enclosed | 1 | 100 ~ 240 VAC | 12V | - | - | - | - | - | 29.2 A | - | - | - | - | - | 350W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 6.20" L x 4.00" W x 1.75" H (157.5mm x 101.6mm x 44.5mm) | CE, cURus, TUV, UKCA |
