Преобразователи переменного и постоянного тока
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - Вход | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - Выход 1 | Ток - Выход 2 | Ток - Выход 3 | Ток - Выход 4 | Ток - Выход 5 | Ток - Выход 6 | Мощность (Вт) | Применение | Напряжение - Изоляция | Эффективность | Рабочая температура | Особенности | Тип крепления | Размер/измерение | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1010236CHSRW-115-4011 CH |
50 |
|
Технический лист |
SRW-115 (115W) | Box | Not For New Designs | Chassis | 4 | 100 ~ 240 VAC | 5V | 15V | 24V | -15V | - | - | 5 A | 1 A | 5 A | 1 A | - | - | 130W | Industrial, ITE (Commercial) | - | 76% | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 7.18" L x 4.42" W x 1.75" H (182.4mm x 112.3mm x 44.5mm) | CE, TUV, UKCA |
|
|
1010090CHSRW-115-4005 CH |
50 |
|
Технический лист |
SRW-115 (115W) | Box | Not For New Designs | Chassis | 4 | 100 ~ 240 VAC | 5V | 12V | 24V | -12V | - | - | 12 A | 1 A | 3 A | 1 A | - | - | 115W | Industrial, ITE (Commercial) | - | 76% | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 7.18" L x 4.42" W x 1.75" H (182.4mm x 112.3mm x 44.5mm) | CE, TUV, UKCA |
|
|
1010087CHSRW-115-4002 CH |
50 |
|
Технический лист |
SRW-115 (115W) | Box | Not For New Designs | Chassis | 4 | 100 ~ 240 VAC | 5V | 24V | 12V | -12V | - | - | 12 A | 1 A | 4 A | 2 A | - | - | 115W | Industrial, ITE (Commercial) | - | 76% | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 7.18" L x 4.42" W x 1.75" H (182.4mm x 112.3mm x 44.5mm) | CE, TUV, UKCA |
|
|
1010088CHSRW-115-4003 CH |
50 |
|
Технический лист |
SRW-115 (115W) | Box | Not For New Designs | Chassis | 4 | 100 ~ 240 VAC | 5V | -5V | 15V | -15V | - | - | 12 A | 4 A | 3 A | 2 A | - | - | 115W | Industrial, ITE (Commercial) | - | 76% | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 7.18" L x 4.42" W x 1.75" H (182.4mm x 112.3mm x 44.5mm) | CE, TUV, UKCA |
|
HE15-9-AGAC/DC CONVERTER 15V 135W |
0 |
|
Технический лист |
Linear E | Bulk | Obsolete | Linear | 1 | 100, 120, 220, 230, 240 VAC | 15V | - | - | - | - | - | 9 A | - | - | - | - | - | 135W | ITE (Commercial) | 3 kV | 55% | 0°C ~ 50°C | Adjustable Output, Remote Sense | Chassis Mount | 14.00" L x 4.87" W x 3.53" H (355.6mm x 123.7mm x 89.7mm) | - |
|
MU425S12EAC/DC CONVERTER 12V 300W |
0 |
|
Технический лист |
MU425S (425W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 22 A | - | - | - | - | - | 300W (425W Forced Air) | ITE (Commercial) | 1.5 kV | 88% | -10°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 6.20" L x 3.30" W x 1.62" H (157.4mm x 83.8mm x 41.1mm) | CE |
|
|
MU425S18EAC/DC CONVERTER 18V 300W |
0 |
|
Технический лист |
MU425S (425W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 18V | - | - | - | - | - | 14.6 A | - | - | - | - | - | 300W (425W Forced Air) | ITE (Commercial) | 1.5 kV | 88% | -10°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 6.20" L x 3.30" W x 1.62" H (157.4mm x 83.8mm x 41.1mm) | CE |
|

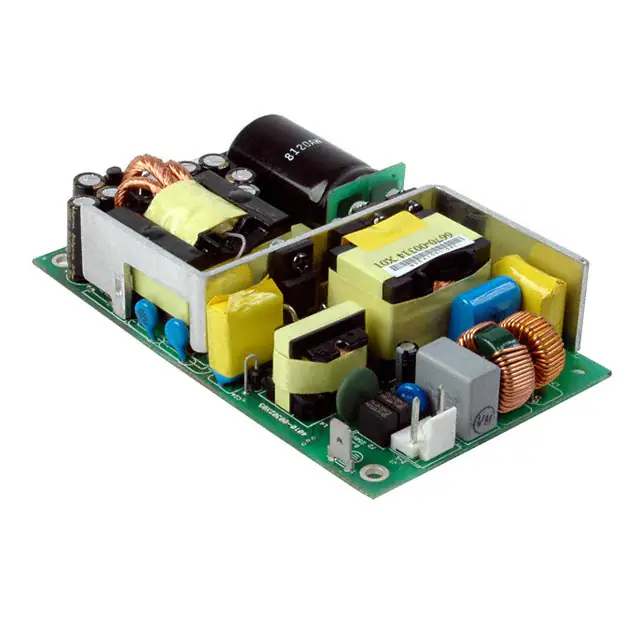

VMS-365-12AC/DC CONVERTER 12V 365W |
0 |
|
Технический лист |
VMS-365 (365W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 30.4 A | - | - | - | - | - | 365W | Medical | 5.656 kV | 90% | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.17" H (127.0mm x 76.2mm x 29.6mm) | CCC, CE, cURus, VDE |
|
VMS-550-48AC/DC CONVERTER 48V 150W |
0 |
|
Технический лист |
VMS-550 (550W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 3.13 A | - | - | - | - | - | 150W (550W Forced Air) | Medical | 4.2 kV | 92% | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.50" H (127.0mm x 76.2mm x 38.1mm) | CB Scheme, EN, FCC, IEC, TUV, UL |
|
ADA600F-48AC/DC CONVERTER 48V 336W |
38 |
|
Технический лист |
ADA (600W) | Box | Obsolete | Enclosed | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 7 A | - | - | - | - | - | 336W (600W Forced Air) | ITE (Commercial) | 3 kV | 89% | -10°C ~ 71°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 7.68" L x 5.00" W x 2.56" H (195.0mm x 127.0mm x 65.0mm) | CE, CSA, cURus, TUV, UL |
|
DB15-30-230AC/DC CONVERTER |
997 |
|
Технический лист |
- | Bulk | Active | Enclosed | 2 | 210 ~ 250 VAC | 15V | -15V | - | - | - | - | 300 mA | 300 mA | - | - | - | - | - | ITE (Commercial) | - | - | -20°C ~ 71°C | Adjustable Output | Chassis Mount | 3.53" L x 2.53" W x 1.65" H (89.7mm x 64.3mm x 41.9mm) | CE, cURus |
|
|
24EB35-230AC/DC CONVERTER |
498 |
|
Технический лист |
- | Bulk | Active | Enclosed | 1 | 210 ~ 250 VAC | 24V | - | - | - | - | - | 350 mA | - | - | - | - | - | - | ITE (Commercial) | - | - | -20°C ~ 71°C | Adjustable Output, Universal Input | Chassis Mount | 3.53" L x 2.53" W x 1.65" H (89.7mm x 64.3mm x 41.9mm) | CE, cURus |
|
VMS-300-48AC/DC CONVERTER 48V 300W |
0 |
|
Технический лист |
VMS-300 (300W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 6.25 A | - | - | - | - | - | 300W | Medical | 4 kV | 84% | 0°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.20" W x 1.50" H (127.0mm x 81.3mm x 38.1mm) | CB Scheme, CSA, EN, IEC, TUV |
|
1010236CHCOSRW-115-4011 CHCO |
50 |
|
Технический лист |
SRW-115 (115W) | Box | Not For New Designs | Enclosed | 4 | 100 ~ 240 VAC | 5V | 15V | 24V | -15V | - | - | 5 A | 1 A | 5 A | 1 A | - | - | 130W | Industrial, ITE (Commercial) | - | 76% | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 7.18" L x 4.42" W x 1.75" H (182.4mm x 112.3mm x 44.5mm) | CE, TUV, UKCA |
|
|
1010088CHCOSRW-115-4003 CHCO |
50 |
|
Технический лист |
SRW-115 (115W) | Box | Not For New Designs | Enclosed | 4 | 100 ~ 240 VAC | 5V | -5V | 15V | -15V | - | - | 12 A | 4 A | 3 A | 2 A | - | - | 115W | Industrial, ITE (Commercial) | - | 76% | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 7.18" L x 4.42" W x 1.75" H (182.4mm x 112.3mm x 44.5mm) | CE, TUV, UKCA |
|
|
1010086CHCOSRW-115-4001 CHCO |
50 |
|
Технический лист |
SRW-115 (115W) | Box | Not For New Designs | Enclosed | 4 | 100 ~ 240 VAC | 5V | -5V | 12V | -12V | - | - | 12 A | 4 A | 4 A | 2 A | - | - | 115W | Industrial, ITE (Commercial) | - | 76% | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 7.18" L x 4.42" W x 1.75" H (182.4mm x 112.3mm x 44.5mm) | CE, TUV, UKCA |
|
|
1010090CHCOSRW-115-4005 CHCO |
50 |
|
Технический лист |
SRW-115 (115W) | Box | Not For New Designs | Enclosed | 4 | 100 ~ 240 VAC | 5V | 12V | 24V | -12V | - | - | 12 A | 1 A | 3 A | 1 A | - | - | 115W | Industrial, ITE (Commercial) | - | 76% | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 7.18" L x 4.42" W x 1.75" H (182.4mm x 112.3mm x 44.5mm) | CE, TUV, UKCA |
|
|
1010836CHCOSRW-115-4021 CHCO |
50 |
|
Технический лист |
SRW-115 (115W) | Box | Not For New Designs | Enclosed | 4 | 100 ~ 240 VAC | 6V | -6V | 13V | -13V | - | - | 12 A | 4 A | 4 A | 2 A | - | - | 115W | Industrial, ITE (Commercial) | - | 76% | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 7.18" L x 4.42" W x 1.75" H (182.4mm x 112.3mm x 44.5mm) | CE, TUV, UKCA |
|
|
1010089CHCOSRW-115-4004 CHCO |
50 |
|
Технический лист |
SRW-115 (115W) | Box | Not For New Designs | Enclosed | 4 | 100 ~ 240 VAC | 5V | 24V | 15V | -15V | - | - | 12 A | 1 A | 3 A | 2 A | - | - | 115W | Industrial, ITE (Commercial) | - | 76% | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 7.18" L x 4.42" W x 1.75" H (182.4mm x 112.3mm x 44.5mm) | CE, TUV, UKCA |
|
|
1010087CHCOSRW-115-4002 CHCO |
50 |
|
Технический лист |
SRW-115 (115W) | Box | Not For New Designs | Enclosed | 4 | 100 ~ 240 VAC | 5V | 24V | 12V | -12V | - | - | 12 A | 1 A | 4 A | 2 A | - | - | 115W | Industrial, ITE (Commercial) | - | 76% | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 7.18" L x 4.42" W x 1.75" H (182.4mm x 112.3mm x 44.5mm) | CE, TUV, UKCA |
